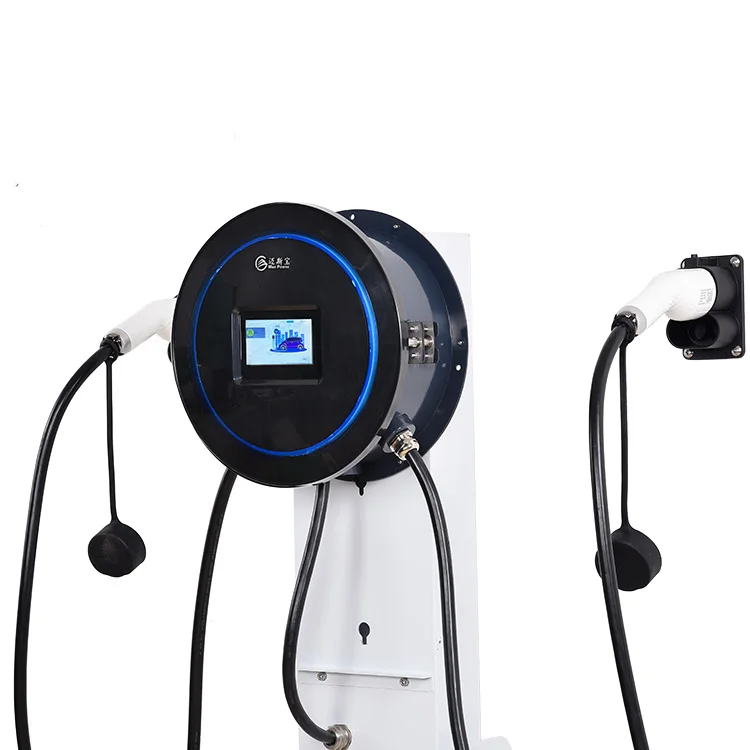

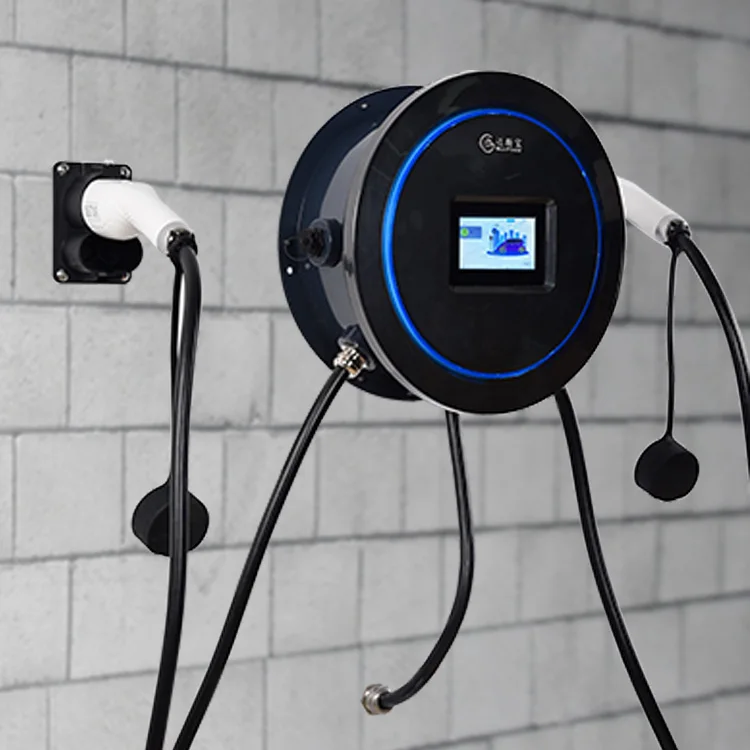

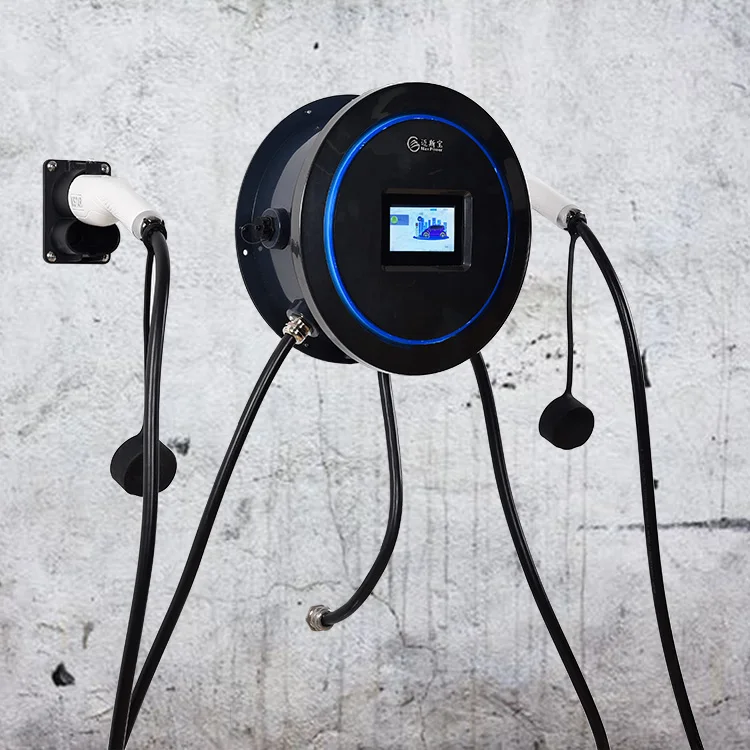

Прямая продажа с фабрики ocpp wifi двойной пистолет домашний ccs Тип 2 22kw ev зарядная
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Guangzhou,Max,Power,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 712.74 $* | 748.64 $* |
| Aug-19-2025 | 706.15 $* | 741.88 $* |
| Jul-19-2025 | 592.11 $* | 622.83 $* |
| Jun-19-2025 | 694.85 $* | 729.99 $* |
| May-19-2025 | 604.71 $* | 634.87 $* |
| Apr-19-2025 | 682.96 $* | 716.92 $* |
| Mar-19-2025 | 676.5 $* | 710.5 $* |
| Feb-19-2025 | 670.57 $* | 704.38 $* |
| Jan-19-2025 | 664.57 $* | 697.13 $* |
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description
Innovativeness
Acrylic panel, modern design Business use with intelligent App control WiFi Mesh technique, saving cost on wire installation
Intelligent Control

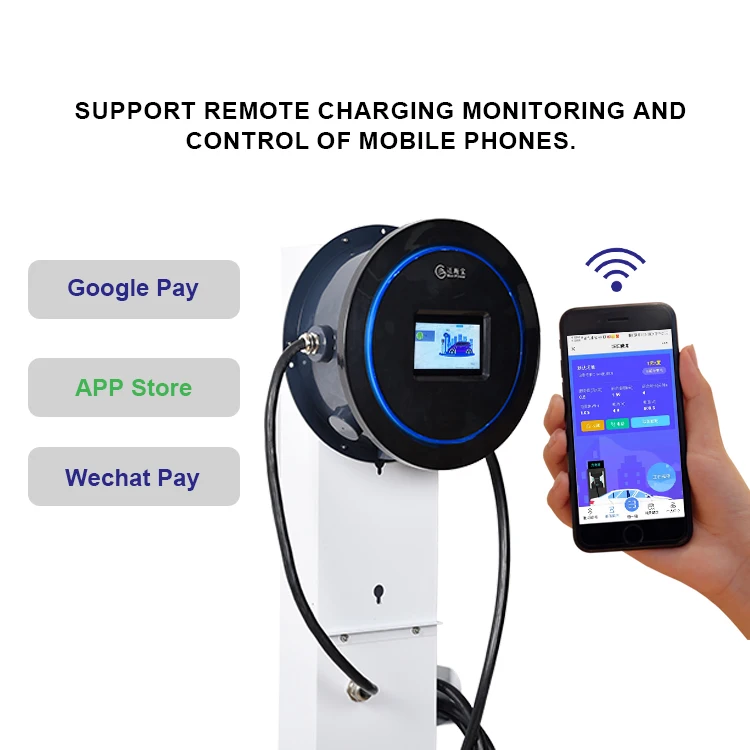

Wireless communication (Wi-Fi), Ethernet/4G optional OCPP communication protocol with the backend Intelligent operation by App and cashless payment
Flexible Option

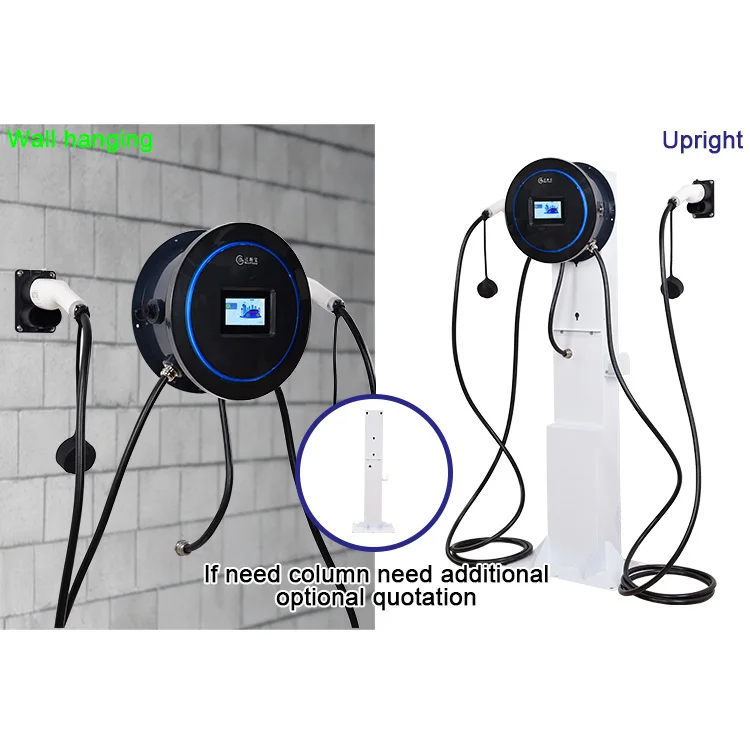

Universal Type 2 socket, optional with Type 1/Type 2 charging cable App operation or RFID authentication or plug and play Wall-mounted or floor-stand installation
Secure and Safe
RCD Type A and 6mA DC residual current protection MID certified energy meter with accurate measurement
Production Parameters | ||||||
MODEL | AB11016/AL11016 | AB22032/AL22032 | AB43064/AL43064 | |||
Input voltage | AC380V(L1+L2+L3+PE) | |||||
Frequency | 50Hz | |||||
Output voltage | 380V/400V AC 3PHASE | |||||
Output power | 11KW | 22KW | 43KW | |||
Output current | 16A | 32A | 64A | |||
Ethernet/WIFI/4G | Yes(Optional) | |||||
Connection | IEC 62196-II | |||||
RCD | Type B fault current protection | |||||
Supported payment | RFID(Optional) | |||||
Led indicator light | Yes | |||||
Emergency stop button | Optional | |||||
Communication interface | RS-232/485 Optional | |||||
Background agreement | Support OCPP 1.6 protocol(optional) | |||||
Display Screen | 4.3 Inches | |||||
With charging socket/With charging cable | Optional | |||||
Protection degree | IP65 | |||||
Environment temperature | -30℃ to 65℃ | |||||
Relative humidity | 5%-90% RH, non-condensing | |||||
Altitude | 2000m | |||||
Cooling | Natural air cooling | |||||
Stand by power consumption | ＜3W | |||||
Dimension(W/H/D)mm | 350*350*183 upright:809 | |||||
Certification | CE | |||||
Protection | Overvoltage protection/Under voltage protection/Overload protection/Short circuit protection/Electric leakage protection/Over temperature protection/Lightning protection | |||||
SUPPORT CAR:
Recommanded For You
Product Categories
Our Advantages
Company Profie
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
