Фабрика Горячие продукты LSB-330XL + LST41400 Чжэцзян полностью автоматизированная машина для производства бумажных пакетов с 4 цветная
- Категория: Packaging Material Making Machine >>>
- Поставщик: Ruian,Lilin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 167314.21 $* | 175680.87 $* |
| Aug-16-2025 | 165908.41 $* | 174203.70 $* |
| Jul-16-2025 | 139194.91 $* | 146154.68 $* |
| Jun-16-2025 | 163096.93 $* | 171251.20 $* |
| May-16-2025 | 142006.86 $* | 149106.34 $* |
| Apr-16-2025 | 160284.80 $* | 168298.59 $* |
| Mar-16-2025 | 158878.48 $* | 166822.57 $* |
| Feb-16-2025 | 157472.47 $* | 165346.82 $* |
| Jan-16-2025 | 156066.7 $* | 163869.4 $* |
Характеристики
Products Description

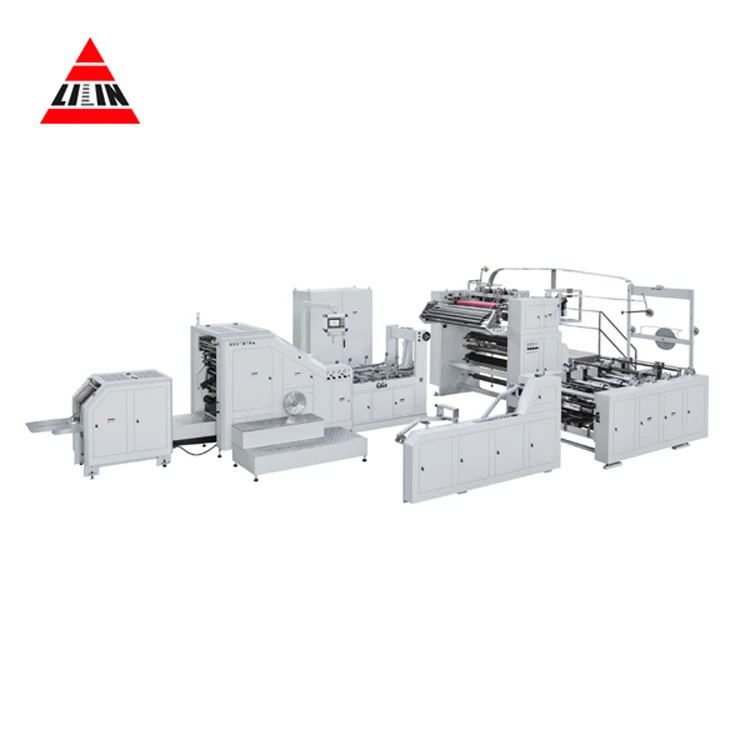

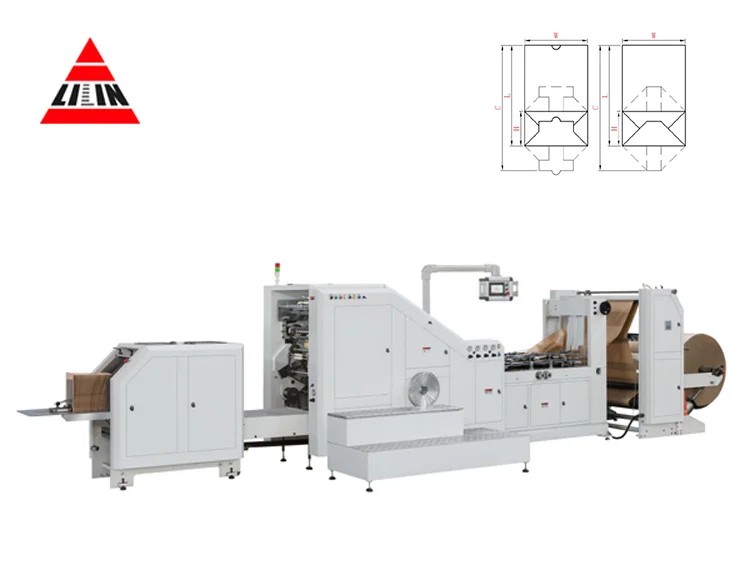

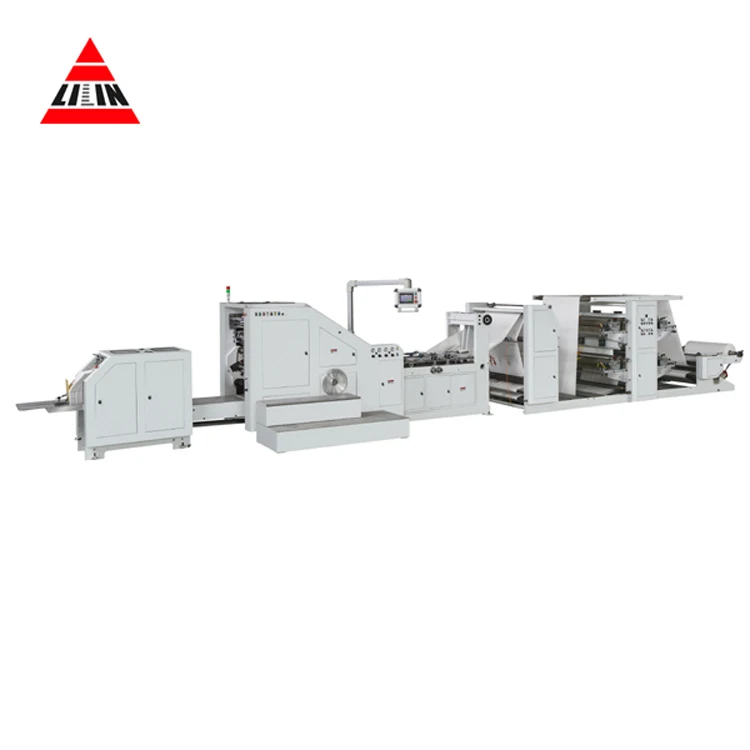

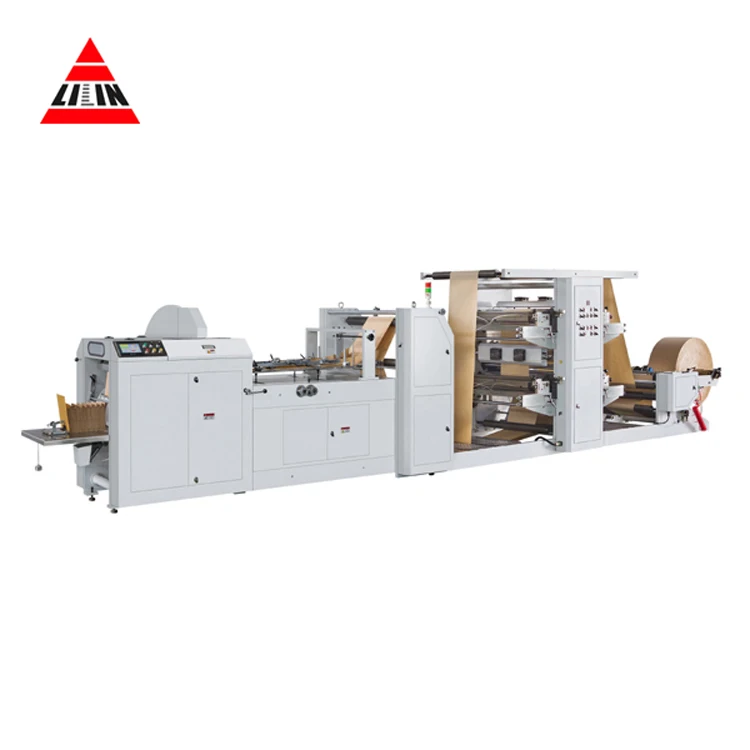

Factory hot products LSB-330XL+LST41400 Zhejiang Fully automated paper bag making machine with 4 color printing
Introduction：
Roll Feeding Flexo Printing Square Bottom Paper Bag Making Machine Printing on unprinted web through the printing unit , side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag.
Features：
1.The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Pneumatic paper reel lifting device make paper reel changing easy.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system
6. Rotary serrated cutter (or flat-blade cutter) with elliptical gears is used for cutting, Thumb buttons, appressed bottom cutting device, bag type have many choices.
7 Don't stop machine side clamp, CAM synchronous adjustment of structure, the adjustment will become more intuitive, more simple, more time saving.
8.Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9.Accurate colors tracking system, replace the paper roll, downtime, blackouts, without human intervention, the machine will automatically positioning operation, color errors automatically shut down.
10. Automatic lubricating oil supply system.
11Ink-ring sealed scraping knife scraping.
12.Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.
13.Button-360 ° continuous and adjustable longitudinal register device.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Pneumatic paper reel lifting device make paper reel changing easy.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system
6. Rotary serrated cutter (or flat-blade cutter) with elliptical gears is used for cutting, Thumb buttons, appressed bottom cutting device, bag type have many choices.
7 Don't stop machine side clamp, CAM synchronous adjustment of structure, the adjustment will become more intuitive, more simple, more time saving.
8.Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9.Accurate colors tracking system, replace the paper roll, downtime, blackouts, without human intervention, the machine will automatically positioning operation, color errors automatically shut down.
10. Automatic lubricating oil supply system.
11Ink-ring sealed scraping knife scraping.
12.Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.
13.Button-360 ° continuous and adjustable longitudinal register device.
Product Paramenters
Type | LSB-330XL+LST-41400 |
Bag Width (W) | 140-330 mm |
Bottom Size(H) | 100-210 mm |
Cutting Length(C) | 450-820 mm |
Bag Length(L) | L=C－(H÷2＋15~25) |
Max. Speed | 120 pcs/min |
Paper Roll Width | 500-1050 mm |
Max. reel weight | 600 Kg |
Max.Roll Diametr | 1200 mm |
Reel inner diameter | 76 mm |
Paper specification | 60-170 gsm |
Printing Color | 4 Color |
Printing Width | 1100 mm |
Printing Length | 180-800 mm |
Max.Printing Speed | 120 m/min |
Overprint Precision | ±0.15 mm |
Thickness of Plate | 1.7 mm |
Web edge control system | Double photoelectric automatic correction control system |
Web tension control system | automatic constant tension control system |
Air pressure | ≥0.12cmm, 0.4~1Mpa |
Driven motor | Double servo motor |
Electric | 50Hz, 3 phase |
Power | 19.5 KW |
Weight | 98000Kg |
Overall dimension（L×W×H） | 13500×2150×1950 mm |
Man-machine Interface Touch Screen
Adjustable Width Paper Tube Forming Adjustment Structure
Independent Group Automatic Ink System
Color Mark Tracking System
Ink Recirculating Sealing Ink Scraper System
Large Diameter Ceramic Anilox Roller
Automatic Glue Supply Syestem at the bottom
Automatic Counting System

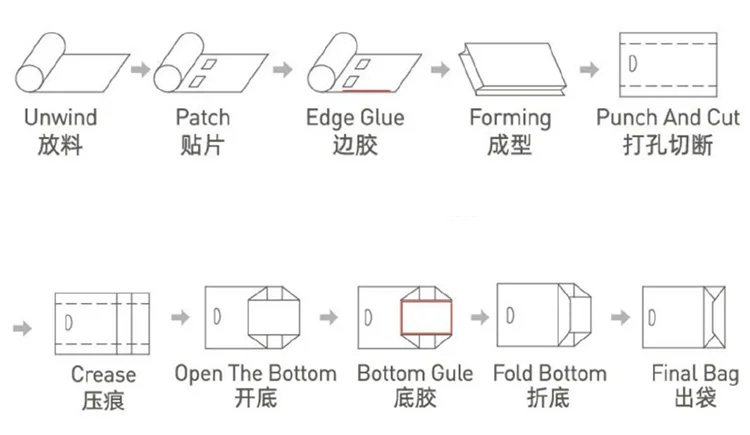

Schematic diagram of paper bag
