Цена:150,00 $ - 170,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 179.66 $* 188.6 $*
Aug-17-2025 177.45 $* 186.50 $*
Jul-17-2025 149.13 $* 156.40 $*
Jun-17-2025 174.50 $* 183.86 $*
May-17-2025 152.30 $* 160.81 $*
Apr-17-2025 171.73 $* 180.69 $*
Mar-17-2025 170.92 $* 179.79 $*
Feb-17-2025 168.99 $* 176.73 $*
Jan-17-2025 167.8 $* 175.61 $*

Характеристики



Recommend Products




Products Display




Product Description

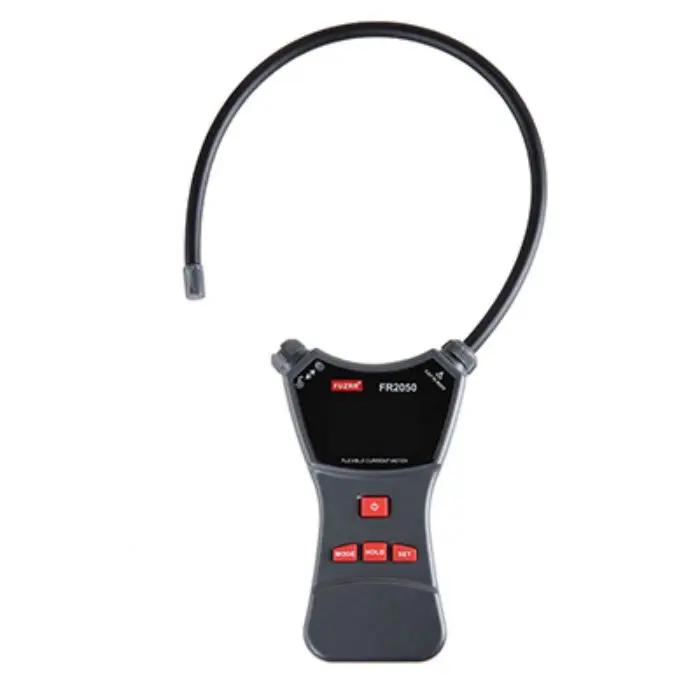

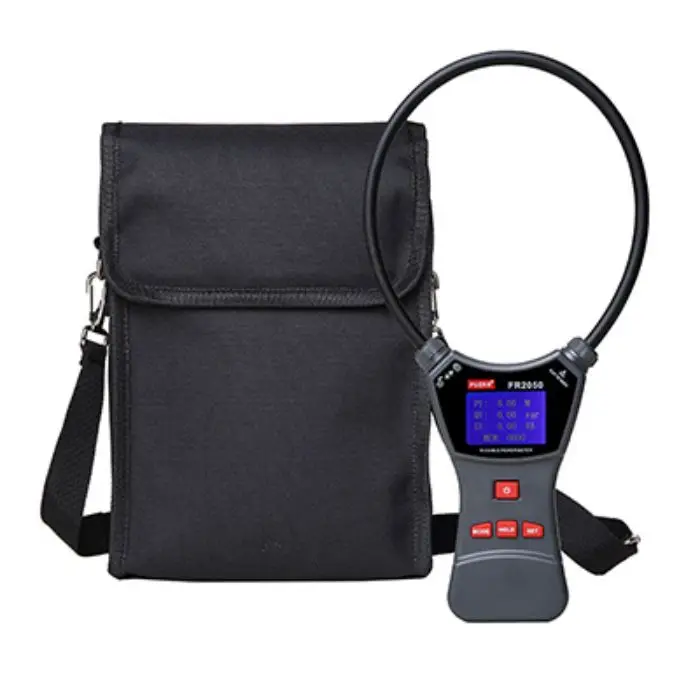

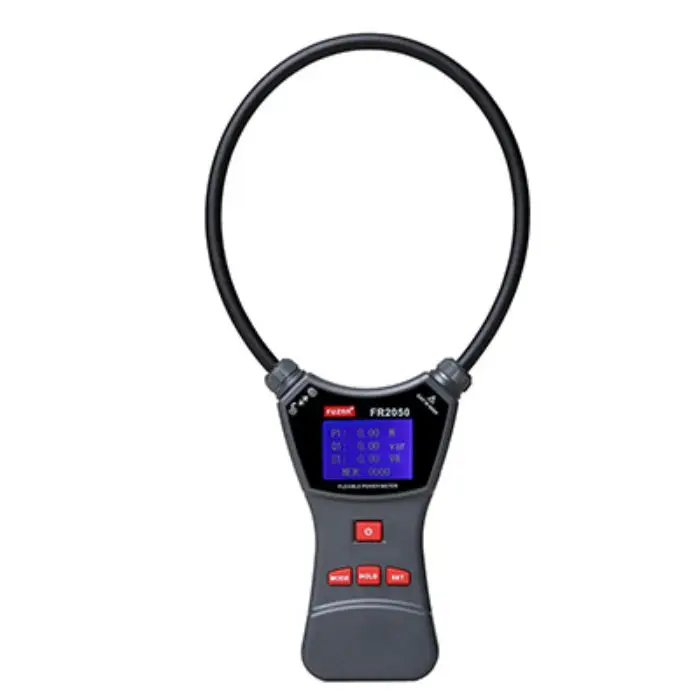

FR2050 series flexible clamp power meter is a multi-function digital smart meters that specially developed by our company for measuring three-phase AC voltage, current, leakage current, phase between voltage, phase, frequency, phase sequence, electric energy, active power and reactive power, power, apparent power, power factor, total power, etc. The use of flexible coil sensors with a diameter of φ150mm or φ300mm (other diameters can also be customized) is convenient and flexible, and can replace the traditional bulky clamp-type leakage current meter and micropower clamp meter function. It can also be used to identify transformer wiring groups, inductive, capacitive circuits, read the phase relationship between the CTs of the differential protection groups, check the correctness of the wiring of the watt-hour meter, and repair the line equipment, etc, provides a safe, accurate and convenient new type of power meter for electricity inspection personnel.
The flexible current sensor, Rogowski Coil, adopts advanced Rockwell coil (or Rogowski coil) technology and is a toroidal coil uniformly wound on a non-ferromagnetic material, without hysteresis effect and without magnetic saturation phenomenon. High linearity, strong anti-interference ability. The output signal is the current-to-time differential. By integrating the output voltage signal, the input current can be truly restored. The measured current range can be from milliampere to tens of thousands of amps. Flexible current clamp part without any exposed metal conductor, non-contact measurement, safe and fast；Its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and cable intensive places；High measurement accuracy, high reliability, and response frequency bandwidth, users can customize the coil length according to demand。
The instrument also has the function of backlight, data retention, data storage, etc. It is easy to use and is an essential tool for electrician safety testing.


Main Feature

Function：\tThree-phase AC voltage, leakage current, current, active power, reactive power, apparent power, total power, electric energy, phase sequence, etc.
Inner diameter of coil:\tφ150mm/φ300mm
AC voltage:\t0.00V~600V
AC current:\t0.0A~3000A
Phase angle:\t0.0~360.0°
Power factor:\t0.000~1.000
Active power:\t0.00W~1800kW
Electric energy range:\t0.0001~180000kWh


Technical Data


Function
Three-phase AC voltage, leakage current, current, active power, reactive power, apparent power, total power, phase of current and
voltage, phase between voltage, frequency, energy, phase sequence, etc.
Power
DC4.5V 7# Alkaline battery（1.5V AAA×3）
Measure mode

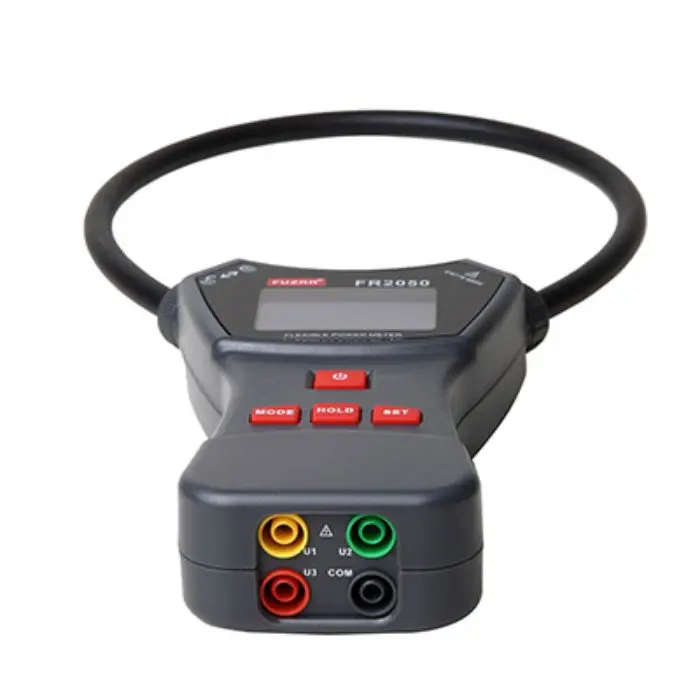

Flexible CT, three-phase voltage clip
Jaw size
φ150mm/φ300mm
Wire position
The measured wire is at the center of the flexible coil
Data storage
200groups，display "FULL" symbol indicates that storage is full
Frequency
50Hz/60Hz automatic identification
Shift
Automatic switching
Sample rate
About 2 times/second
Line voltage
AC 600V line measurement
Display mode
LCD：128dots×64dots；Display area：43mm×29mm
Instrument size
Host size:W/T/H 151*100*35mm (without coil)
Backlight
Have
Data storage
Data storage function：“HOLD”symbol display
Overflow display
Overrange overflow function:“OL”symbol display
Automatic shut-down
About 15 minutes after power on, the meter will automatically shut down to reduce battery consumption
Battery voltage
When the battery voltage drops to about 3.15V, the battery voltage is low and the symbol is displayed to remind you to replace the
battery.
Instrument weight
Instrument：1kg(with battery and accessories)
Working current
Backlight turn on 50mA
Working temperature and humidity
-10℃～40℃；below 80%rh
Storage temperature and humidity
-10℃～60℃；below 70%rh
Insulation strength
AC 3700V/rms(Between core and shell)
Suitable for Safety Regulations
IEC1010-1、IEC1010-2-032、pollution level 2、CAT Ⅲ(600V)


FAQ


If you want to know more details, welcome to contact us.
Lin Gao
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972


Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Which payment methods are supported?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
