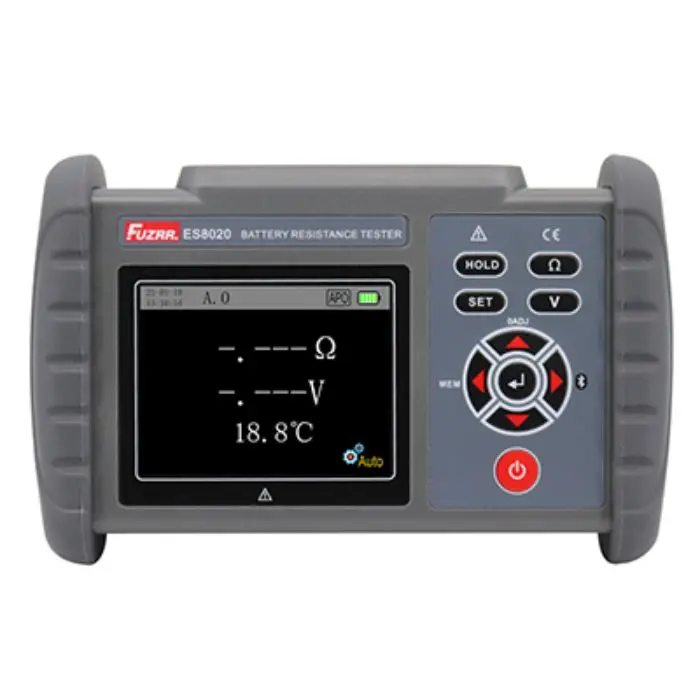

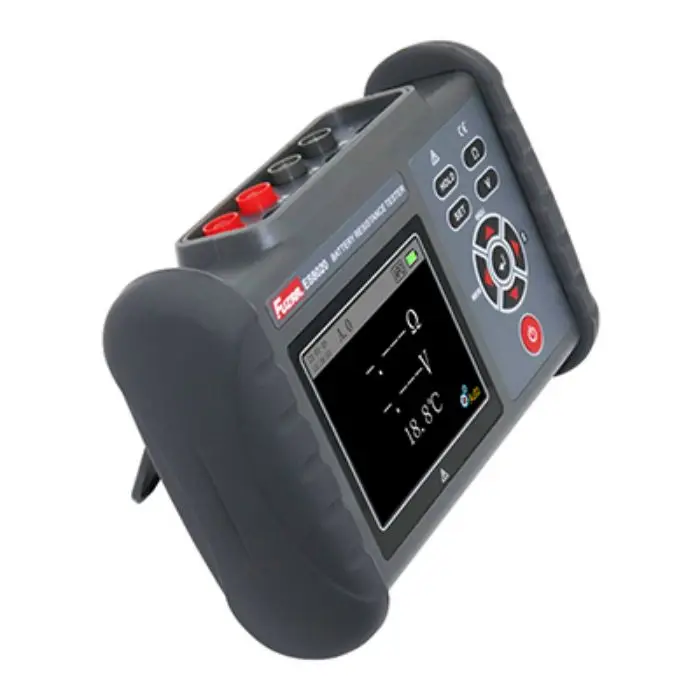

ES8020 ручной тестер внутреннего сопротивления литиевой батареи свинцово-кислотный
- Категория: Resistance Meters >>>
- Поставщик: Zibo,Senyuan,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 417.21 $* | 438.87 $* |
| Aug-17-2025 | 413.83 $* | 434.56 $* |
| Jul-17-2025 | 347.94 $* | 364.83 $* |
| Jun-17-2025 | 406.98 $* | 426.62 $* |
| May-17-2025 | 354.74 $* | 372.81 $* |
| Apr-17-2025 | 399.79 $* | 419.20 $* |
| Mar-17-2025 | 396.97 $* | 416.22 $* |
| Feb-17-2025 | 392.30 $* | 412.2 $* |
| Jan-17-2025 | 389.79 $* | 408.63 $* |
Характеристики
Recommend Products
Products Display
Product Description
General rechargeable battery internal resistance tester Abbreviation: battery internal resistance tester.It is a measuring instrument used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead storage batteries and lithium batteries to determine the health of the battery. It can also be used as a meter to measure the ESR parameters of electrolytic capacitors (for reference only).This meter uses the AC 4-terminal test method to measure the internal resistance of the battery, and can measure the correct measurement value without being affected by the contact resistance between the test wire, terminal and battery electrode.It also has functions such as data storage, data access, alarm, and automatic shutdown.The whole machine is high-grade and beautiful, with wide measuring range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, and strong anti-interference ability. It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance and other scenarios.
General rechargeable battery internal resistance tester controlled by a microprocessor, the internal 16-bit ADC can accurately detect battery internal resistance, voltage and temperature. It is characterized by measuring without stopping the UPS system, using AC low-resistance measurement and noise reduction technology, without stopping the normal operation of the device under test, and measuring under the running state, which greatly shortens the test time.At the same time, it has the functions of data storage, histogram display, data upload, computer, mobile phone, tablet and other smart devices Bluetooth connection for wireless measurement and data access.
General rechargeable battery internal resistance tester controlled by a microprocessor, the internal 16-bit ADC can accurately detect battery internal resistance, voltage and temperature. It is characterized by measuring without stopping the UPS system, using AC low-resistance measurement and noise reduction technology, without stopping the normal operation of the device under test, and measuring under the running state, which greatly shortens the test time.At the same time, it has the functions of data storage, histogram display, data upload, computer, mobile phone, tablet and other smart devices Bluetooth connection for wireless measurement and data access.
Main Feature
Function：\tUsed to measure the internal resistance, voltage and temperature of lead-acid batteries, lithium batteries and other batteries
Internal Resistance Range:\t0.000mΩ~3.100Ω
Voltage Range:\t0.000V~±71.00V
Temperature measurement:\t-10.0℃~60.0℃
AC injection method measurement
Large-capacity lithium battery charging
With USB interface, upload to computer
With Bluetooth function, can connect to mobile phones
Pre-set PASS, WARNING, FAIL judgment thresholds
Internal Resistance Range:\t0.000mΩ~3.100Ω
Voltage Range:\t0.000V~±71.00V
Temperature measurement:\t-10.0℃~60.0℃
AC injection method measurement
Large-capacity lithium battery charging
With USB interface, upload to computer
With Bluetooth function, can connect to mobile phones
Pre-set PASS, WARNING, FAIL judgment thresholds
Technical Data
I．Range and accuracy
1.1 Resistance measurement accuracy
Range | Maximum display | Maximum Resolution | Measuring current |
0.000mΩ~3 Ω | 3.100 Ω | 1 uΩ | ±0.5 % |
1.2 Voltage measurement accuracy
Range | Maximum display | Maximum Resolution | Measuring current |
0.000V~70 V | ±71.00 V | 1 mV | ±0.2 % |
1.3 Temperature measurement accuracy
Range | Maximum display | Maximum Resolution | Measuring current |
-10.0℃~60.0℃ | 60.0℃ | 0.1℃ | ±1.0℃ |
II. Technical Specification
Function | Battery internal resistance measurement, battery voltage measurement, temperature measurement |
Accuracy guaranteed temperature and humidity | 23℃±5℃, Below 75%rh |
Power supply | DC 3.7V lithium battery |
Resistance resolution | 1 u Ω |
Voltage resolution | 1 mV |
Temperature resolution | 0.1℃ |
Measuring range | Internal resistance measurement:0.000mΩ~3.100 Ω （4 ranges configuration） |
Voltage measurement: 0.000V~±71.00V (consisting of 2 ranges) | |
Temperature measurement: -10.0℃~60.0℃ (single range configuration） | |
Maximum input voltage | DC 70V (between + measurement terminal and-measurement terminal), no AC input |

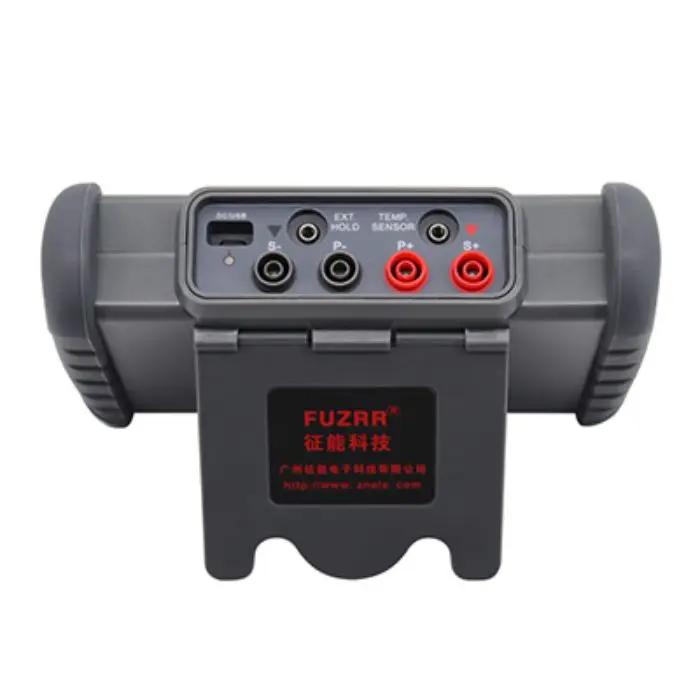

Measurement method | Internal resistance measurement: 1KHz AC 4-terminal test method, open-circuit terminal voltage 3V max Measuring current: 2.0mA~200mA (different measuring currents in different ranges) Temperature measurement: NTC temperature sensor (10KΩ at 26°C) A/D conversion method: successive approximation type Display update frequency: 5 times/second |
Response time | 200ms |
Measure time | About 2 seconds |
LCD Size | 70.1mm×52.6mm /3.5 inches (320*240 resolution 16-bit true color screen) |
Instrument size | 190mm×121mm×51mm |
USB interface | With a USB interface, the stored data can be uploaded to the computer, saved and printed |
Bluetooth connection | Yes |
Hold and store function | Manual retention and storage, automatic retention and storage |
Measurement judgment function | Pre-set PASS, WARNING, FAIL judgment thresholds |
Battery voltage | The battery level is displayed in 5 bars, reminding to charge in time when the battery voltage is low |
Automatic shut-down | No operation when power on, it will power off automatically after about 15 minutes (can be turned off in the settings) |
Power consumption | 300mA MIN / 500mA MAX |
Weight | Meter：480g (With battery) |
Working temperature and humidity | -10℃～40℃；below 80%RH |
Storage temperature and humidity | -20℃～60℃；below 70%RH |
Insulation resistance | Above 20MΩ (500V between circuit and case) |
Withstand voltage | AC 3700V/RMS (between circuit and case) |
External magnetic field | ＜40A/m |
External electric field | ＜1V/m |
Suitable for safety regulations | IEC 61010 |

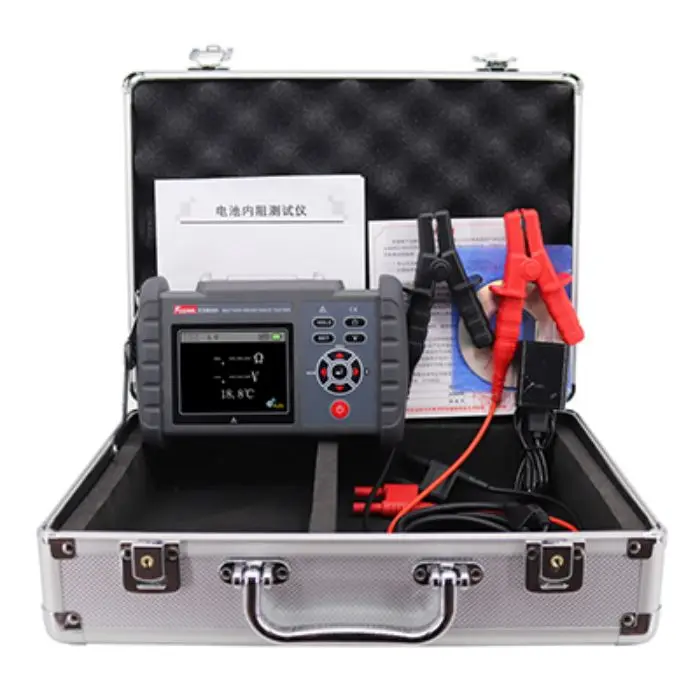

Standard Delivery
Meter | 1pcs |
Test line | 1 set |
USB | 1pcs |
charger | 1pcs |
Monitoring software CD | 1pcs |
Instructions, warranty | 1set |
Instrument box | 1pcs |
FAQ
If you want to know more details, welcome to contact us.
Lin Gao
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972
Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.
Q: Which payment methods are supported?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.
Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
