Варистор Zov по заводской цене оксида цинка 07D390K недорогие Варисторы Оксида Металла
- Категория: Varistors >>>
- Поставщик: Shenzhen,Kexinchuang,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.18 $* | 0.93 $* |
| Aug-19-2025 | 0.70 $* | 0.45 $* |
| Jul-19-2025 | 0.73 $* | 0.90 $* |
| Jun-19-2025 | 0.84 $* | 0.41 $* |
| May-19-2025 | 0.0 $* | 0.7 $* |
| Apr-19-2025 | 0.83 $* | 0.63 $* |
| Mar-19-2025 | 0.76 $* | 0.66 $* |
| Feb-19-2025 | 0.84 $* | 0.51 $* |
| Jan-19-2025 | 0.1 $* | 0.36 $* |
Характеристики

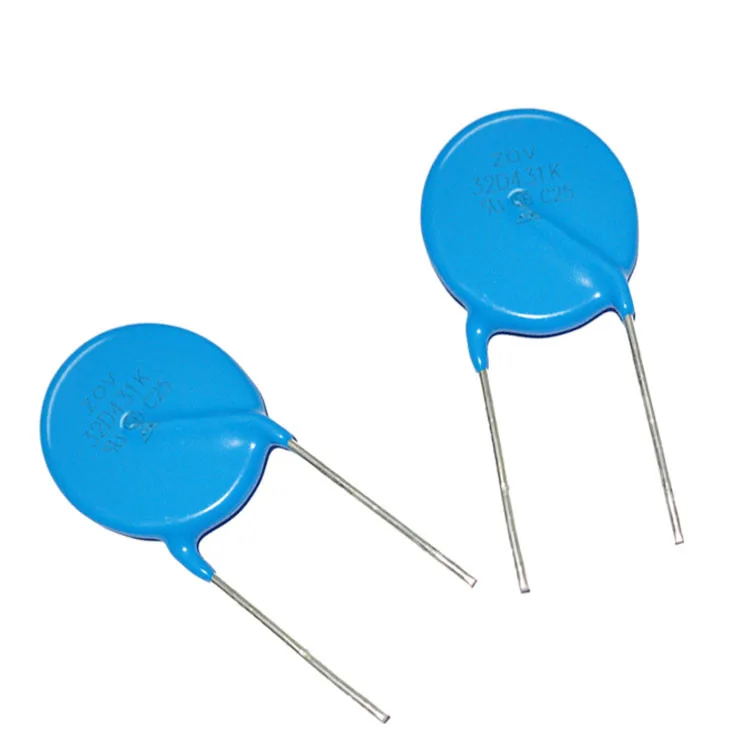

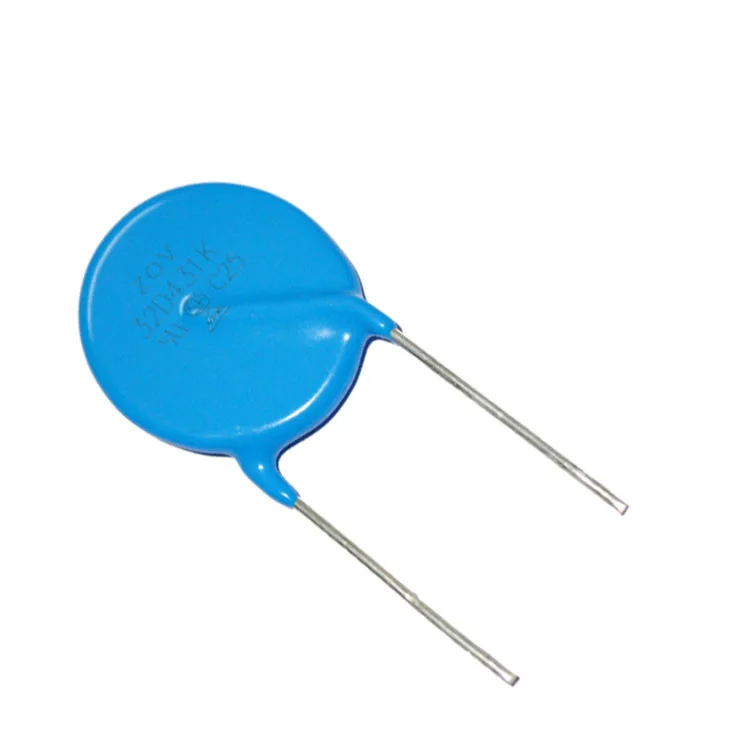

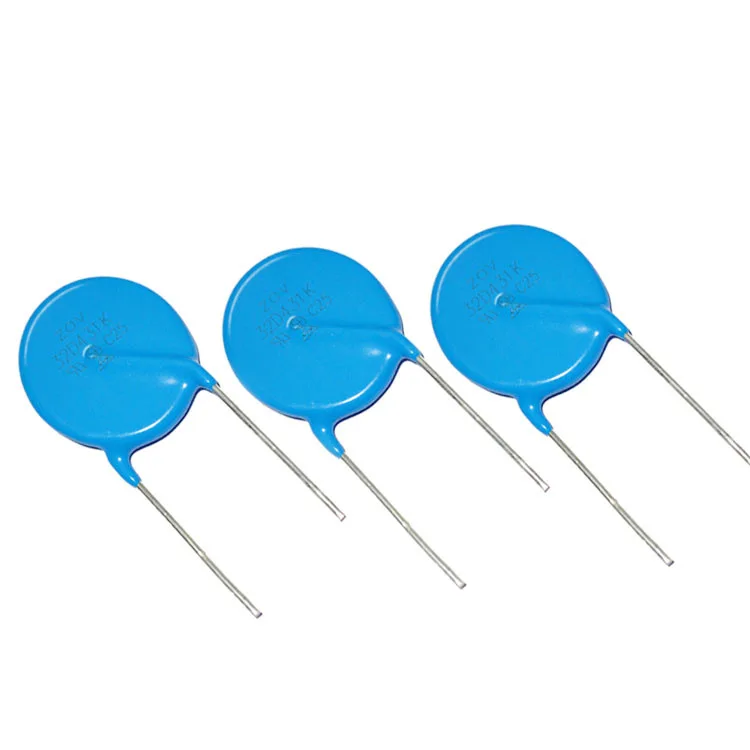

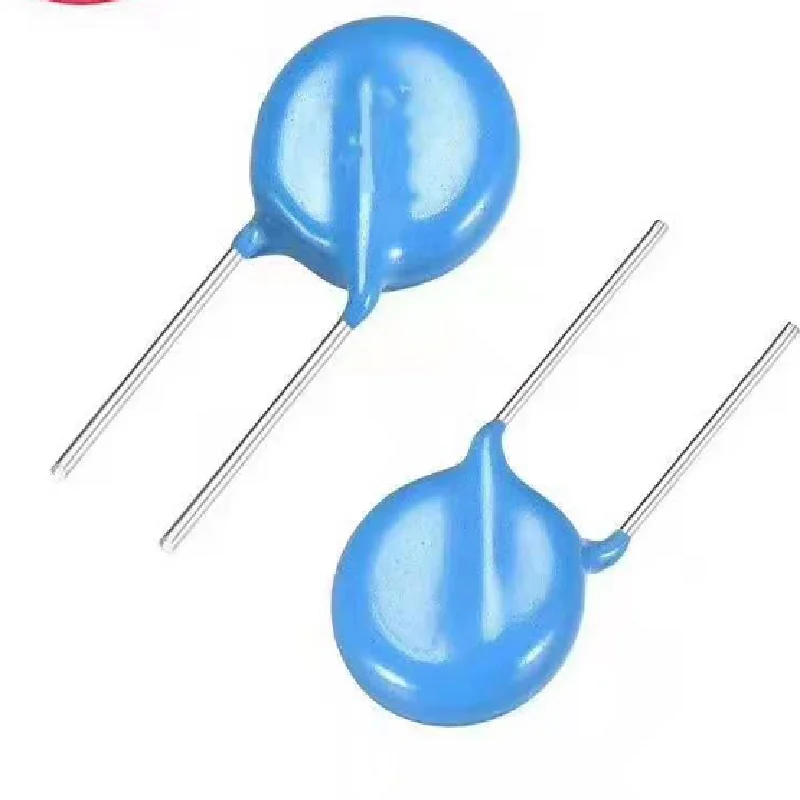

High Power Zov Varistor factory price Zinc oxide varistor 07D390K cheap MOV Metal Oxide Varistors For Surge Arrester
Description :
The 07D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by
offering higher surge ratings than ever before available in such small discs. The maximum peak surge current rating can
reach up to 1.75KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference,
system switching transients and abnormal fast transients
from the power source.
Features
Wide operating voltage (V1mA) range from 18V to 820V
Fast responding to transient over-voltage
Large absorbing transient energy capability
Low clamping ratio and no following-on current
Meets MSL
Application :
Transistor, diode, IC, thyristor or triac semiconductor protection
Surge protection in consumer electronics
Surge protection in industrial electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption
Contact information :
Material | No Radioactive Material |
Operating Temperature | -40℃ ~ +85℃ |
Storage Temperature | -55℃ ~ +125℃ |
Body | Nickel Plated |
Leads | Tin Plated |
Devices with No lead | Nickel Plated |
| Product Name | VAC (V) | VDC (V) | V1mA (V) | Ip (A) | Vc (V) | I(A) Standard 1 Time | I(A) Standard 2 Time | I(A) Standard High Surge 1 Time | I(A) Standard High Surge 2 Time | Cp@1KHZ (pf) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| All11115130141401501717519020210230252502753030032035350350.03854042046050607595 | All10012514150170181802002222525026275300313203503838541545460505565606156585 | All100(90~110)120(108~132)150(135~165)18(15~21.6)180(162~198)200(180~220)22(19.5~26)220(198~242)240(216~264)27(24~30)270(243~297)300(270~330)33(29.5~36.5)330(297~363)360(324~396)39(35~43)390(351~429)430(387~473)47(42~54)470(423~517)510(459~561)56(50~62)560(504~616)620(558~682)68(61~75)680(612~748)750(675~825)82(74~90) | All15 | All1025104112012312401451501772102603203553804041547548520570606206757374580810845920 | All100400 | All20050 | All250800 | All12560095 | All1001101150125140140016521025030300353704045050530556064065707585930 | All05D | |
| 07D220K/ 07D220KJ | 14 | 18 | 22(19.5~26) | 1 | 48 | 100 | 50 | 250 | 125 | 1150 | 05D |
| 07D301K /07D301KJ | 190 | 250 | 300(270~330) | 5 | 520 | 400 | 200 | 800 | 600 | 85 | 05D |
| 07D331K/ 07D331KJ | 210 | 275 | 330(297~363) | 5 | 570 | 400 | 200 | 800 | 600 | 75 | 05D |
| 07D361K/ 07D361KJ | 230 | 300 | 360(324~396) | 5 | 620 | 400 | 200 | 800 | 600 | 70 | 05D |
| 07D391K/ 07D391KJ | 250 | 320 | 390(351~429) | 5 | 675 | 400 | 200 | 800 | 600 | 65 | 05D |
| 05D431K /05D431KJ | 275 | 350 | 430(387~473) | 5 | 745 | 400 | 200 | 800 | 600 | 60 | 05D |
| 07D471K/ 07D471KJ | 300 | 385 | 470(423~517) | 5 | 810 | 400 | 200 | 800 | 600 | 55 | 05D |
| 07D511K /07D511KJ | 320 | 415 | 510(459~561) | 5 | 845 | 400 | 200 | 800 | 600 | 50 | 05D |
| 07D561K /07D561KJ | 350 | 460 | 560(504~616) | 5 | 920 | 400 | 200 | 800 | 600 | 50 | 05D |
| 07D561K/ 07D561KJ | 350.0 | 460 | 560(504~616) | 5 | 920 | 400 | 200 | 800 | 600 | 50 | 05D |
| 07D621K/ 07D621KJ | 385 | 505 | 620(558~682) | 5 | 1025 | 400 | 200 | 800 | 600 | 40 | 05D |
| 07D681K/ 07D681KJ | 420 | 560 | 680(612~748) | 5 | 1120 | 400 | 200 | 800 | 600 | 35 | 05D |
| 07D751K /07D751KJ | 460 | 615 | 750(675~825) | 5 | 1240 | 400 | 200 | 800 | 600 | 30 | 05D |
| 07D271K /07D271KJ | 175 | 225 | 270(243~297) | 5 | 475 | 400 | 200 | 800 | 95 | 1400 | 05D |
| 07D241K/ 07D241KJ | 150 | 200 | 240(216~264) | 5 | 415 | 400 | 200 | 800 | 600 | 100 | 05D |
| 07D270K /07D270KJ | 17 | 22 | 27(24~30) | 1 | 60 | 100 | 50 | 250 | 125 | 930 | 05D |
| 07D330K/ 07D330KJ | 20 | 26 | 33(29.5~36.5) | 1 | 73 | 100 | 50 | 250 | 125 | 930 | 05D |
| 07D390K/ 07D390KJ | 25 | 31 | 39(35~43) | 1 | 80 | 100 | 50 | 250 | 125 | 640 | 05D |
| 07D470K /07D470KJ | 30 | 38 | 47(42~54) | 1 | 104 | 100 | 50 | 250 | 125 | 530 | 05D |
| 05D560K /05D560KJ | 35 | 45 | 56(50~62) | 1 | 123 | 100 | 50 | 250 | 125 | 450 | 05D |
| 07D680K/ 07D680KJ | 40 | 56 | 68(61~75) | 1 | 150 | 100 | 50 | 250 | 125 | 370 | 05D |
| 07D820K /07D820KJ | 50 | 65 | 82(74~90) | 5 | 145 | 400 | 200 | 800 | 600 | 300 | 05D |
| 07D101K/ 07D101KJ | 60 | 85 | 100(90~110) | 5 | 177 | 400 | 200 | 800 | 600 | 250 | 05D |
| 07D121K /07D121KJ | 75 | 100 | 120(108~132) | 5 | 210 | 400 | 200 | 800 | 600 | 210 | 05D |
| 07D151K /07D151KJ | 95 | 125 | 150(135~165) | 5 | 260 | 400 | 200 | 800 | 600 | 165 | 05D |
| 07D181K /07D181KJ | 115 | 150 | 180(162~198) | 5 | 320 | 400 | 200 | 800 | 600 | 140 | 05D |
| 07D201K/07D201KJ | 130 | 170 | 200(180~220) | 5 | 355 | 400 | 200 | 800 | 600 | 125 | 05D |
| 07D221K/ 07D221KJ | 140 | 180 | 220(198~242) | 5 | 380 | 400 | 200 | 800 | 600 | 110 | 05D |
| 07D180K/07D180KJ | 11
| 14 | 18(15~21.6) | 1 | 40 | 100 | 50 | 250 | 125 | 1400 | 05D |
