Стабилизатор напряжения источник питания с резервным аккумулятором стабилизаторы SVC/Стабилизаторы
- Категория: Power Supplies >>>
- Поставщик: Zhejiang,Guangfa,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.6 $* | 0.26 $* |
| Aug-18-2025 | 0.26 $* | 0.16 $* |
| Jul-18-2025 | 0.99 $* | 0.63 $* |
| Jun-18-2025 | 0.99 $* | 0.76 $* |
| May-18-2025 | 0.41 $* | 0.28 $* |
| Apr-18-2025 | 0.63 $* | 0.75 $* |
| Mar-18-2025 | 0.86 $* | 0.85 $* |
| Feb-18-2025 | 0.50 $* | 0.25 $* |
| Jan-18-2025 | 0.10 $* | 0.75 $* |
Характеристики

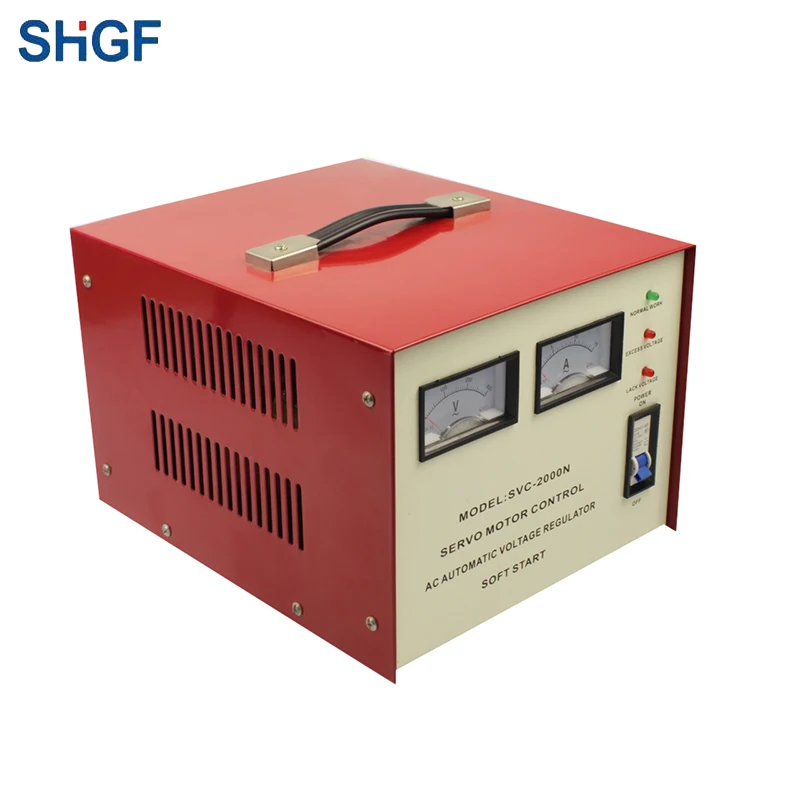

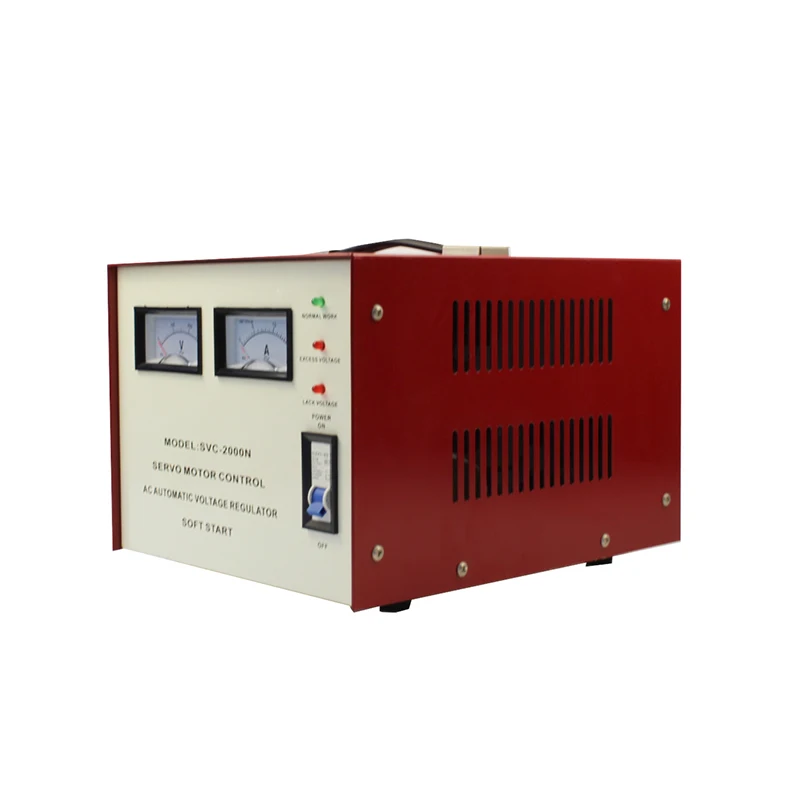

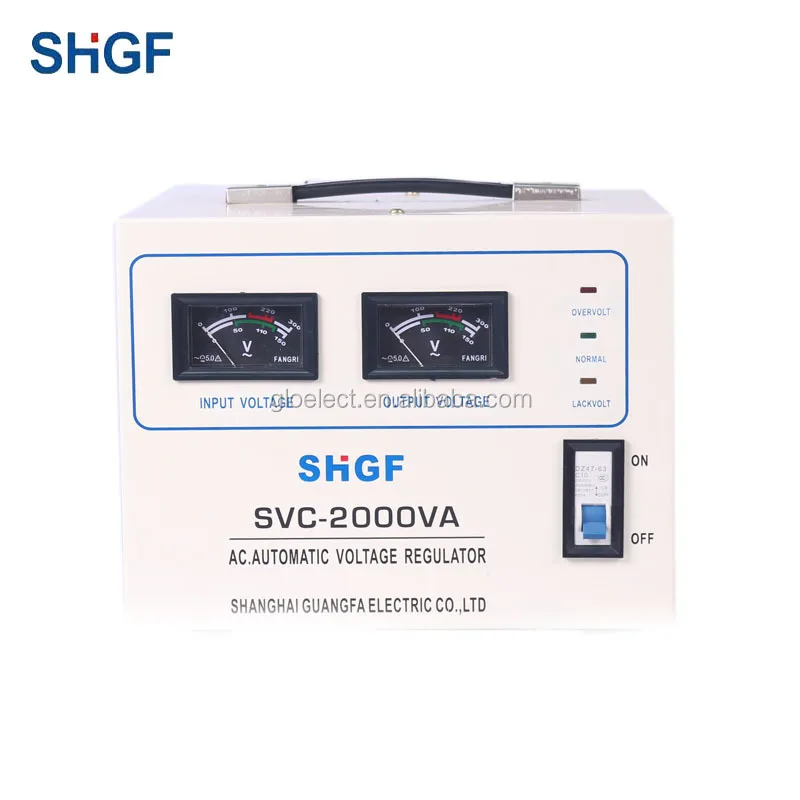

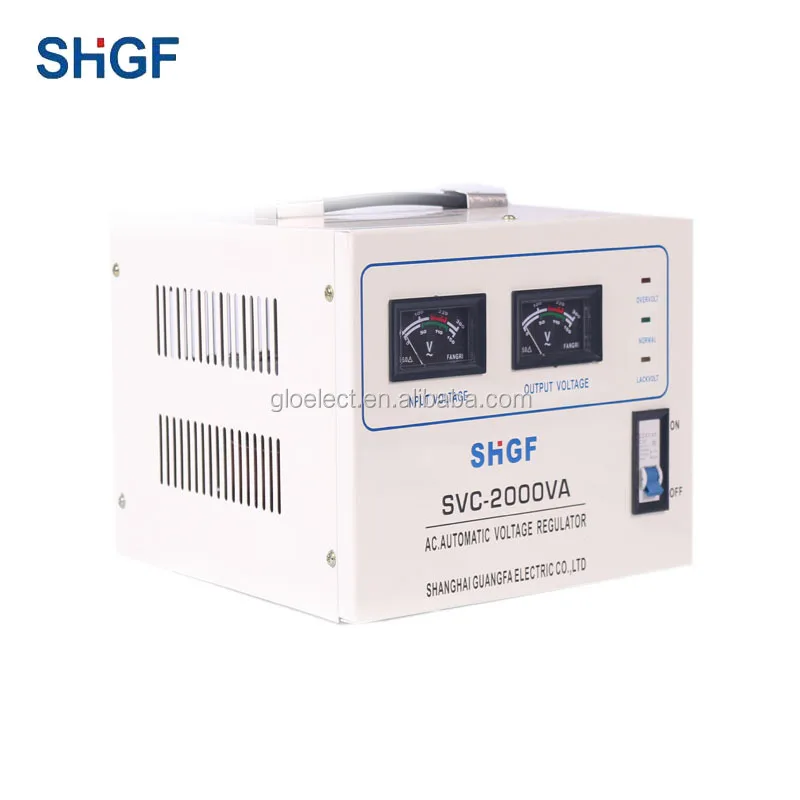

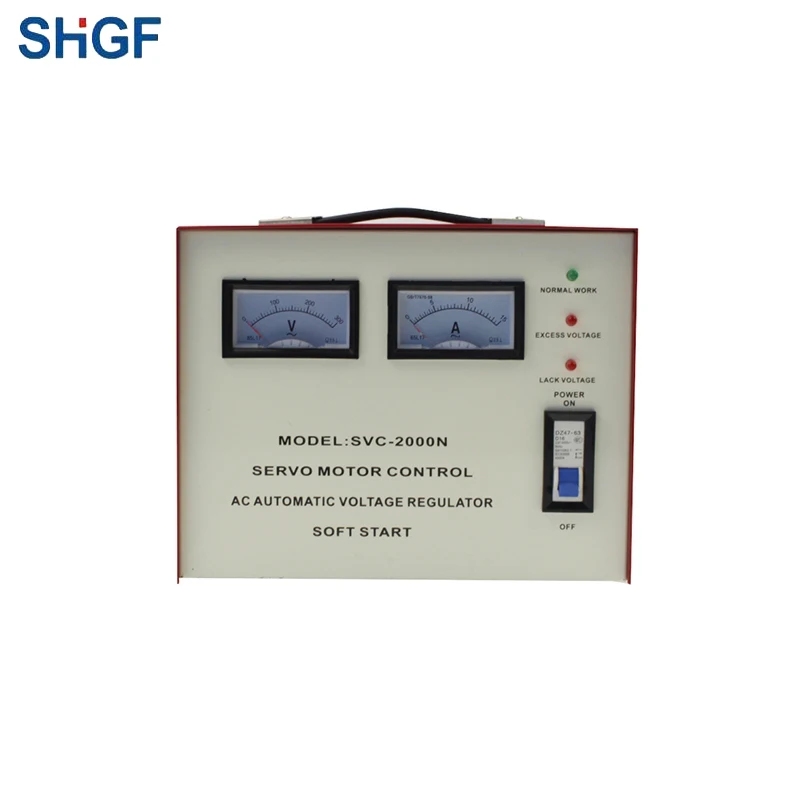

SVC/TND series high –precision full automatic AC voltage stabilizer, its control system consists of a self-coupling voltage regulating transformer and a linear integrated circuit to control the servo motor’s transmission mechanism to regulate the primary and secondary turn ratio of the self-coupling voltage regulating transformer automatically for the purpose of automatic voltage stabilization. It’s applicable for electric equipment in families, malls, supermarkets, schools, industrial and mining enterprises, scientific research institutions, labs and so on. It is an ideal AC voltage stabilizing, widely used in office equipment, industrial equipment, household appliances, medical devices, testing instruments and communication equipment, et
SPECIFICATION:
| SVC-500 | SVC-1000 | SVC-1500 | SVC-2000 |
SVC-3000 | SVC-5000 | SVC-8000 | SVC-10000 | |
Nominal Power
| 500VA | 1000VA | 1500VA | 2000VA |
3000VA | 5000VA | 8000VA | 10000VA | |
Power Factor | 0.6-1.0 | |||
Specifications | ||||
Input voltage | 150-270V/120V-260V/ 90-250V / OR customized | |||
Output voltage | 220V | |||
Frequency | 50HZ/60HZ | |||

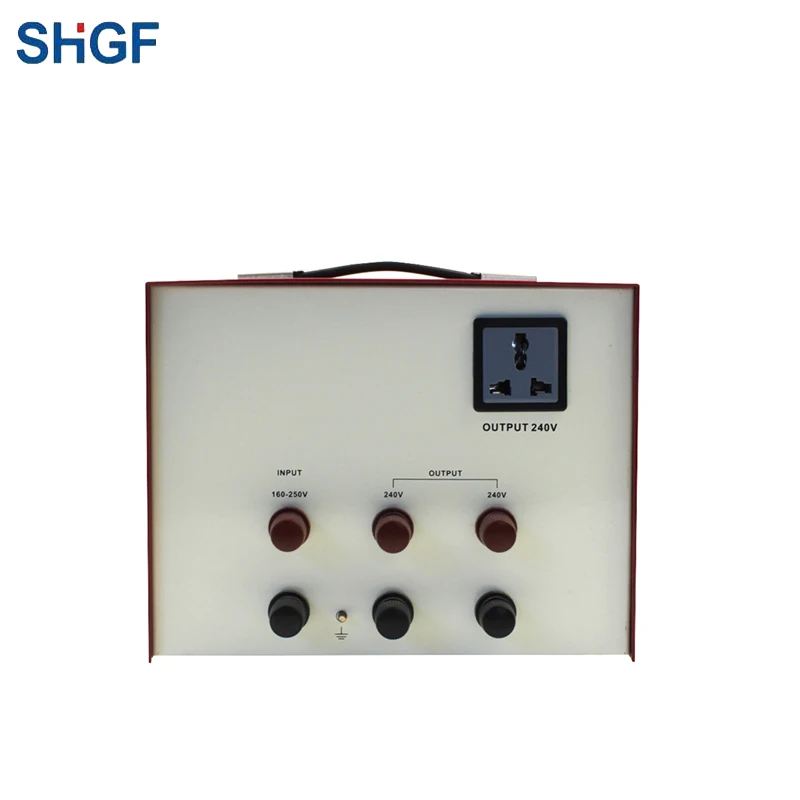

Connection Type | 0.5~1.5KVA(Power cord with plug), 2~12KVA(Input terminal block) 0.5-1.5KVA(Output socket), 2~10KVA(Output terminal block | |||
Output operating voltage | 180-255V | |||
High cut voltage | 255V | |||
Low Cut Voltage | 180V | |||
Safety Cycle | 3 Seconds / 180 Seconds (Optional) | |||
Regulation | ||||
Regulation % | 1.5% / 3.5% | |||
Number of Taps | NO | |||
Transformer Type | Thyroidal auto transformer | |||
Regulation Type | Servo type | |||
Indicators | ||||
Digital / Meter display | Input voltage ,Output voltage,Load | |||
Protection | ||||
Over Temperature | Auto Shutdown at 120 ℃ | |||
Short Circuit | Auto Shutdown | |||
Overload | Auto Shutdown | |||
Over / Under Voltage | Auto Shutdown | |||
| Model | Product size (CM) | Packing size/ (CM) | QTY/CTN | N.weight/KG | Gro.weight/KG |
| SVC-500 | 19*18*14.5 | 44*25*35 | 4 | 3.5 | 15.51 |
| SVC-1000 | 22.5*20.5*15.5 | 49*28*39 | 4 | 5 | 21.51 |
| SVC-1500 | 22.5*20.5*15.5 | 49*28*39 | 4 | 5.5 | 24 |
| SVC-2000 | 23.5*27*19.5 | 59*33*25.5 | 2 | 8 | 18 |
| SVC-3000 | 23.5*29.5*23 | 60*37*29 | 2 | 11.5 | 25 |
