Кабель 0 3 мм и гибкая печатная
- Категория: >>>
- Поставщик: Shenzhen,Sienta,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.33 $* | 0.0 $* |
| Aug-19-2025 | 0.13 $* | 0.96 $* |
| Jul-19-2025 | 0.86 $* | 0.82 $* |
| Jun-19-2025 | 0.43 $* | 0.26 $* |
| May-19-2025 | 0.62 $* | 0.11 $* |
| Apr-19-2025 | 0.82 $* | 0.90 $* |
| Mar-19-2025 | 0.77 $* | 0.97 $* |
| Feb-19-2025 | 0.32 $* | 0.35 $* |
| Jan-19-2025 | 0.80 $* | 0.46 $* |
Характеристики

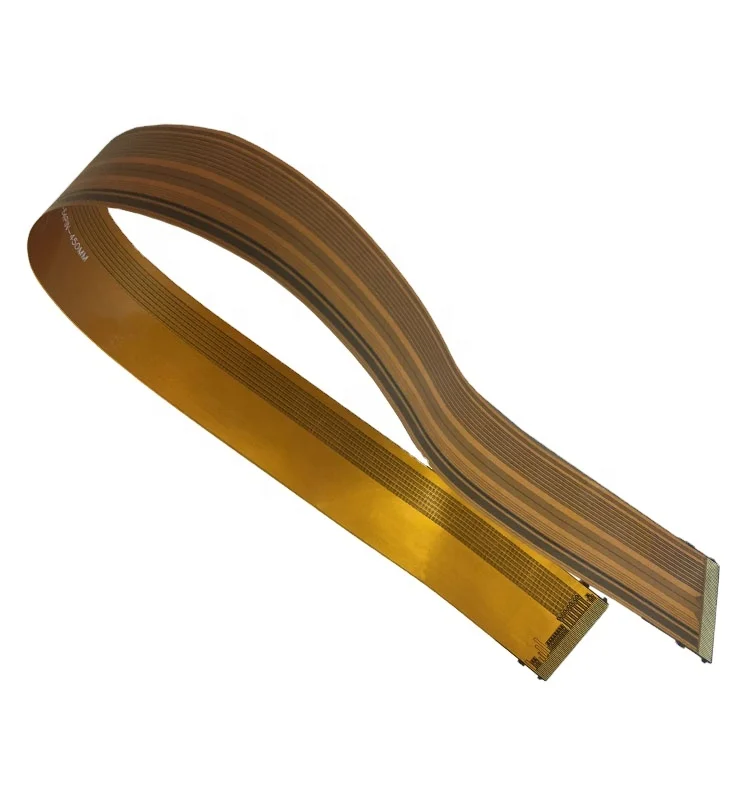

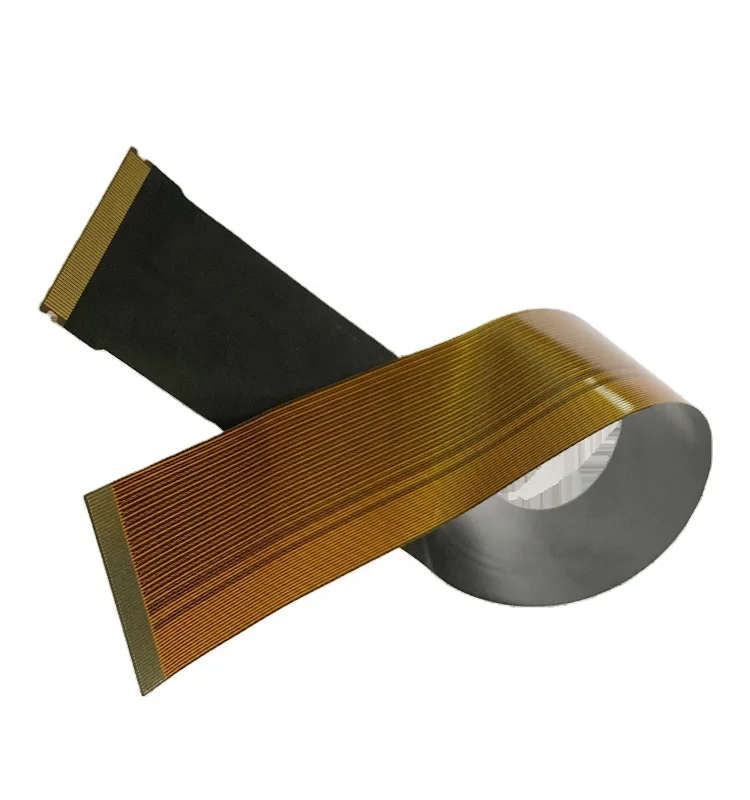

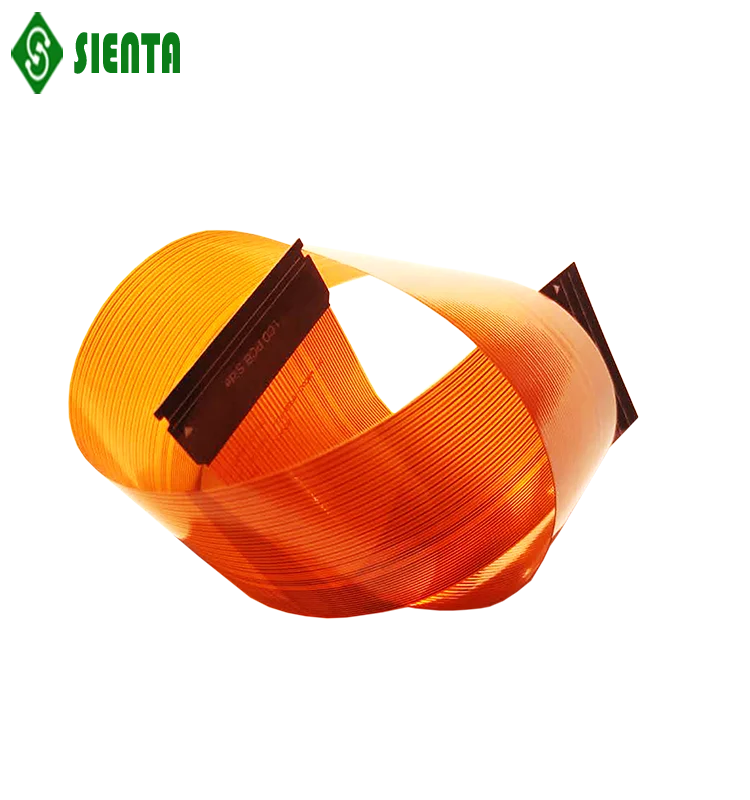

Customize 0.3mm flexible pcb and fpc flex cable
| INFORMATION | |
| PRIDUCT DETAILS | |
| Product : FPC cable/Test FPC cable/ FPC flexible cable | |
| Brand : SIENTA | Thickness: 0.20-0.40MM (Tol:+/-0.03mm) |
| Rigid/Flexible : Flexible | Unit size : Customized according to files |
| Layer: 2-Sided | Copper thickness : 18um(1/2oz) |
| Raw Materials : Cu/Adhesive/ ED OR RA | Coverlay : Yellow film/Black film |
| Type : Flexible cable FPC | Plating thk : Gold(2-3 u”) |
| Lead time : Sample:3-5 days | Fire rating : 94 v0 |
| Mass: 7-15 days | Thermal shock : 288℃ 10Sec |
| [Description] | |
Flexible Printed Circuit (FPC) is a highly reliable and excellent flexible printed circuit board made of polyimide or polyester film. It has the characteristics of high wiring density, light weight, thin thickness and good bendability. | |
 | |
| SELLING POINT | |
| Professional FPC supplier | |
 | |
 | |
 | |
| ___________________________________________________________________________________ BEST FPC SUPPLIER | |
| |
 | |
 | |
| BEST FPC SUPPLIER_______________________________________________________________________________________ | |
 | |
 | |
| |
| _________________________________________________________________________________ BEST FPC SUPPLIER | |
| |
 | |
 | |
| BEST FPC SUPPLIER _____________________________________________________________________________________ | |
 | |
 | |
 | |
| _________________________________________________________________________________ BEST FPC SUPPLIER | |
Other Products
Lead Time
| Item | Sample | Mass production |
|---|---|---|
| Single layer Flexible PCB | 3-5 working days | 8-10 working days |
| Double-sided Flexible PCB | 3-5 working days | 8-10 working days |
| Multilayer Flexible PCB | 7-12 working days | 15-20 working days |
| Rigid-flexible PCB | 7-15 working days | 15-20 working days |
Production Capacity
| PROCESS | Item | Unit | Limit tolerance | Normal tolerance |
|---|---|---|---|---|
| Drilling | Min drilling hole size | mm | 0.1 | 0.2 |
| hole diameter | mm | ±0.075 | ±0.1 | |
| Exposure | Min. line width/space | mm | 0.05/0.05 | 0.075/0.075 |
hole ring | mm | 0.125 | 0.20 | |
| offset tolerance | mm | 0.10 | 0.15 | |
| Line with tolerance | mm | ±0.03 | ±0.04 | |
| Profile | R angle for etching | mm | 0.5 | 0.5 |
| steel die tol | mm | LS:±0.075 HS:±0.01
| LS:±0.075 HS:±0.01 | |
| cutting die tol | mm | Etching:±0.20 Wooden:±0.30 | Etching:±0.30 Wooden:±0.50 | |
| Laser tol | mm | ±0.05 | ±0.05 | |
| offest tol for fingers | mm | ±0.10 | ±0.10 | |
| Surface treatment | Immersion gold | um | Ni:2.0~5.0 Cu:0.03~0.8 | Ni:2.0~5.0 Cu:0.03~0.8 |
Plating tin | um | 8~20 | 8~20 |
