RF коаксиальный 0-6G N гнездовой разъем перегородка к Штекер встроенный

RF коаксиальный 0-6G N гнездовой разъем перегородка к Штекер встроенный

Категория: Coaxial Connectors (RF) >>>
Поставщик: Zhenjiang,Binjiang,Electronic,Co.,Ltd.

Цена:5,85 $ - 6,46 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	6.40 $*	6.44 $*
Jul-16-2025	5.36 $*	5.98 $*
Jun-16-2025	6.19 $*	6.99 $*
May-16-2025	6.77 $*	6.5 $*
Apr-16-2025	5.48 $*	5.63 $*
Mar-16-2025	6.0 $*	6.92 $*
Feb-16-2025	6.22 $*	6.60 $*
Jan-16-2025	6.75 $*	6.72 $*

Характеристики

Product Description

RF Coaxial 0-6G N Female Jack Bulkhead to N Male Plug Built-in Lightning Arrester

★ We have been making RF connectors since 1991.

★ Our custom RF cable connectors are manufacture direct and skillful manufactured.

★ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

★ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

★ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

★ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

Detailed Images

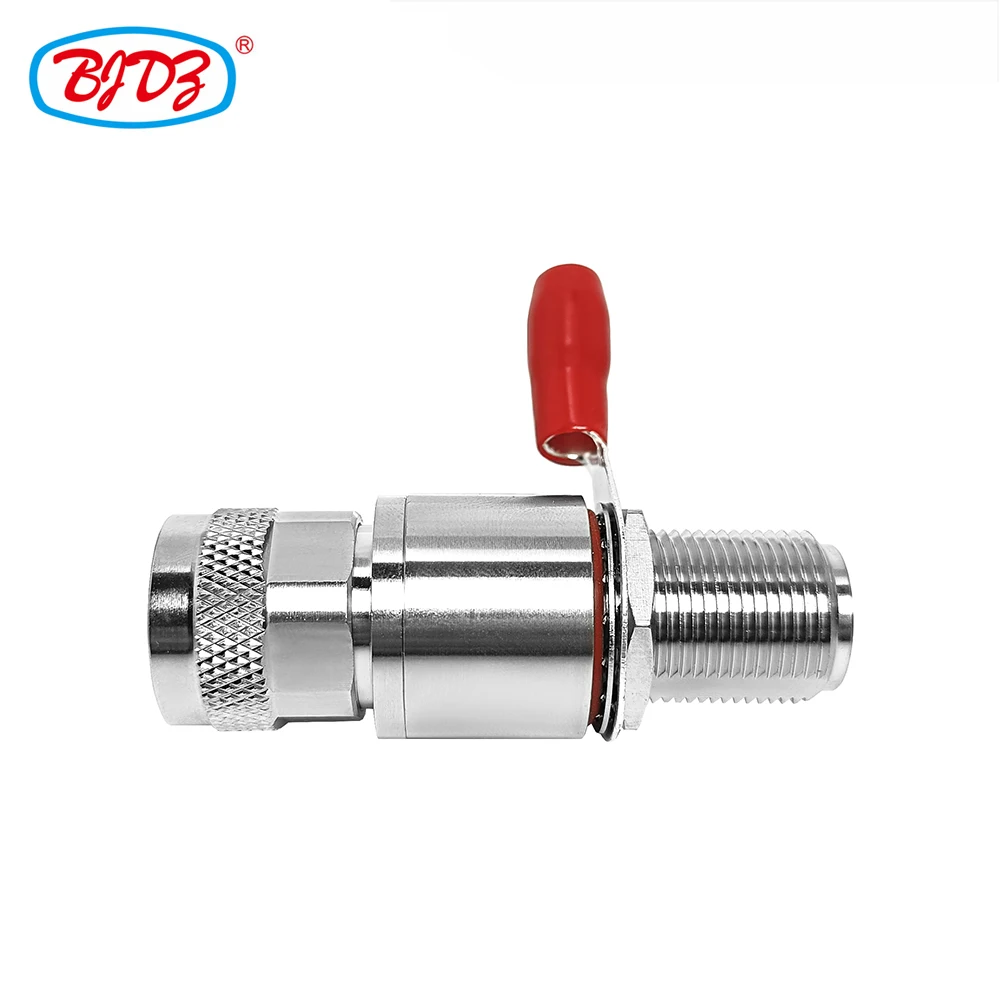

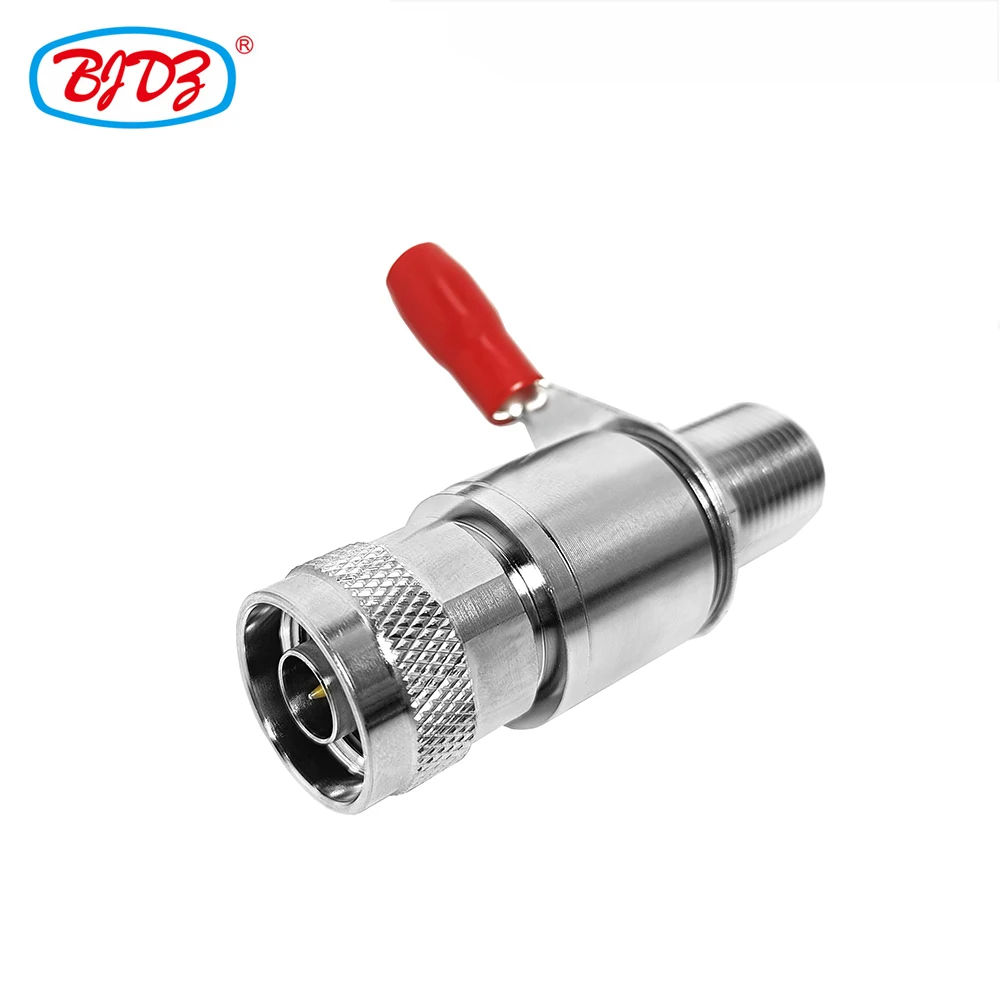

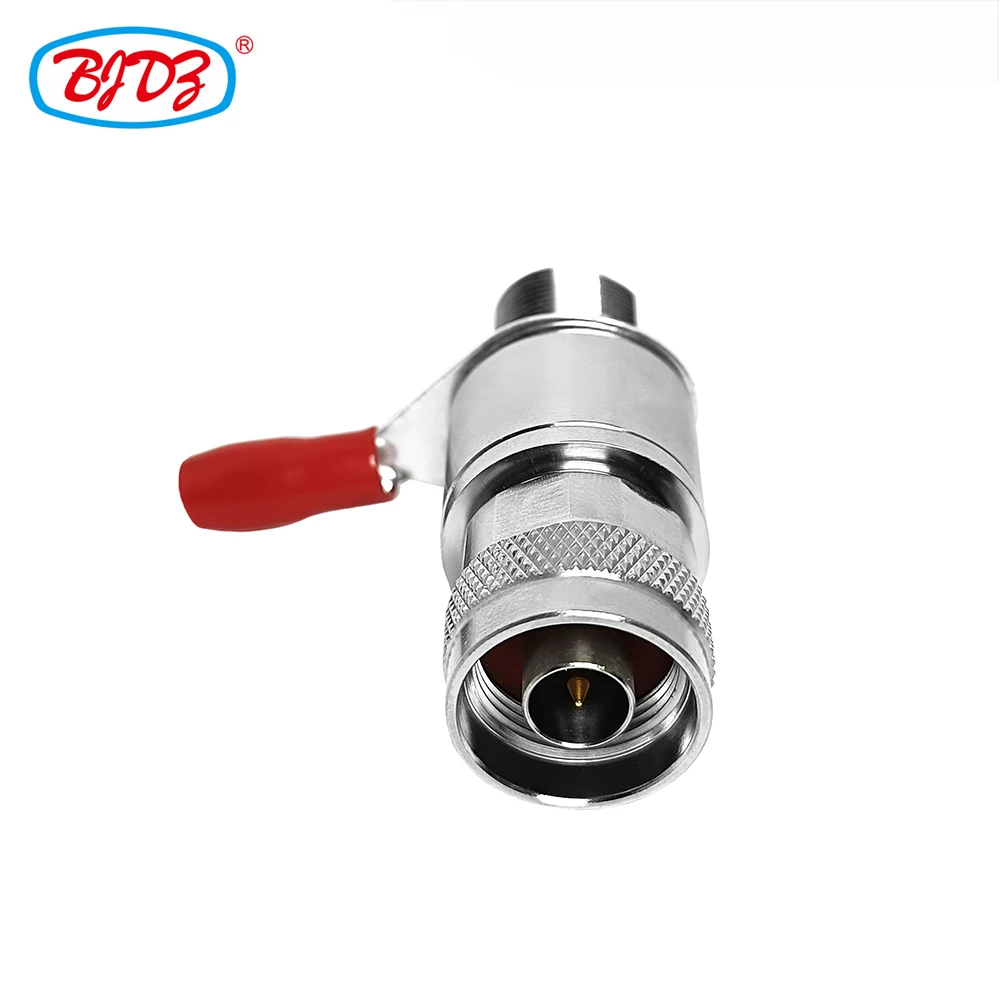

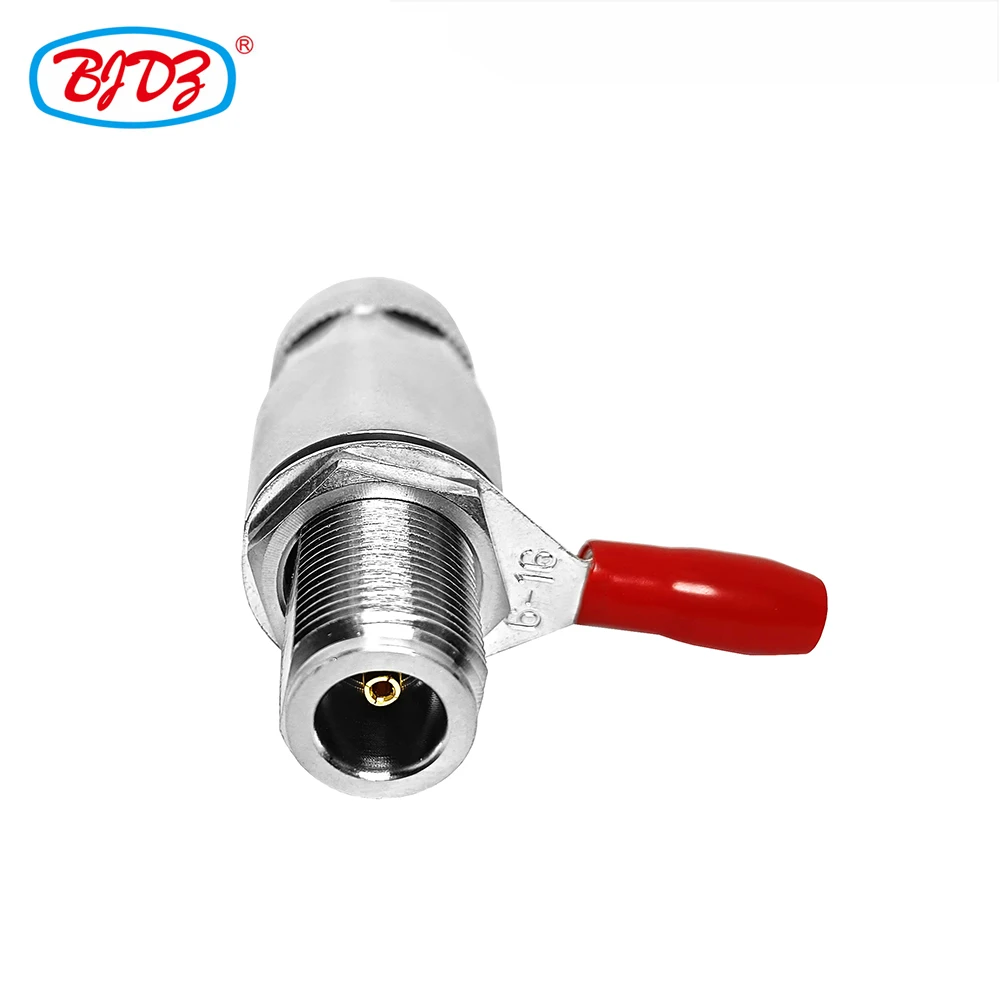

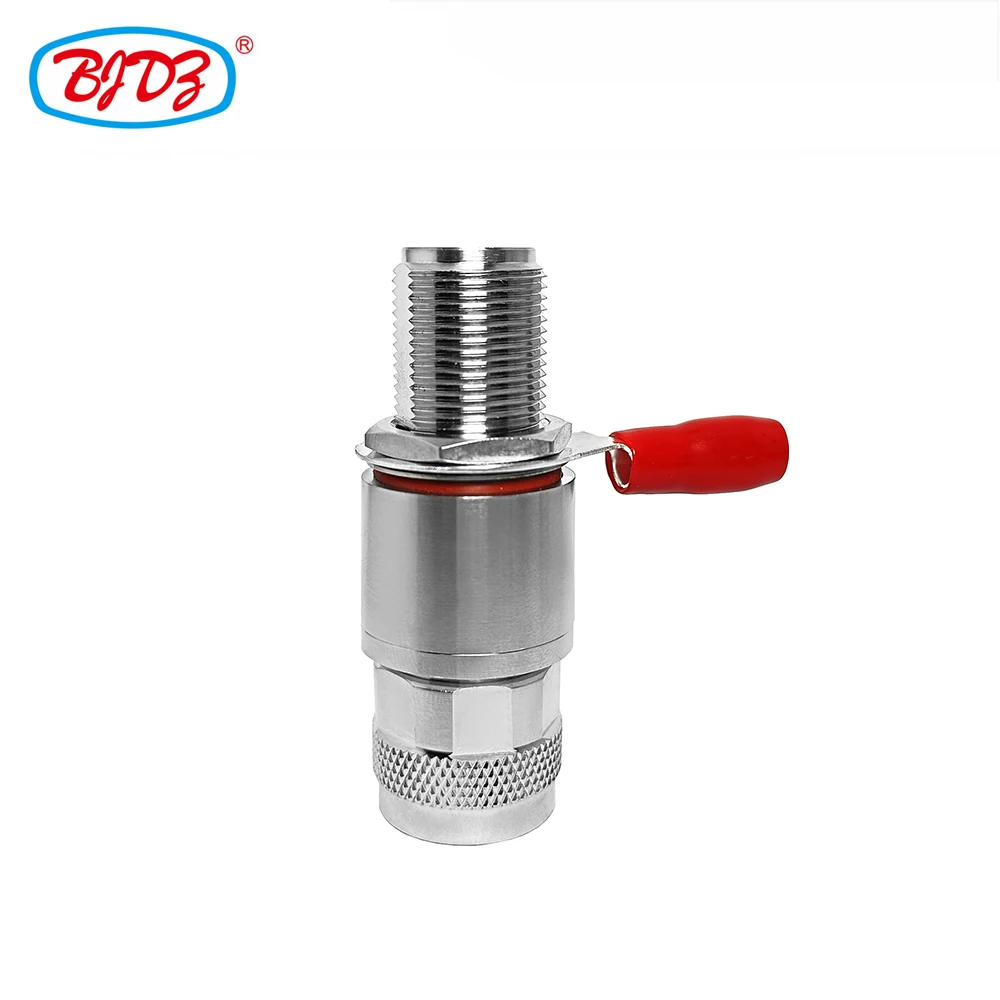

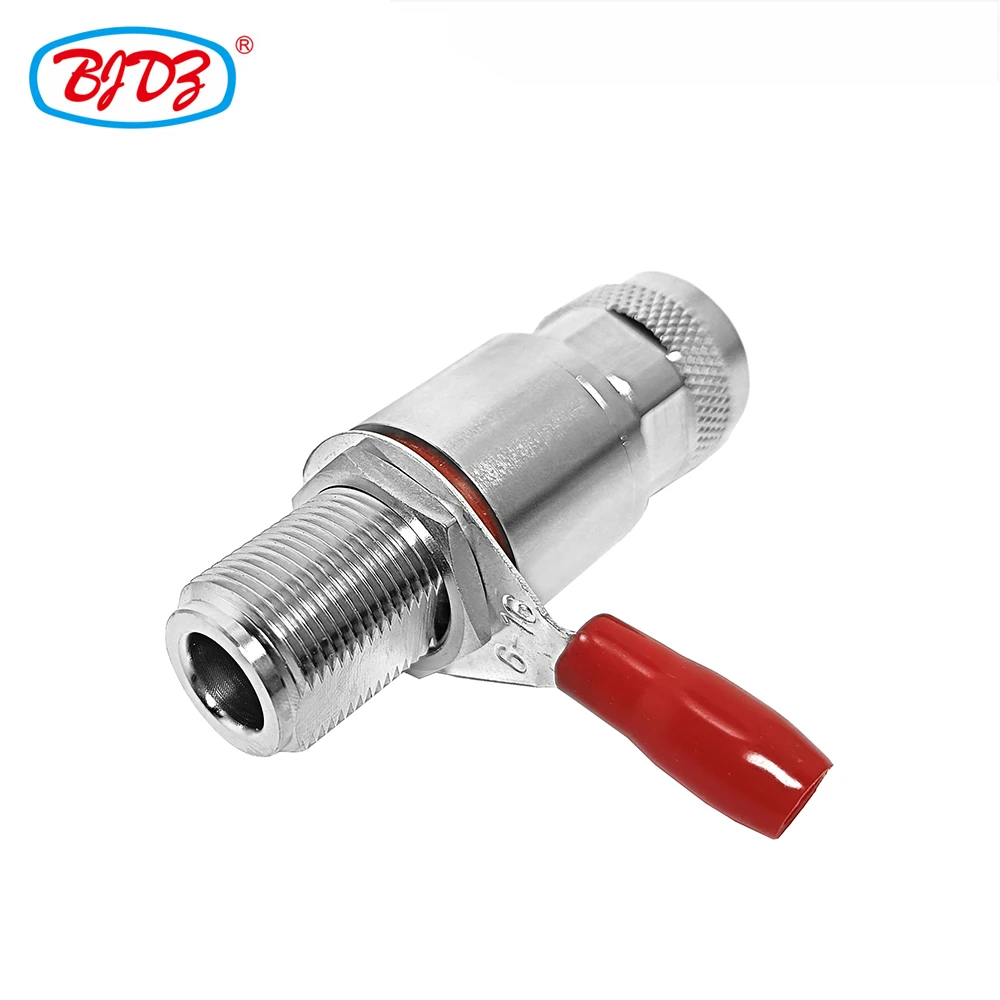

RF Coaxial 0-6G N Female Jack Bulkhead to N Male Plug Built-in Lightning Arrester
Freq Range	DC-3GHz / DC-6GHz
Voltage	90V / 230V / 250V / 350V
Protection	Gas Discharge Tube / 1/4 wavelength
Insertion Loss	<0.4Db
Return Loss	<-26dB
Max Surge Voltage Let Through	<200 mV
Through Put Energy	<5 nJ
Impedance	50 OHMS / 75 OHMS
Max Power	50W
Ingress Protection	IP65
Grounding Screw/LUG	Y
VSWR	<1.15(DC-3G)（DC-6G)
Max Current Load	10A
Nominal Discharge Current (kAMP)	5 kAMP
Max Discharge Current (kAMP)	20 kAMP
Impulse Current (kAMP)	2.5 kAMP
Operating Temp(degrees C)	(-40 to +85) C
ROHS	Yes
ISO-9000 Certified	Yes

Company Informantiom

Why Choose Us

Our Service

Packing & Delivery

1. Are you the manufacture or the trading company?

Amber: We are the manufacture focused on manufacturing rf connector,coaxial cables,antenna,lightning arrester since 1991!

2. How long will the delivery take?

Amber: If we have the inventory, we can ship them out immediately.If we don't, we need 5-30days to produce the products depends on the quantity.

3. What's your MOQ?
Amber: Our products in stock doesn't need MOQ, if we have to produce the products, our MOQ is 100PCS.

4. Can you send sample for us to test?
Amber: Of Course

5. What kind of payment term you accept?
Amber: Paypal, western union, alipay, T/T, etc.

6. Is customized service availble?
Amber: Yes, we can do ODM / OEM. If you need customized service please contact me.
