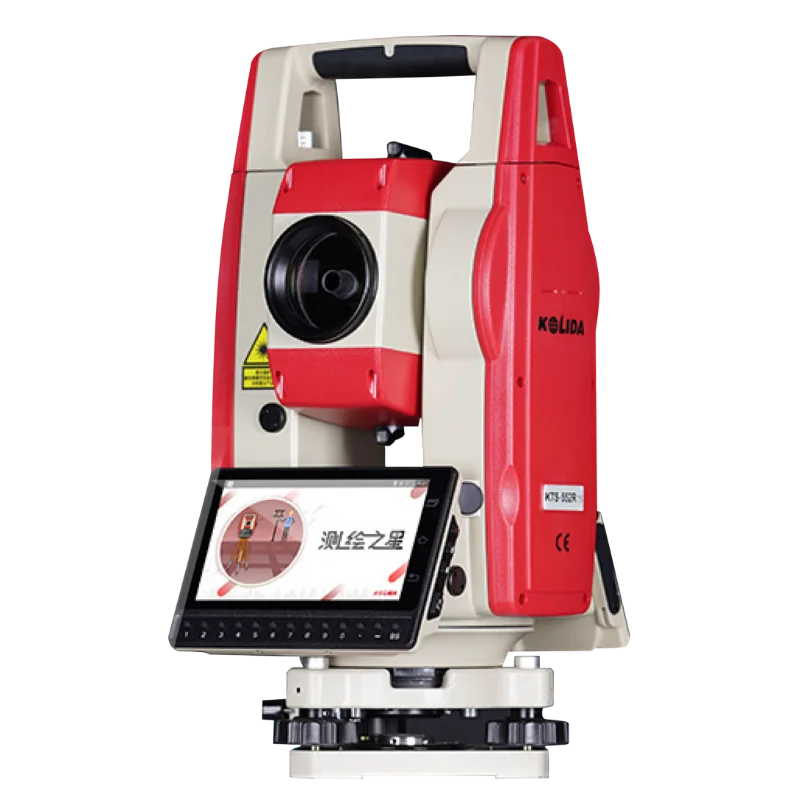

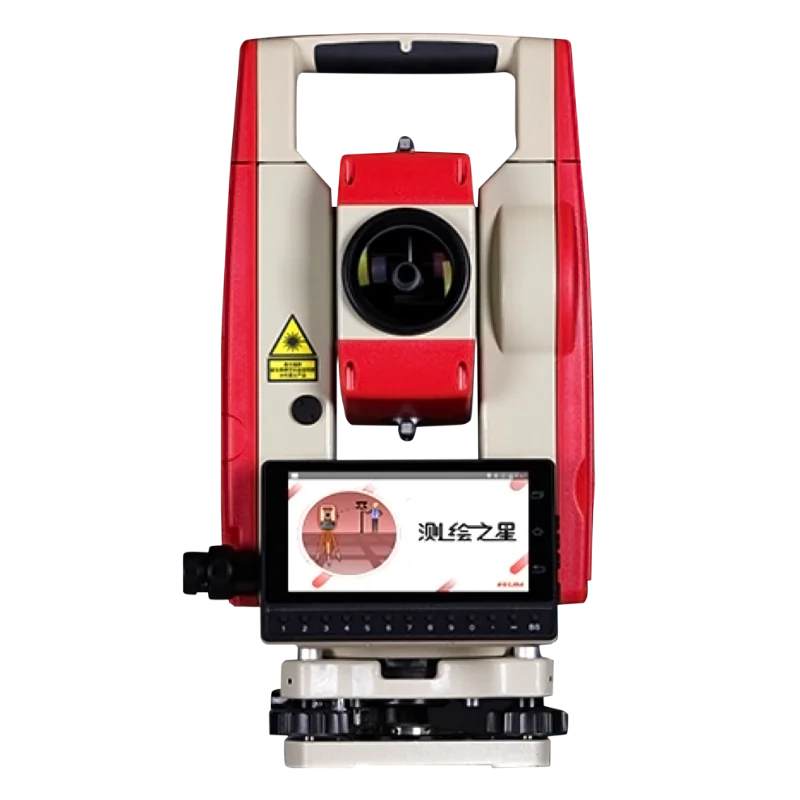

Горячая продажа стабильное качество Роботизированная общая станция для строительства Южная


Поделиться:


Цена:3 200,00 $ - 3 300,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 3808.74 $* 3998.86 $*
Aug-16-2025 3776.98 $* 3965.9 $*
Jul-16-2025 3168.80 $* 3326.10 $*
Jun-16-2025 3712.81 $* 3898.34 $*
May-16-2025 3232.58 $* 3394.4 $*
Apr-16-2025 3648.36 $* 3830.36 $*
Mar-16-2025 3616.65 $* 3797.61 $*
Feb-16-2025 3584.38 $* 3763.94 $*
Jan-16-2025 3552.26 $* 3730.29 $*

Характеристики



Products Description




Technical parameter










Distance Measurement
Reflectorless
1000m
Single Prism
5000m
Accuracy: Non Prism
3+2ppm
Accuracy: Prism
2+2ppm
Sheet
2+2ppm
Measurement Time
0.3s In Fine
0.1s In Tracking
Atmospheric Correction
Manual Input, Auto Correction
Prism Constant
Manual Input, Auto Correction
Temperature Correction
Manual Input, Auto Correction
Distance Reading
Max: 99999999.9999m Min: 0.1mm



Angle Measurement
Accuracy
 2"
Method
Absolute, Continuous
Disk Diameter
79mm
Detection Method
V: Dual, H: Dual
Angle Reading
Min: 0.1"






Telescope
Erect
Tube Length
154mm
Effective Aperture
45mm
Magnification
30x
Field Of View
1°30'
Resolving Power
3"
Minimum Focus Distance
1.2m
Reticle Illumination
4 Brightness Levels



Keyboard And Display
Keyboard
Numeric 17 Keys
Display
Graphics, 5.0 Inch TFT LCD Screen
Resolution
720*1280 dpi
Position
Face 1, Face 2


Operation System
Operation System
Android 6.0
Processor
MT6753
Memory
RAM: 3GB, ROM: 32GB





Interface
WIFI
Available
Bluetooth
Yes
SD Card
TF Card
Serial Port
6-Pin Serial Port
Mini USB
No
Mirco USB
None
USB Flash Disk
USB Type C (OTG)
SIM Card
Available

Compensator
System
Liquid, Dual Axis
Working Range
±6'
Accuracy
1"








Plummet
Laser Plummet (Default)
Accuracy
±1.5mm @1.5m
Laser Brightness
Adjustable
Wavelength
630-670nm
Laser Class
Class 2 /IEC60825-1
Laser Power
<0.4mW
Optical Plummet (Optional)
Erect
Magnification
3x
Focusing Range
0.5m --
Field Of View
5"
Accuracy
±1.5mm @1.5m


Battery
Type
Lithium/3100mAH
Voltage
7.4V
Operating time
8 hours

Vial
Plate Vial
30" /2mm
Circular Vial
8' /2mm


General
IP Rate
IP55
Temperature Range
-20°C -- +60°C
Dimension
200*170*350mm
Weight
5.7kg


Packing and shipping




Company Profile




Chengdu Zhicun Space Surveying and Mapping Instrument Co.Ltd inJanuary 2019,is a professional manufacturer andexporter that is concerned with the sale, development and production ofSurveying instrument. We are located inChengDu, with convenient transportation access. All ofour products comply with international quality standards and are greaappreciated in a variety of different ChengDu markets throughout the worlde have over50 employees, an annual sales figat exceeds USD6000000 and are currently exporting20% of our production worldwide.Ourwquipped facilities and excellent quality control throughout all stages of productionabto guarantee total customattactionAs a result of our high quality products and outstanding customer service, we have gained a global sales network reaching(Indonesia.Southeast Asia.South Asia.Africa.Russia.Middle East)you are interested in any of our products or would like to discuss a custoorder, please feel free to contact us.e looking forward to forming successfubusineselationships with new clients around the world in the near future.


Certifications




Exhibition






FAQ


Q1.What kind payment method we accept?

A1.T/T, Western Union, Trade Assurance on Alibaba, Moneygram .

Q2.How can you guarantee payment safety ?

A2.Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.

Q3.What kinds of shipment for goods and how long time it takes ?

A3.Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.

Q4.Does your company ship battery or not ?

A4.Our company can receive battery order and ship to customer normally, except for a few special countries

Q5.Do you have other items not displayed on your website ?

A5.Yes, our company supplies full range survey products. If you are looking for product not whowed on
our website. Please contact us freely. We will reply you in time.

Q6. Can you do a custom logo on the products?

A6. Yes. We can print your logo on our products and boxes.
