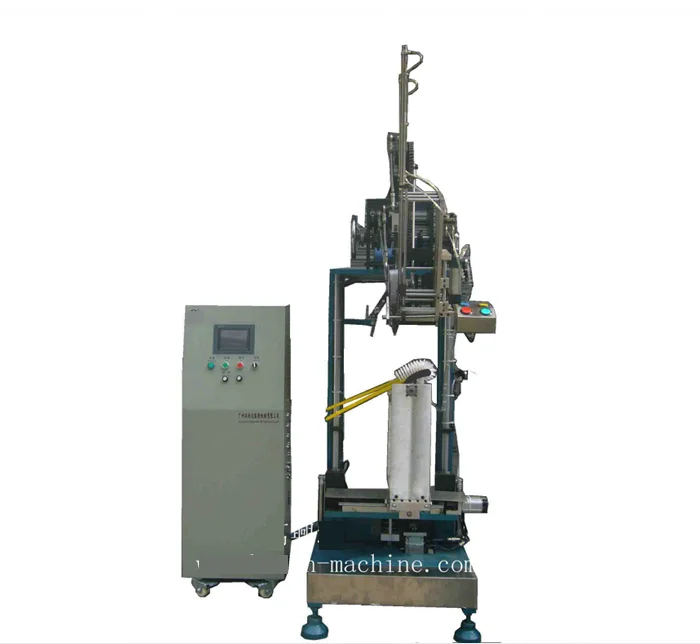

brush tufting machine for round shape ceiling broom





PLC (Programmable Logic Controller), the operators can make different brush program according to his requirement. double sets of grippers on working table, in the automatically working condition, they will take turns to tufting filament into brush block.



 Technical parameters:

Standard Working Area of Working Table	X-axis x Y-axis x Z-axis x H-axis = 350mm x 180mm x 100mm x 360°(or 30°)
Material of Brush Bases	Plastic, wood
Material of Brush Filaments	PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc.
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	2.5mm - 5mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	6 holes per second
Specifications of Machine Body	1.20m(Length) x 1m(Width) x 2.05m(Height)
Motor (Power System)	Servo motors
Data Input for Tufting Positions	Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other languages required by customers, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 550KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	Either 3-phase 380V or 1-phase 220V, 50-60Hz, 800W
Replaceable Grippers	FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Method	Anchor-type (using flat wires)
Packing	Packed into wood cases.  Wood case for machine body: 1.23m x 1.07m x 2.08m  Wood case for computer box: 0.80m x 0.80m x 1.56m
