Новейший дизайн Высококачественная автоматическая линия производства изоляционного стекла с роботом для
- Категория: Glass Processing Machinery >>>
- Поставщик: Jinan,Cbs,Industry,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.37 $* | 0.28 $* |
| Aug-18-2025 | 0.41 $* | 0.85 $* |
| Jul-18-2025 | 0.43 $* | 0.10 $* |
| Jun-18-2025 | 0.23 $* | 0.39 $* |
| May-18-2025 | 0.45 $* | 0.21 $* |
| Apr-18-2025 | 0.8 $* | 0.15 $* |
| Mar-18-2025 | 0.40 $* | 0.14 $* |
| Feb-18-2025 | 0.36 $* | 0.0 $* |
| Jan-18-2025 | 0.0 $* | 0.69 $* |
Характеристики
Product Description
Processed I.G. unit size | Min: 300x450mm, Max: 2500x3000mm, 2500x3500mm(over long unit, Optional) |
Ways of assembly | Outside automatic assembly, inside plate press |
Power | 3-Phase, 4 wires, 380V 50Hz, 37kW |
Air consumption | 800L/min |
Washing speed | 2-8m/min |
Max. working speed | 45m/min(adjustable according to requirement) |
Single glass thickness: | 3-15 mm |
Insulating glass unit thickness | 12 ~ 50mm; |
Compressed air supply | 0.5-1.0Mpa, 0.8m3/min |
Water electrical conductivity | ≦50μS/cm |
Ambient temperature | 10℃-30℃, following DIN 40040 |
Relative air humidity | ≦75%, following DIN 40040 |
Overall dimension | 33750x2300x3400mm |
Features and functions:

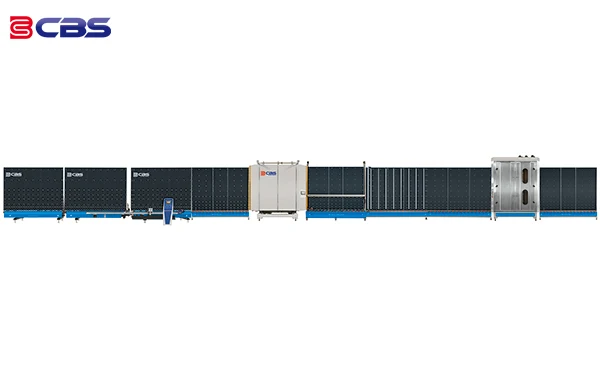

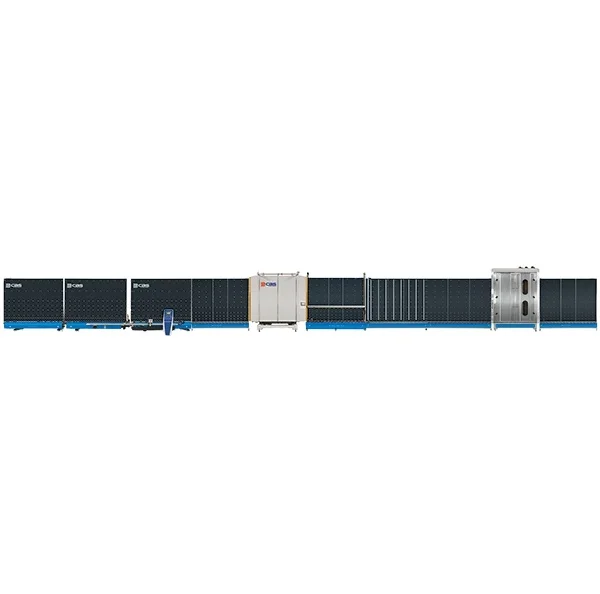

1. The IGL-2510E-SS Automatic insulated glass production line with sealing robot including glass loading section, glass washing and drying machine, glass transportation section, glass washing quality inspection machine & aluminum spacer framework assembly machine, glass assembly section, insulating glass unit plate press section, dgu glass output section and the double glazinng unit second sealant automatic sealing robot.
2. Automatically distinguish the coating side of coated glass and Low-E glass.
3. PLC controller with touch screen operation.
4. It adopts outside glass assembly, which can produce standard double layer IGU and three layers insulated glass unit.
5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
7. Integrated with automatic sealing robot which increased the productivity. Double set sealing extruding system is optional.
8. Inside plate press is optional for step IGU production.
1. The IGL-2510E-SS Automatic insulated glass production line with sealing robot including glass loading section, glass washing and drying machine, glass transportation section, glass washing quality inspection machine & aluminum spacer framework assembly machine, glass assembly section, insulating glass unit plate press section, dgu glass output section and the double glazinng unit second sealant automatic sealing robot.
2. Automatically distinguish the coating side of coated glass and Low-E glass.
3. PLC controller with touch screen operation.
4. It adopts outside glass assembly, which can produce standard double layer IGU and three layers insulated glass unit.
5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
7. Integrated with automatic sealing robot which increased the productivity. Double set sealing extruding system is optional.
8. Inside plate press is optional for step IGU production.
