Лучшая цена автоматическая линия по производству изоляционного стекла высшего
- Категория: Glass Processing Machinery >>>
- Поставщик: Jinan,Cbs,Industry,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.95 $* | 0.17 $* |
| Aug-18-2025 | 0.74 $* | 0.91 $* |
| Jul-18-2025 | 0.12 $* | 0.12 $* |
| Jun-18-2025 | 0.77 $* | 0.16 $* |
| May-18-2025 | 0.47 $* | 0.50 $* |
| Apr-18-2025 | 0.94 $* | 0.38 $* |
| Mar-18-2025 | 0.56 $* | 0.56 $* |
| Feb-18-2025 | 0.36 $* | 0.30 $* |
| Jan-18-2025 | 0.17 $* | 0.50 $* |
Характеристики
Product Description
Processed I.G. unit size | Min: 300x450mm, Max: 2200x3000mm, |
Ways of assembly | Outside automatic assembly, inside plate press |
Power | 3-Phase, 4 wires, 380V 50Hz, 27kW |
Air consumption | 600L/min |
Washing speed | 2-8m/min |
Max. working speed | 45m/min(adjustable according to requirement) |
Single glass thickness: | 3-15 mm |
Insulating glass unit thickness | 12 ~ 50mm; |
Compressed air supply | 0.5-1.0Mpa, 0.8m3/min |
Water electrical conductivity | ≦50μS/cm |
Ambient temperature | 10℃-30℃, following DIN 40040 |
Relative air humidity | ≦75%, following DIN 40040 |
Overall dimension | 21350x2300x3200mm |
Features and functions:

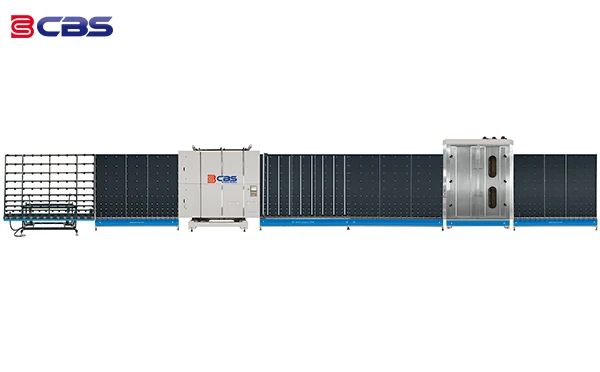

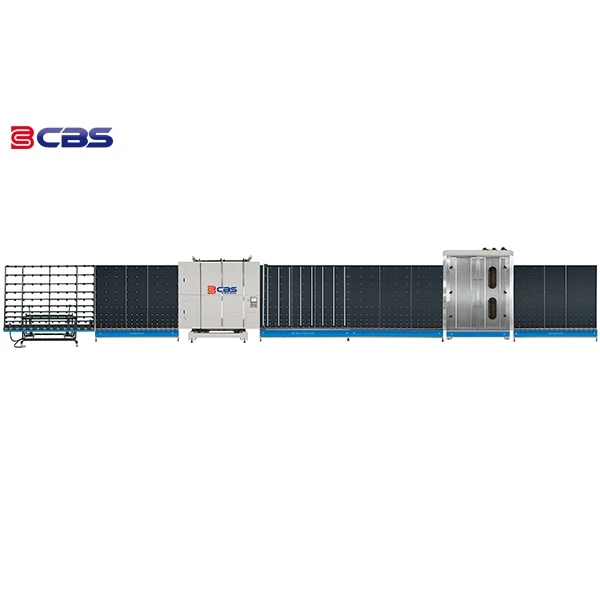

1. The IGL-2207N Automatic Insulating Glass Unit Production Line including glass loading section, glass washing and drying machine, glass transportation section, glass washing quality inspection machine & aluminum spacer framework assembly machine, glass assembly section, insulating glass unit plate press section, dgu glass output section and tilting table(optional).
2. Automatically distinguish he coating side of coated glass and Low-E glass.
3. PLC controller with touch screen operation.
4. It adopts outside glass assembly, which can produce standard double layer IGU, three layers insulated glass unit and step insulated glass unit also.
5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
7. Automatic in-line argon gas filling machine in the plate press section (optional).
1. The IGL-2207N Automatic Insulating Glass Unit Production Line including glass loading section, glass washing and drying machine, glass transportation section, glass washing quality inspection machine & aluminum spacer framework assembly machine, glass assembly section, insulating glass unit plate press section, dgu glass output section and tilting table(optional).
2. Automatically distinguish he coating side of coated glass and Low-E glass.
3. PLC controller with touch screen operation.
4. It adopts outside glass assembly, which can produce standard double layer IGU, three layers insulated glass unit and step insulated glass unit also.
5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
7. Automatic in-line argon gas filling machine in the plate press section (optional).
