Материнская плата PRIME B45M-A с AMD B450 128 для
- Категория: Motherboards >>>
- Поставщик: Shenzhen,Jinyouyuan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.44 $* | 0.22 $* |
| Aug-18-2025 | 0.82 $* | 0.28 $* |
| Jul-18-2025 | 0.55 $* | 0.54 $* |
| Jun-18-2025 | 0.12 $* | 0.21 $* |
| May-18-2025 | 0.87 $* | 0.37 $* |
| Apr-18-2025 | 0.78 $* | 0.34 $* |
| Mar-18-2025 | 0.50 $* | 0.3 $* |
| Feb-18-2025 | 0.22 $* | 0.61 $* |
| Jan-18-2025 | 0.49 $* | 0.22 $* |
Характеристики
Product Description
Product Name | PRIME B450M-A |
Main chipset | AMD B450 |
Memory type | 4 x DDR4 DIMMs |
CPU Socket | Socket AM4 |
Product performance description
Integrated chip: sound card/network card
Main chipset: AMD B450
Main chipset: AMD B450
Chipset Description: AMD B450 chipset is used
Display chip: CPU built-in display chip (CPU support required)
Audio chip: Integrated Realtek ALC887 8-channel sound chip
Nic chip: Onboard Realtek RTL8111H GIGABit NIC
CPU type: gen 2 / Gen 1 AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU Socket: Socket AM4
Memory type: 4 x DDR4 DIMMs
Maximum memory capacity: 128GB
Memory: supports dual channels of DDR4 3200(OC), 3000(OC), 2800(OC), 2666/2400, and 2133MHz memory
Pci-e standard: PCI-E 3.0
Pci-e slot: 1 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
Storage ports: 1 x M.2 ports and 1 x SATA III ports

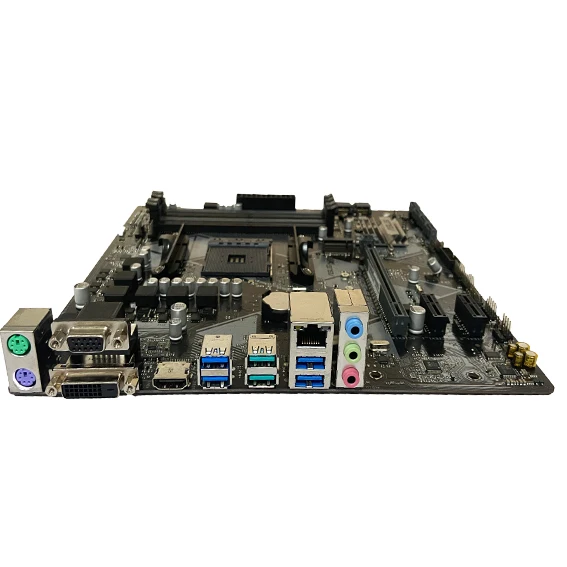

The I/O interface:
USB interface: 2 x USB3.1 Gen2 interface, 6 x USB3.1 Gen1 interface (2 built-in +4 backplane), 4 x USB2.0 interface (4 built-in)
Video interface: 1 x VGA interface, 1 x DVI interface, 1 x HDMI interface
Power interface: one 8-pin, one 24-pin power interface
Other interface: 1 x RJ45 network interface, 3 x audio interface, 1 x PS/2 mouse, 1 x PS/2 keyboard interface
Board type: Micro ATX board type
Overall size: 24.4×24cm
BIOS performance: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, Asus EZ Flash 3, Asus CrashFree BIOS 3, F3 F12 PrintScreen, Asus DRAM SPD (Serial presence) detection) memory information, F6 Qfan Control
Display chip: CPU built-in display chip (CPU support required)
Audio chip: Integrated Realtek ALC887 8-channel sound chip
Nic chip: Onboard Realtek RTL8111H GIGABit NIC
CPU type: gen 2 / Gen 1 AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU Socket: Socket AM4
Memory type: 4 x DDR4 DIMMs
Maximum memory capacity: 128GB
Memory: supports dual channels of DDR4 3200(OC), 3000(OC), 2800(OC), 2666/2400, and 2133MHz memory
Pci-e standard: PCI-E 3.0
Pci-e slot: 1 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
Storage ports: 1 x M.2 ports and 1 x SATA III ports
The I/O interface:
USB interface: 2 x USB3.1 Gen2 interface, 6 x USB3.1 Gen1 interface (2 built-in +4 backplane), 4 x USB2.0 interface (4 built-in)
Video interface: 1 x VGA interface, 1 x DVI interface, 1 x HDMI interface
Power interface: one 8-pin, one 24-pin power interface
Other interface: 1 x RJ45 network interface, 3 x audio interface, 1 x PS/2 mouse, 1 x PS/2 keyboard interface
Board type: Micro ATX board type
Overall size: 24.4×24cm
BIOS performance: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, Asus EZ Flash 3, Asus CrashFree BIOS 3, F3 F12 PrintScreen, Asus DRAM SPD (Serial presence) detection) memory information, F6 Qfan Control
Related Products
Packing&Shipping
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.Total weight: 1 piece motherboard about 0.4~0.5KG;
Carton size:
20*20*8cm carton for 1~2 pcs motherboard; 47*30.3*23.5cm carton for 10pcs motherboard; 50*49*20cm carton for 20~30pcs motherboard.
Express:DHL,Fedex,UPS,TNT,etc.
separated by stiff cardboards in carton boxes.Total weight: 1 piece motherboard about 0.4~0.5KG;
Carton size:
20*20*8cm carton for 1~2 pcs motherboard; 47*30.3*23.5cm carton for 10pcs motherboard; 50*49*20cm carton for 20~30pcs motherboard.
Express:DHL,Fedex,UPS,TNT,etc.
