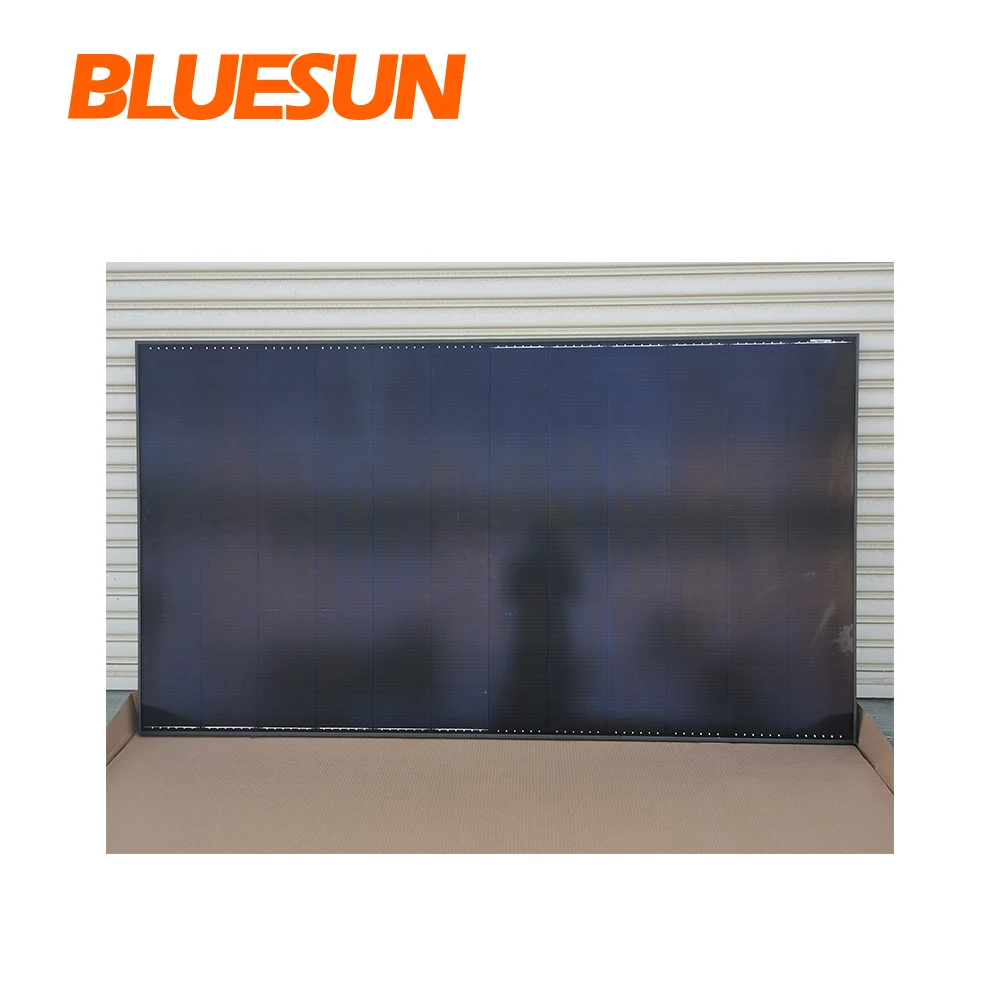

Монокристаллическая солнечная панель Bluesun 500 Вт перекрывающаяся


Поделиться:


Цена:0,23 $ - 0,25 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.79 $* 0.2 $*
Aug-19-2025 0.17 $* 0.48 $*
Jul-19-2025 0.31 $* 0.50 $*
Jun-19-2025 0.48 $* 0.57 $*
May-19-2025 0.32 $* 0.78 $*
Apr-19-2025 0.39 $* 0.93 $*
Mar-19-2025 0.79 $* 0.52 $*
Feb-19-2025 0.27 $* 0.88 $*
Jan-19-2025 0.48 $* 0.18 $*

Характеристики



Global Exhibitions




Our Company








Products Description




Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.



Electrical Characteristics
Model
BSM470PM5 -72SB
BSM475PM5 -72SB
BSM480PM5 -72SB
BSM485PM5 -72SB
BSM490PM5 -72SB
BSM500PM5 -72SB
Max Power(Pmax) [W]
470
475
480
485
490
500
Open Circuit Voltage(Voc) [V]
46.4
46.5
46.6
46.6
46.7
46.8
Short Circuit Current(lsc) [A]
13.04
13.10
13.16
13.22
13.28
13.40
Max Power Voltage(Vmp) [V]
38.6
38.7
38.8
38.8
38.9
39.0
Max Power Current(lmp) [A]
12.18
12.27
12.37
12.50
12.60
12.82
Module Efficiency [%]
20.1
20.3
20.5
20.7
20.9
21.3
Power Tolerance
0-5W
Max System Voltage
1000V/1500V/DC(IEC)
Max Series Fuse Rating
20A
Operating Temperature
-40 °C to + 85 °C
STC
Irradiance 1000W/m2, cell temperature 25 °C, AM1.5


Advantages Of Shingled Module




*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.







Packing




Model
BSMxxxPM5-60SB
BSMxxxPM5-72SB
Pcs/Pallet
31
31
Pcs/40'HQ
806
682
Pcs/Flat Car
1240
992
