Single phase 220V vfd drives 3hp 5hp ac variable frequency inverter 2.2kw 4kw


frequency converter freqency inverter ac driver



Product Description










Features

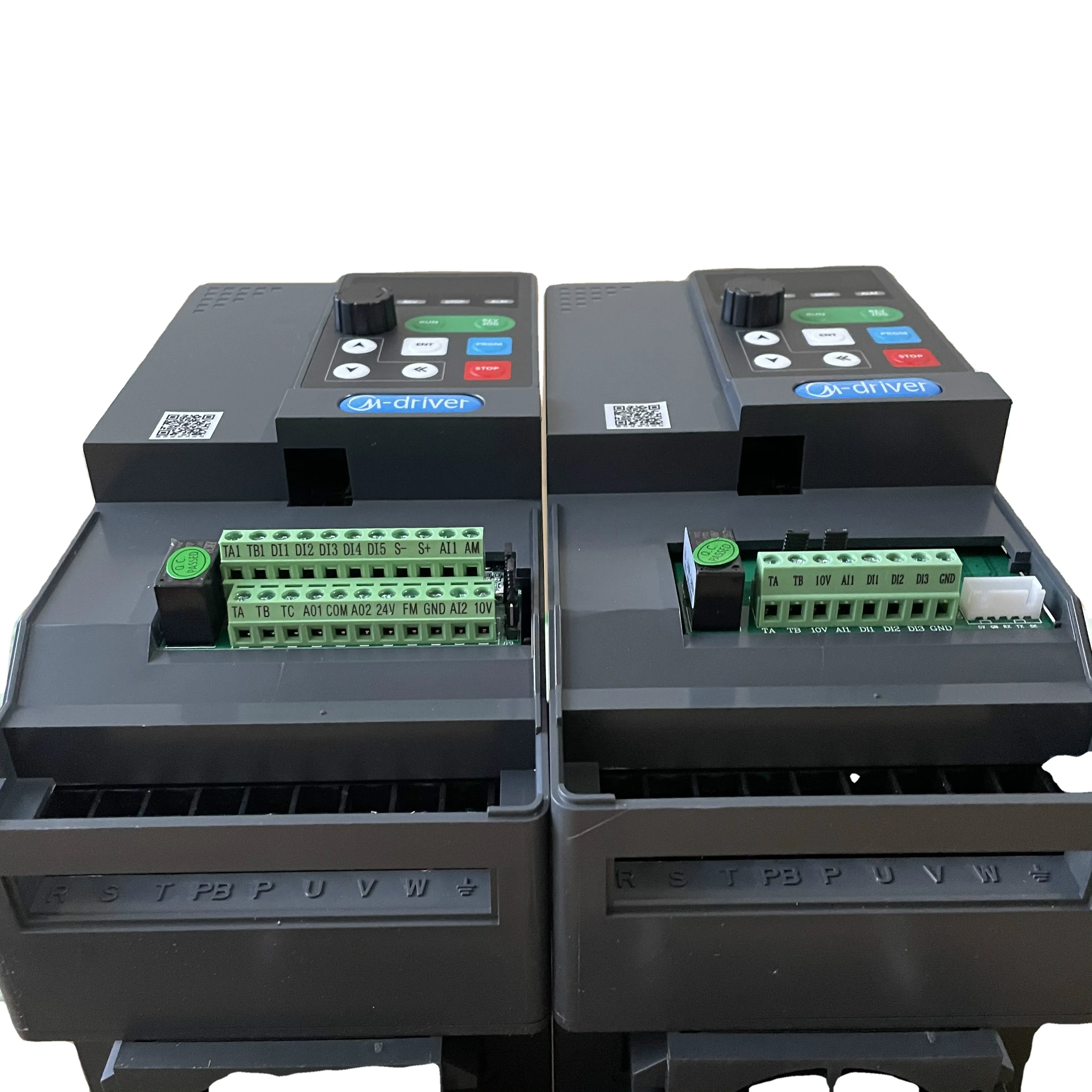

M-driver M550 VS M300 series
1. IGBT module
M550 use Infineon IGBT module from 11kw , Chinese brand IGBT module from 0.75kw to 7.5kw.
M300 use Chinese brand IGBT module from 0.75kw to 37kw.


2. Terminals
Simplified terminals for M300 0.75kw to 7.5kw inverters.
For M300(0.75kw~7.5kw), 3 digital inputs, No digital ouputs and or analog outputs , no built-in brake unit, RS485 is opitona.
For M300 11kw-37kw, same as M550 series


3. Price
M300 is more affordable


4. Warranty
The warranty is the same. We offer 18 months warranty.


Specifics


____________________________________________________________________________________________________________________































































































































































ItemSpecifications
Basic functionOver load capabilityG type:150% rated current 60s;180% rated current 3s
P type:120% rated current 60s;150% rated current 3s
Torque boostAuto torque boost function; Manual torque boost 0.1%~30.0%
V/F curveLinear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2)
V/F separation2 ways: separation and semi-separation
Acc./dec curveStraight line or S curve acceleration and deceleration mode,
Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s
DC brakingDC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s
Brake current value:0%-100%
Jog controlJog frequency range:0.00Hz~50.00Hz;
Jog acceleration/deceleration:0.0s~6500.0s.
Simple PLC  It can realize at maximum of 16 segments speed
Basic function Multiple segment speed runningRunning via the built-in PLC or control terminal.
Built-in PIDIt is easy to realize process-controlled closed loop control system.
Auto voltage regulation (AVR)It can keep constant output voltage automatically in the case of change of network voltage.
Over-voltage/current stall controlIt can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
Quick current limitMinimize the over-current fault, protect normal operation of the AC Drive.
Torque limit & control"Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop vector mode can realize the torque control.
Personalized functionInstantaneous stop non-stopWhen instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time.
Rapid current limitTo avoid AC Drive frequent over-current fault.
Timing controlTiming control function:set time range 0Min~6500.0Min.
RunningCommand sourceOperation panel reference, control terminal reference and serial communication port reference. These channels can be switched in various modes.
Frequency sourceThere are totally eleven types of frequency sources, such as digital reference, analog voltage reference , analog current reference, pulse reference, MS speed, PLC, PID and serial port reference.
Input terminal3 digital input terminals.
1 analog input terminals.
1 supporting 0-10V voltage input or 0~20mA current input terminal.
Output terminal
1 relay output terminals.

Keyboard operationKeyboard potentiometerEquipped with keyboard potentiometer or coding potentiometer.
Keyboard operationProtection functionIt can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection.
EnvironmentUsing placeIndoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
AltitudeBelow 1000m
Ambient temperature-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
HumidityLess than 95%RH,without condensing
VibrationLess than 5.9m/s  (0.6g)




Product details


________________________________________________________________________________________________________

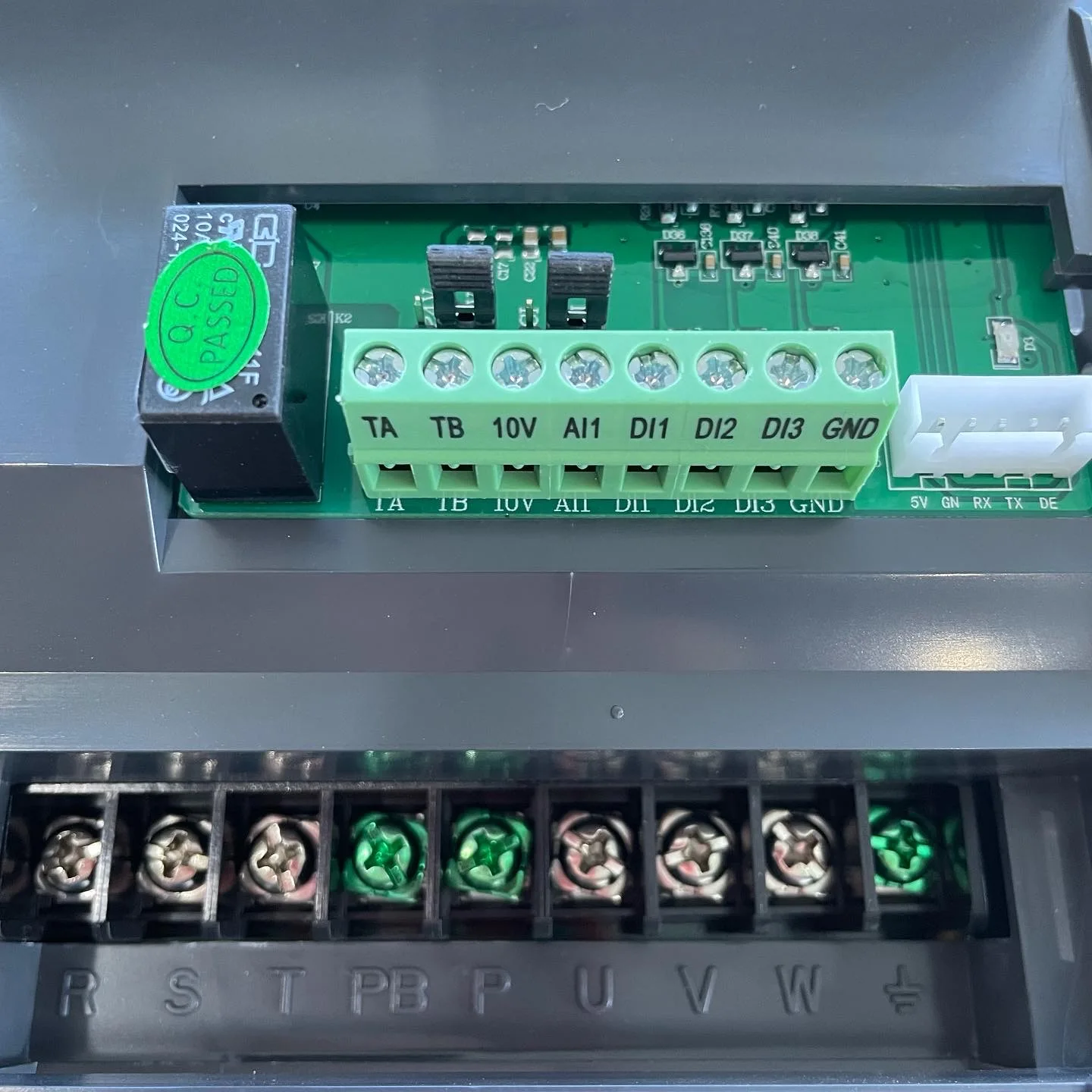

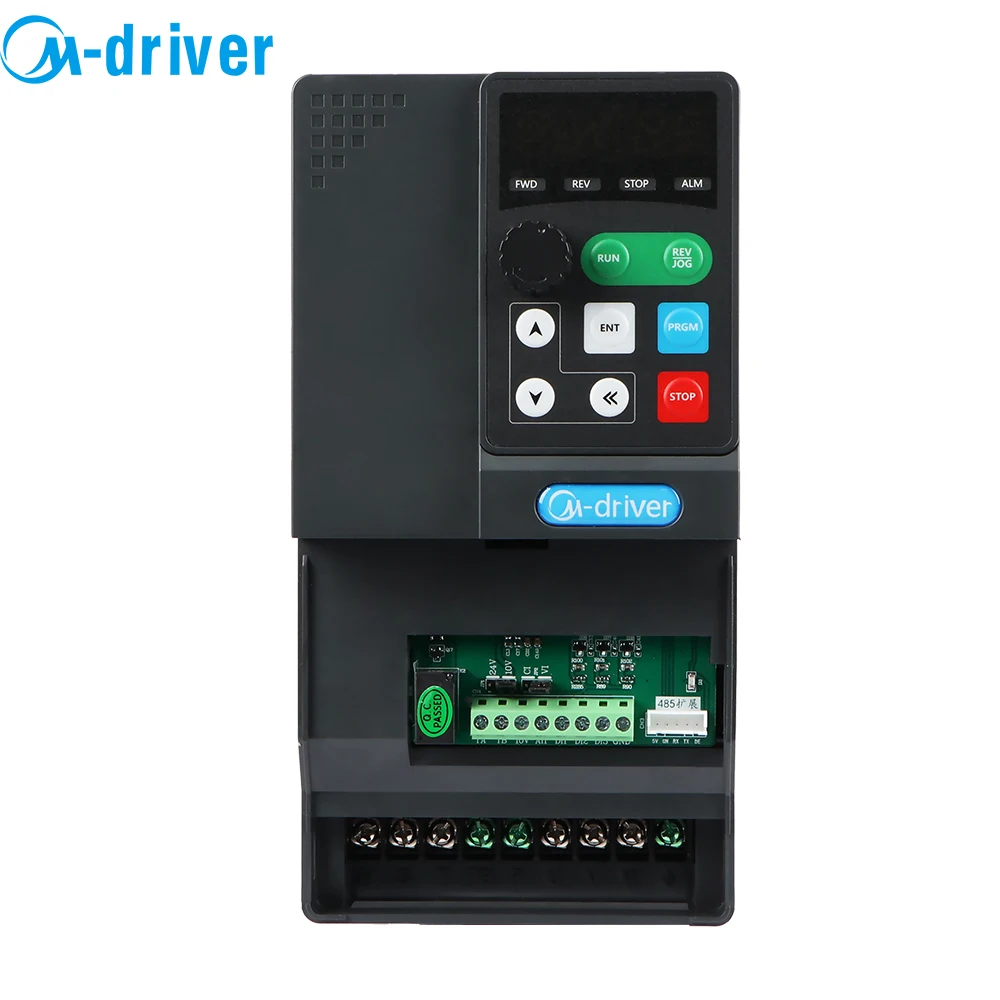

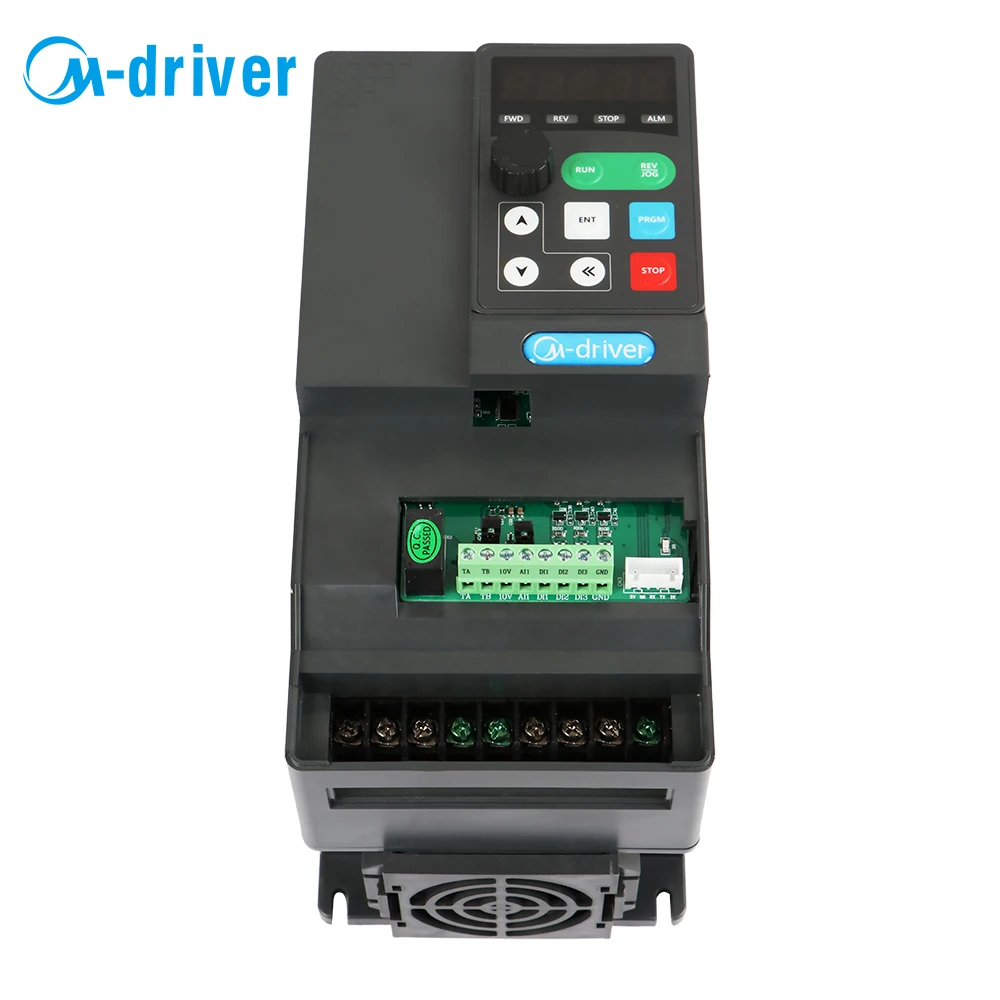

4-7.5kw4kw inverter (6).jpg5.5kw vfd (2).jpgM300 5.5kw VFD.jpgM300 vfd terminal.jpg


Connection diagram


____________________________________________________________________________________________________________________


M300 frequency converter.jpgm300 vfd.jpgM300 VFD.jpgM300 ac drive.jpg













































































Application


frequency inverters (2).jpg

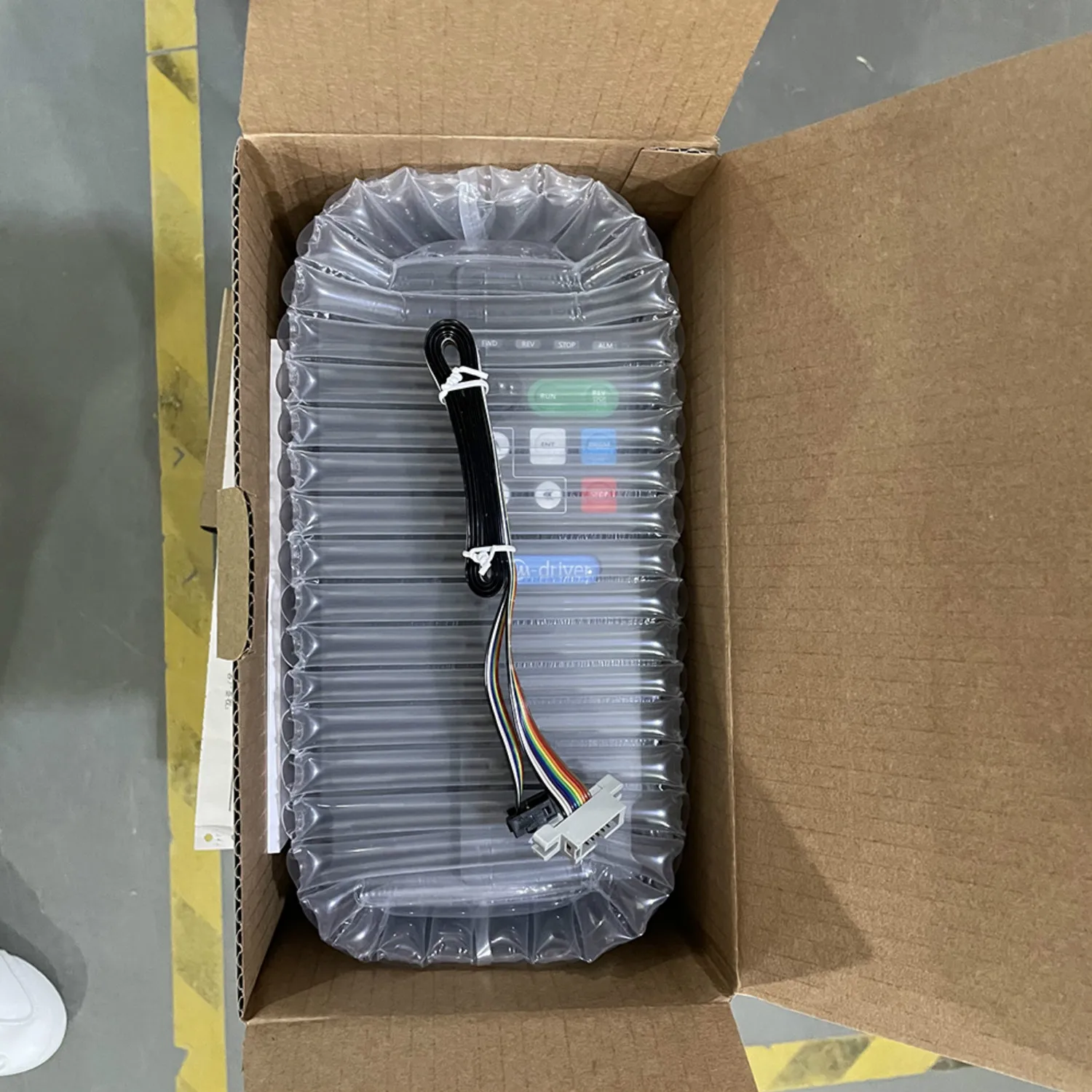

Packaging & Shipping


packing for VFD.jpg9.webp





Company Information


inverters factory.jpg


01a_15




 Frequency Inverters FAQ.jpg



FAQ





Q 1: Are you trading company or manufacturer ?


We are factory.



Q 2: How long is your lead time?


Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.



Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.



Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.



Q 5: What is the standard of package?


Single small carton or plywood crate.



Q 6. Is there any discount ?


The discount will depend on the quanlity you purchase.



Q 7. What is your supply capacity?


The daily production is 500pcs.



Q 8. Do you provide warranty for the goods?


Yes, we provide 18 months warranty for all the goods.



Q 9. Could M-driver provide technical support?


Yes, we worked 19 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
