Бикарбонат натрия ацетат гранулы кипящим слоем

Категория: Fluid Bed Drying Equipment >>>
Поставщик: Liaoyang,Wanda,Machinery,Co.,Ltd.

Цена:50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	59500.67 $*	62475.37 $*
Aug-16-2025	59000.77 $*	61950.92 $*
Jul-16-2025	49500.80 $*	51975.86 $*
Jun-16-2025	58000.15 $*	60900.89 $*
May-16-2025	50500.95 $*	53025.45 $*
Apr-16-2025	57000.52 $*	59850.87 $*
Mar-16-2025	56500.31 $*	59325.46 $*
Feb-16-2025	56000.21 $*	58800.56 $*
Jan-16-2025	55500.81 $*	58275.36 $*

Характеристики

Vibrating fluid bed dryer

Vibrating fluidized bed dryer is set to be supported on a set of springs and powered by a vibrating motor.The bulk material into the dryer is thrown to the outlet end by the action of the excited vibration force on the porous plate and is thrown to the end.Hot air from the porous plate under the drum goes through the material layer and heat the material, and carry the vaporized water from the material discharged from the exhaust port, so as to dry the material.

Application Field

The machine is suitable for drying, cooling, humidifying of powder and granule materials in chemistry, pharmaceutical, foodstuff,beverage and mining industries, also can be used for drying, cooling and humidifying simultaneously.
1.Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxy benzene, malice acid, malefic acid and so on.
2. Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence,desiccated coconut and so on.
3. It can also be used for raw materials to add up damp or cooling so on.
Raw material feature:
1: material particles are too big or irregular need to fluid.
2: lower speed fluidization is needed to keep particles complete,
3: materials are sticky or sensitive to temperature.

Working Principle

Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.

Features

1.Raw material is heated evently and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2.The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
3.The fluided state is stable and no dead angle and phenomenon of broken out;
4.It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the total amplitude can be adjusted through continuous variable speed.
5.It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken.The drying effect can not be affected even if raw materials have anomaly shape.
6. Adopts full sealed structure.It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

Product Parameters

The above data is just for reference.the exact one should be subject to the final design.

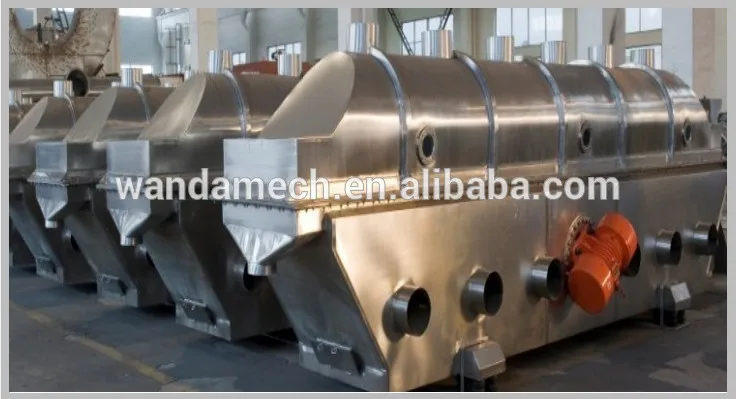

Details Images

Our Honor

Our service

1.We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and
accept together with you.

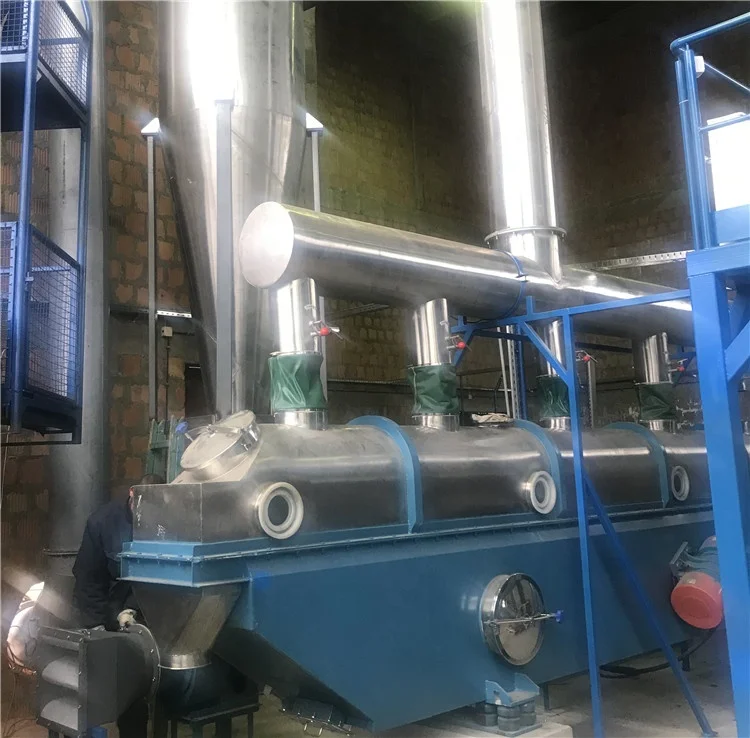

Customer visiting

Company Profile

Liaoyang Wanda Machinery Co.,Ltd

Wanda Machinery Co., Ltd. specializes in R&D, manufacturing, operation, export and related services of drying oven, rotary flash dryers, centrifugal spray drying equipment, vibrating fluidized bed dryers, etc. Equipment designed over the years has been involved in the fields of medicine, chemicals, pesticides, electronics, mining, food, dyes, pigments and so on.
Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.Our products are far sold to Europe, U.S.A., and many place around the world.
