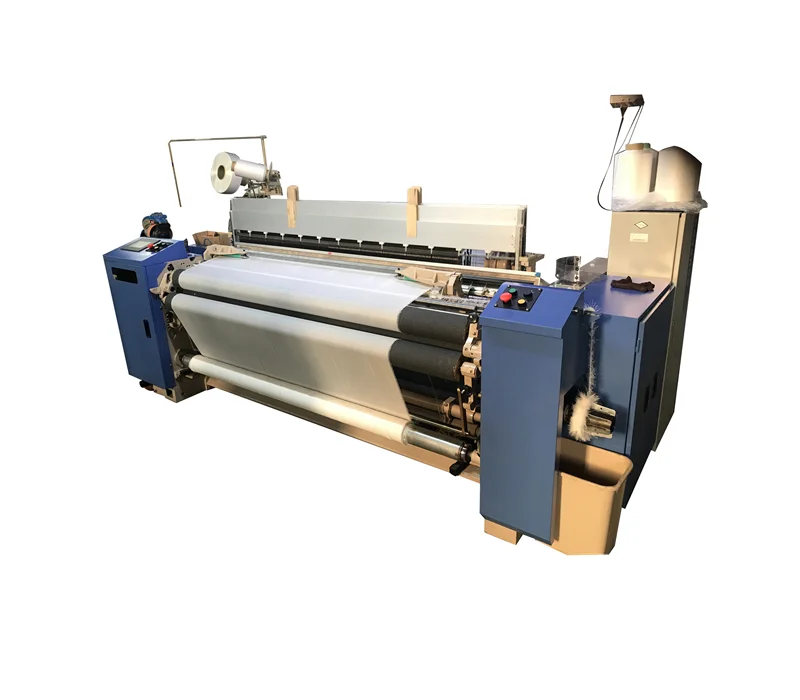

Ткацкий станок SUNTECH высокопроизводительный автоматический

Цена:6 000,00 $ - 10 000,00 $*

Количество:

Product description

Detail Images

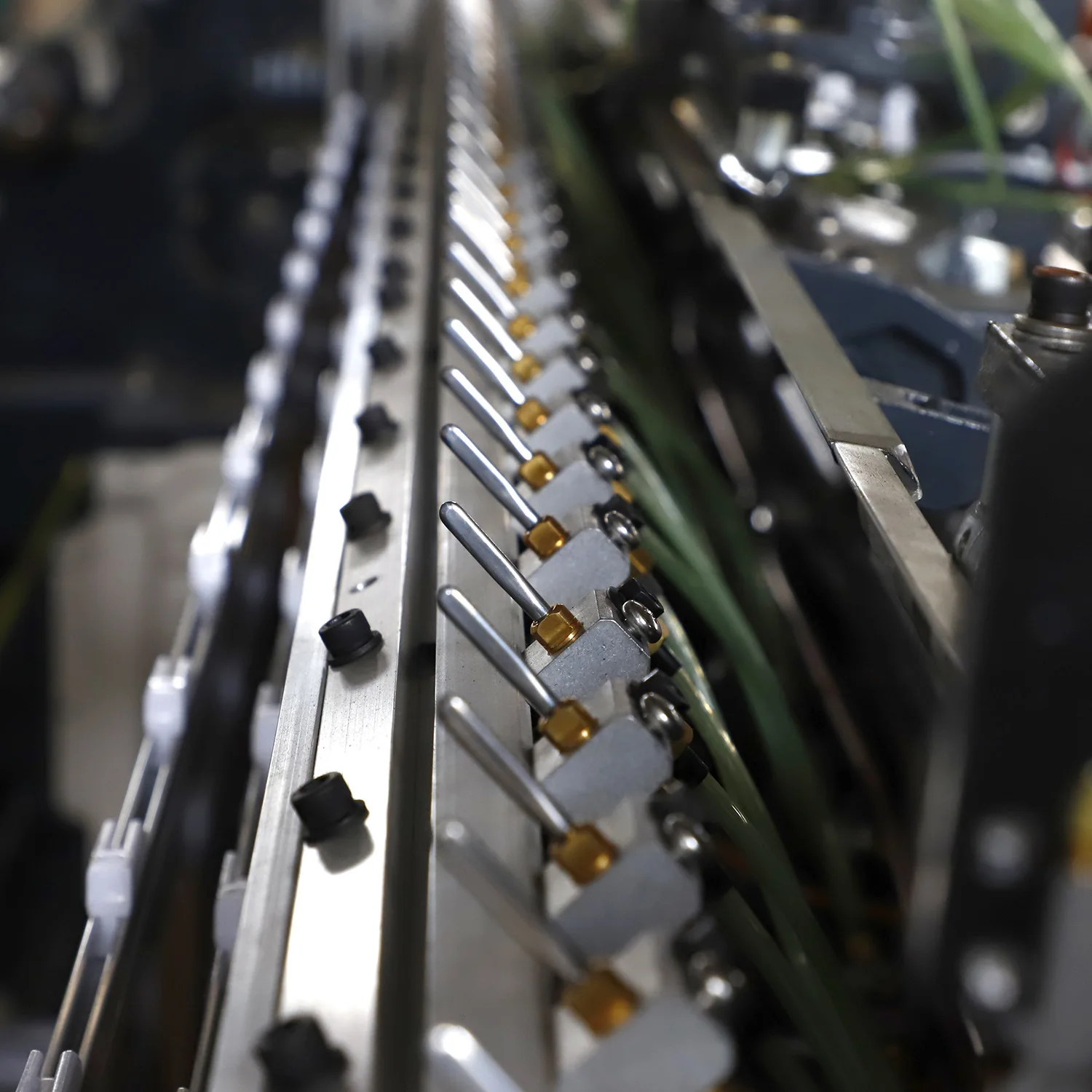

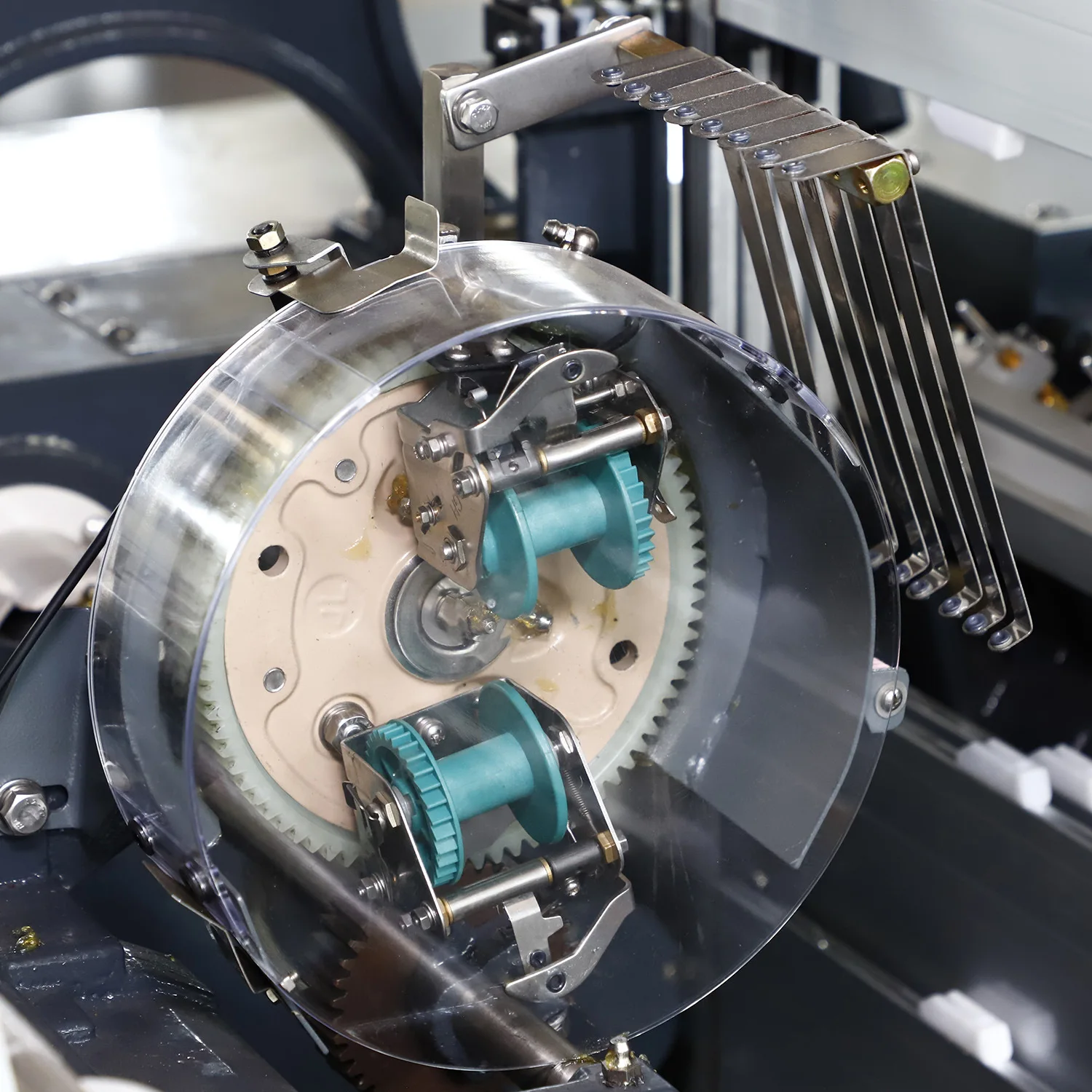

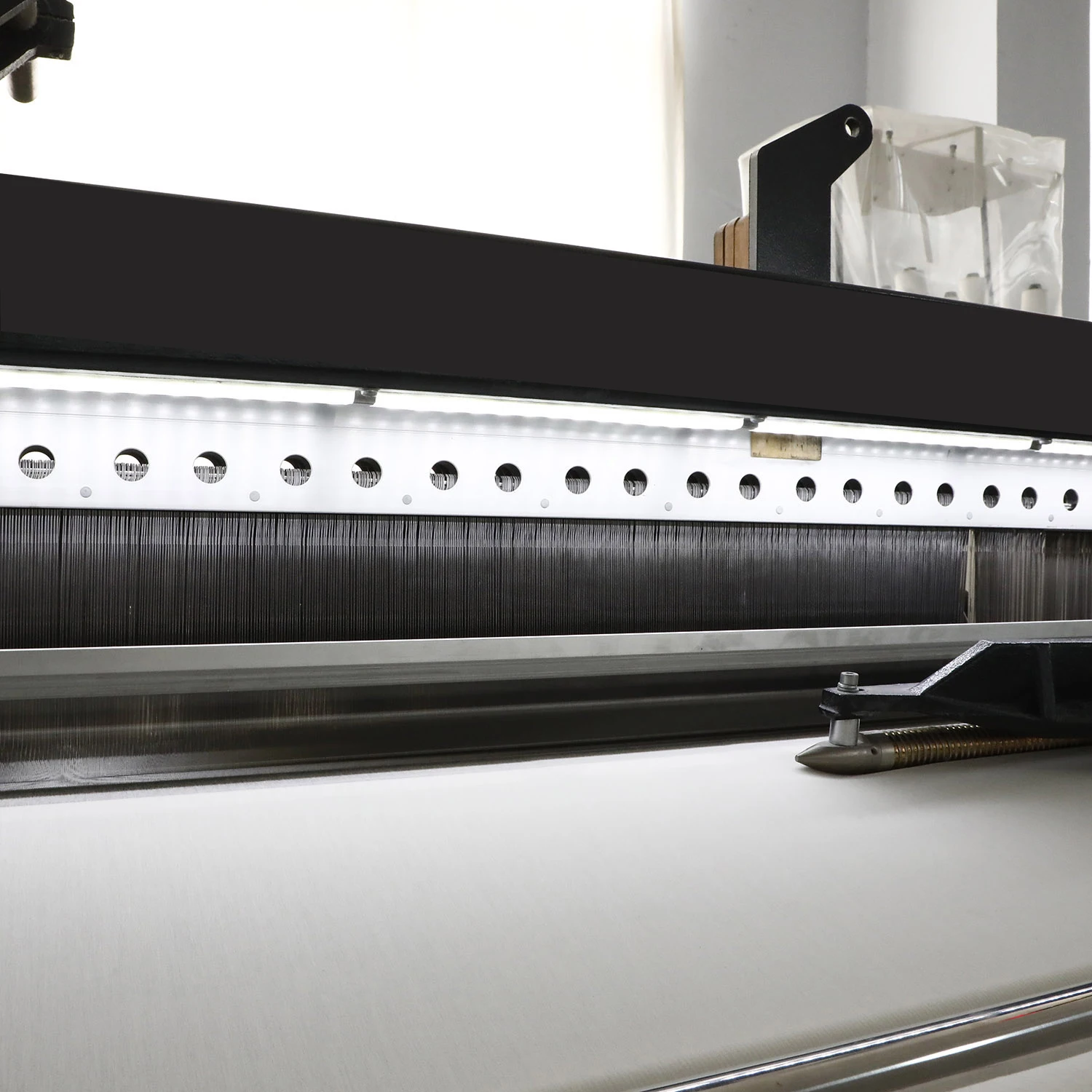

Take-up mechanism display Electronic take-up and left off Clear shedding

Specification

Size	According to customer requirements
Texture of material	According to customer requirements
Speed	500~1000rpm
Number of nozzles	1-4nozzle
Power	1.5-4.5kw
Number of heald frames	2-16piece
Way of opening	plate/cam/Dobby
Reed width	170-360cm
Let-off	Eletric let off,φ800mm beam pipe
Take-up	Electric take up,Max rolling φ600mm
Reed	1 piece
Wires	10000 pieces
Dropper	10000 pieces
Back rest	Double back rest,removable back rest seat on the back of China high speed air jet loom
Electric control box	Touchable screen;Controlled by computer;parameter setting and controlling,autodiagnosis
Stopping device	4 color LED lights a,cracked ends:6 line droppers;b, broken picks:two weft feeler c,Leno edge apparatus:near switch;d,Capture side of weft yarn:sensor
Lifting	Solid supporting, Thickened pipe,imported bearings
Crossbeam	Triangular steel, weaving steadily
Weft selection	1,2,4 or 6 colors
Weft insertion	The main and auxiliary nozzles are electronically controlled
Drive	New designed motor;Electromagnetic brake;Butt oncontrol
Air supplying	Centralized air compressor
