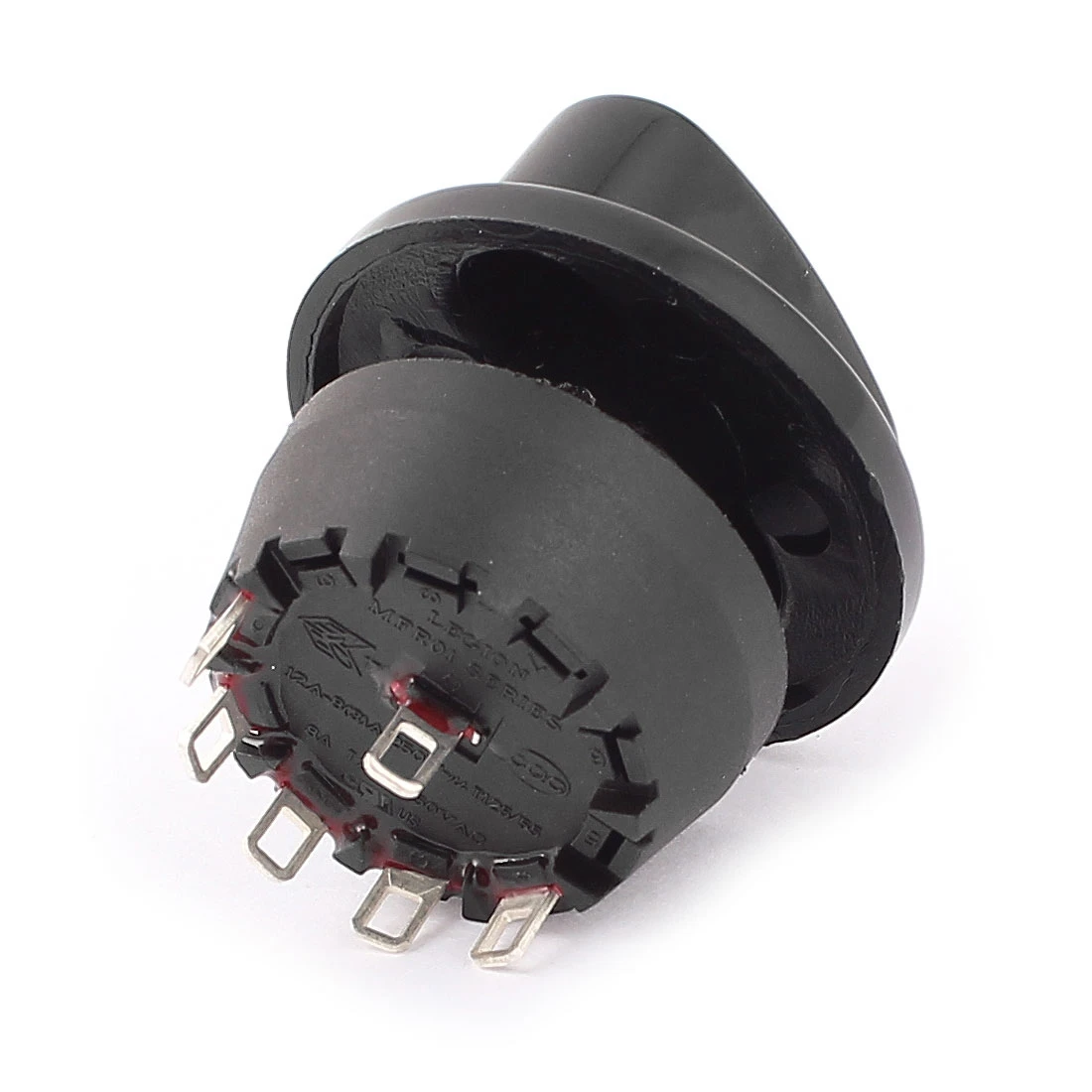

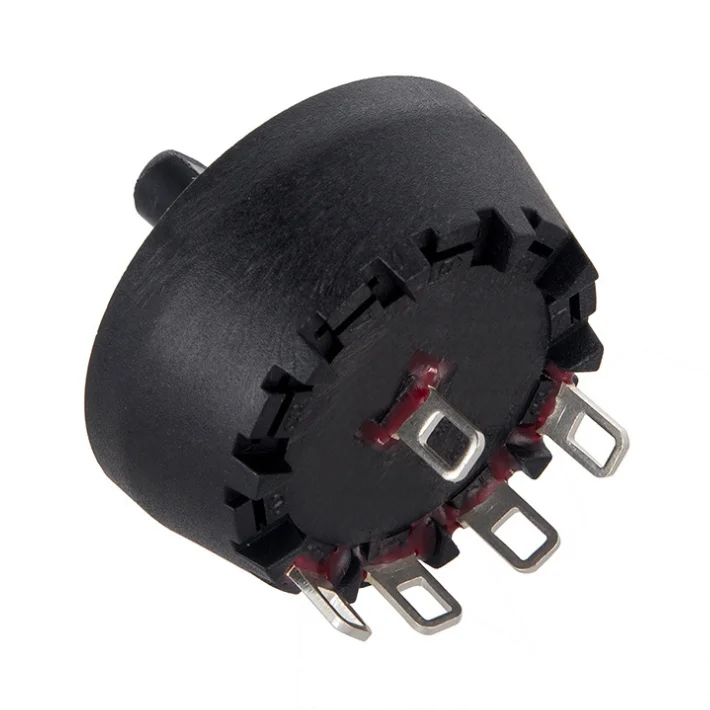

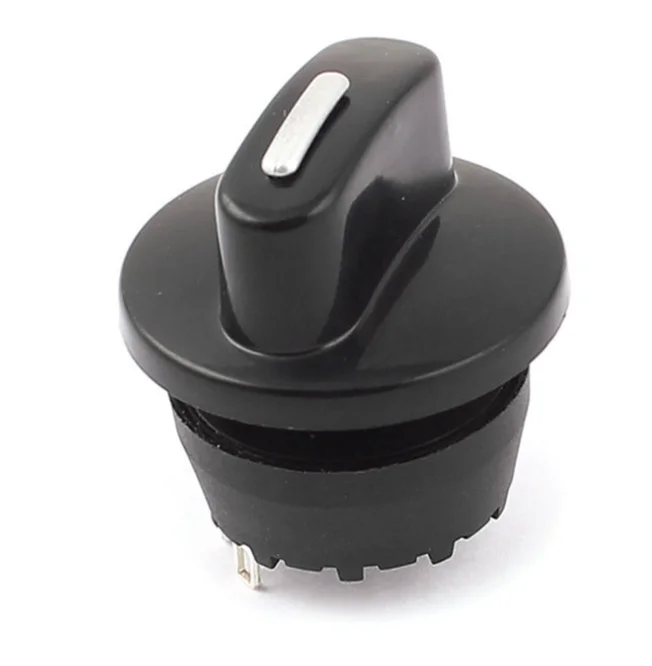

Переключатель вращающихся редукторов MFR01 sp2t sp3t sp4t sp5t sp6t sp7t sp8t
- Категория: Rotary Switches >>>
- Поставщик: Sichuan,Qixing,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.3 $* |
| Aug-16-2025 | 0.30 $* | 0.6 $* |
| Jul-16-2025 | 0.9 $* | 0.59 $* |
| Jun-16-2025 | 0.36 $* | 0.93 $* |
| May-16-2025 | 0.56 $* | 0.10 $* |
| Apr-16-2025 | 0.74 $* | 0.10 $* |
| Mar-16-2025 | 0.13 $* | 0.2 $* |
| Feb-16-2025 | 0.98 $* | 0.37 $* |
| Jan-16-2025 | 0.83 $* | 0.16 $* |
Характеристики
Product Description
Specification
proper temperature | 0~125 |
Rated | 8A 125/250vac |
Electrical characteristics
With a micro-resistance meter under the test specification of DC0.2V/1A, the contact resistance value is less than 20 milliohms, the insulation resistance is greater than 100 megohms withstand voltage, when two terminals with different poles are open, they can pass a withstand voltage of 3000VAC for one minute. The terminal and metal shell can pass a withstand voltage of 1500VAC for one minute.
life span test
The test voltage is 250VAC, the test current is 6A, and the power factor is 0.6. It can pass 9800 tests at a rate of 7.5 times per minute.
Products drawing
