CRI 98 cozy light 170lm/w 50W high power COB LED
US $0.10-$11.00
Чип Bridgelux высокой яркости белый 6500K 42 Вт 48 50 монолитный блок светодиодов для модуля прожекторного
- Категория: COB LED >>>
- Поставщик: Shenzhen,Huanyu,Dream,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.97 $* | 2.75 $* |
| Aug-16-2025 | 2.17 $* | 2.61 $* |
| Jul-16-2025 | 2.48 $* | 2.0 $* |
| Jun-16-2025 | 2.57 $* | 2.55 $* |
| May-16-2025 | 2.98 $* | 2.57 $* |
| Apr-16-2025 | 2.24 $* | 2.38 $* |
| Mar-16-2025 | 2.90 $* | 2.69 $* |
| Feb-16-2025 | 2.24 $* | 2.99 $* |
| Jan-16-2025 | 2.95 $* | 2.45 $* |
Характеристики
Product Description

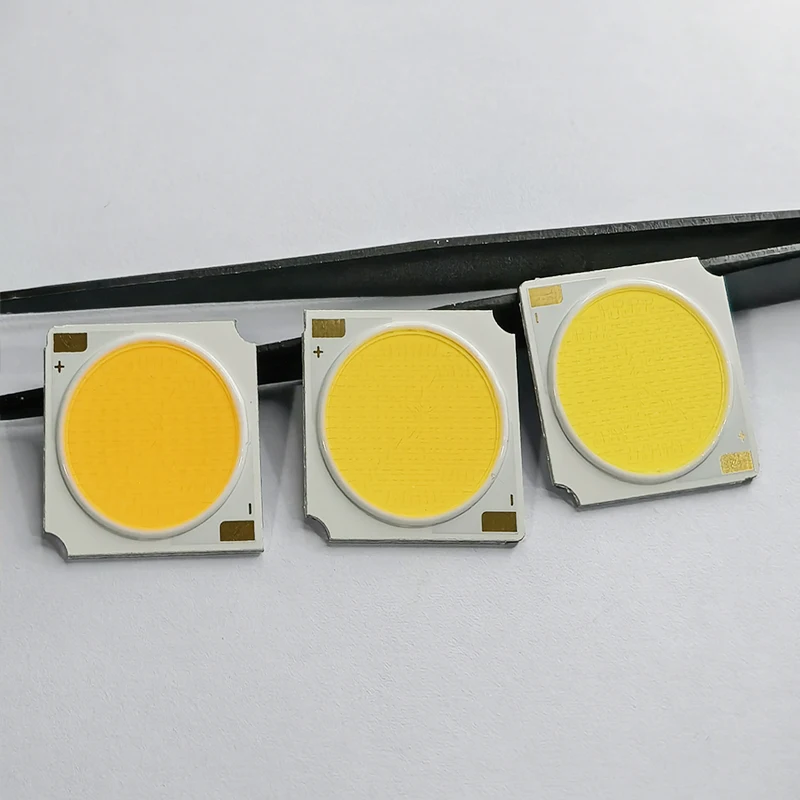

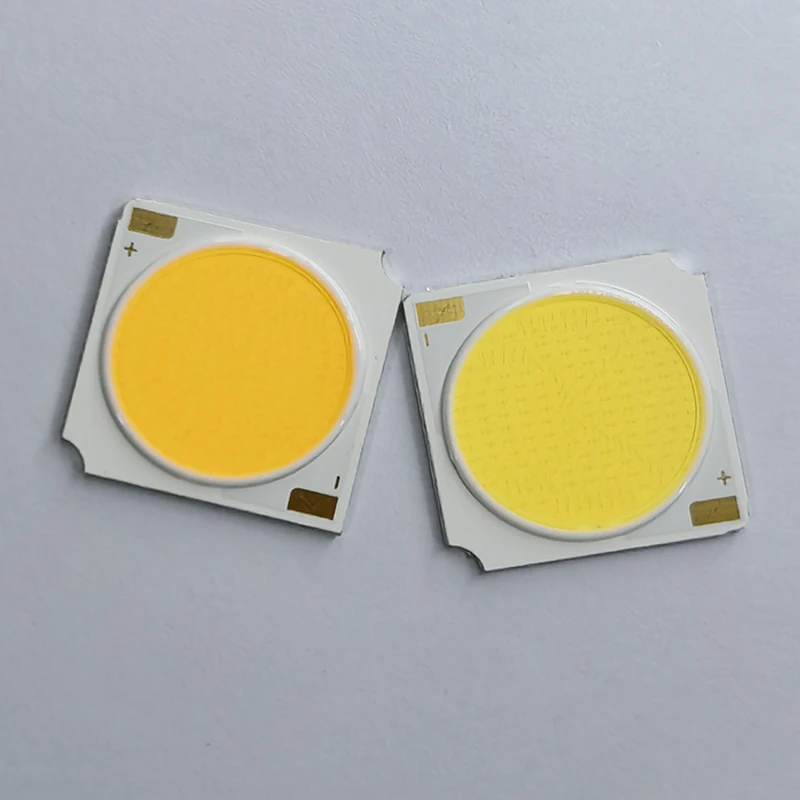

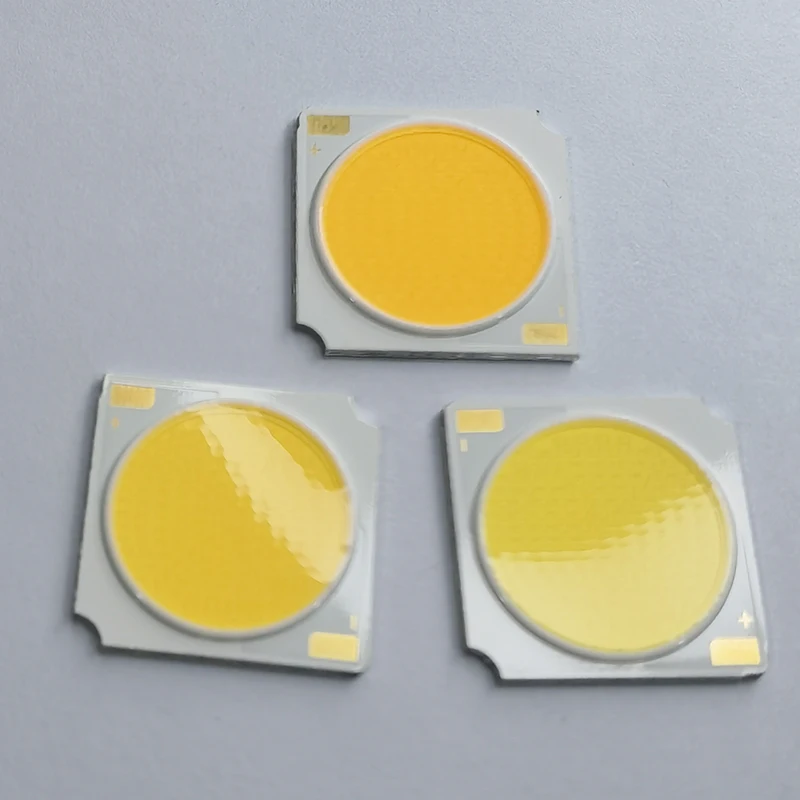

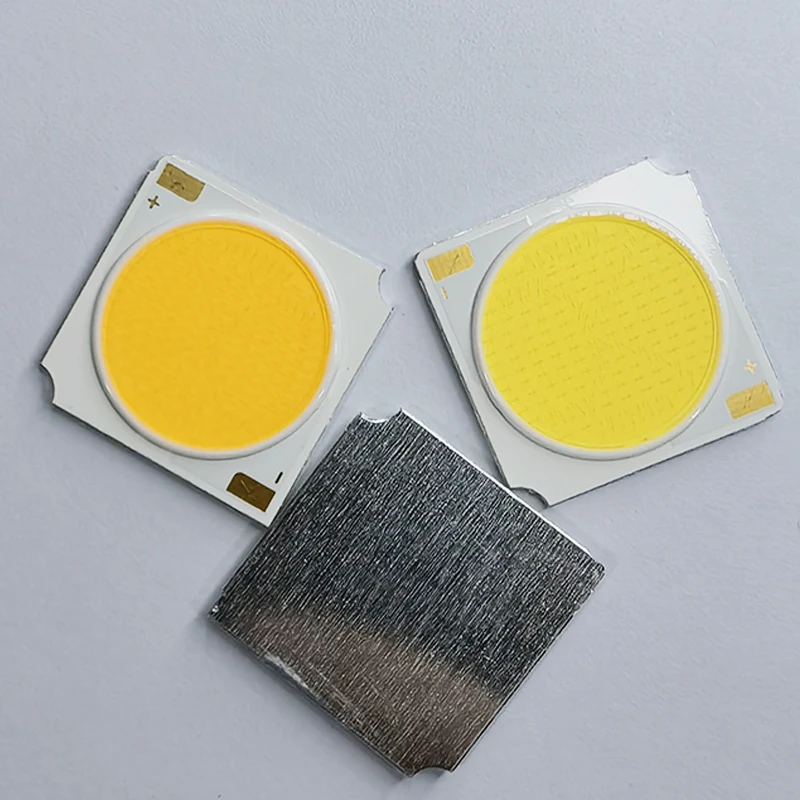

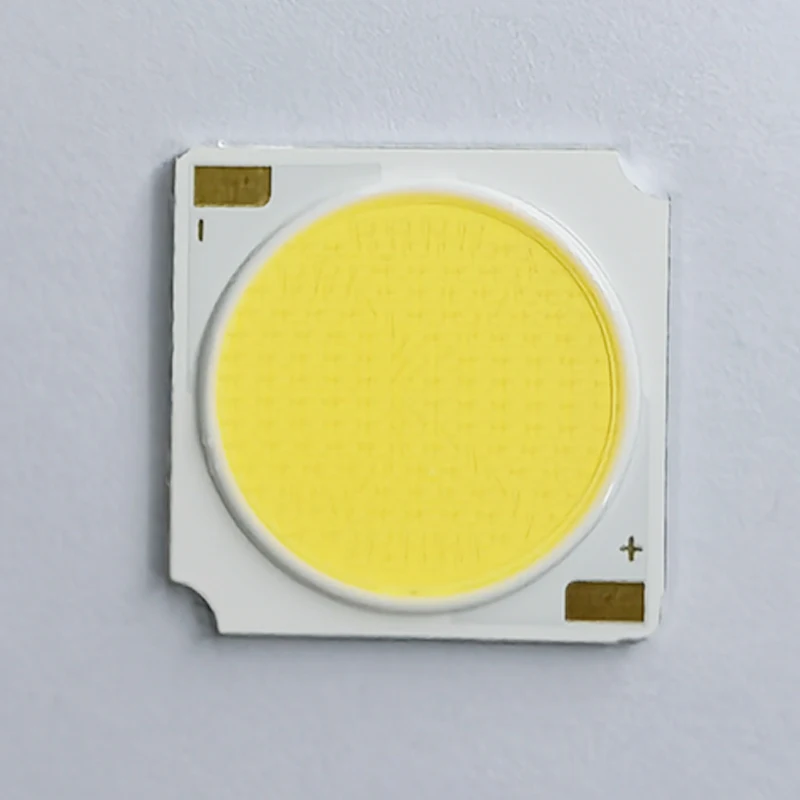

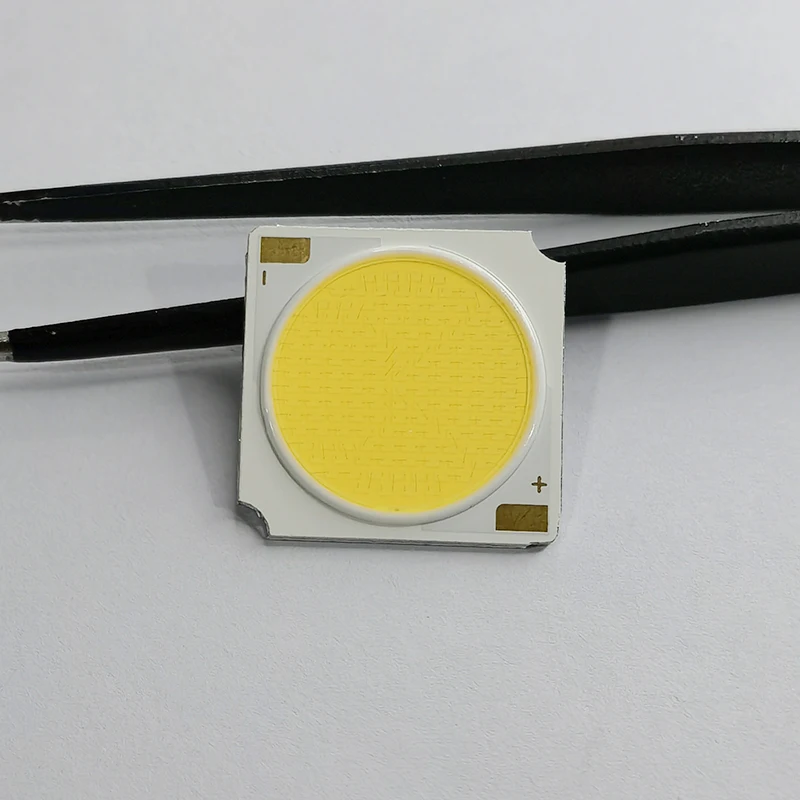

High lumen Bridgelux chip white 6500K 42W 48W 50w cob led for spot light module
》》1313 1919 2828 3838 5047 6060 different size COB LED available
》》Small power COB 3W 5W 7W 12W 24W 48W
》》Midble Power COB 50W 60W 80W 100W
》》High Power COb 200W 300W 500W 1200W 2400W
》》Cri with Ra80 Ra90 Ra95 Ra98, customer made voltage,CCT
》》Small power COB 3W 5W 7W 12W 24W 48W
》》Midble Power COB 50W 60W 80W 100W
》》High Power COb 200W 300W 500W 1200W 2400W
》》Cri with Ra80 Ra90 Ra95 Ra98, customer made voltage,CCT
Hot selling COB LED 1919 Customize CCT& CRI& Volt | ||
Power | 42-48W (12-48W available) | |
Voltage | 36-39V | |
Current | 1050-1200mA | |
Series/Parallel | 12S8P | |
130-150lm/W( Ra>80 ) | ||
100-120lm/W (Ra>90) | ||
CCT | 1800K/2000K/3000K/4000K/5000K/6000K ( customize available) | |
CRI | Ra 90 ( CRI 80 /90/95 as choose) | |
Junction temperature | 115 ℃ | |
Solder temperature | 350 ℃ | |
Operating Temperature | -40 ~ + 85 ℃ | |
Packing | 49pcs | |
Available watt for 1919mm | ||||||||||
Part No. | Power | S&P | VF | IF | LM/W | |||||
HY01917-57D3-1208B | 42-48W | 12S8P | 36-39V | 1050-1200mA | 130-140LM/W(Ra>80) 110-120LM/W (Ra>95) | |||||
HY01917-57D3-1207B | 36-42W | 12S7P | 900-1050mA | |||||||
HY01917-57D3-1206B | 30-36W | 12S6P | 750-900mA | |||||||
HY01917-57D3-1205B | 24-30W | 12S5P | 600-750mA | |||||||
HY01917-57D3-1204B | 18-24W | 12S4P | 450-600mA | |||||||
HY01917-57D3-1203B | 12-18W | 12S3P | 300-450mA | |||||||
HY01917-57D3-1202B | 12W | 12S2P | 300mA | |||||||
Application
Related Products
HY-1310D2857-7S3P-24-F3 | HY-1917D2267-8C4B-16-F3 | HY-2825D2765-12S22P-100-H5 | HY-F4030-F5730D3-1040B |
13*13mm | 19*19mm | 28*28mm | 40*40mm |
7*2W@600mA | 8*2W@300mA | 55*2W@1500mA | 100*2W@3350mA |
20-24V | 20-24V | 34-36V | 30-34V |
Bi color | Bi color | Bi color | Bi color |
80 Ra/ 90 Ra /95 Ra | 80 Ra/ 90 Ra /95 Ra | 80 Ra/ 90 Ra /95 Ra | 80 Ra/ 90 Ra /95 Ra |
HY-4021RGBW-01-100-60-D5 | HY-1917RGBCW-01-25-3060-D5 | HY-1917RGBW-02-18-50-D5 | HYD2823-F5330D3-0913B |
40*40mm | 19*19mm | 13*13mm | 28*28mm |
100W@800mA | 25W@300mA | 8W@150mA | 200W@3700mA |
27-30V | 20-24V | 8-10V | 27-32V |
RGB+W Four in One | RGB+CW+WW Five in One | RGB+W Four in One | WW+CW Bi-Color |
Company Introduction
Huanyu is a SMD and COB manufacture. Our advanced knowledge and packaging technology for many years has excellent reliability and high quality of our products. Huanyu COB Series covers a wide range of luminous flux from a 3W to 2500W. The element arrangement of LEDpackage is capable of utilizing light more effectively and higher performance.
Huanyu COB succeed to reduce the thermal resistance significantly. and more options to match luminaire's products design (ex. High performance , Cost effective , Higher lumen density ,Increased allowable max. ).
Huanyu COB succeed to reduce the thermal resistance significantly. and more options to match luminaire's products design (ex. High performance , Cost effective , Higher lumen density ,Increased allowable max. ).
Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
