Промышленный лабораторный вакуумный насос 20 л 50 100 Buchi дистиллятор эфирного масла роторный пленочный испаритель
- Категория: >>>
- Поставщик: Zhengzhou,Mingyi,Instrument,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 536.43 $* | 563.48 $* |
| Aug-16-2025 | 531.96 $* | 558.89 $* |
| Jul-16-2025 | 446.72 $* | 468.65 $* |
| Jun-16-2025 | 522.4 $* | 548.91 $* |
| May-16-2025 | 455.32 $* | 478.9 $* |
| Apr-16-2025 | 513.39 $* | 539.85 $* |
| Mar-16-2025 | 509.99 $* | 534.44 $* |
| Feb-16-2025 | 504.76 $* | 529.58 $* |
| Jan-16-2025 | 500.84 $* | 525.62 $* |
Характеристики
Product Description

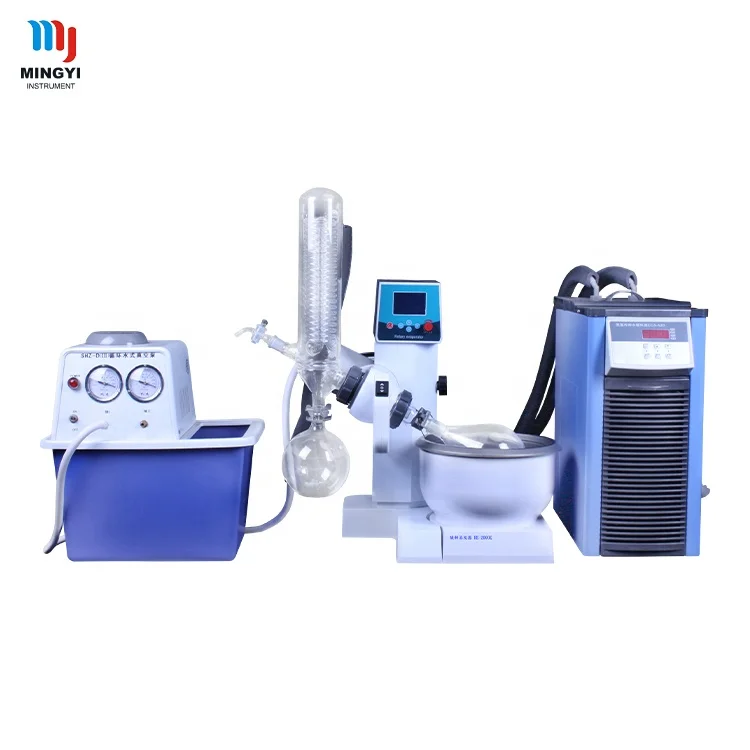

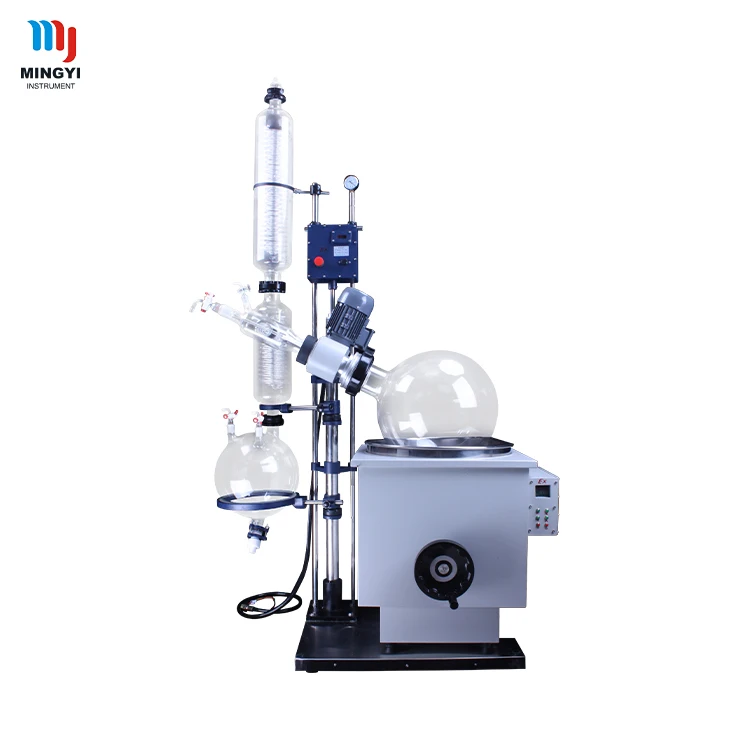

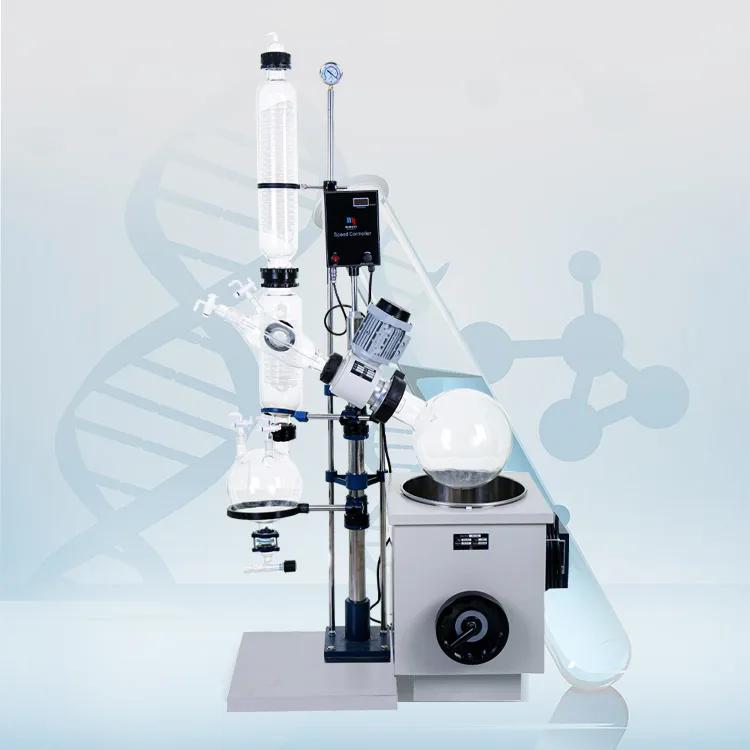

Brief Introduction of the Rotary evaporator:
Rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
Rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
Basic parameter | Model | RE-1002 |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 490*430*540mm | |
Pot guts Material | Stainless steel 350*220mm | |
Plate size | 474*474mm | |
Rotary bottle volume | 10L ￠95 flanged | |
Collective bottle volume | 5L ￠50 flanged | |
Vacuum | 0.098Mpa | |
Rotary power | 120W | |
Rotary speed | 0-110rpm | |
Heating power | 3KW | |
Bath temp. range | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Voltage(V/Hz) | 220V/50Hz | |
Lifting stroke | 180mm | |
Size (mm*mm*mm) | 970*480*1950mm | |
Packing size(mm*mm*mm) | 1350*350*400 1280*570*660 0.67m2 | |
Gross weight（KG） | 100 | |
Function | Speed mode | Frequency Control |
Speed display | Digital display6 | |
Temp. control mode | K type sensor digital display | |
Temp. control | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical efficiency three reflux condenser, main condenser 120 * 640, 135 * 470 pay cold | |
Continuous collection | Valve control | |
Lifting mode | Manual lifting bath pot | |
Temperature measuring device | 19# standard port | |
Continuous feed | 34 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve, ¢ 50 flanged | |
Vacuum display | Vacuum table | |
Optional | Lifting mode | Automatic lifting |
Collective mode | Double collective bottle | |
Explosion proof | Proof inverter, explosion-proof motor EX120W | |
Frame portion | Spray or spray tetrafluoroethylene | |
Bath material | 304 stainless steel |

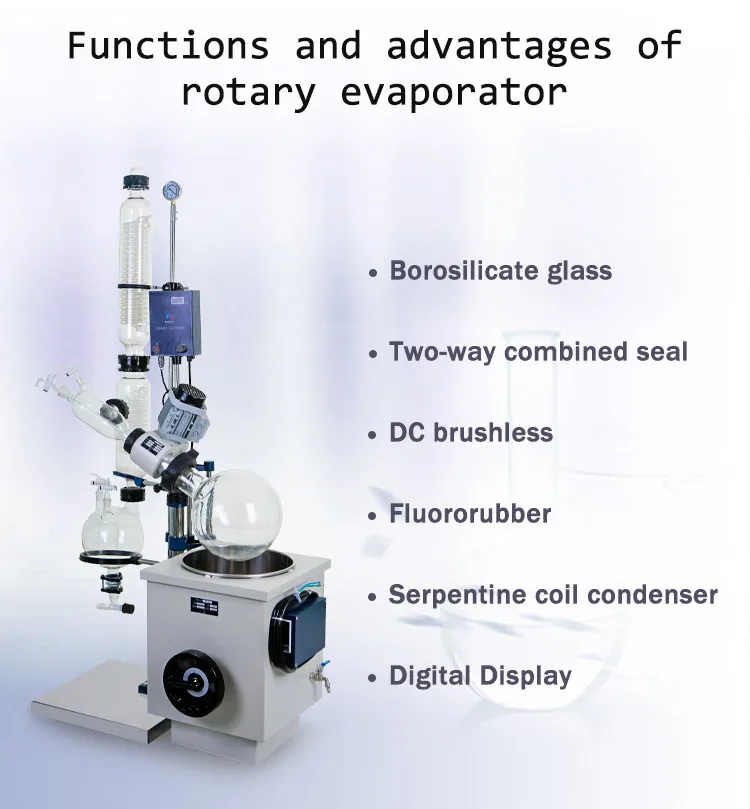

Main Features of the Rotary evaporator
1, The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress.
2, Sealing system using PTFE and imported fluorine rubber combination seal, to maintain high vacuum.
3, Vacuum pressure gauge shows real-time vacuum, vacuum up to 0.098Mpa.
4, Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion.
5, Can be continuously fed to facilitate the use of customers, valve-type feeding tube sets of tetrafluoroethylene tube.
6, Vertical three-tier serpentine coil condenser, the main cold + pay cold double condenser, to ensure high recovery rate, additional tube.
7, Microcomputer ON-OFF power switch control.
8, Bath digital display, intelligent thermostat control, K-type sensor fast and accurate delivery temperature.
9, Frequency control (0-120rpm), speed digital display, knob set, easy to operate.
10, Fuse safety protection.
11, The pot is made of high quality stainless steel, durable and durable.
12, Bath handwheel lift.
13, Collection of bottles with a discharge material, easy to evaporate the collection of extracts, discharge.
14, Check valve control, continuous discharge.
1, The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress.
2, Sealing system using PTFE and imported fluorine rubber combination seal, to maintain high vacuum.
3, Vacuum pressure gauge shows real-time vacuum, vacuum up to 0.098Mpa.
4, Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion.
5, Can be continuously fed to facilitate the use of customers, valve-type feeding tube sets of tetrafluoroethylene tube.
6, Vertical three-tier serpentine coil condenser, the main cold + pay cold double condenser, to ensure high recovery rate, additional tube.
7, Microcomputer ON-OFF power switch control.
8, Bath digital display, intelligent thermostat control, K-type sensor fast and accurate delivery temperature.
9, Frequency control (0-120rpm), speed digital display, knob set, easy to operate.
10, Fuse safety protection.
11, The pot is made of high quality stainless steel, durable and durable.
12, Bath handwheel lift.
13, Collection of bottles with a discharge material, easy to evaporate the collection of extracts, discharge.
14, Check valve control, continuous discharge.
Product Details

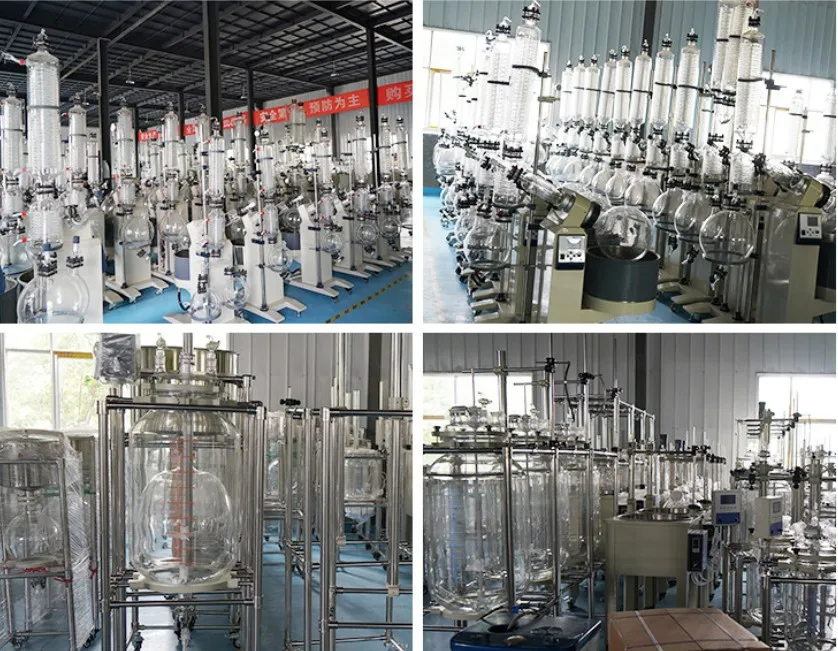

Company Profile
ZHENGZHOU MINGYI INSTRUMENT EQUIPMENT CO.,LTD is a major production and sales of laboratory equipment, life science equipment, glass equipment, medical equipment production and sales of one of the equipment company. The strength of the company, customers in products and consumers who enjoy a high reputation. The company operating the laboratory equipment, life science equipment, glass
equipment, medical equipment, the full range, reasonable prices, cost-effective. After long-term accumulation, the emphasis on credit, keep the contract to ensure product quality management principles, and now has a number of agents and retailers to establish a long-term and stable relations of cooperation, and won the trust of our customers.In response to the development of the era of globalization, we set up a special export company, serving the global market.
equipment, medical equipment, the full range, reasonable prices, cost-effective. After long-term accumulation, the emphasis on credit, keep the contract to ensure product quality management principles, and now has a number of agents and retailers to establish a long-term and stable relations of cooperation, and won the trust of our customers.In response to the development of the era of globalization, we set up a special export company, serving the global market.
Packing & Delivery
