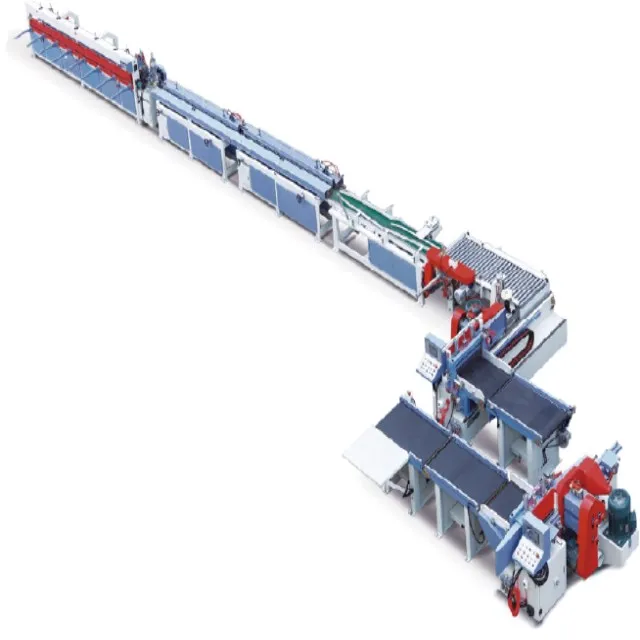

Полностью Автоматическая производственная линия для соединения пальцев
- Категория: Finger Jointer >>>
- Поставщик: Qingdao,Steeler,Woodworking,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 71031.69 $* | 74583.30 $* |
| Aug-15-2025 | 70434.94 $* | 73956.26 $* |
| Jul-15-2025 | 59093.26 $* | 62048.7 $* |
| Jun-15-2025 | 69240.17 $* | 72702.17 $* |
| May-15-2025 | 60287.12 $* | 63301.52 $* |
| Apr-15-2025 | 68047.79 $* | 71449.80 $* |
| Mar-15-2025 | 67450.71 $* | 70823.17 $* |
| Feb-15-2025 | 66853.2 $* | 70196.53 $* |
| Jan-15-2025 | 66256.36 $* | 69569.3 $* |
Характеристики
Product Description
Model | MXK3515-Ⅱ | MXK3515T-Ⅱ |
Max working width | 600mm | 600mm |
Min working thickness | 150mm | 150mm |
Cutter speed | 6000r/min | 6000r/min |
Draw saw speed | 5600r/min | 5600r/min |
Triming saw speed | 5000r/min | 5000r/min |
Tenoner cutter dia. | 160mm | 160mm |
Tenoner cut-off saw dia. | 70mm | 70mm |
Working table size | 660×850mm | 660×850mm |
Cutter motor power | 11kw | 11kw |
Saw motor power | 5.5kw | 5.5kw |
Feeder motor power | 0.375kw | 0.375kw |
Servo motor power | 1kw | 1kw |
Working air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Net weight | 2000kg | 2200kg |
Overall diamensions | 2380×1700×1400mm | 2580×1700×1400mm |
Overall diamensions | 2380×1700×1400mm | 2580×1700×1400mm |
Model | MHK1525L(Infinite) x1 SET |
Max.assembled length | Infinite |
Max.working width | 150mm |
Max.working thickness | 80mm |
Min.working length | 100 mm |
Min.working width | 30mm |
Min.working thickness | 15mm |
Blade speed | 3700r/min |
Saw blade dia | 355 mm |
Saw blade power | 3kw |
Oil pump motor power | 5.5kw |
Working air pressure | 0.5-0.8Mpa |
Max.thrust for oil pressure | 7800Kg |
Max.output | 25m/min |
Overall dimensions | 4700×1000×1420mm |
Accessory | 1 piece of 5m's working table |
Application:
This machine used for waste wood recycling, will have an ear on construction sites and other regions, waste wood to open after the tooth comb, the glue wood machine pressure, can be achieved using length, this process of regeneration, wood can be used as a new wood, for the world to save energy and cost savings for the enterprise.
FINISHED PRODUCTS
Features:
1. Powerful double-cylinder compression side pressure device ensures the safety of processing and the precision of comb teeth.
2. Equipped with upper and lower marking saw blade and screw-cutter crushing saw, it is suitable for the perfect processing of various tenons by changing the tooth comb knife.
Advantage:
1. Fully automatic control system is adopted in the equipment to reduce the operation of workers, and it is safe and saves labor costs
2. Automatic glue coating system saves a lot of manpower and material resources for enterprises and saves glue solution.
3. Equipped with dust absorption and dustproof system, effectively reducing the flying of sawdust and extending the service life of the equipment
1. Powerful double-cylinder compression side pressure device ensures the safety of processing and the precision of comb teeth.
2. Equipped with upper and lower marking saw blade and screw-cutter crushing saw, it is suitable for the perfect processing of various tenons by changing the tooth comb knife.
Advantage:
1. Fully automatic control system is adopted in the equipment to reduce the operation of workers, and it is safe and saves labor costs
2. Automatic glue coating system saves a lot of manpower and material resources for enterprises and saves glue solution.
3. Equipped with dust absorption and dustproof system, effectively reducing the flying of sawdust and extending the service life of the equipment
WHY CHOOSE US
PACKING&SERVICE
1.Delivery: We can sign on-time delivery contracts and guarantee delivery on time.
2.Package: We will use stretchy film or wooden box case to pack and test the machine before package.
3.Guarantee:The machine is guaranteed for 12 months.You can also enjoy technical support and service all the time.
4.Technical support:Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
5.After sales services:We can offer English manual and operational video to help you learn how to use.Any problem you can contact us.
2.Package: We will use stretchy film or wooden box case to pack and test the machine before package.
3.Guarantee:The machine is guaranteed for 12 months.You can also enjoy technical support and service all the time.
4.Technical support:Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
5.After sales services:We can offer English manual and operational video to help you learn how to use.Any problem you can contact us.
