BR-G620-48-32G-R для парча G620 Fibre Channel PoE коммутатор 48 портов с картой памяти
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Chengdaxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.37 $* | 0.75 $* |
| Aug-19-2025 | 0.82 $* | 0.77 $* |
| Jul-19-2025 | 0.57 $* | 0.72 $* |
| Jun-19-2025 | 0.38 $* | 0.90 $* |
| May-19-2025 | 0.40 $* | 0.0 $* |
| Apr-19-2025 | 0.46 $* | 0.95 $* |
| Mar-19-2025 | 0.28 $* | 0.78 $* |
| Feb-19-2025 | 0.39 $* | 0.66 $* |
| Jan-19-2025 | 0.32 $* | 0.69 $* |
Характеристики
Product Description
| Model | BR-G620-48-32G-R |
| Device Type | For Brocade G620 Switch 48 ports with 48 x 32 Gbps SFP transceiver |
System Architecture | |
Fibre Channel ports | 48 ports |
| Scalability | Full-fabric architecture with a maximum of 239 switches. |
Aggregate bandwidth | 2Tb/s |
Maximum fabric latency | Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node. |
Maximum frame size | 2,112-byte payload |
| Frame buffers | 15,360 dynamically allocated |
Port types | D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, M_Port, AE_Port; optional port-type control. For Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port. |
Data traffic types | Fabric switches supporting unicast |
Media types | 32G FC SFP+ LC connector: SWL 16G FC SFP+ LC connector: SWL, LWL, ELWL 10G FC SFP+ LC connector: SWL, LWL 4x32G FC QSFP+ MPO connector: SWL 4x32G FC QSFP+ SMF LC connector: 2 km (fixed at 4x32G only) 4x16G FC QSFP+ MPO connector: SWL |
USB | One USB port for system log file downloads or firmware upgrades. |
Management access | HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; ForBrocade Advanced Web Tools; For Brocade SANnav Management Portal and SANnav Global View; EZSwitchSetup; Command Line Interface (CLI); RESTful API; trial licenses for add-on capabilities. |
Mechanical | |
Enclosure | Front-to-back airflow; non-port-side exhaust; power from back, 1U Back-to-front airflow; non-port-side intake; power from back, 1U |
Size | Width: 440.00 mm (17.32 in.) Height: 43.90 mm (1.73 in.) Depth: 355.60 mm (14.00 in.) |
| System weight | 7.73 kg (17 lb) with two power supply FRUs, without transceivers |
| Environment | |
Operating environment | Temperature: 0°C to 40°C/32°F to 104°F Humidity: 8% to 90% (noncondensing) |
Non-operating environment | Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 8% to 90% (noncondensing) |
Operating altitude | Up to 3000m (9,842 ft) |
| Storage altitude | Up to 12 km (39,370 ft) |
| Shock | Operating: Up to 20G, 6-ms half-sine Nonoperating: Half-sine, 33G 11 ms, 3/eg axis |
Vibration | Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz Nonoperating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz |
Heat dissipation | 64 ports at 716 BTU/hr |
Power | |
Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans, voltage range of 90V to 264V AC. Optional DC power supply with voltage range of 36V to 72V DC. |
AC input | 90V to 264V, maximum input current: 3.5A. |
| AC input line frequency | 47 Hz to 63 Hz. |
AC power consumption (system) | Maximum 205W with all 64 ports populated with 48×32G SFP+ SWL optics and 4× (4×32G) QSFP SWL optics. 85W for empty chassis with no optics. |
DC input | 36–72V, maximum input current: 7.1A (applies to the DC power SKU only). |

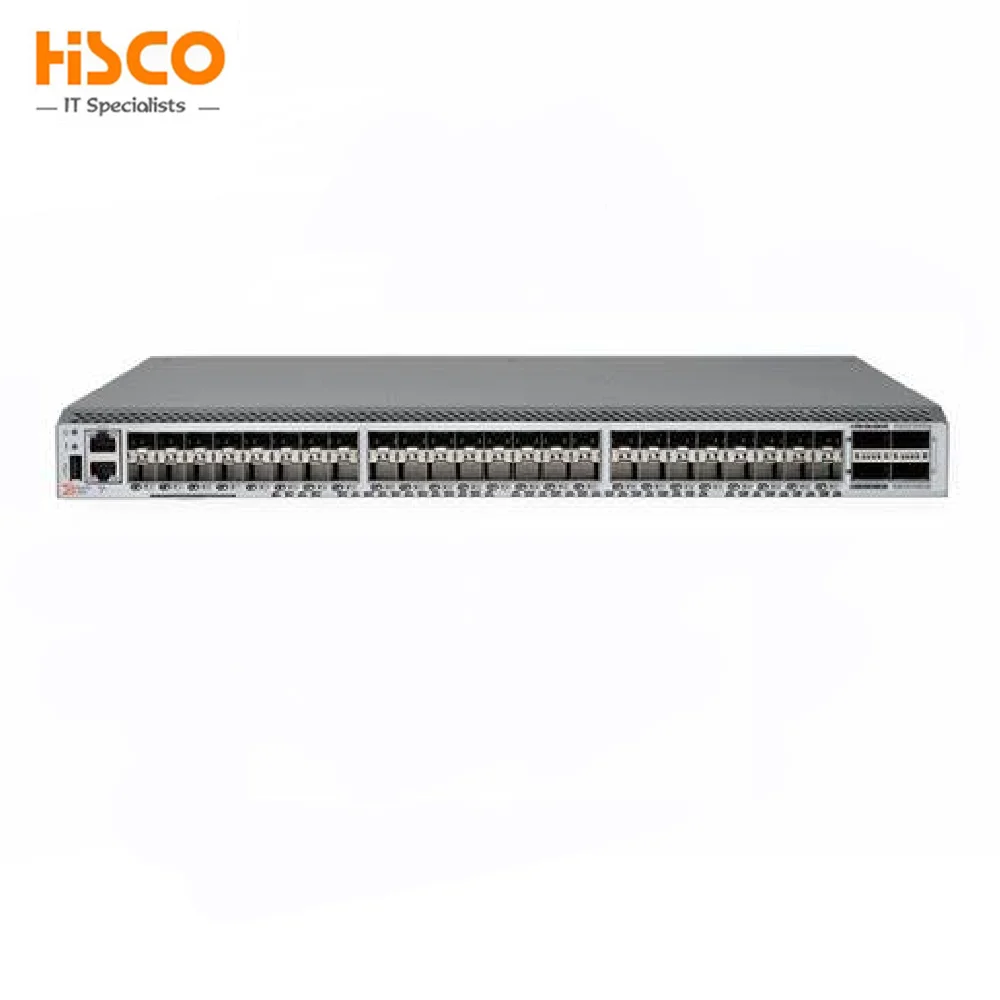

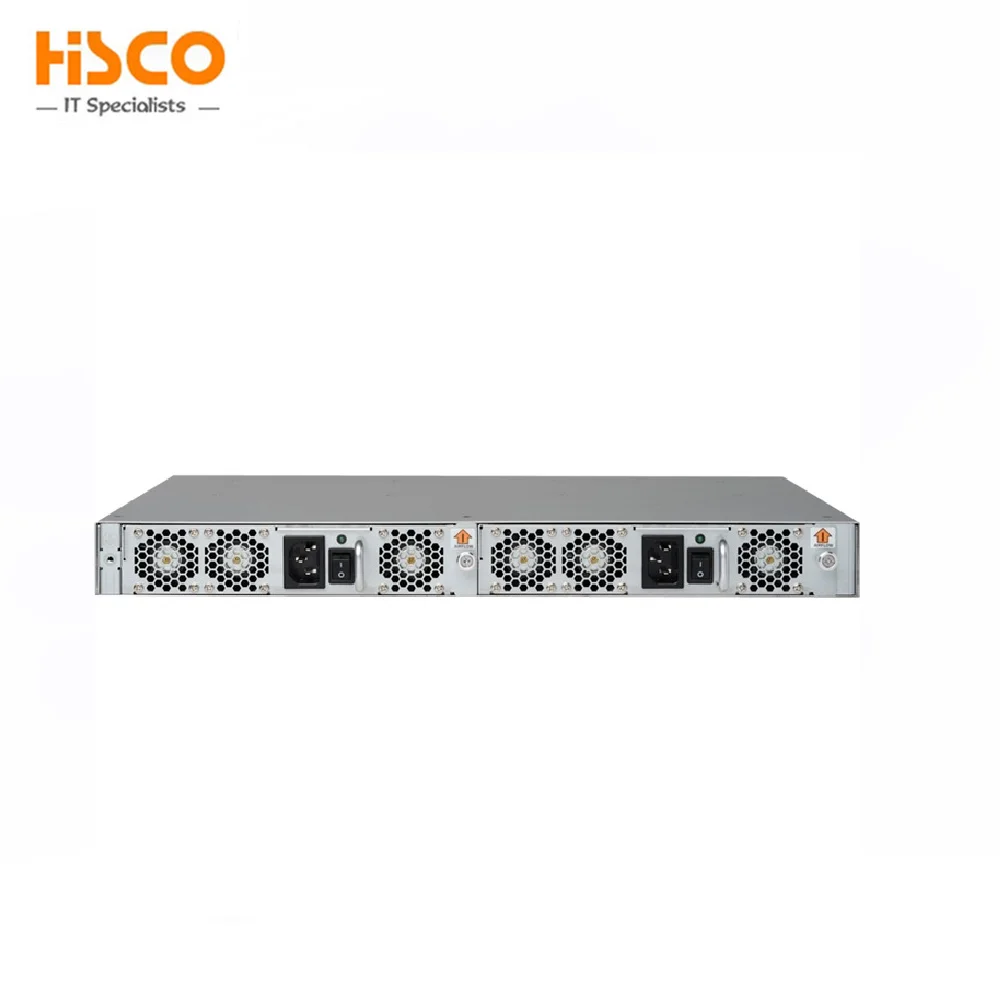

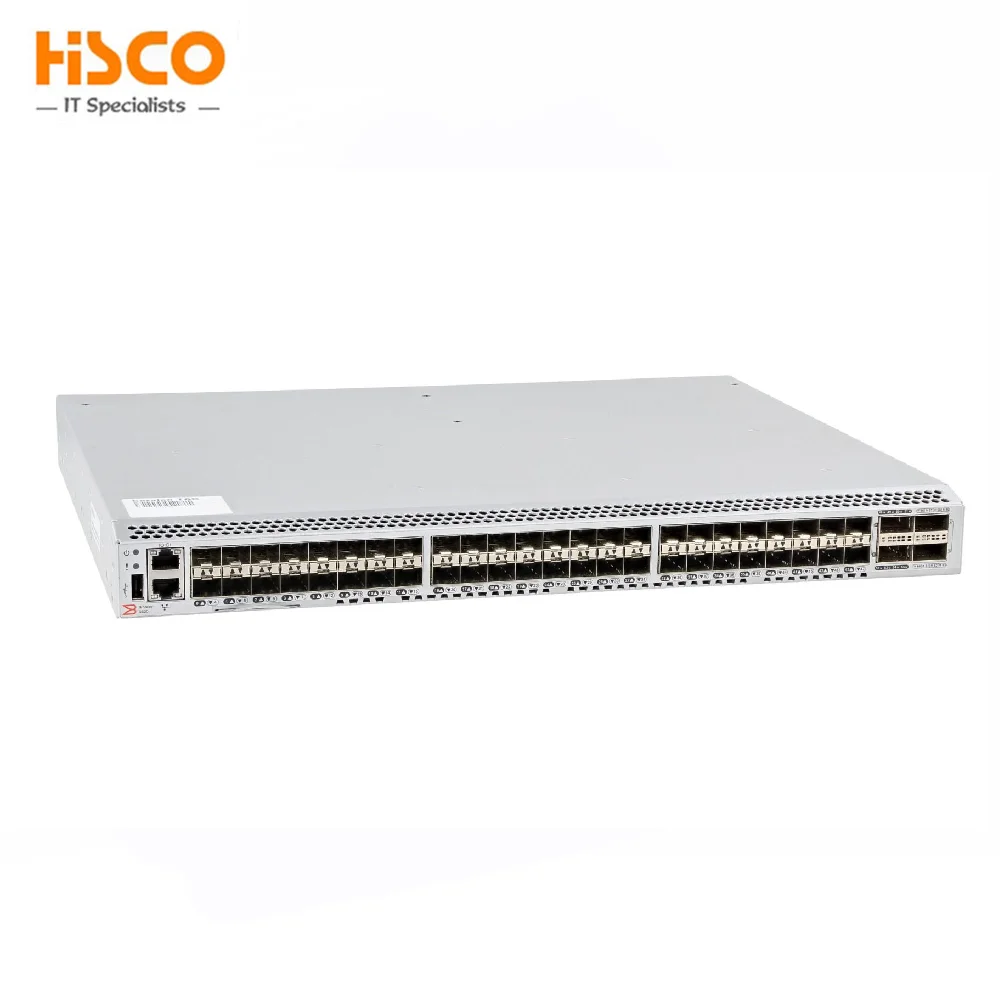

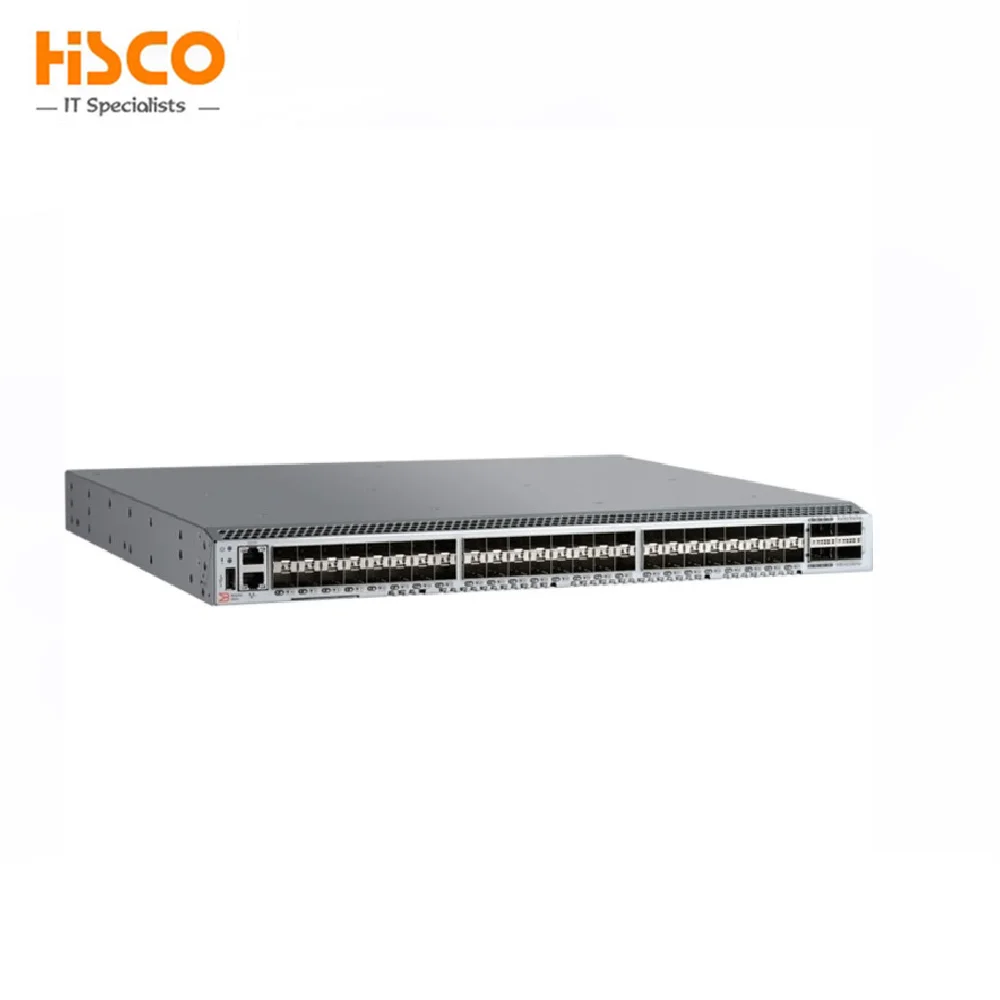

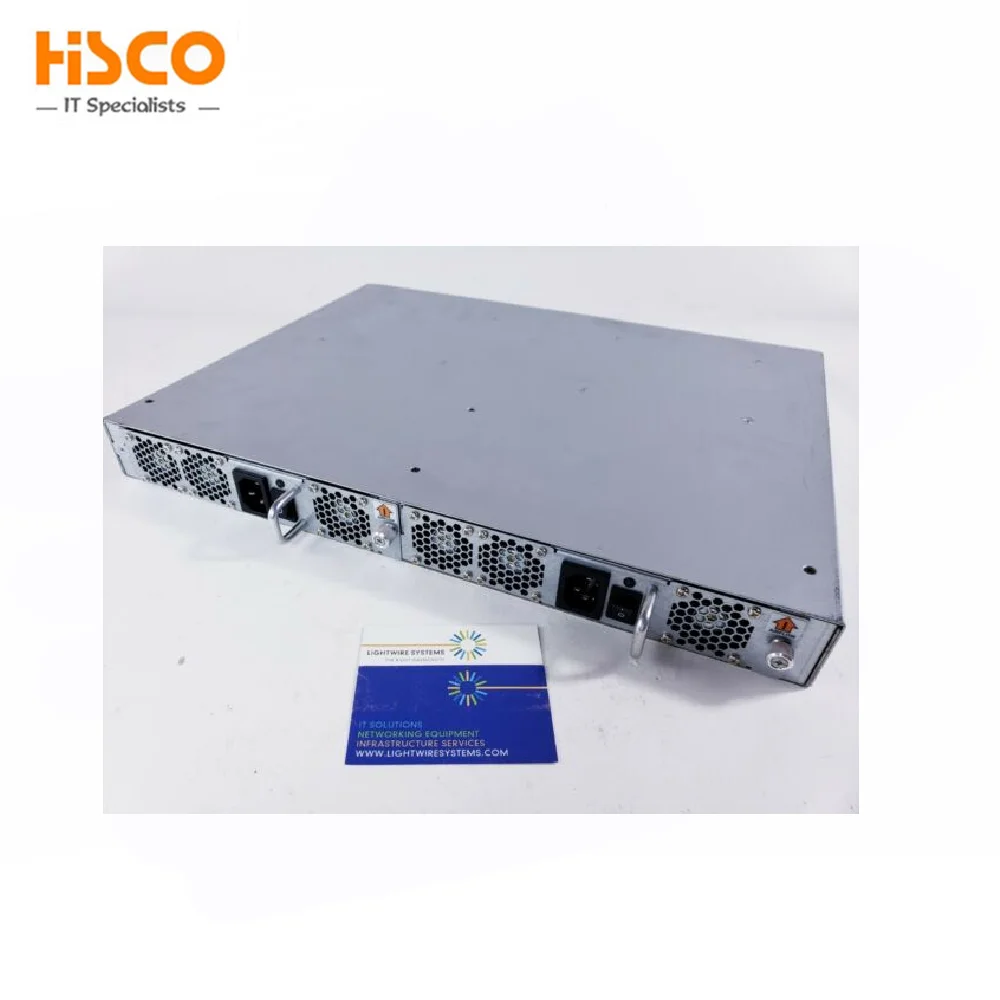

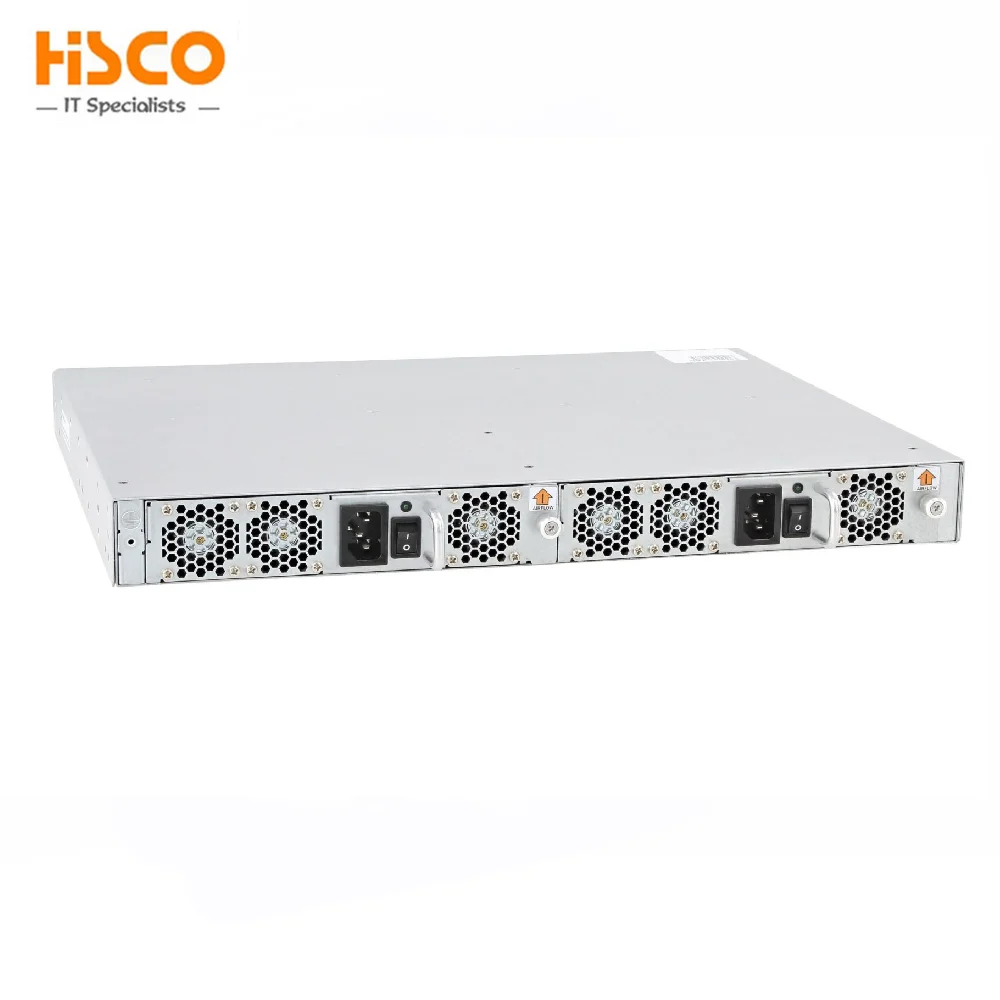

Product show
More hot-selling
| For HP | CTO | 867959-B21 868704-B21 868703-B21 868705-B21 868706-B21 869854-B21 742657-B21 793161-B21... |
| BTO | 816814-B21 816815-B21 879991-B21 867962-B21 P06423-B21 P06422-B21 P06421-B21 P06420-B21 P06419-B21 P02467-B21 P02466-B21 P02465-B21 P02464-B21 P02463-B21 P02462-B21... | |
| For Dell | T640 T440 T340 T40 T140 R940 R940xa R840 R750xa R740xd R450 R740... | |
| etc...More information please contact me! | ||
Company Information
Shenzhen Chengdaxin Technology Co., Ltd is our domestic Company.
HISCO International Limited is our Hongkong Company.
We mainly work on HPE, Intel, Dell, IBM, EMC, Brocade, Cisco, Seagate, Qlogic, Samsung and so on, servers and parts.
Our advantage is honesty and trustworthiness, skilled in technology, backed by strong IT resources, good after sales.
Win-win cooperation is our company's philosophy, is our core values.
Welcome IT partners from all over the world to negotiate business!
Packaging & Shipping
Warranty Policy
1. We provide 1-5 years replacement warranty. Warranty period begin after sales.
2. If our goods have any quality problem, within warranty period, we will replace it for you freely (Artificial damage will not accept a return).
3. We will be responsible for shipping charges.
FAQ
Q: What's your advantages?
A: Good Price + Professional Service + Rapid response + Fast delivery + Good After-sale service
Q: What's the MOQ for your products?
A: 1 piece / 1 unit / 1 set.
Q: What's the payment terms?
A: T/T or Alibaba Trade Assurance order.
Q: When will send out the goods after payment?
A: Normally 2-3 working days.
Q: What's the package?
A: Original packing. We will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
Q: How to ship the goods?
A: We ship the goods by FedEx / DHL/ UPS express.
If the weight is over 45kg, we will ship by air.
The freight is acoording to current price of these express companies.
Q: What's the warranty of your products?
A: 1-3 years (Used products:3 months or 6 months)
Q: What else products do you sell?
A: We also sell CPU, HDD, SSD, GPU, RAM, SFP Module, HBA, PSU, Heat sink & Fan, Line Card, Networking cards, Controller, Expander Card, Chassis, Compute Card, Switch, Tape Drive, Server, Mini PC..., including HP, Dell, IBM, EMC, AMD, Juniper, Cisco, Intel, Brocade, Nvidia...
~~~Contact Me~~~~~~~~~~~~
Phillis Jiang
Sales Manager
Skype:live:.cid.56be4682a2d44a64
Website: www.dekhisco.com
