Реле 12 В постоянного тока 10 А 1 канал 433 МГц беспроводной Радиочастотный пульт дистанционного управления переключатель
- Категория: Remote Control >>>
- Поставщик: Shenzhen,Champions,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.59 $* | 4.0 $* |
| Jul-16-2025 | 3.21 $* | 3.63 $* |
| Jun-16-2025 | 4.65 $* | 4.0 $* |
| May-16-2025 | 4.60 $* | 4.74 $* |
| Apr-16-2025 | 3.38 $* | 3.83 $* |
| Mar-16-2025 | 4.37 $* | 4.7 $* |
| Feb-16-2025 | 4.41 $* | 4.2 $* |
| Jan-16-2025 | 4.58 $* | 4.68 $* |
Характеристики
Product Description
Description:

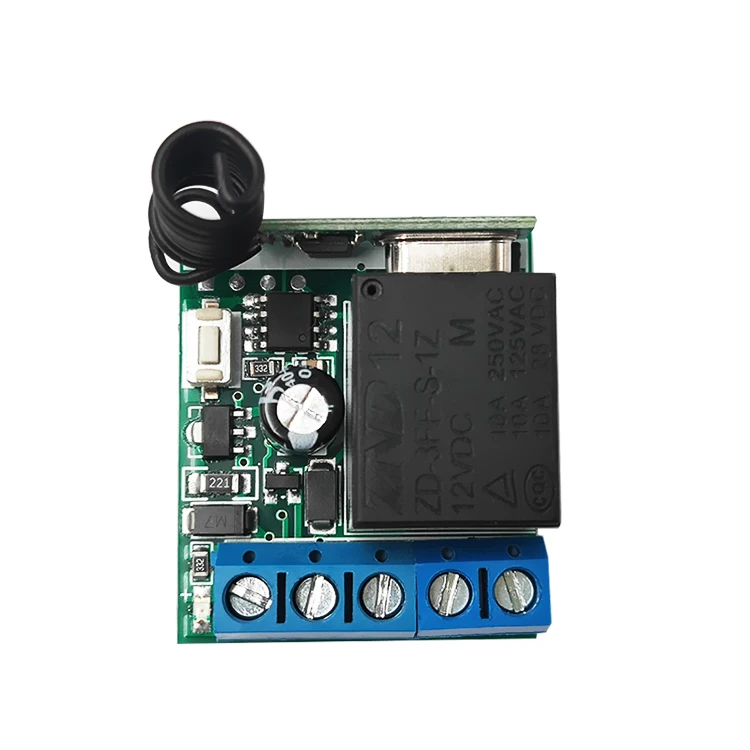

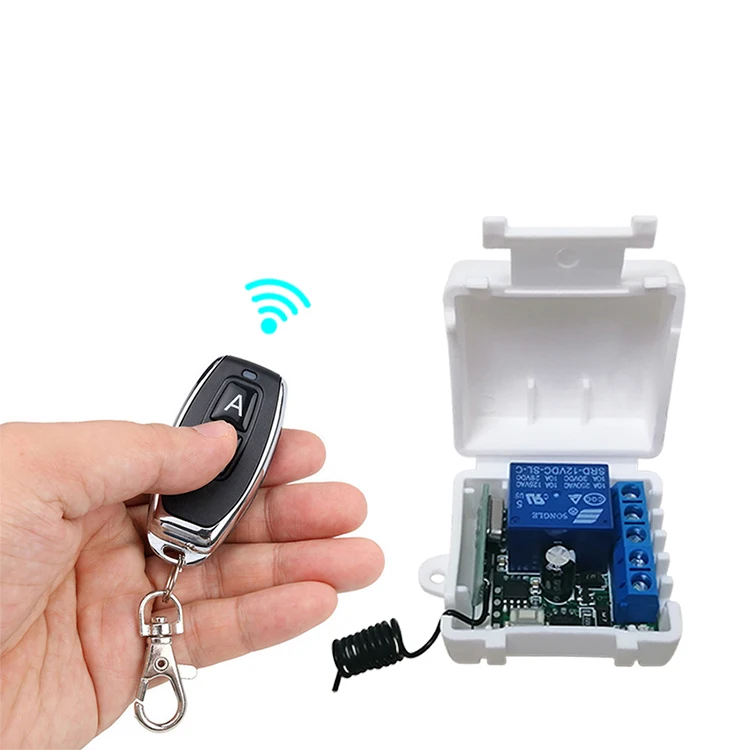

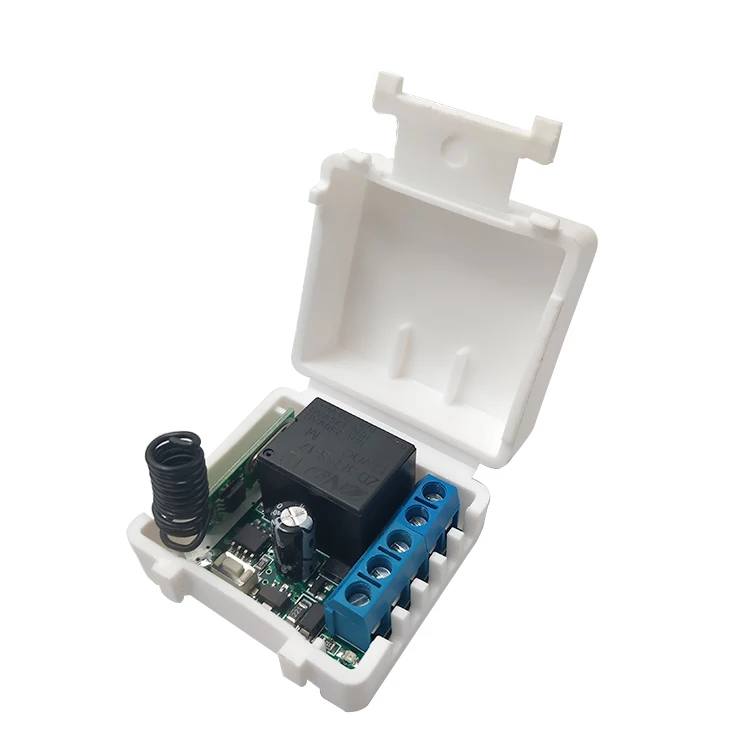

AG-C106A is a one channel wireless intelligence receiver controller, It can be controlled to achieve the motor forward and reverse, or switch on, off and other special control requirement. The product has stable performance, small size high receiver sensitivity. Mainly used for electric doors, windows, lifting equipment, gateways, lifts, industrial control and security industry and other fields, and supporting the use of the remote control can be composed of a complete set of wireless intelligent remote control system, wide range of uses, especially for cable doors, windows and burglar alarm control system to change the wireless system wired adapter. The wireless receiver controller, a high-security, stable performance, low power consumption of the features, and easy to use, without using the traditional jumper or DIP switch coding, just the radio signal emitted by the remote control allows the receiving controller receive and store, you can achieve supporting the use. The controller factory default is only a remote control and control, if a good learning remote control is lost during use, simply use the same type of remote control to relearn to cancel the original remote control and made use now right. Its output, respectively, three output way is self-locking, interlock, inching, It can leaning a lot of different remote control (such as 2260,1527 etc.)
Features
It has 1 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 16pcs different remote controls.
Specification:
Working voltage: DC12V (3V/6V/9V/24V can be customized) (can AC and DC)
Static working current: ≤10mA
Working temperature: -40℃—+80℃
Receiving sensitivity: ≥-95dB
Working frequency: commonly used 315MHZ, 433.92MHZ (other can be customized)
Output current: ≤10A
Working mode: momentary, self-lock, interlock (adjustable)

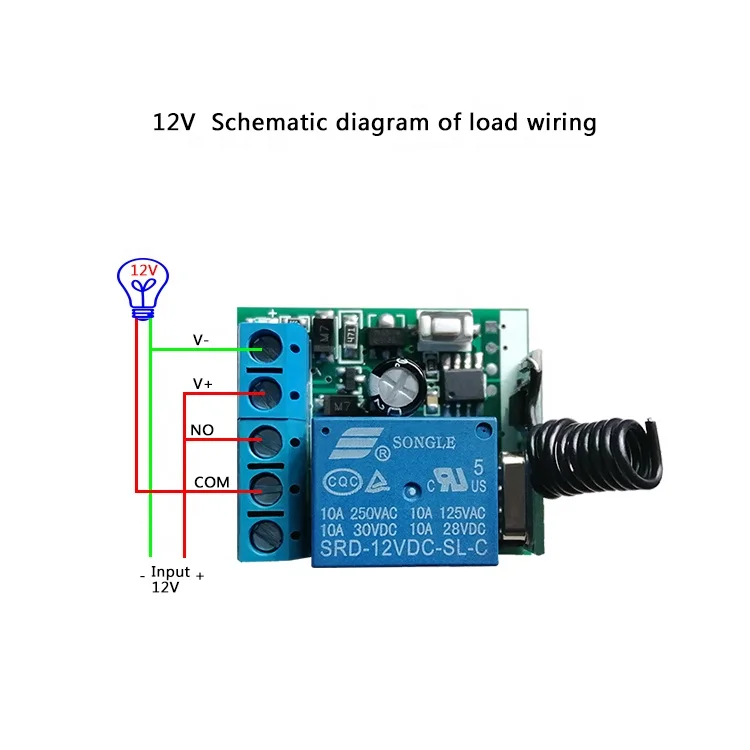

Output mode: output voltage or output switch signal
Dimensions:42*40*26mm
Weight: 38g
Package Included:

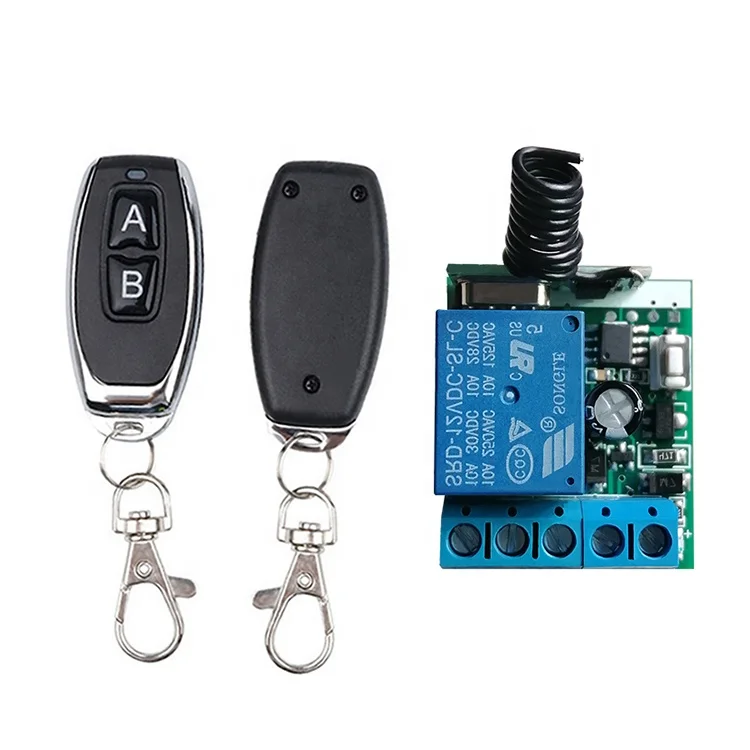

1 x Wireless Relay Switch
1 x Remote Control
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 16pcs different remote controls.
Specification:
Working voltage: DC12V (3V/6V/9V/24V can be customized) (can AC and DC)
Static working current: ≤10mA
Working temperature: -40℃—+80℃
Receiving sensitivity: ≥-95dB
Working frequency: commonly used 315MHZ, 433.92MHZ (other can be customized)
Output current: ≤10A
Working mode: momentary, self-lock, interlock (adjustable)
Output mode: output voltage or output switch signal
Dimensions:42*40*26mm
Weight: 38g
Package Included:
1 x Wireless Relay Switch
1 x Remote Control
How to use:
Momentary mode: Press and hold the button to turn on,release the button to turn off
Toggle mode: Press remote’s button A to turn on then Press A again to turn off.
Latched mode: Press remote’s button A to turn on then Press B to turn off.
Delay Time Automatically turn off mode:
Press the remote control relay to pull in and then release the remote control to start
timing. Can set 5 seconds, 10 seconds, 15 seconds, and 20 seconds (4 steps), the
relay will automatically turn off.
Toggle mode: Press remote’s button A to turn on then Press A again to turn off.
Latched mode: Press remote’s button A to turn on then Press B to turn off.
Delay Time Automatically turn off mode:
Press the remote control relay to pull in and then release the remote control to start
timing. Can set 5 seconds, 10 seconds, 15 seconds, and 20 seconds (4 steps), the
relay will automatically turn off.
Clear Remote Way:
Press the learning button on the control panel for 5 seconds and the LED light flashes 5 times, that is, all the remote controllers for learning the code are automatically cleared. After it is cleared, the remote controller that has learned the code before will no longer be controlled.
Product Usage
Product usage introduction
Mainly used for electric doors, windows, lifting equipment, gateways, lifts, industrial control and security industry and other fields, and supporting the use of the remote control can becomposed of a complete set of wireless intelligent remote control system, wide range of uses, especially for cable doors, windows and burglar alarm control system to change the wireless system wired adapter.
Description of product use effect
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
