Характеристики

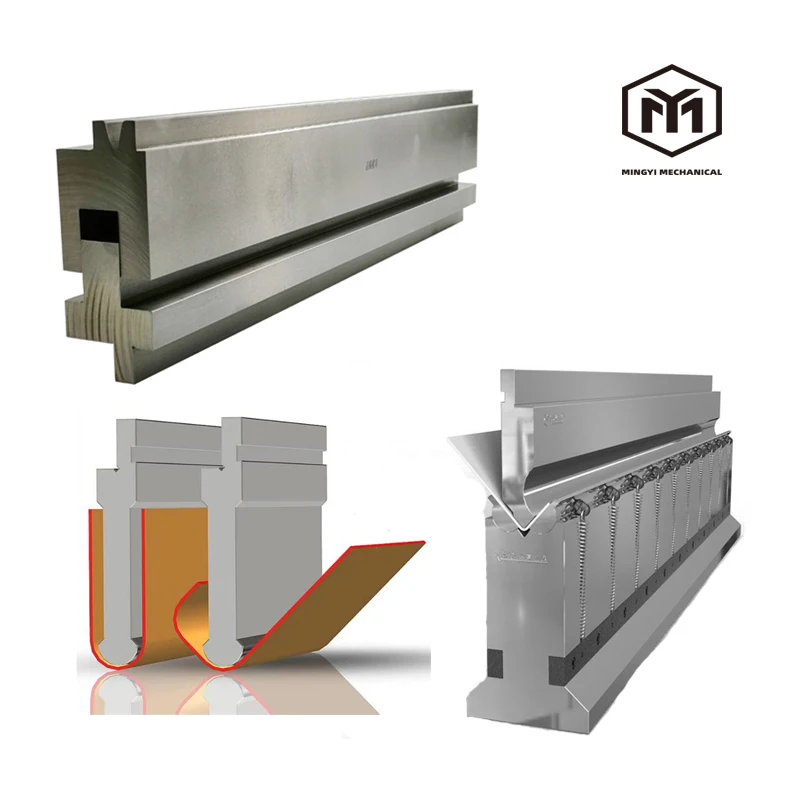

Press brake tool
The Press brake tool is a tool used by the bending machine to form and process sheet materials. This tool is composed of various parts, and different molds are composed of different parts.
It mainly realizes the processing of the shape of the article through the change of the physical state of the formed material. It is used to make the blank into a workpiece with a specific shape and size under the pressure of the bending machine.
It mainly realizes the processing of the shape of the article through the change of the physical state of the formed material. It is used to make the blank into a workpiece with a specific shape and size under the pressure of the bending machine.
Material:
Generally use T8 or T10, T10A, better 42CrMo material,
It mainly requires high strength, high toughness and good wear resistance, and cold work die steel is used.
Cr12MoV is a very good material. The performance can be satisfied, the process performance is good, and the price will be higher.
42CrMo is a high-strength alloy quenched and tempered steel with high strength and good toughness. It can work below 500 degrees.
It mainly requires high strength, high toughness and good wear resistance, and cold work die steel is used.
Cr12MoV is a very good material. The performance can be satisfied, the process performance is good, and the price will be higher.
42CrMo is a high-strength alloy quenched and tempered steel with high strength and good toughness. It can work below 500 degrees.
Nanjing mingyi machinery blade Co., Ltd is located at the junction of Jiangsu and Anhui provinces and 20 kilometers away from Nanjing Lukou Airport. The company is an enterprise specializing in the production of industrial blades and CNC molds. We rely on years of experience in professional knife making and mold making, and provide knifes and molds that meet the requirements of customers according to their different needs. Widely used in printing, papermaking, carton, forestry, metallurgy, rubber, plastics, food, textile, electrical appliances, light industry and other punching and shearing industries.
Material guarantee: In order to ensure product quality, the company has medium carbon steel, high carbon steel, alloy steel, tool steel, high speed steel, tungsten steel for customer demand order, and the spectrometer is used to detect whether the material is correct.
Hardness guarantee: Only by mastering the heat treatment by oneself can the tool reach its best effect and highlight the soul of the tool, and heat treatment is the professional field of the company, so as to ensure the stability of quality.
Material guarantee: In order to ensure product quality, the company has medium carbon steel, high carbon steel, alloy steel, tool steel, high speed steel, tungsten steel for customer demand order, and the spectrometer is used to detect whether the material is correct.
Hardness guarantee: Only by mastering the heat treatment by oneself can the tool reach its best effect and highlight the soul of the tool, and heat treatment is the professional field of the company, so as to ensure the stability of quality.
Specifications | Upper die dimensions | Lower die dimensions |
40T/2000 | 2000*70*18 | 2000*55*55 |
40T/2000 | 2000*80*18 | 2000*75*75 |
40T/2000 | 2000*90*30 | 2000*55*55 |
40T/2000 | 2000*150*26 | 2000*55*50 |
63T/2500 | 2000*85*28 | 2500*70*70 |
63T/2500 | 2500*150*25 | 2500*65*65 |
63T/2500 | 2500*85*28 | 2500*55*55 |
63T/2500 | 2500*100*20.5 | 2500*70*7 |
80T/3200 | 3200*80*18 | 3200*95*95 |
100T/3200 | 3200*150*26 | 3200*95*95 |
100T/3200 | 3250*86*28 | 3250*75*7 |
100T/3200 | 3200*72*30 | 3200*100*100 |
100T/3200 | 3250*80*25 | 3250*95*95 |
100T/3200 | 3200*85*25 | 3200*75*75 |
100T/3200 | 3200*80*25 | 3200*95*95 |
160T/3200 | 3200*90*56 | 3200*110*110 |
160T/3200 | 4000*80*25 | 4000*110*11 |
160T/3200 | 4000*90*30 | 4000*110*11 |
160T/3200 | 4000*134*34 | 4000*120*120 |
Note: The above is a reference value. The specific situation depends on the material to be processed, and the processing capacity will be different for different materials. We will design a suitable model according to your needs.
Material
The products are made of high-quality materials with stable quality
Duarable
Long time service
Accept customized
The product specifications are diversified, and can be customized according to the drawings provided by the customer
A:Are you manufacture or trading company?
We are professional manufacture with more than 10 years experience in this field.
A:Can you customize carbdie tools?
We can manufacture tools from standard end mills to special tools according to your needs.
A:Can I get samples before my order?
We provide free samples to every customer, but, we need to freight collect .Or freight prepaid.
A:what kind of payment torment we can use?
Payment terms we can accept as follows: T/T, Western Union. For small amount, usually we accept 100% T/T, and buyer bear bank charges .If pay for big order, 30%-50% in advance before produce.
A:What is the delivery time if I place my order?
It depends on the complexity of the Blade, or the quantity you ordered .If It is our standard project, We will only need 5-7
working days to send out your goods.
If you have an urgent deadline, we'll see what we can do.
working days to send out your goods.
If you have an urgent deadline, we'll see what we can do.
A:Can I Put My Logo On The Product?
Yes, you can .Your Logo Can Be Put on the Product by Mold Punching, Laser Making, and Silk-Screen etc.
