Высококачественный Прочный с использованием различных дорожных строительных устройств вибрирующий дорожный каток двойной
- Категория: Road Roller >>>
- Поставщик: Titeco,Industry,Technology,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.18 $* | 0.35 $* |
| Aug-19-2025 | 0.58 $* | 0.40 $* |
| Jul-19-2025 | 0.86 $* | 0.50 $* |
| Jun-19-2025 | 0.65 $* | 0.78 $* |
| May-19-2025 | 0.90 $* | 0.28 $* |
| Apr-19-2025 | 0.48 $* | 0.41 $* |
| Mar-19-2025 | 0.62 $* | 0.51 $* |
| Feb-19-2025 | 0.3 $* | 0.73 $* |
| Jan-19-2025 | 0.79 $* | 0.83 $* |
Характеристики
Products Description
Model | SVH50 | SVH50C | SVH50S | |||||
Weight | Operating weight | Kg | 540 | 540 | 570 | |||
Static load line | n/cm | 45 | ||||||
Size | Width | mm | 780 | |||||
Length | mm | 2480 | ||||||
High | mm | 1820 | ||||||
Packing size | mm | 1600*850*1900 | ||||||
Width of the steel wheel | mm | 600 | ||||||
Steel wheel diameter | mm | 426 | ||||||
Start | Recoil hand electric start | |||||||
Drive | Engine | HONDA GX270 | CHANGFA CF178 | CHANGCHAI R180 | ||||
Model | Gasoline Four-stroke | Diesel Four-stroke | Diesel Water cooled | |||||
Number of cylinders | 1 | 1 | 1 | |||||
Power | Kw | 6.7 | 4.4 | 5.7 | ||||
Speed | rpm | 3600 | 3600 | 3600 | ||||
Driving Speed | Km/h | 0-3.8 | ||||||
Theory of climbing ability | % | 30 | ||||||
Driving mode | Two-way hydraulic chain drive | |||||||
Vibration steel wheel | Double | |||||||
Vibration frequency | Hz | 70 | ||||||
Vibration amplitude | mm | 0.6 | ||||||
Vibration force | kn | 20 | ||||||
Sprinkler | Gravity water spray | |||||||
Fuel tank capacity | L | 5.9 | 2.7 | 6.5 | ||||
Lubricating oil capacity | L | 1.1 | 1.1 | 2 | ||||
Hydraulic tank capacity | L | 18 | 18 | 18 | ||||
Water tank capacity | L | 20 | 20 | ------------ | ||||

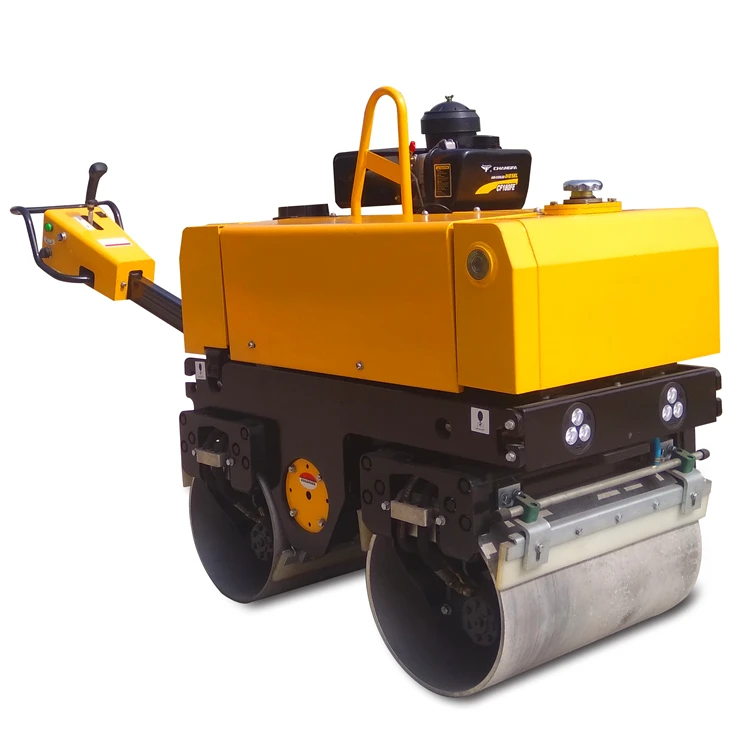

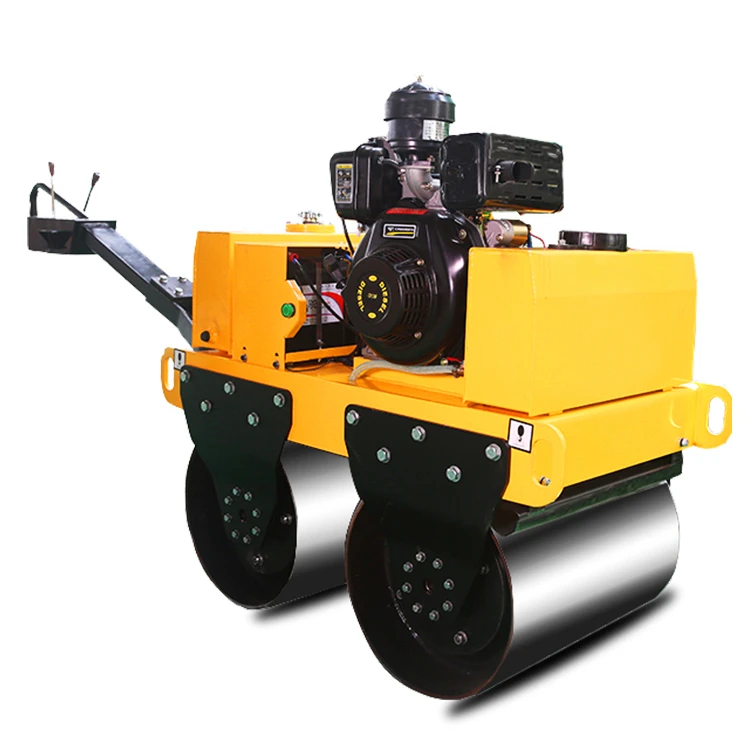

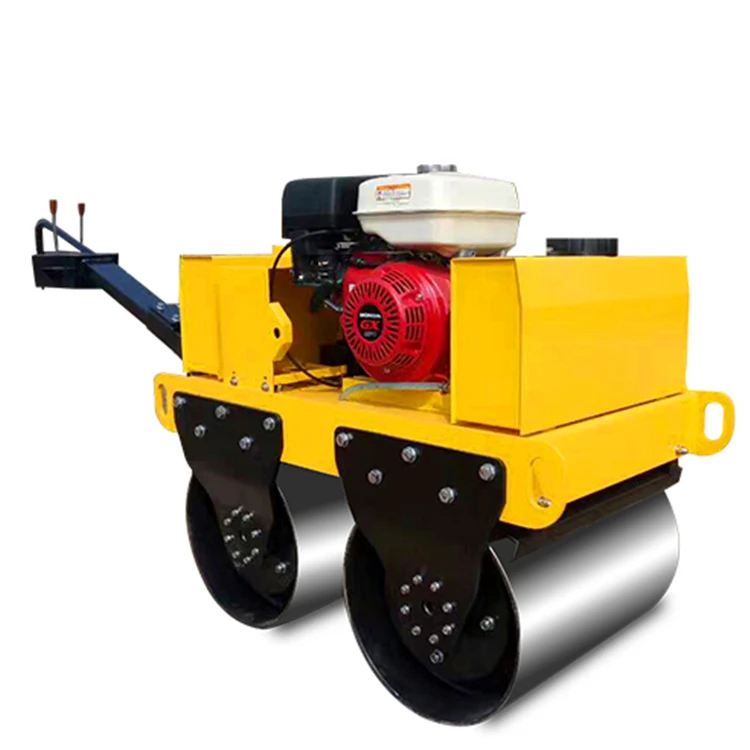

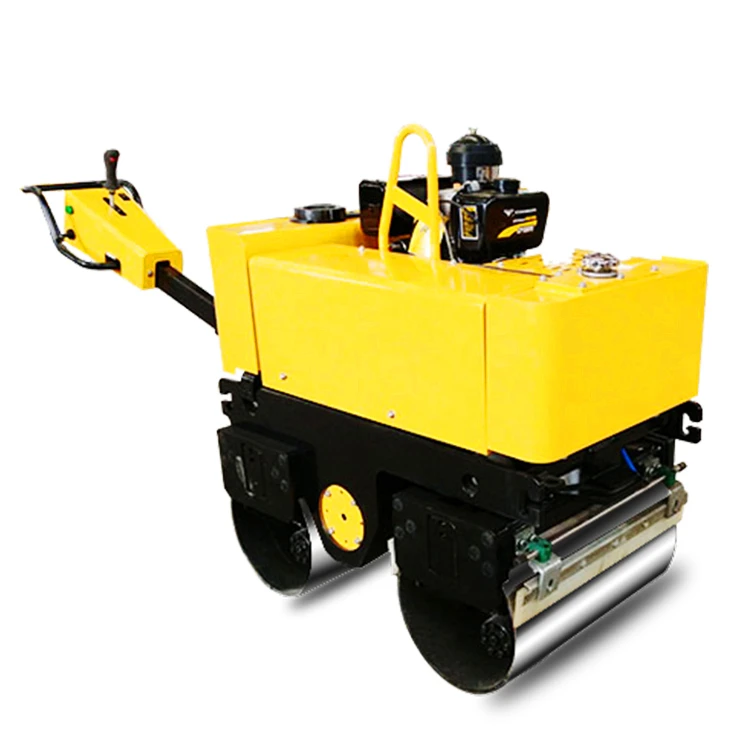

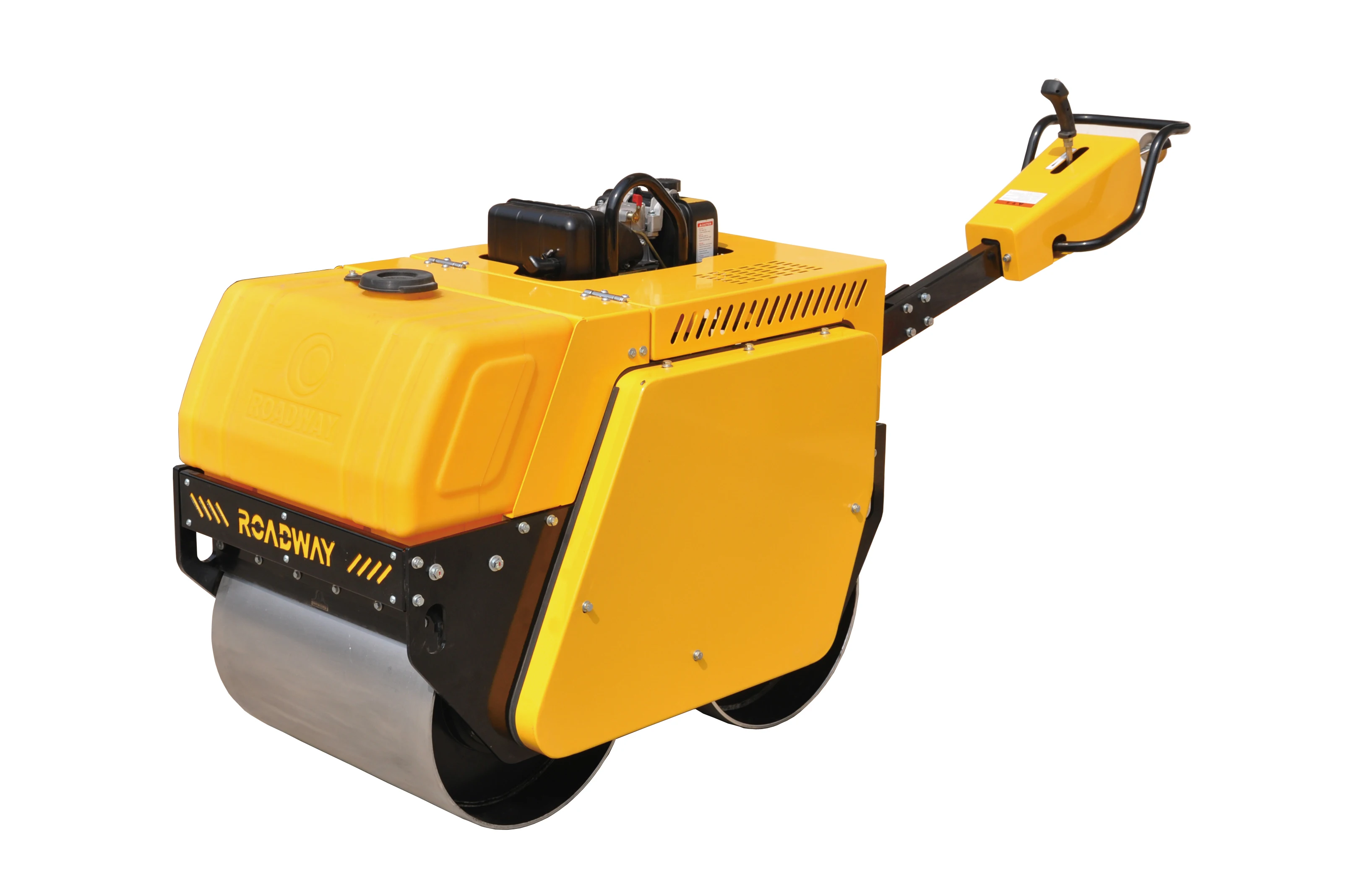

Road Roller
Introduction：
The small model road roller is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. Especially suitable for community road, asphalt road, village highway, underground garage, playground, concrete road, sports venue built, project building, and all kinds of groove earthwork backfill.
Features:
1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.
Introduction：
The small model road roller is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. Especially suitable for community road, asphalt road, village highway, underground garage, playground, concrete road, sports venue built, project building, and all kinds of groove earthwork backfill.
Features:
1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.
Company Profile
TITECO is a global producer of construction equipment and vehicles, which is specialist in road building, repair and maintenance machinery equipment and vehicles. We offer our customers technologically first-class quality products, creative design services and sound service for optimum, economic production processes. With over 20 years experience in concrete & asphalt road building and maintenance, TITECO's applied technology service will help you to improve your performance. All our products are synonymous of power and stability, always provide the innovative solutions for complex issues.
Our Advantages
1. More than 20 years of cutting edge innovation and expertise help us to provide you all the best solutions of your projects.
2. With all kinds of our products commissioned for the concrete and asphalt industry projects,we believed that we know the cares and concerns of our customers well.
3. TITECO manufactures all equipment in our own factory under the strick quaility control system, makes the equipment much more reliable.
Production Process
Partner
Product Packaging
FAQ
Could you guarantee the quality of your products?
Quality control system certified with ISO 9001, All equipments under the strick quaility control system.
Quality control system certified with ISO 9001, All equipments under the strick quaility control system.
What is the MOQ?
In order to help our clients have a good understanding of the product, we can start order from 1 Unit.
In order to help our clients have a good understanding of the product, we can start order from 1 Unit.
I cannot find the suitable model, can I ask for a special model I need?
Sure. Kindly please advising the detail specification you need, we will make it according to your request.
Do you offer guarantee for the products?
Yes, we offer 1-years warranty for all equipment dated from the delivery.
Yes, we offer 1-years warranty for all equipment dated from the delivery.
What are your payment terms?
30% TT as deposit,70% TT before Shipment.
30% TT as deposit,70% TT before Shipment.
What about the lead-time?
Normally 15-30 working days after receiving the down payment.
Normally 15-30 working days after receiving the down payment.
Is it all right to make customer's own brand name?
We can be your OEM manufacture with your authorization of brand.
We can be your OEM manufacture with your authorization of brand.
