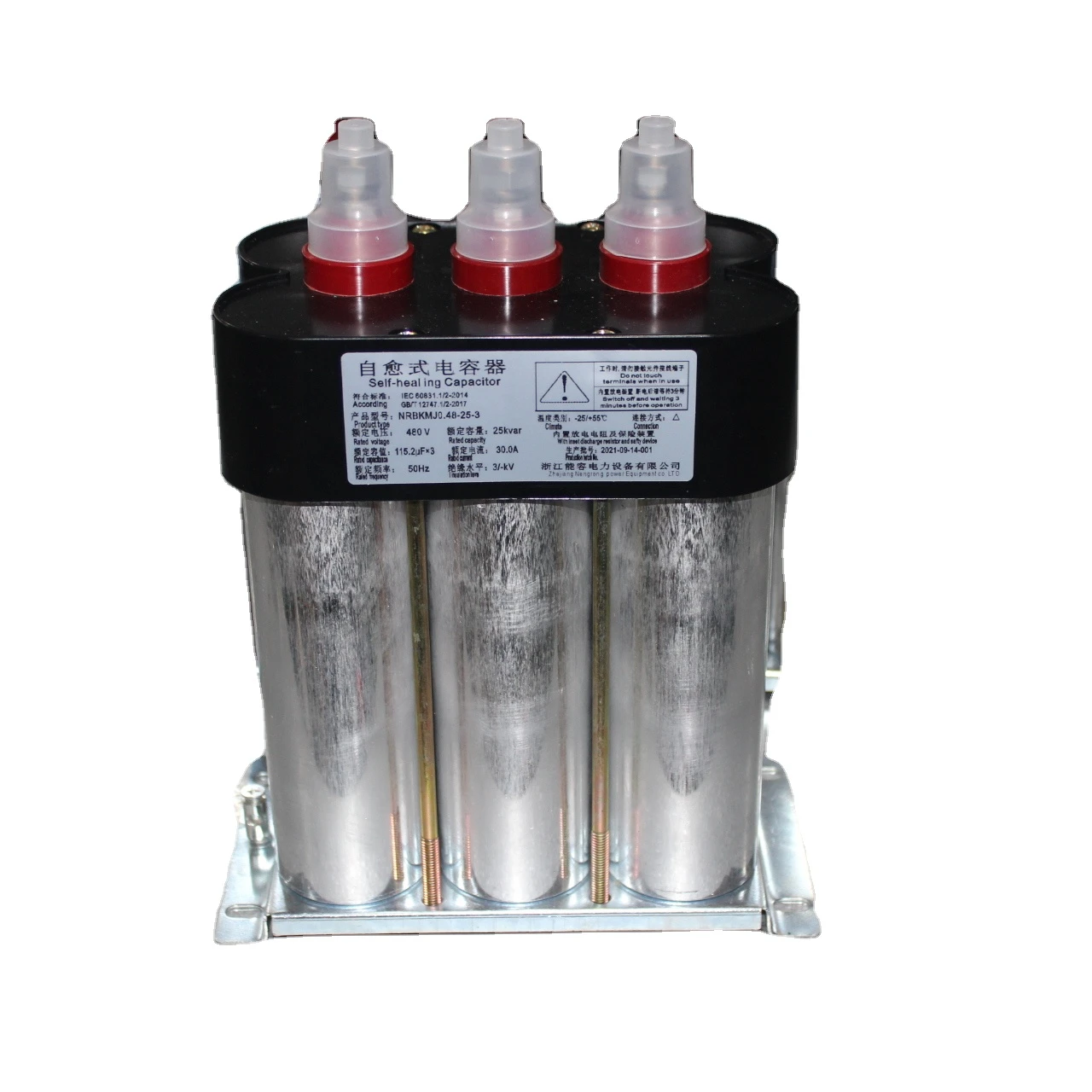

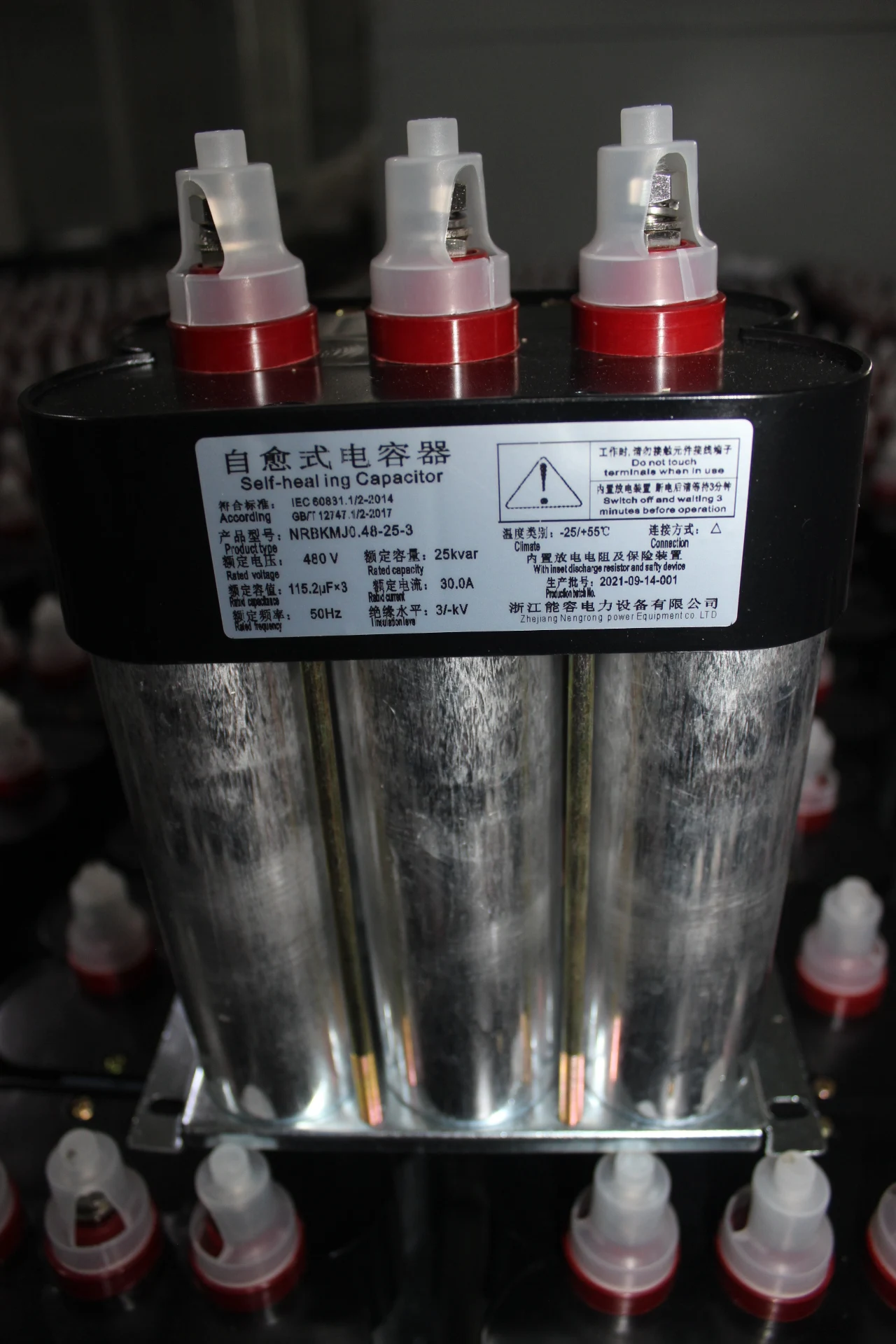

Specification of self-healing low voltage shunt capacitor

[Product usage]

This product is used in AC power system with nominal voltage below 1000V to Improve

power factor and reduce line loss. To improve the quality of power supply

[Product features]

Vacuum filling technology no leakage,safety and environmental protection high reliable

Insulation characteristics low loss,low temperature rise,configured discharge resistance

and overpressure safety device,install 360 degrees in any direction

[Technical characteristics]

Use environment:indoor use ambient temperature  -40~55℃,altitude:≤4000m

Rated voltage:250~525VAC:          Rated capacitance:5~40kvar

Capacitance Tolerance:-5 ~ +10%       Tangent of loss Angle:≤2.0×10^-3

        Test voltage: T-T: 2.15×U_N  AC  10s; T-C: (2×U_N)+2000VAC  10s:

Maximum permissible voltage:1.2×U_N  Maximum permissible current:2.5×I_N

Discharge characteristics::drop to below 75V within 3 minutes after the power is disconnected

Conform to the standard:GB12747.1/2-2017 . / IEC60831.1/2-2014 .
