Product Description
Product Features:
* Double system integration, reliability greatly improved, especially suitable for telecom outdoor cabinet;
* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* Fit for harsh condition (T3), R134a refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can be changed at the field;
* The heating function, DC fan speed PWM control, low acoustic noise during low speed running;
* Dry contact alarm output, NO/NC optional;
* Unique energy-saving& control technology.
Kindly Notice:
* In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet;
* This product is free of cover, customers don’t need to install additional cover.
Operational Principle

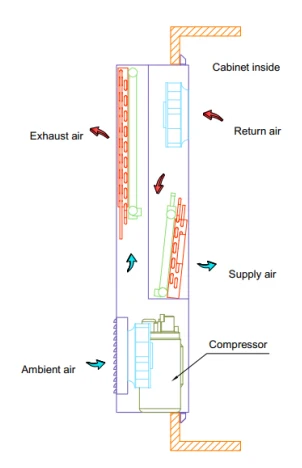

Cooling function starts when:
the temperature in the cabinet reaches the refrigeration start-up temperature, the internal fan, external fan and compressor keep on successively （shown in the diagram below）

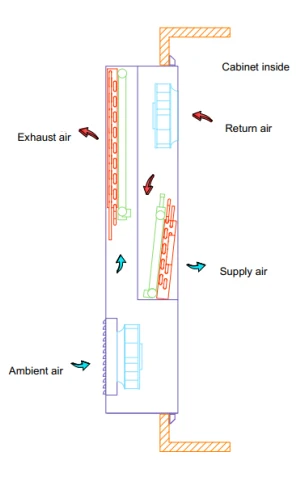

Heat exchange function starts when:
When the ambient temperature is low, the temperature inside the cabinet meets the start-up temperature of heat exchange, and the temperature difference inside and outside the cabinet meets the effective temperature difference of heat exchange, the internal fan and external fan remain open, and the compressor remains closed（shown in the diagram below）
Details Images ( For reference only)
Product Customization
Product Mode | LCAE006-030EAD | LCAE015-080EAD |
Cooling capacity L35/L35 | 2000 btu | 5100 btu |
Cooling power consumption L35/L35 | AC 260W DC 90W | AC 540W DC 68W |
Heat exchange capacity | 30 W/K | 80 W/K |
Heat exchange power consumption | DC 90 W | DC 68 W |
Heating capacity | 500 W (Optional) | 1000 W (Optional) |
Airflow | 260 m3/h | 450 m3/h |
Dimensions (Include flange) | 636*352*200 MM | 1001*561*200 MM |
Weight | 25 kg | 45 kg |
Mounting method | Embedded | Embedded |
Application temperature | -40~+70℃ | -40~+70℃ |
Cooling working temperature range | -15~+55℃ | -15~+55℃ |
Heat exchange internal circulation working temperature range | -40~+65℃ | -40~+65℃ |
Heat exchange external circulation working temperature range | -40~+55℃ | -40~+55℃ |
Input voltage | DC –48V±20% AC 220V±15% 50/60Hz | DC –48V±20% AC 220V±15% 50/60Hz |
IP grade | IP 55 | IP 55 |
Refrigerant | R134a | R134a |
Max noise | 65 dB (A) | 65 dB (A) |
Product Mode | LCAE030-150EAD | LCAE050-250EAD |
Cooling capacity L35/L35 | 10200 btu | 17000 btu |
Cooling power consumption L35/L35 | AC 1100W DC 200W | AC 1850W DC 380W |
Heat exchange capacity | 150 W/K | 250 W/K |
Heat exchange power consumption | DC 200 W | DC 380 W |
Heating capacity | 1500 W (Optional) | 4000 W (Optional) |
Airflow | 850 m3/h | 1250 m3/h |
Dimensions (Include flange) | 1350*550*250 MM | 1599*659*350 MM |
Weight | 65 kg | 90 kg |
Mounting method | Embedded | Embedded |
Application temperature | -40~+70℃ | -40~+70℃ |
Cooling working temperature range | -15~+55℃ | -15~+55℃ |
Heat exchange internal circulation working temperature range | -40~+65℃ | -40~+65℃ |
Heat exchange external circulation working temperature range | -40~+55℃ | -40~+55℃ |
Input voltage | DC –48V±20% AC 220V±15% 50/60Hz | DC –48V±20% AC 220V±15% 50/60Hz |
IP grade | IP 55 | IP 55 |
Refrigerant | R134a | R134a |
Max noise | 65 dB (A) | 65 dB (A) |
