Высокое качество 29 мм 3IN1 мульти светодиодный объектив 10/15/30/38/45/60/75/90 градусов для CREE 3535 XPE OSLON светодиоды HX-C29x3 серии
- Категория: LED Lenses & Reflectors >>>
- Поставщик: Shenzhen,Hongxuan,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.46 $* | 0.10 $* |
| Aug-18-2025 | 0.95 $* | 0.69 $* |
| Jul-18-2025 | 0.83 $* | 0.6 $* |
| Jun-18-2025 | 0.64 $* | 0.23 $* |
| May-18-2025 | 0.75 $* | 0.76 $* |
| Apr-18-2025 | 0.65 $* | 0.39 $* |
| Mar-18-2025 | 0.29 $* | 0.67 $* |
| Feb-18-2025 | 0.86 $* | 0.37 $* |
| Jan-18-2025 | 0.21 $* | 0.82 $* |
Характеристики
Product Description

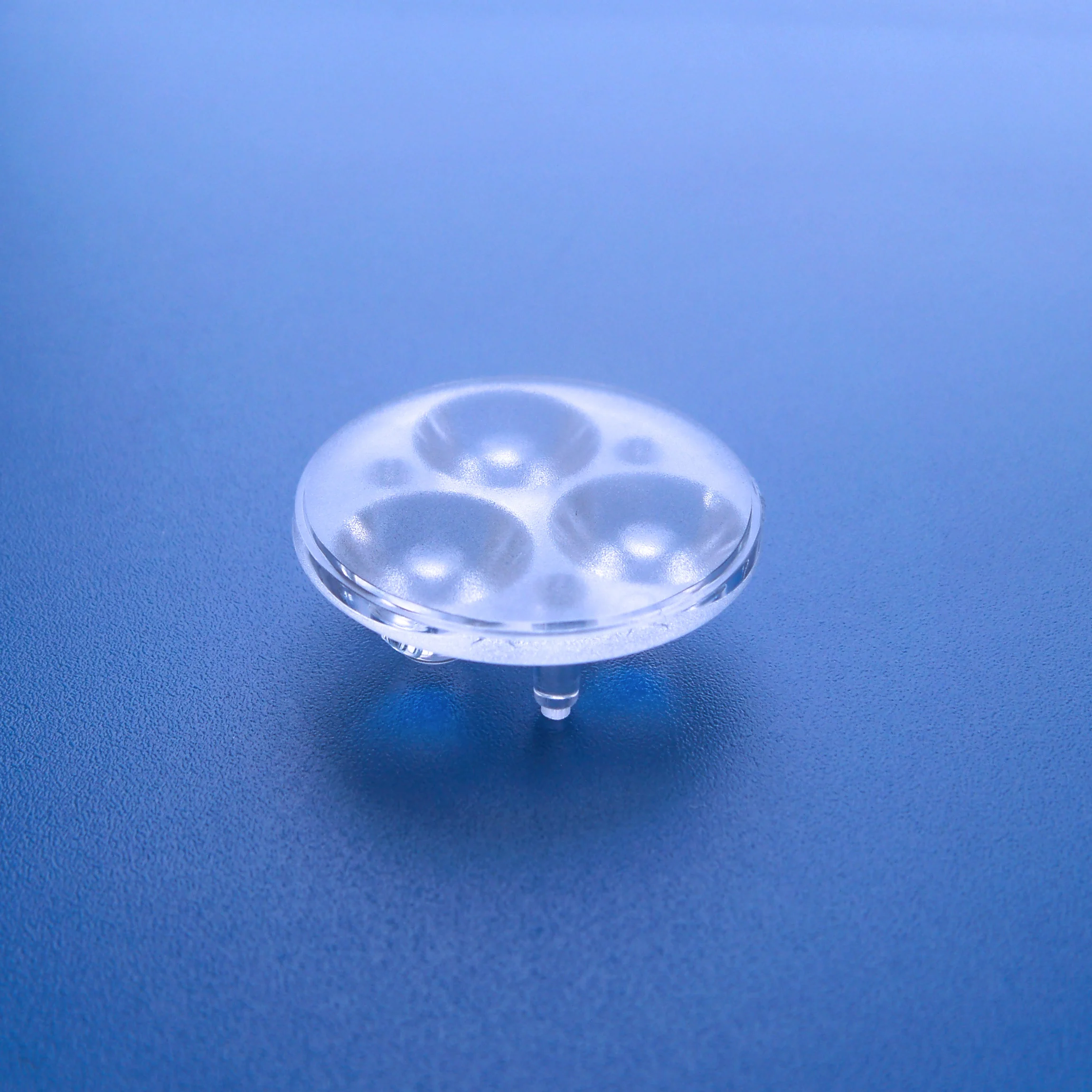

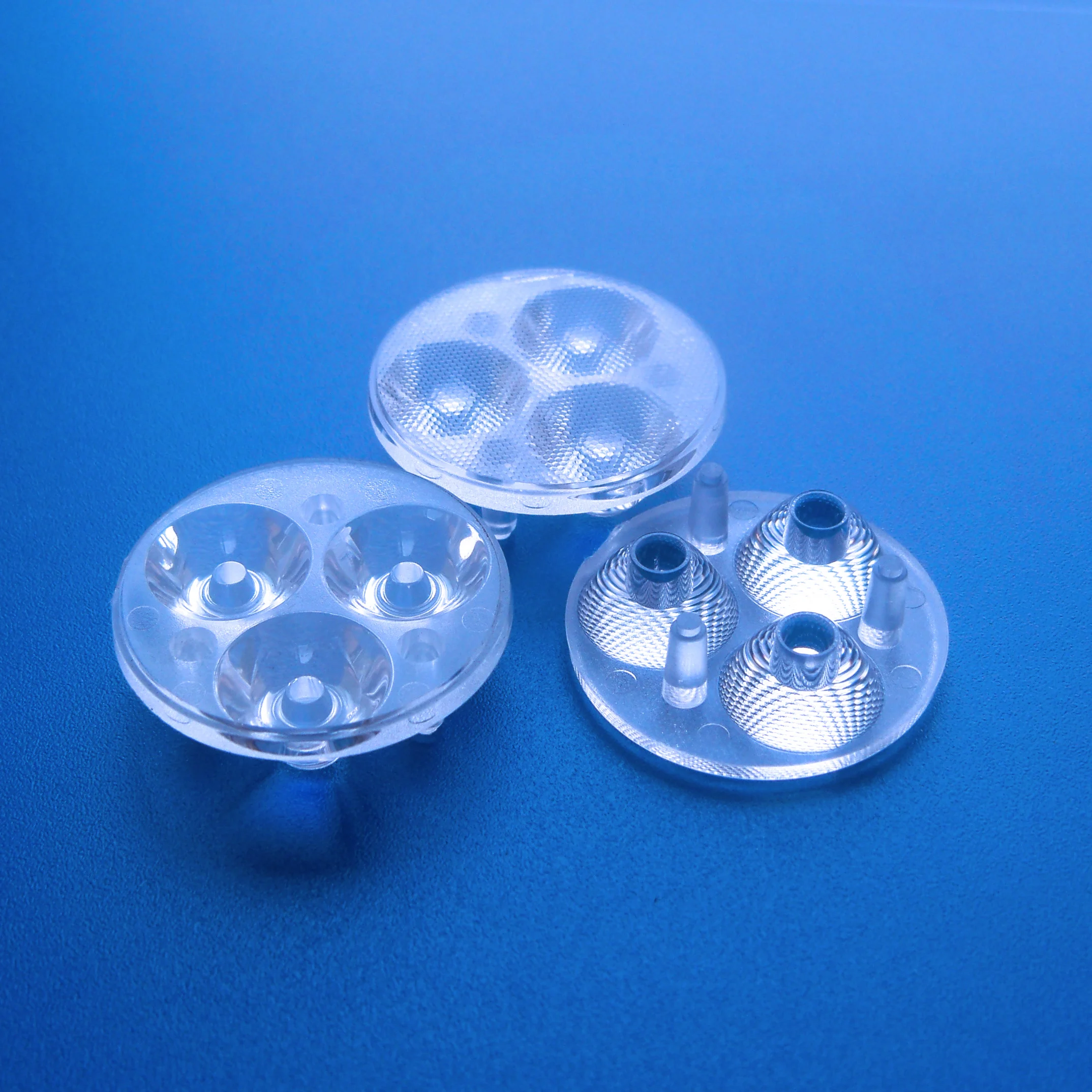

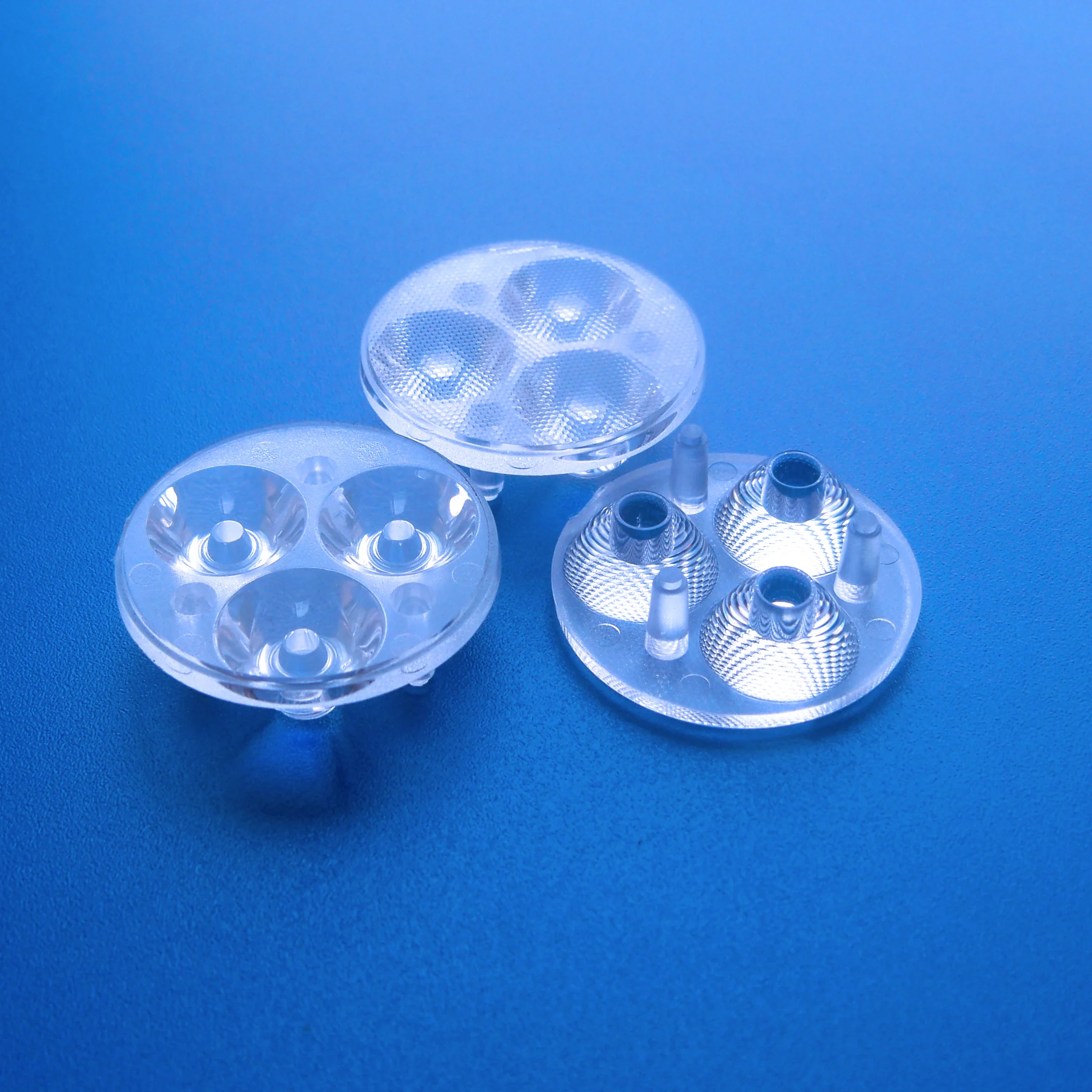

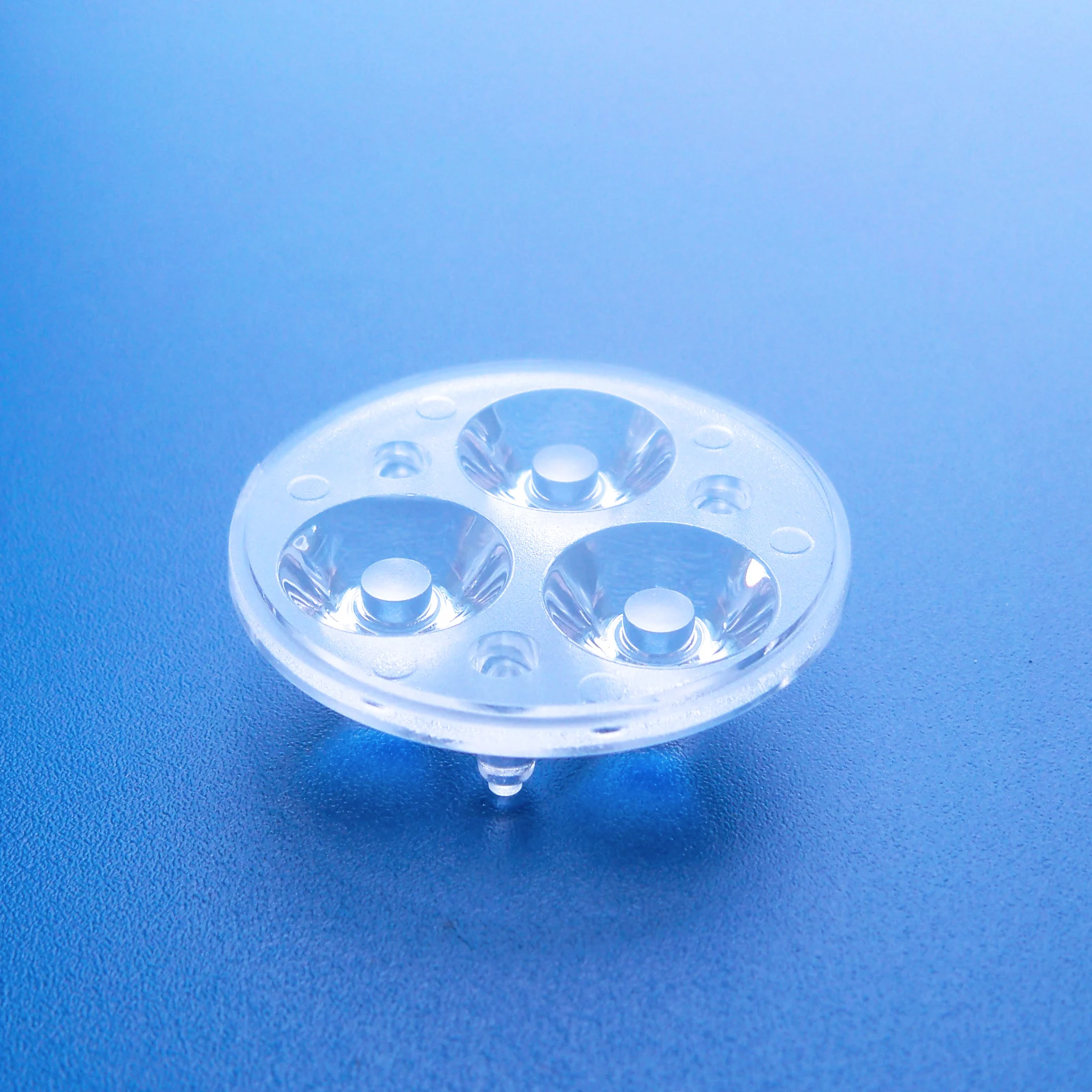

3in1- Diameter 29.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
Specification
Feature | 3IN1 Multi Round LED Lens | ||||||
Part Name | HX-C29x3 Series Lens | ||||||
Size | ￠ 29 x H7.0 mm | ||||||
Materials | Lens：Optical grade PMMA Holder: n/a | ||||||
Transmittance | 93% | ||||||
Surface Treatment | Polishing(Clear) |Frosted | Beads surface | ||||||
Beam Angle | 10/15/25/30/38/45/60/75/90 degree | ||||||
Holder Color | n/a | ||||||
RoHS / SGS-Compliant | Yes | ||||||
Key Words | Led light lens / led lens /led optical lens | ||||||
For LEDs | CREE XP-E,XP-G/G2; CREE XT-E;XPL,XHP35 ; Seoul Z5P,Z5M; Luxeon T,Federal 3535; LG 3535, Samsung 3535; Nichia 119A; | ||||||
