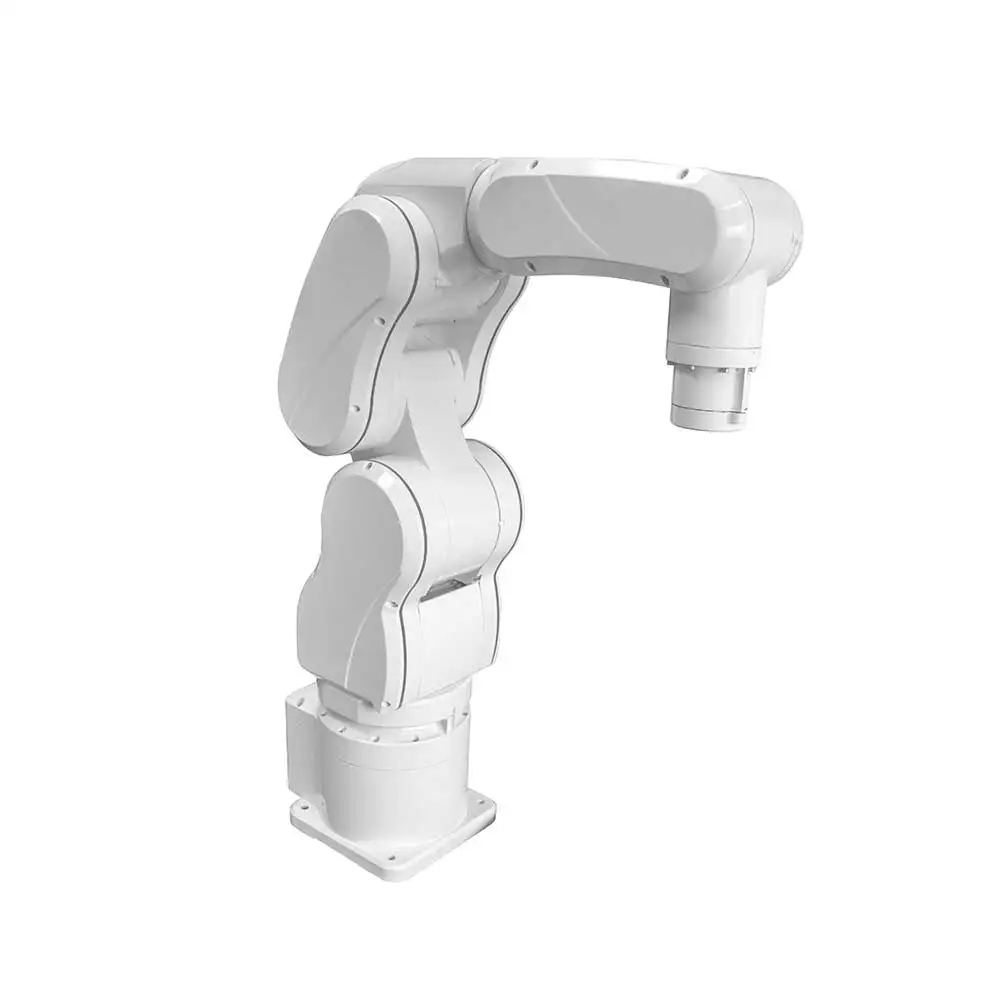

Мини промышленный робот манипулятор 6 DOF для обработки серводвигателя Роботизированная рука
- Категория: Lifting, Pulling & Positioning >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5355.35 $* | 5623.96 $* |
| Aug-18-2025 | 5310.91 $* | 5576.54 $* |
| Jul-18-2025 | 4455.31 $* | 4678.82 $* |
| Jun-18-2025 | 5220.79 $* | 5481.42 $* |
| May-18-2025 | 4545.75 $* | 4772.29 $* |
| Apr-18-2025 | 5130.78 $* | 5387.52 $* |
| Mar-18-2025 | 5085.56 $* | 5339.7 $* |
| Feb-18-2025 | 5040.55 $* | 5292.86 $* |
| Jan-18-2025 | 4995.28 $* | 5245.21 $* |
Характеристики
Products Description
Light weight robot, small in shape and light in weight makes it suitable for assembling, small unit robots which can complete all kinds of work such as loading/unloading/sorting/assembly at high speed and high precision. At the same time, all the robot cables are built in and can be operated flexibly in a small space. The installation mode can be installed on the ground, mounted or inverted.
Features: Wrist rated load: 4Kg. Maximum working radius: 690mm.
Features
Light weight
Fast running speed
Beautiful
High precision of repeated positioning
Built-in cable
Features
Light weight
Fast running speed
Beautiful
High precision of repeated positioning
Built-in cable
Dof | 6 axis | ||
Working radius | 690mm | ||
Rated load | 4kg | ||
Maximum load | 5kg | ||
Working range | J1 | -175°~ +175° | |
J2 | -130°~ +50° | ||
J3 | -120°~ +50° | ||
J4 | -175°~ +175° | ||
J5 | -120°~ +120° | ||
J6 | 360° | ||
Repeatability | ±0.05mm | ||
Material | Aluminum | ||
Body weight | 25kg | ||
Input voltage | AC220V, 50HZ | ||
Power plant | AC servo motor | ||
Reducation | Harmonic deceleration | ||
Environmental requirement | Temperature | 5℃-50° | |
Humidity | 10%-80% | ||
Installation | Table top, side mout, flip mount | ||
Maximum speed | J1 | 176°/s | |
J2 | 176°/s | ||
J3 | 148°/s | ||
J4 | 237°/s | ||
J5 | 237°/s | ||
J6 | 400°/s | ||
Main Applications
Why Choose Us
Product packaging
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Specifications:
- Model: 6 Axis Robot Arm SJ602-A
- Outer Shell Material: Aluminum
- Volume Weight: 41 kg
- Model: 6 Axis Robot Arm SJ602-A
- Outer Shell Material: Aluminum
- Volume Weight: 41 kg
Package Included:
Carton Box 1 (65 cm*60 cm*32 cm, 32 kg):
- 1* Robotic Arm Body
Carton Box 2 (43 cm*43 cm *23 cm, 9 kg):

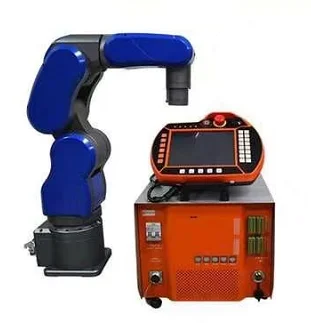

- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
Company Introduction
FAQ
Q1. Are you a trading company or manufacturer?
A: We 're manufacturer.
Q2. What is your MOQ?
A: 1 set.
Q3. How long about your lead time?
A: Our product preparation time is about 7-15 days. If we have robot in stock, we can send out immediately.
Q3. How long about your lead time?
A: Our product preparation time is about 7-15 days. If we have robot in stock, we can send out immediately.
Q4. What is your terms of payment?
A: Payment <= 5000USD, 100% in advance. Payment >10000USD, 50% T/T in advance, balance before shippment.
Q5. Can we add our logo on the goods?
A: Yes, we offer OEM service.
A: Yes, we offer OEM service.
Q6:Any warranty for the goods?
A: Normally one year warranty after delivery except artificial damage.
A: Normally one year warranty after delivery except artificial damage.
Q7. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
