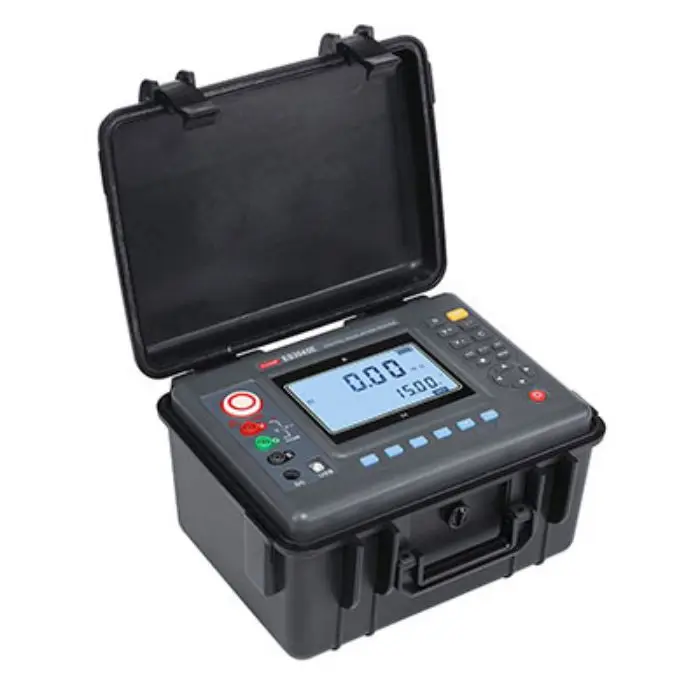

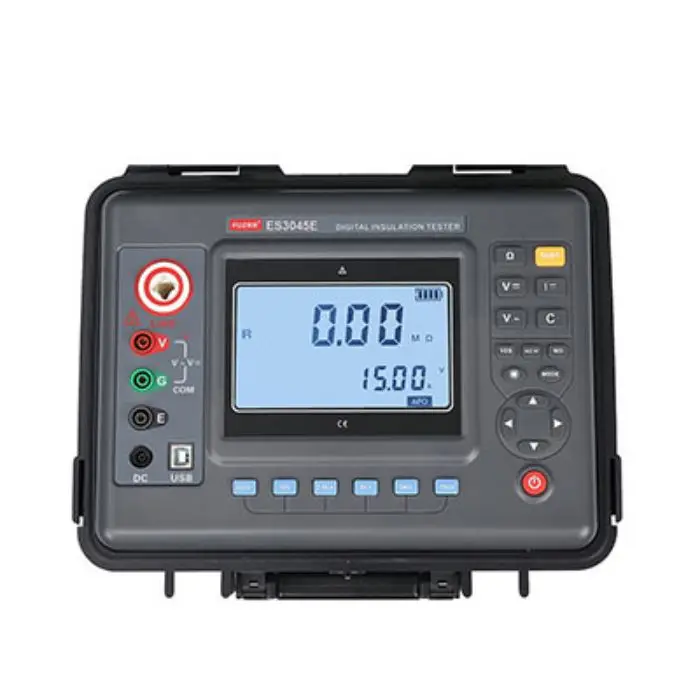

ES30345 series digital insulation resistance meter, also name megohmmeter, high voltage insulation resistance tester, is used for insulation resistance test. This instrument has a large LCD screen gray backlit display, data storage, data review, alarm, Automatic discharge, charging, automatic shutdown and other functions. At the same time, it also has the function of measuring absorption ratio and polarization index of AC voltage and DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, Large output power, strong anti-interference ability.
ES30345 series digital insulation resistance meter also has a shockproof, dustproof, moisture-proof structure, and adapts to the harsh working environment. It is a commonly used and indispensable instrument for Telecommunications, electricity, weather, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
ES30345 series digital insulation resistance meter is composed of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is more (has 6 voltage levels). Rated insulation test voltage range 100V ~ 15kV (Determine the output voltage according to the model), with the step adjustment voltage function can output a variety of different voltage levels (such as 15kV models can produce 12KV and other voltage levels, more widely used), insulation resistance measurement range 0.01MΩ ～ 50TΩ ( The measurement range is determined according to the model); DC voltage measurement range is 0 to 1000V; AC voltage measurement range is 0 to 750V; DC current measurement measurement range is 0.01nA to 6mA; capacitance measurement range is 10nF to 50uF.


Main Feature


Function：\tinsulation resistance test, voltage test
Rated Voltage(V)：\t500V；1000V；2500V；5000V；10KV；15KV
Insulation Resistance Range：\t0.01MΩ～50TΩ
Capacitance measurement：\t10nF～50uF
Short circuit current：\t≥5mA
DC voltage range：\t0～1000V
AC voltage range：\t0～750V
Data storage：\t500 group
USB interface：\thave
Charging function：\thave
One-button direct access to rated voltage


Technical Data


I. Model Contrast


Model
ES3045
ES3045E
ES3045F
Rated applied voltage
100; 250; 500; 1000; 2500; 5KV
250; 500; 1000; 2500V; 5KV; 10KV
500; 1000; 2500; 5000; 10KV; 15KV
Resistance limit range
0.01MΩ～10TΩ
0.01MΩ～35TΩ
0.01MΩ～50TΩ
Resolution
0.01MΩ
0.01MΩ
0.01MΩ
Accuracy
±3%rdg±5dgt
±3%rdg±5dgt
±3%rdg±5dgt
Output short-circuitt current
≥6mA
≥6mA
≥6mA


II. Technical Parameters


Function
Insulation resistance test, voltage test, current test, capacitance test
Basic condition
23℃±5℃，below 75%rh
Rated voltage(V)
100V；250V；500V；1000V；2500V；5000V
Accuracy rated voltage
×（1±10%）
250V；500V；1000V；2500V；5000V；10KV
Accuracy rated voltage
×（1±10%）
500V；1000V；2500V；5000V；10KV；15KV
Accuracy rated voltage
×（1±10%）
Insulation resistance range(GΩ)
0.01MΩ～10TΩ
Accuracy: ±3%rdg±5dgt
Resolution: 0.01MΩ
0.01MΩ～35TΩ
Accuracy: ±3%rdg±5dgt
Resolution: 0.01MΩ
0.01MΩ～50TΩ
Accuracy: ±3%rdg±5dgt
Resolution: 0.01MΩ
DC voltage range
0.1～1000V
accuracy：±1.5%rdg±3dgt
Resolution: 0.1V
AC voltage range
0.1～750V
accuracy：±1.5%rdg±3dgt
Resolution: 0.1V
DC current measurement
0.01nA～6mA
accuracy：±5.0%rdg±5dgt
Resolution: 0.01nA
Capacitance test
10nF～50uF
accuracy：±10%rdg±5dgt
Resolution: 10nF
absorption ratio and polarization index measurement
have
Power
12V rechargeable battery
Backlight
Controllable gray screen backlight, suitable for use in dim places
Display mode
4-bit large LCD display, gray screen backlight
Instrument size
240mm (L)*188mm (W)*85mm (H)
USB interface
With USB interface, software monitoring, storage data can upload computer, save and print
Communication line
USB communication line 1pc
Test line
High voltage rod red line 3 meters, high voltage test line black line 1.5 meters, green line 1.5 meters
Data Storage
500 groups, "FULL" symbol indicates that storage is full
Data Review
Data review function: "READ" symbol display
Overflow Display
Exceed measurement range overflow function: “OL ” symbol display
Alarm function
When the measured value exceeds the alarm set value, an alarm prompt is issued.
Instrument weight
2720g(including battery)
Power Consumption
Standby: 30mA Max(backlight off)
Turn on backlight: 42mA Max
Measure：200mA Max(backlight off)
Battery voltage
When the battery voltage is low, low battery symbol will display
Automatic shut-down
automatic shutdown after 15 minutes boot
Insulation Resistance
≥50MΩ(between Measuring line and housing)
Pressure Resistance
AC3kV/50Hz 1min
Working Temperature and Humidity
－10℃～+50℃＜85%RH
Storage Temperature and Humidity
－15℃～+55℃＜90%RH
Suitable for Safety Regulations
IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54) pollution grade 2、CAT Ⅲ 300V

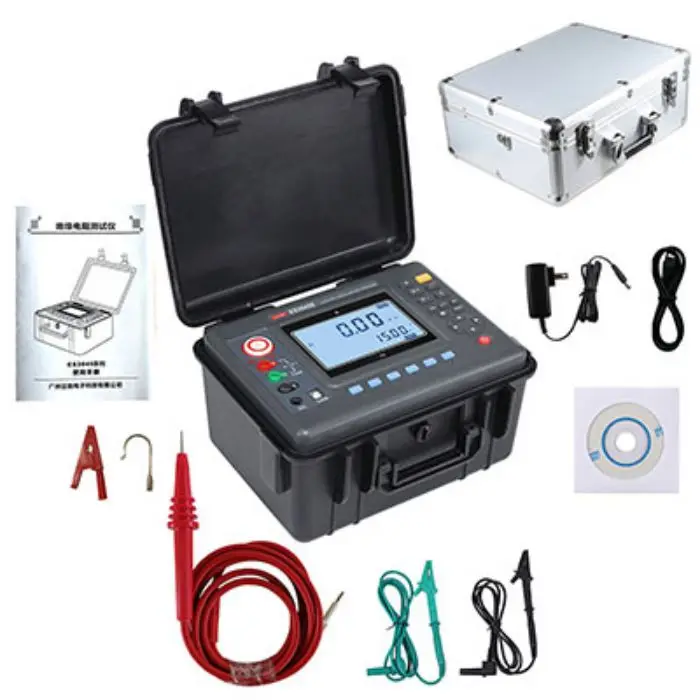

Standard Delivery


Meter
1PC
High voltage bar
1PC red
High voltage test line
2PCS（black,green each 1）
Monitoring Software CD
1PC
USB communication lineUSB
1PC
charger
1PC
Manual, certificate
1Set
Instrument box
1PC
