Цифровой измеритель сопротивления изоляции FR3025 2500
Цифровой измеритель сопротивления изоляции FR3025 2500
Цифровой измеритель сопротивления изоляции FR3025 2500
Цифровой измеритель сопротивления изоляции FR3025 2500
Цифровой измеритель сопротивления изоляции FR3025 2500

Цифровой измеритель сопротивления изоляции FR3025 2500


Поделиться:


Цена:110,00 $ - 130,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 131.4 $* 138.51 $*
Aug-17-2025 130.9 $* 137.49 $*
Jul-17-2025 109.89 $* 114.24 $*
Jun-17-2025 128.67 $* 134.99 $*
May-17-2025 111.74 $* 117.10 $*
Apr-17-2025 125.96 $* 131.3 $*
Mar-17-2025 124.81 $* 130.86 $*
Feb-17-2025 123.55 $* 129.81 $*
Jan-17-2025 122.13 $* 128.74 $*

Характеристики



Recommend Products




Products Display




Product Description


FR3025 digital insulation resistance meter, also name megohmmeter, high voltage insulation resistance tester, is used for insulation resistance test. This instrument has a large LCD screen gray backlit display, data storage, data review, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring absorption ratio and polarization index of AC voltage and DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
ES3025 also has a shockproof, dustproof, moisture-proof structure, and adapts to the harsh working environment. It is a commonly used and indispensable instrument for electric power, post and telecommunications, communications, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
FR3025 digital insulation resistance meter is composed of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is more (has 5 voltage levels). Rated insulation test voltage range 100 ~ 2500V insulation resistance measurement range 0.01MΩ ~ 200GΩ. DC voltage measurement range 0~1000V AC voltage measurement range 0~750V


Main Feature


Function：\tInsulation resistance test, voltage test
Rated voltage：\t100；250；500；1000；2500
Insulation resistance range: (GΩ)：\t0.01MΩ～200GΩ
DC voltage range：\t0～1000V
AC voltage range：\t0～750V
Data Storage：\t500 groups


Technical Data


Function
Insulation resistance test, voltage test
Base conditions
23°C±5°C，below 75%rh
Rated Voltage(V)
100;250;500;1000;2500
Test Voltage(V)
Rated voltage x (1±10%)
Insulation Resistance Range
0.01MΩ-200GΩ
Resolution:0.01MΩ
Accuracy: ±3%rdg±5dgt
DC Voltage Range
0-1000V
Resolution:0.1V
Accuracy: ±1.5%rdg±3dgt
AC Voltage Range
0-750V
Resolution:0.1V
Accuracy: ±1.5%rdg±3dgt
Output short-circuit Current
≥1mA (2500V)
Absorption Ratio and Polarization Index Measurement
Have
Power Supply
1.5V (LR14) Alkaline Battery 6 Section
LCD Display Size
108mm×65mm, with backlight, suitable to use in dim places
Meter Dimension
L/W/H: 240mm×188mmx85mm
Test Line
High voltage test line red 1 meter, black 1 meter, green line 1 meter
Data Storage
500 groups, "FULL" symbol indicates that storage is full
Data Review
Data review function: "MR" symbol display
Overflow Display
Exceed measurement range overflow function: “OL ” symbol display
Alarm Function
Alarm when the measured value exceeds the alarm setting value
Power Consumption
Standby 40 mA Max (backlight off), turn on backlight: 43 mA Max, measure: 80 mA Max (backlight off)
Weight
Instrument: 1230g (including battery)
Automatic shut-down
"APO" instruction, automatic shutdown after 15 minutes boot
Insulation Resistance
≥ 50MΩ (1000V)
Pressure Resistance
AC 3kV/50Hz 1min
Working Temperature and Humidity
-10°C~50 °C; below 80% rh
Storage Temperature and Humidity
-15°C~55°C; below 90% rh
Suitable for Safety Regulations
IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution grade 2, CAT III 300V

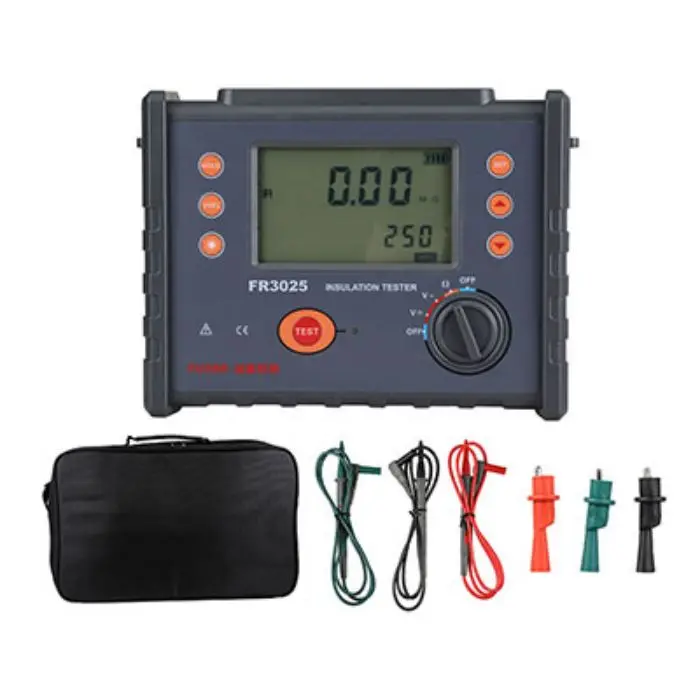

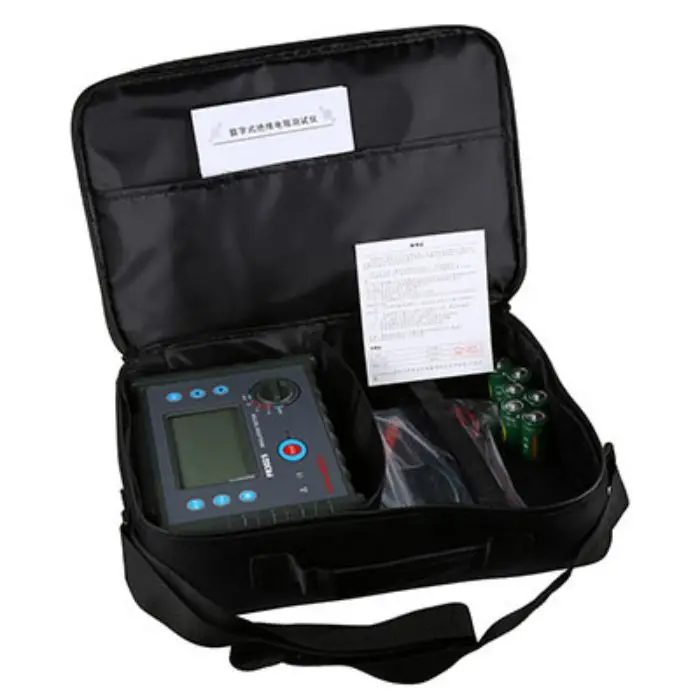

Standard Delivery


Instrument
1PC
High voltage test line
3 (1 in red, black, and green)
battery
1.5V alkaline battery 6 section
Manual, warranty certificate
1SET
Instrument box
1PC
