Индикатор уровня для бойлера высокотемпературный Койлер высокого давления с контролем гидравлического
- Категория: Levels >>>
- Поставщик: Zhuhai,Qixinli,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 381.6 $* | 400.78 $* |
| Aug-17-2025 | 378.58 $* | 397.24 $* |
| Jul-17-2025 | 317.71 $* | 333.71 $* |
| Jun-17-2025 | 371.18 $* | 390.98 $* |
| May-17-2025 | 323.18 $* | 339.5 $* |
| Apr-17-2025 | 365.24 $* | 383.87 $* |
| Mar-17-2025 | 362.88 $* | 380.72 $* |
| Feb-17-2025 | 358.39 $* | 376.40 $* |
| Jan-17-2025 | 355.6 $* | 373.86 $* |
Характеристики
Product Overview
Sight glass level gauge indicator boiler level sight high pressure high temperature boiler hydraulic tank level control boiler
Features
* Broad range of chamber styles
* Fabricated non-magnetic chambers
* ANSI and DIN flanges
* Precision manufactured float
* Flag or shuttle type indicator
Applications
* Feed water heaters
* Industrial boilers
* Oil water separators
* Flash drums
* Surge tanks
* Gas chillers
Specification:
* C-C: 300mm-5000mm
* Working pressure≤20MPa
* Working temperature ≤450℃.
* The automatic opening and closing pressure of the safety device is ≥0.3Mpa.
* The steam pressure of the jacket is ≤0.6Mpa.
* The rapid temperature difference of the glass plate is ≤240℃.
* Broad range of chamber styles
* Fabricated non-magnetic chambers
* ANSI and DIN flanges
* Precision manufactured float
* Flag or shuttle type indicator
Applications
* Feed water heaters
* Industrial boilers
* Oil water separators
* Flash drums
* Surge tanks
* Gas chillers
Specification:
* C-C: 300mm-5000mm
* Working pressure≤20MPa
* Working temperature ≤450℃.
* The automatic opening and closing pressure of the safety device is ≥0.3Mpa.
* The steam pressure of the jacket is ≤0.6Mpa.
* The rapid temperature difference of the glass plate is ≤240℃.

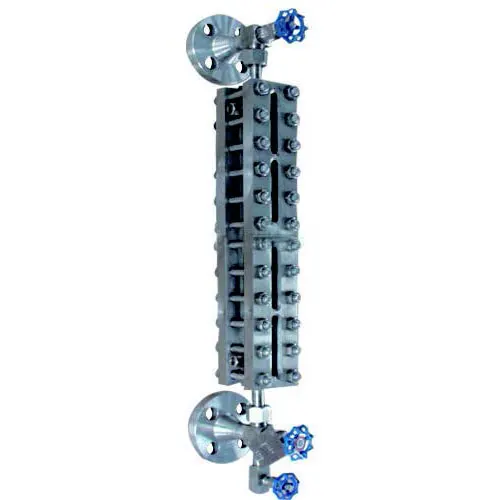

Transparent level gauge
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Medium Density | ≥ 0.5Kg / L |
2 | Medium pressure | ≤ 40.0Mpa |
3 | Medium temperature | -40 ~ 500 °C |
6 | Material | SUS304/SUS316L/PP/PVDF |

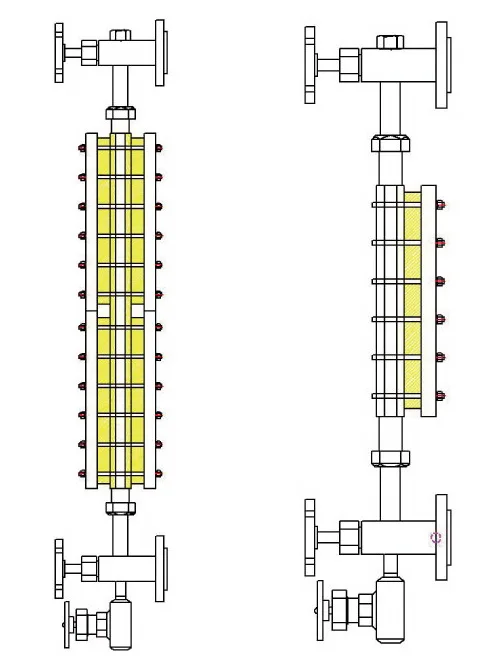

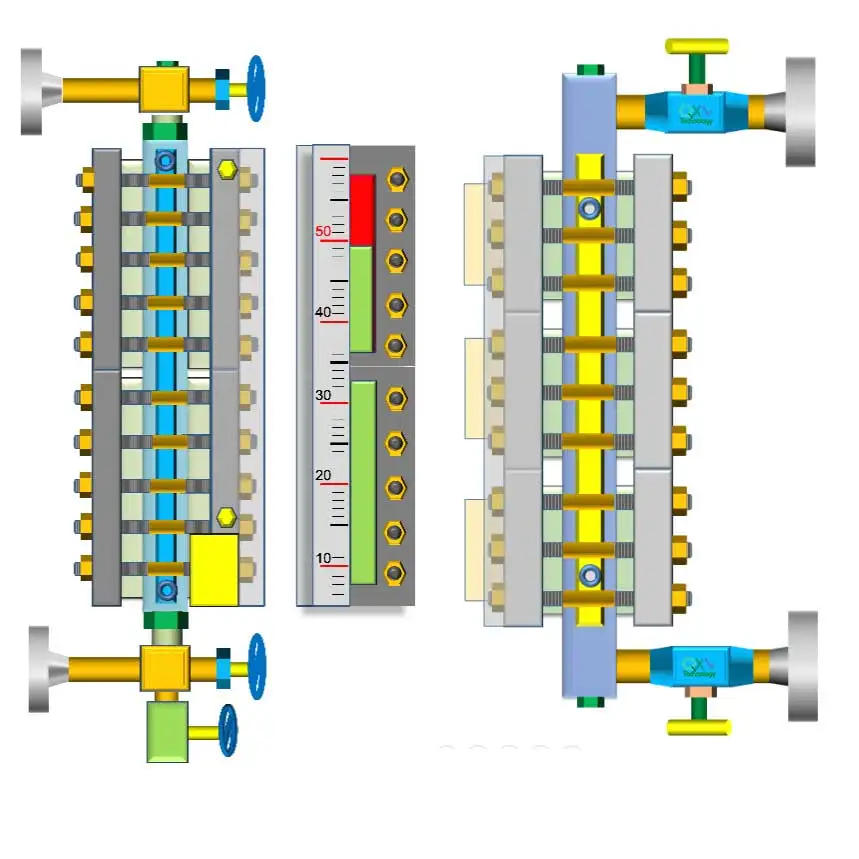

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
We are dedicated in providing complete customized solutions for a wide range of industrial automation process applications – in material level, liquid flow, pressure and temperature.
We can provide you with high-precision measurement technology. We have more than 15 years of experience in industrial automation. Our products can be used in many different industries such as food & beverage, water, energy, pharmaceutical etc.
In the past 5 years, the company has undergone tremendous growth and development – flourishing internationally and providing customers worldwide with the best customized solutions for process automation Main products include: Level switch, Level transmitter Components of magnetic level indicator
Medidor magnético de nivel de líquido, sensor de profundidad del tanque, transmisor, medidor, indicador, tipo de flotador
FAQ
Q1: Can it be used in hazard and corrosive environment?
A1: Yes, anti-corrosion materiel like PP, SS316 are adapted.
