Деревообрабатывающий строгальный станок для отделки дверных рамок профилирующий с 4 Сторонами формовочный
- Категория: Spindle Moulder >>>
- Поставщик: Foshan,Yowing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.84 $* | 0.79 $* |
| Aug-15-2025 | 0.31 $* | 0.56 $* |
| Jul-15-2025 | 0.45 $* | 0.33 $* |
| Jun-15-2025 | 0.85 $* | 0.19 $* |
| May-15-2025 | 0.58 $* | 0.97 $* |
| Apr-15-2025 | 0.56 $* | 0.4 $* |
| Mar-15-2025 | 0.82 $* | 0.16 $* |
| Feb-15-2025 | 0.4 $* | 0.19 $* |
| Jan-15-2025 | 0.44 $* | 0.90 $* |
Характеристики
Product Description
Features

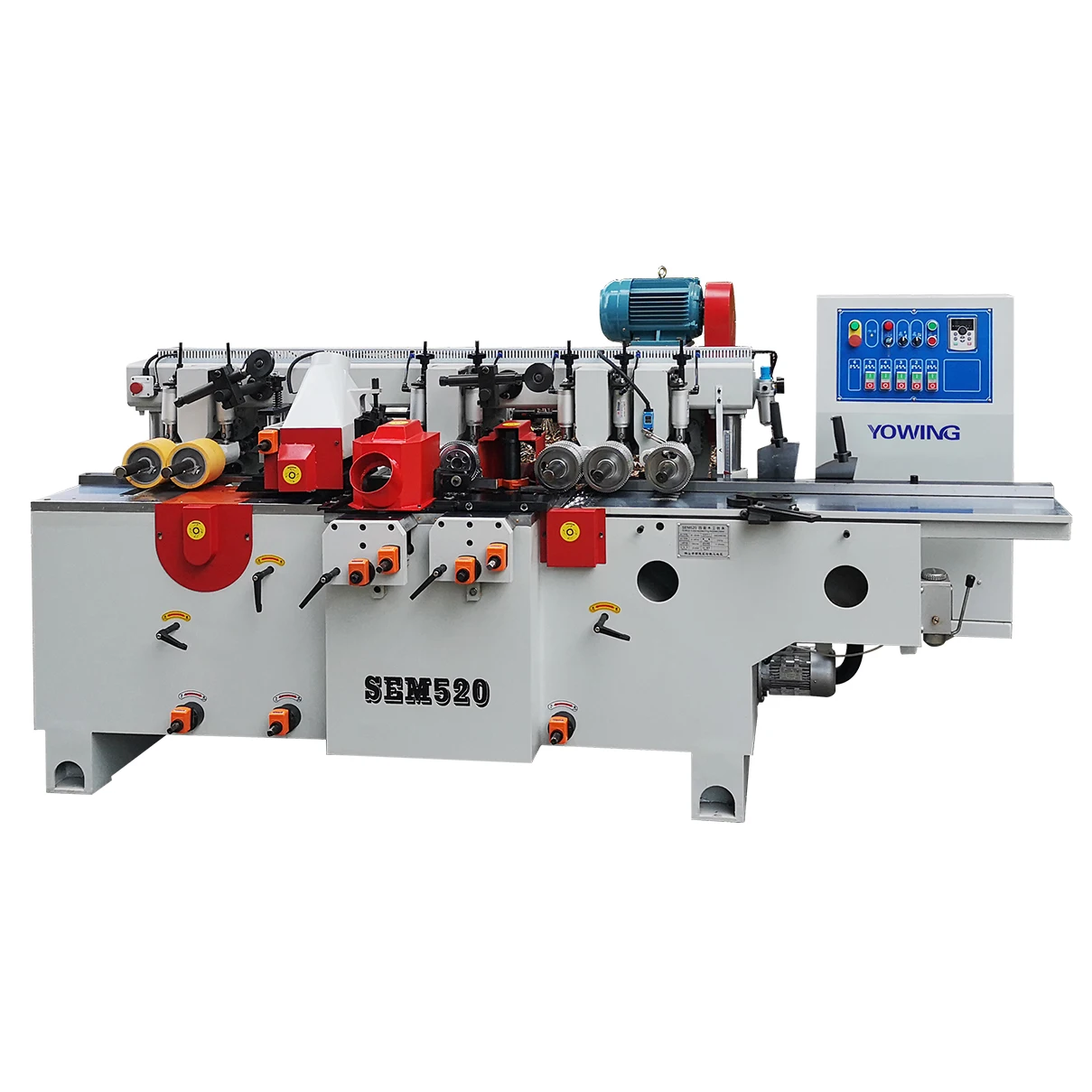

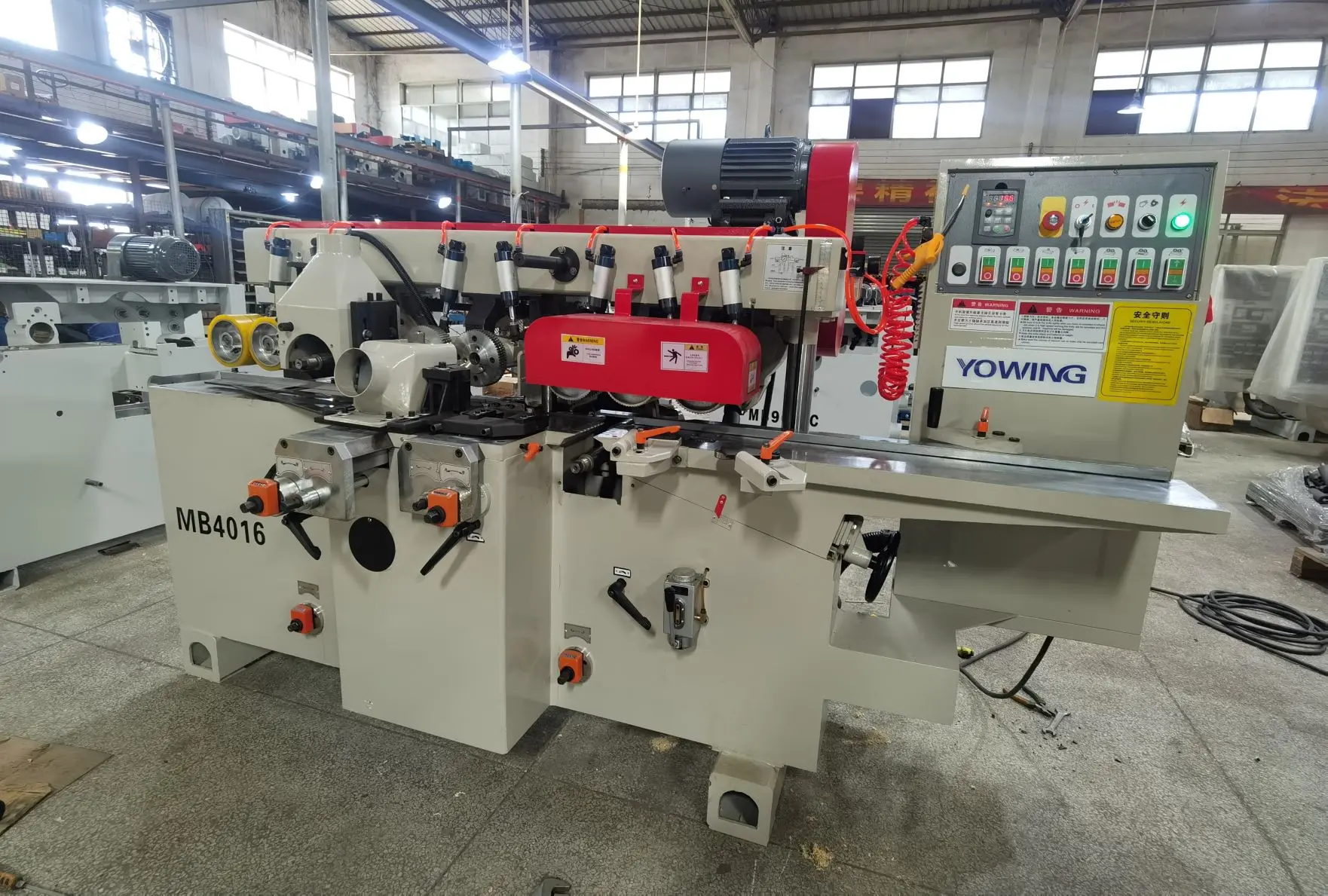

Four Side Spindle Planer Moulder Machine adopts advanced technology, it has strong power, fast transfer system with many couple of carrier rollers. precision planing can match with saw blade. According to production conditions it can be four, five, six, seven,eight, nine, ten spindles.
1,Economic frame.
2,4-6 spindles for option
3,Pressing roller could lift automatically
4,Planing cutter rack could tilt 20 degree max.
Machine Details

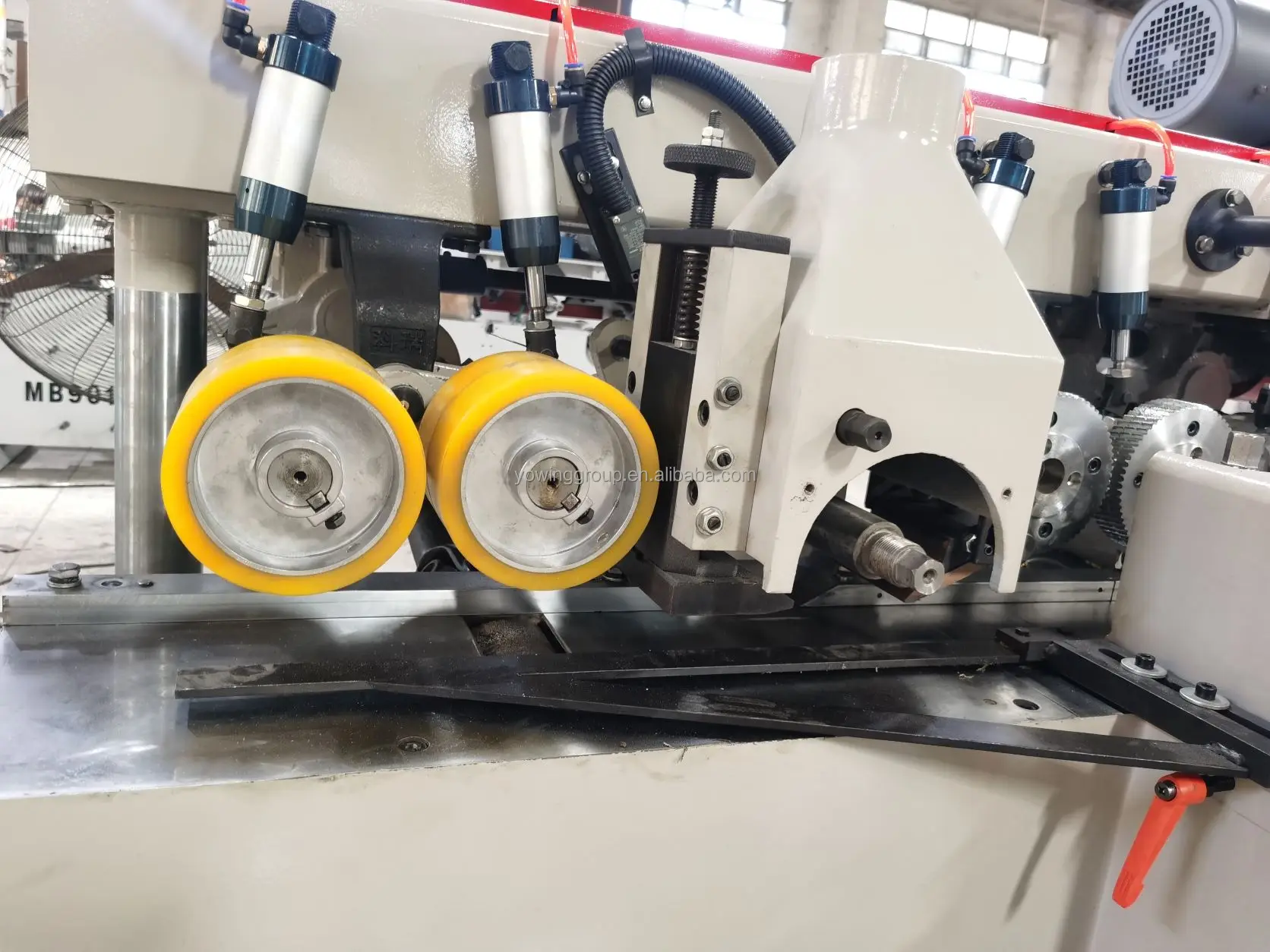

Press system
Good press system is to ensure wood stable and also ensure workers safety. We use good performance press wheels and also aluminum anti-rebounding plate to ensure this.

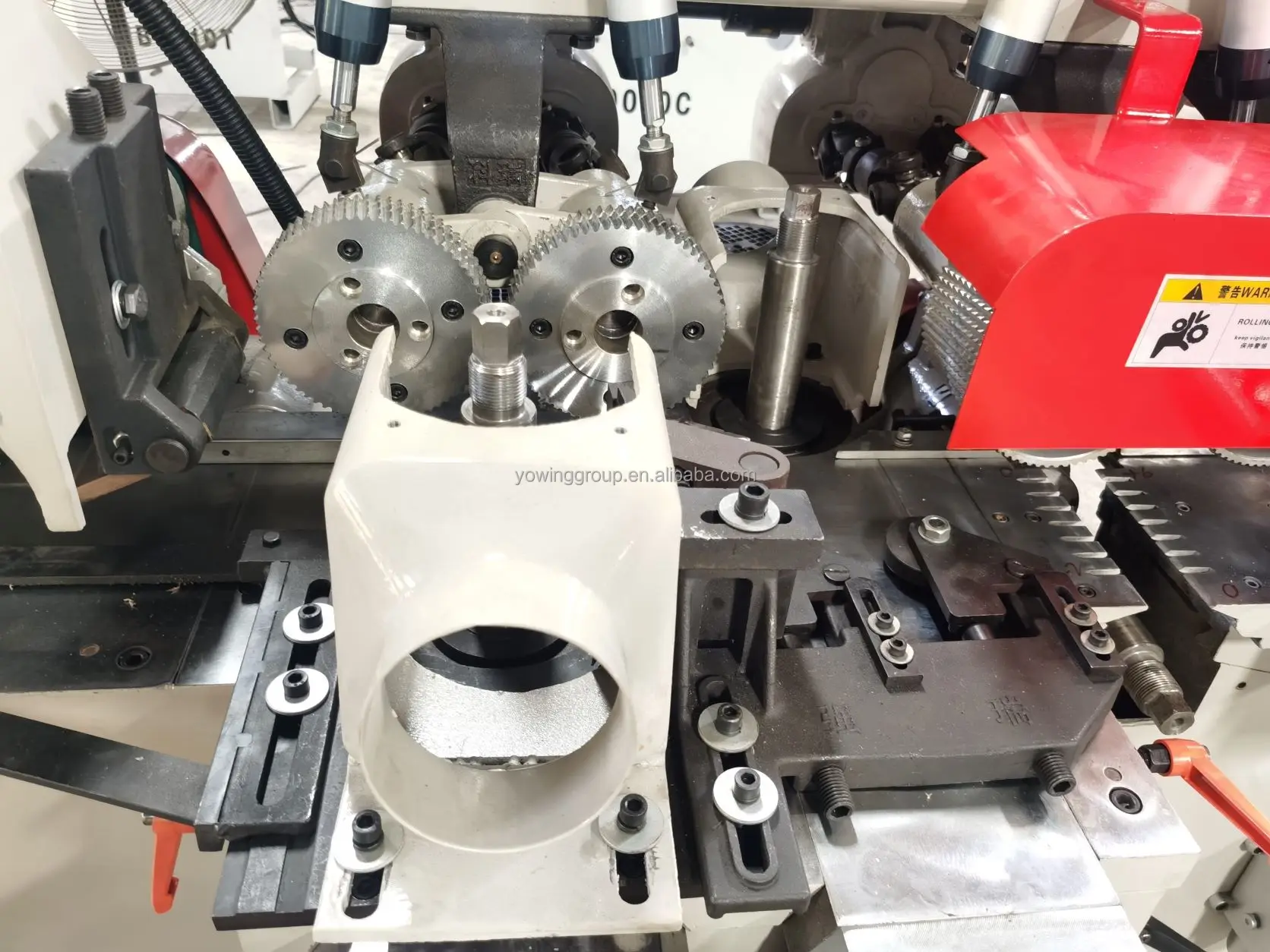

Adjustment unit.
For different thickness and width of wood, we must adjust all these clamps to suit the right width and thickness

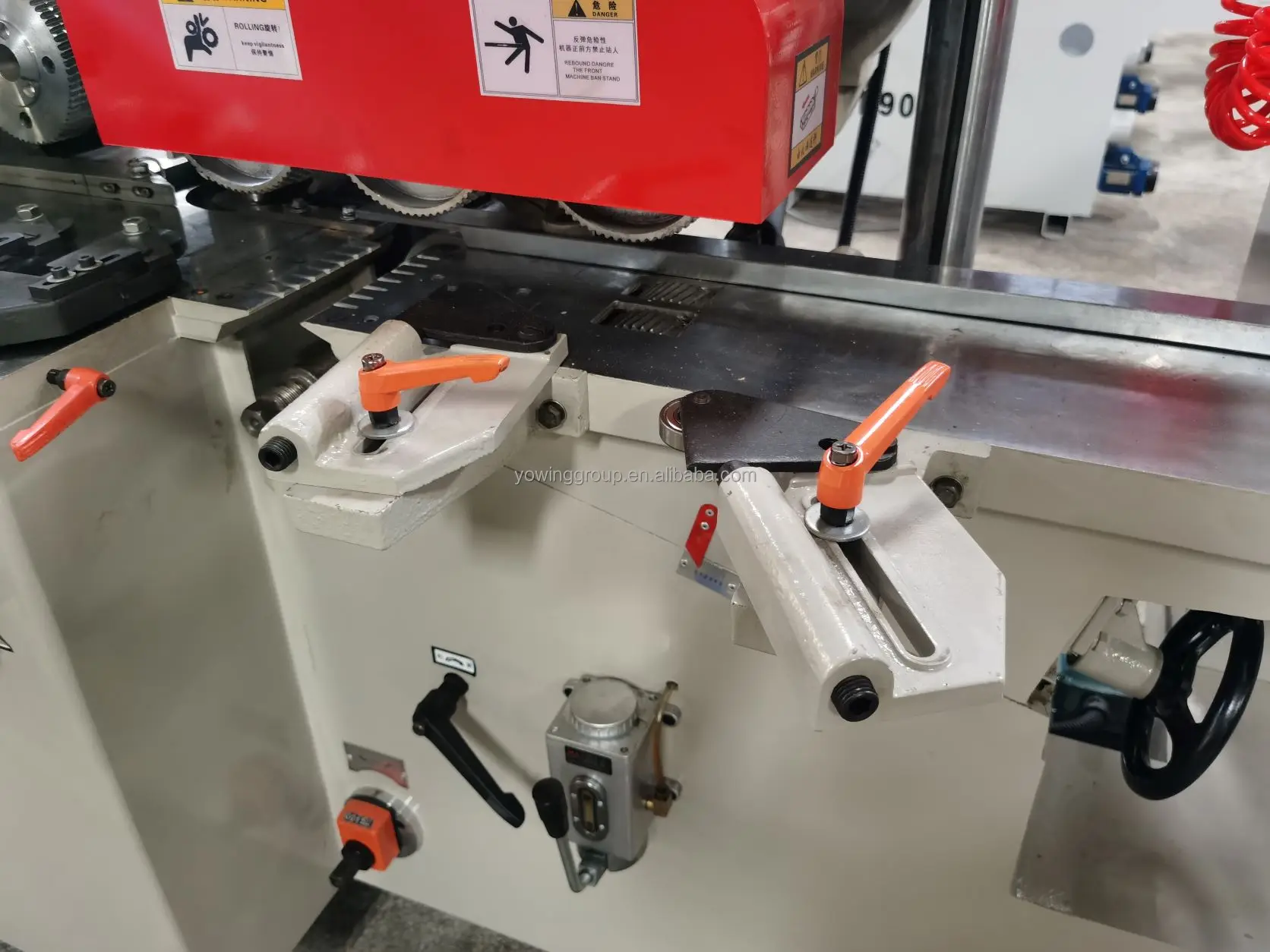

Anti-rebounding units.
You can see inside connection and many key parts here.

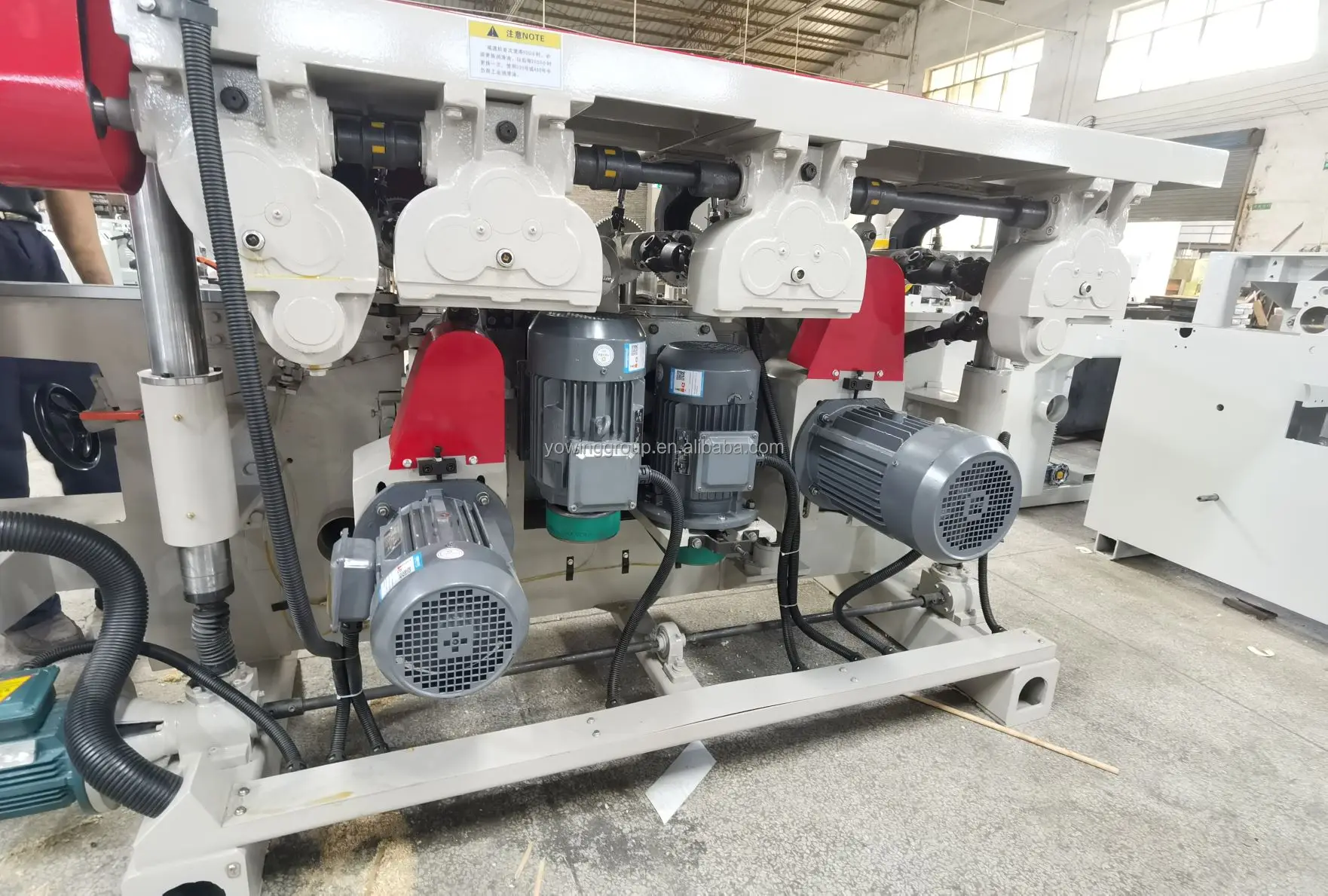

Back view.
It is with good quality and strong motors fro each spindle head to ensure enough power.
Specification
item | MB4012 | MB4016 | MB4023 | ||
Shaft Number | 4 | 4 | 4 | ||
Working maximum width | 120mm | 160mm | 230mm | ||
Max.Working Thickness(mm) | 100mm | 100mm | 100mm | ||
Voltage | 220V/380V/415V/440V | 220V/380V/415V/440V | |||
Dimension(L*W*H) | 1800*600*1500 | 1800*800*1500 | 1800*1000*1500 | ||
Power (kW) | 12.87kw | 15.87kw | 18.87kw | ||
Weight (KG) | 1500kg | 1800kg | 2000kg | ||
Feeding speed | 5-30m/min | 6-30m/min | |||
1st lower shaft | 4.0kw | 5.5kw | 5.5kw | ||
2nd left shaft | 3kw | 4kw | 4kw | ||
3rd right shaft | 3kw | 4kw | 4kw | ||
4st top shaft | 4.0kw | 4.0kw | 5.5kw | ||
Lifting motor | 0.37kw | 0.37kw | 0.37kw | ||
Company Profie
"YOWING MACHINERY,Located in China woodworking machinery important town: Lunjiao, Focusing on the development of full range of furniture and wooden door machinery equipment,providing furniture and wood door companies with solutions for whole factory planning and automatical production lines,presenting our customers with excellent quality,efficient and stable products and high-quality service.
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
3.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
3.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
