Zencar duosida ev зарядный уровень 2 Портативный evse sae j1772 Штепсель
US $100.00-$120.00
Горячая продажа 220V EV зарядное устройство приложение 7kw 20A электрическая Автомобильная зарядная станция ev
- Категория: Portable Charging Stations >>>
- Поставщик: Guangzhou,Max,Power,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3665.3 $* | 3848.5 $* |
| Aug-18-2025 | 3634.92 $* | 3816.87 $* |
| Jul-18-2025 | 3049.46 $* | 3201.48 $* |
| Jun-18-2025 | 3573.68 $* | 3752.87 $* |
| May-18-2025 | 3111.98 $* | 3267.13 $* |
| Apr-18-2025 | 3511.97 $* | 3687.52 $* |
| Mar-18-2025 | 3480.59 $* | 3654.89 $* |
| Feb-18-2025 | 3450.20 $* | 3623.37 $* |
| Jan-18-2025 | 3419.84 $* | 3590.54 $* |
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description

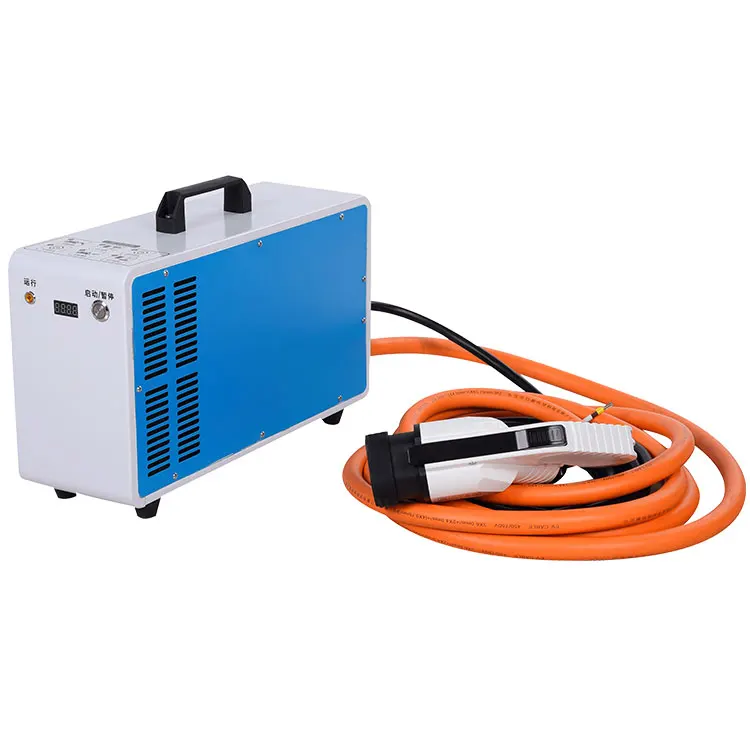

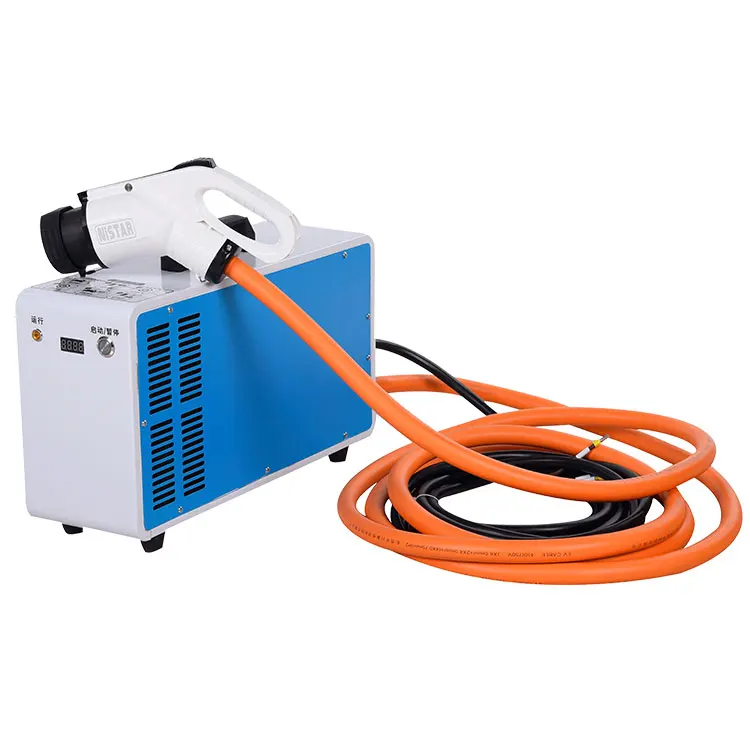

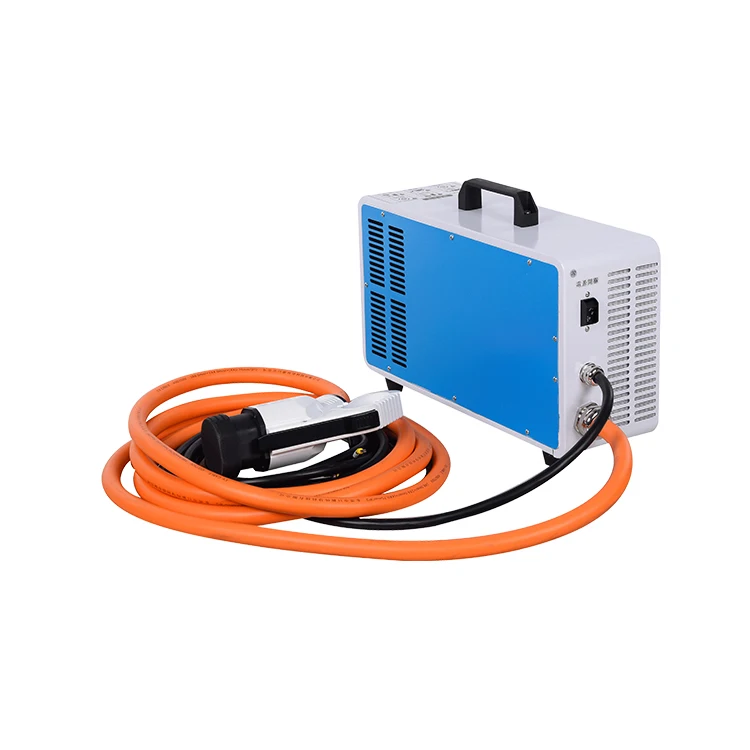

7kw Portable Charger
◆ MAX POWER 7kw portable charger is easy to carry, the input voltage is 220V from home plug grid, can charge the EV at any time,
anywhere freely.
◆ By center control module, power module, lightning protection unit, Intelligent and friendly interface.
◆ Using high-performance charging modules, wide voltage output range from 200-750Vdc
◆ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
◆Small, light, No restraints.
◆High efficiency:≥95%
anywhere freely.
◆ By center control module, power module, lightning protection unit, Intelligent and friendly interface.
◆ Using high-performance charging modules, wide voltage output range from 200-750Vdc
◆ Standard, touch screen, mobile, wall - mounted, multiple design styles to meet your needs.
◆Small, light, No restraints.
◆High efficiency:≥95%
Production Parameters | ||||
Model | 7KW | |||
AC Input | Input Rating | 220Vac±10% | ||
AC Input Connection | L2+L3+PE (NEMA,JPS) | |||
Max. Input Current | 32A | |||
Frequency | 50 /60 Hz | |||
Power Factor | >0.99@full load | |||
Efficiency | 95% | |||
DC Output | Output Voltage Range | 200-750Vdc | ||
Max. Output Power | 7KW | |||
Max. Output Current | 20A | |||
User Interface | TFT-LCD Touch Panel | No | ||
Push Buttons | No | |||
Interface | USB | |||
Packing | Dimension | 410×149×250mm | ||
Weight | 20KG | |||
Environmental | Operating Temperature | -40~85℃，25℃（TYPE） | ||
Humidity | 5%-90% RH, non-condens,ng | |||
Altitude | 2000m | |||
IP Level | IP43 | |||
Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable | ||
Regulation | EN61851-1 | |||
Regulation | Certification | CE , ROHS | ||
Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |||
Recommanded For You
Product Categories
Our Advantages
Company Profie
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
