Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Горячая Распродажа 12 м ножничный подъемник гусеничного типа Manlift CFPT1012LD МОБИЛЬНЫЙ
- Категория: High-altitude Operation Trucks >>>
- Поставщик: Evangel,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17850.83 $* | 18743.67 $* |
| Aug-16-2025 | 17700.75 $* | 18585.72 $* |
| Jul-16-2025 | 14850.12 $* | 15593.47 $* |
| Jun-16-2025 | 17400.96 $* | 18270.35 $* |
| May-16-2025 | 15150.61 $* | 15908.35 $* |
| Apr-16-2025 | 17100.43 $* | 17955.1 $* |
| Mar-16-2025 | 16950.2 $* | 17798.13 $* |
| Feb-16-2025 | 16800.55 $* | 17640.19 $* |
| Jan-16-2025 | 16650.34 $* | 17483.62 $* |
Характеристики
Mobile Electric Scissor Lift 12m Hydraulic Scissor Lift CFPT1012LD

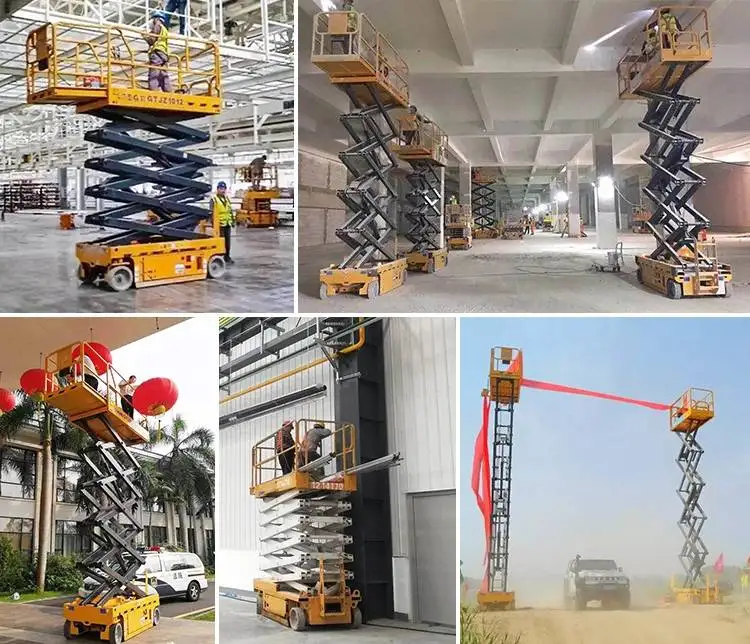

The scissors aerial work platform which is the newly developed series can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
1. Convenient Transportation And Stable Operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2. Environmental Cons Truction And Convenient Service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
3. General And Modular Design
The modular design for the machine guarantees the universality of parts, makes the customers’ repairs and maintenance easier, and achieves more competitive cost.
1. Convenient Transportation And Stable Operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2. Environmental Cons Truction And Convenient Service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
3. General And Modular Design
The modular design for the machine guarantees the universality of parts, makes the customers’ repairs and maintenance easier, and achieves more competitive cost.
Model | CFPT1012LD |
Rated load | 320Kg |
Payload of extended platform | 113Kg |
Max. worker on platform | 2 |
Max. working height | 12m |
Max. height of platform | 9.75m |
Total machine length | 2470mm |
Total machine width | 1390mm |
Total machine height | 2530mm |
Height(platform folded) | 1995mm |
Dimension of working platform | 2270×1120mm×700mm |
Minimum turning radius (inner wheel/outer wheel) | 0m |
Min. ground clearance (Pit protector ascending/descending) | 150 |
Lifting motor | 48V/4.5Kw |
Traveling motor | 2×48v/4Kw |
Drive speed(lowered) | 2Km/h |
Drive speed(elevated) | 0 |
Lifting/lowering time | 60/40sec |
Battery | 8×6V/200Ah |
Charger | 48V/25A |
Max. gradeability | 30% |
Total mass of machine | 2840Kg |
