Кнопка выхода из нержавеющей стали со светодиодным индикатором 12
- Категория: Other Access Control Products >>>
- Поставщик: Shenzhen,Nordson,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.21 $* | 1.80 $* |
| Jul-20-2025 | 1.6 $* | 1.18 $* |
| Jun-20-2025 | 1.31 $* | 1.72 $* |
| May-20-2025 | 1.60 $* | 1.9 $* |
| Apr-20-2025 | 1.43 $* | 1.46 $* |
| Mar-20-2025 | 1.96 $* | 1.90 $* |
| Feb-20-2025 | 1.8 $* | 1.1 $* |
| Jan-20-2025 | 1.2 $* | 1.49 $* |
Характеристики
Title

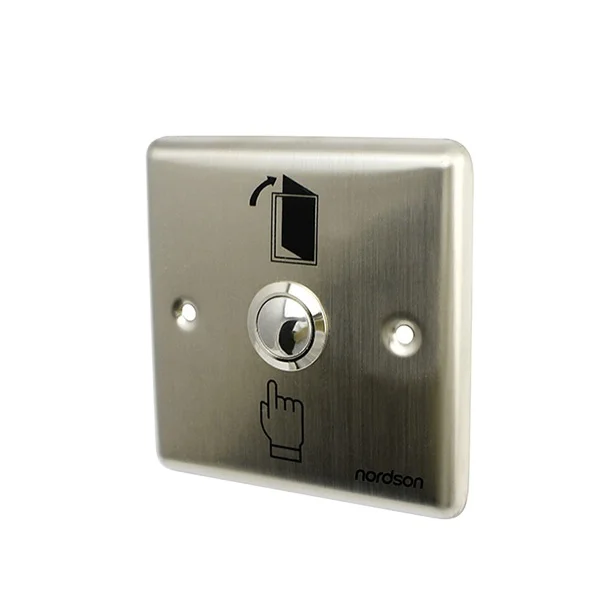

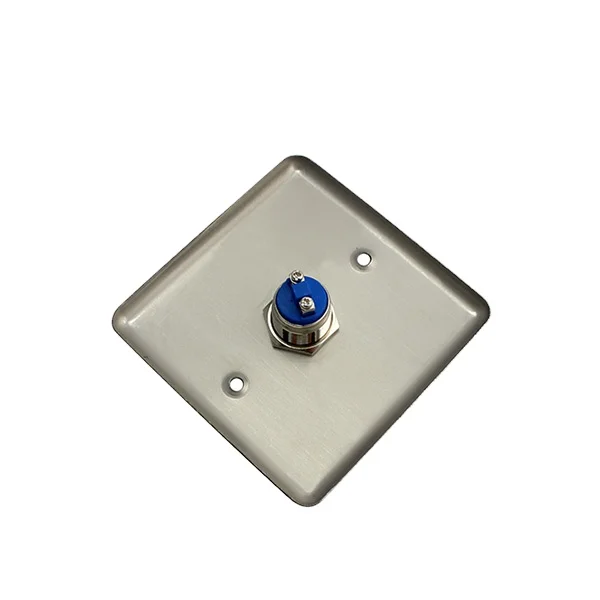

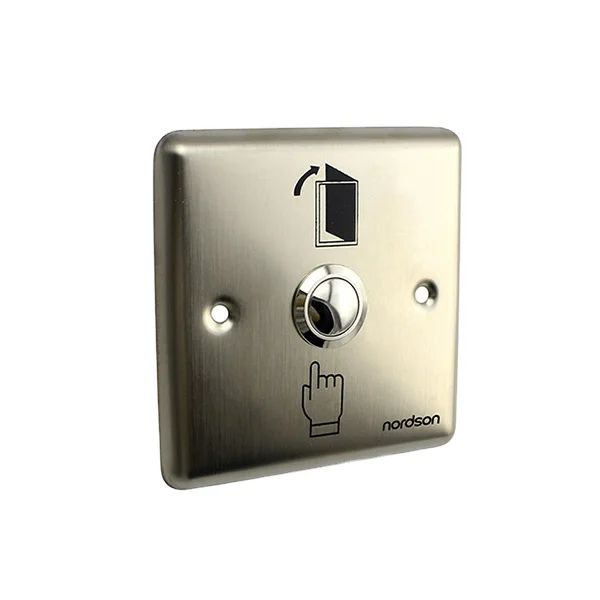

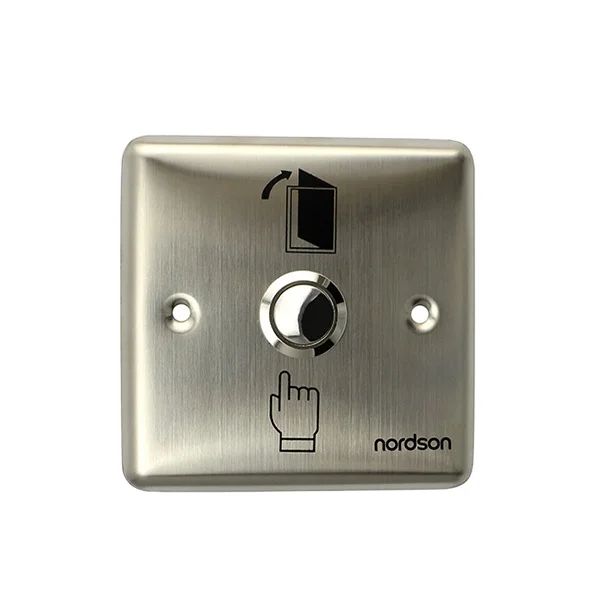

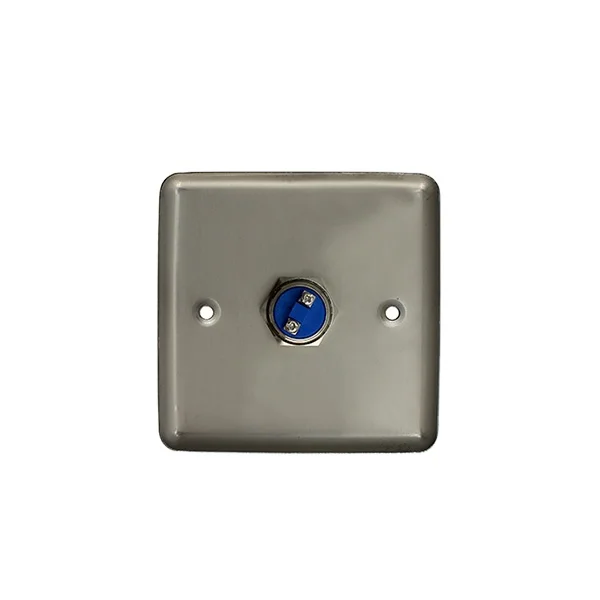

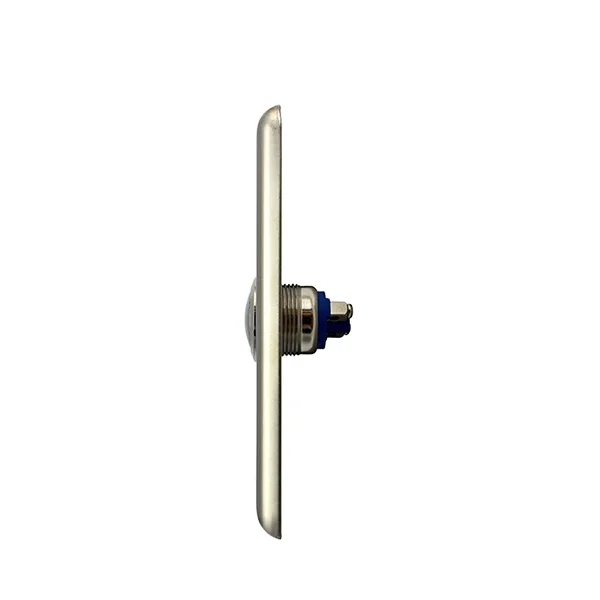

Stainless Steel Material Exit Button With LED Indicate 12V Door Release Button
Overview
NF-80 Door Release Button is a satin finish stainless steel access switch button, suitable for a variety of door
frame,Long lifespan,500000 Successful Test. It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems
frame,Long lifespan,500000 Successful Test. It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems
Function
1.A classic 86 box design,Simple and elegant.
2.Durable quality with imported stainless steel for faceplate and button
3.Easy installation with NO/COM dry contact
4.Long lifespan,500000 Successful Test
5.Available option for NO/NC/COM Output
2.Durable quality with imported stainless steel for faceplate and button
3.Easy installation with NO/COM dry contact
4.Long lifespan,500000 Successful Test
5.Available option for NO/NC/COM Output
Product Paramenters
Model | NF-80 Push Button Switches |
NF-80S Push Button Switches (with Night Luminous) | |
Material | SUS304 Stainless steel Panel, Steel Button |
Current Rating | 3A@36VDC Max |
Output Contact | NO,COM Output |
Optional Functions | NO/NC/COM Output |
LED Nigh | Available option for Blue,Green or Red |
Mechanical Life | 500000 Successful Test |
Suitable for Door | hollow door frame and electrical box use |
Operating temp | -10～+55℃(14-131F) |
Operating Humidity | 0-95% (Non- condensing) |
Dimensions | 86Lx86Wx20H(mm) |
Weight | 0.98kg |
Details Images
After-sales Service
1. We offer free repair service within 1 year product warranty, we only charge for spare parts cost.
2. Beyond warranty, we can also offer spare parts and maintenance with paid service;
3. Technical support will be offered for all Nordson's products.
3. Technical support will be offered for all Nordson's products.
FAQ
Q: Is your company a factory or a trading company?
A: Nordson is a factory manufacturing smart locks.
Q: How can you make a difference from other suppliers?
A: With more then 10 years' experience in door locks field and completed
supply chain here in China, Guangzhou Nordson could be your reliable partner.
supply chain here in China, Guangzhou Nordson could be your reliable partner.
Q: How is your production ability?
A: Our monthly production capacity is about 20,000 pieces.
Q: What is your MOQ?
A: Our MOQ is 1 piece.
We always offers our customers with the great support for their different need.
We always offers our customers with the great support for their different need.
Q: Could you help with my designed products?
A: Yes for sure.
We are able to offer OEM/OEM service for our customers to gain the best solution for their markets.
We are able to offer OEM/OEM service for our customers to gain the best solution for their markets.
Q: What is your leading time?
A: Sample order will be ready for shipment within 5 days.
Bulk orders will be ready for shipment within 2 weeks or 4.
Bulk orders will be ready for shipment within 2 weeks or 4.
