C9340 тормозной дисковый тормоз режущий станок экономный для

C9340 тормозной дисковый тормоз режущий станок экономный для

Категория: Other Vehicle Equipment >>>
Поставщик: Jinan,Quality,CNC,Machinery,&,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.95 $*	0.26 $*
Aug-19-2025	0.32 $*	0.34 $*
Jul-19-2025	0.4 $*	0.21 $*
Jun-19-2025	0.58 $*	0.69 $*
May-19-2025	0.59 $*	0.44 $*
Apr-19-2025	0.33 $*	0.86 $*
Mar-19-2025	0.75 $*	0.61 $*
Feb-19-2025	0.99 $*	0.84 $*
Jan-19-2025	0.25 $*	0.74 $*

Характеристики

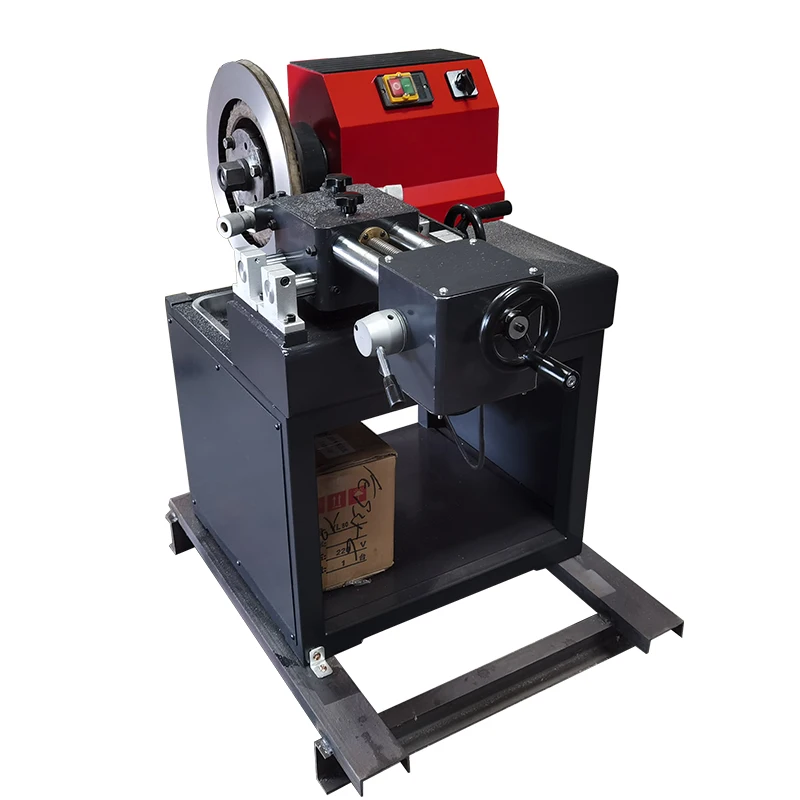

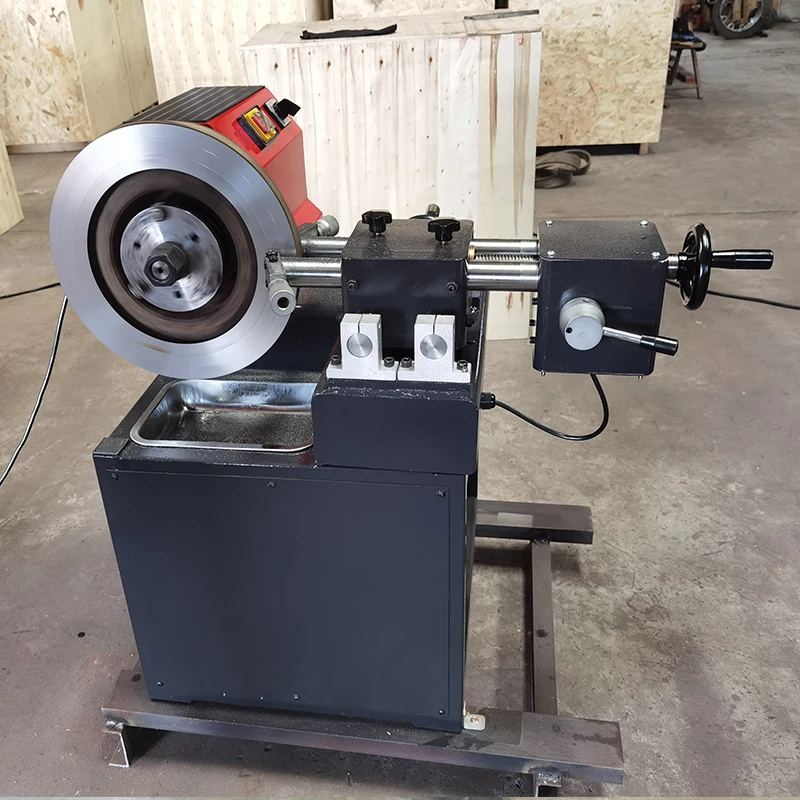

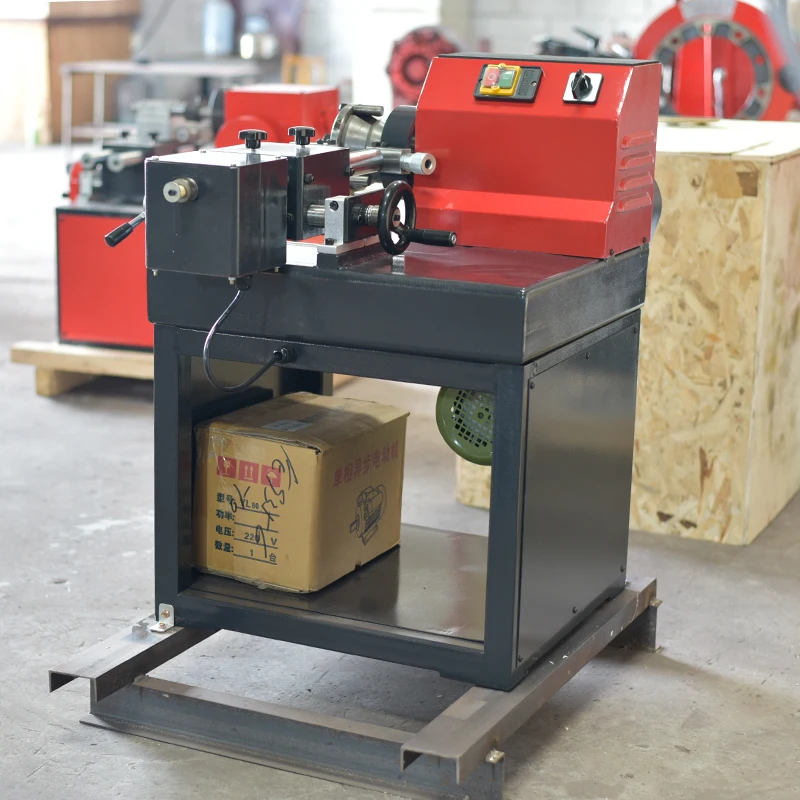

C9340 Brake Disc Brake Cutting Machine Brake Disc Skimming Machine for Cars

General introduction:
C9340 brake disc lathe machine is suitable for processing the brake disc for almost all cars .We could connect the lathe machine with the brake disc by using the wheel screws directly, it has the features of convenient installation, and high processing precision.

Process Description:

C9340 brake disc cutting machine, this model adopts positive and negative cutting tool, tool bar, guide rail oil-free self-lubricating wear-resistant sleeve, the machine has good rigidity, can realize fast processing, and the spindle drive is equipped with a professional reducer for higher precision. The feed mechanism is a self-locking position of the steel ball, so there is no need to tighten the tool bar. Equipped with magnetic work lights. The base is equipped with wheels on the original fixed foundation, which can be moved

Advantages:

1. Max brake disc diameter: 400mm.

2. This brake disc lathe machine adopts auto feeding moving cutter via oil-free self-lubricating wear-resistant stainless steel ball screw.
2. Cutters with great rigidity, can achieve rapid processing of milling ( cutting).

3. Adopts professional three-phase asynchronous motor 750w, more powerful and high accuracy.

4. Heavy machine frame, gross weight 140kg, which can ensure that there is no vibration when the machine works at high speed for a long time.

5. The base can be installed universal wheels, the machine can move easily and flexibly.

Machine Parameters

1	Name	Brake Disc Cutting Machine for All Cars
2	Model	C9340
3	Max. cutting diameter	For brake disc: 400mm
4	Radial travel of tool (max.)	130mm
5	Rotational speed	93r/minute
7	Infinitely variable speed feed /feeding capacity	0.07mm/r
8	Motor power	750W
9	Machine / Package size (LWH)	755565760mm / 775585800mm
10	Net / Gross weight	150kg / 170kg
11	Electrical specifications	220v ± 10% / 1ph, 50hz
12	Producting time‘	15-20 days
13	Warranty	2 years (no man-made reasons)
