Гидравлический цилиндр двойного действия для

Гидравлический цилиндр двойного действия для

Категория: Hydraulic Cylinders >>>
Поставщик: Jinan,Huachen,Industrial,Co.,Ltd.

Цена:190,00 $ - 210,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	226.63 $*	237.83 $*
Aug-17-2025	224.78 $*	235.90 $*
Jul-17-2025	188.30 $*	197.70 $*
Jun-17-2025	220.14 $*	231.0 $*
May-17-2025	192.22 $*	202.12 $*
Apr-17-2025	217.2 $*	228.98 $*
Mar-17-2025	215.20 $*	226.91 $*
Feb-17-2025	213.31 $*	224.24 $*
Jan-17-2025	211.4 $*	222.27 $*

Характеристики

Products Description

Hydraulic cylinders are widely used for the engineering machinery industries, it is an important actuator in the hydraulic transmission system, which is an energy conversion device that converts hydraulic energy into mechanical energy.

HCIC provide all series hydraulic cylinder and also provide Custom Made manufacturing service according to specific requirement.

You can get one-stop service here.
1. Professional engineers for designing and improving before ordering
2. Professional equipments for machining and producing after ordering
3. Professional inspectors for checking the quality before shipping
4. Professional after-sale service for solving the questions when using

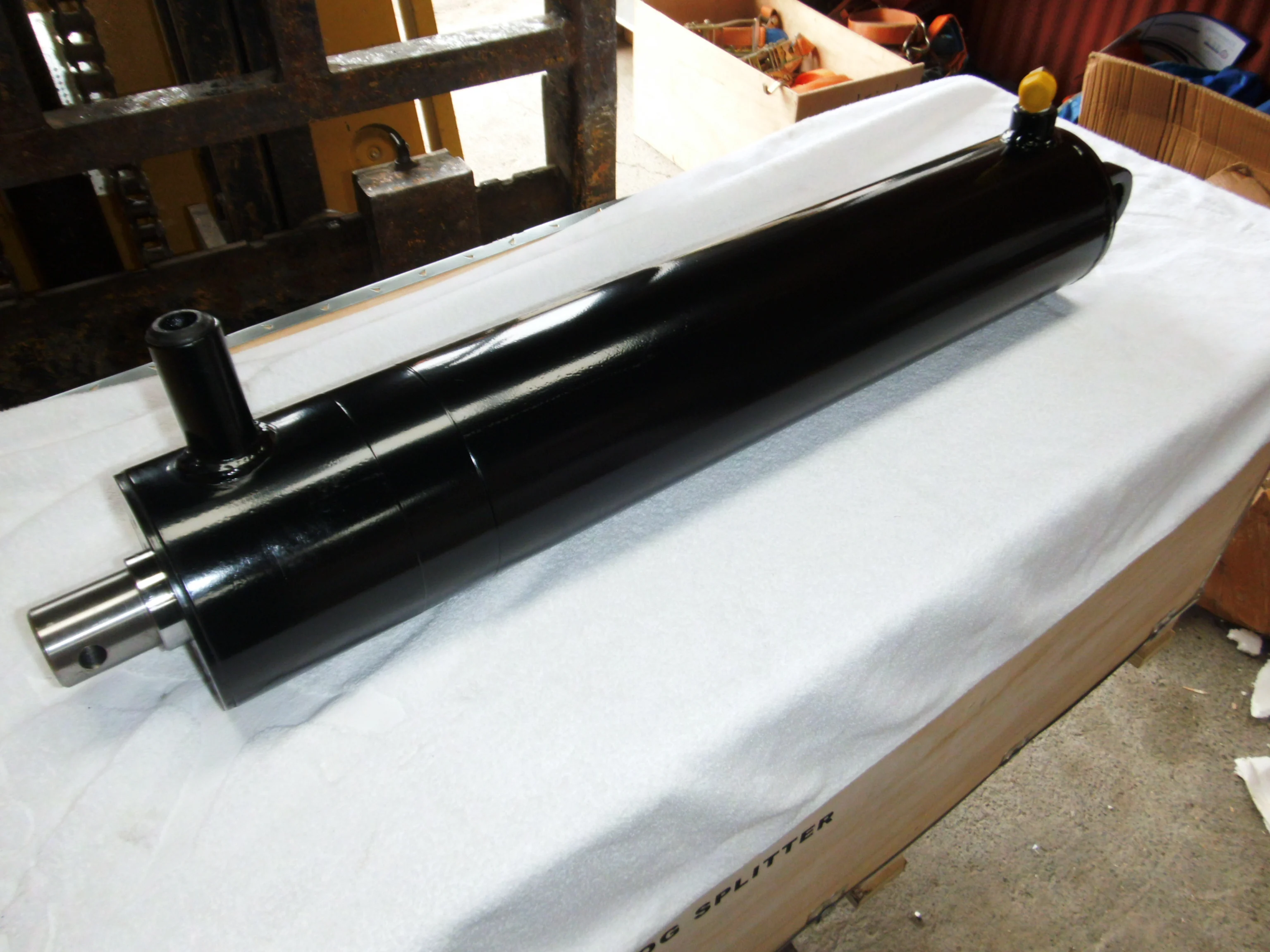

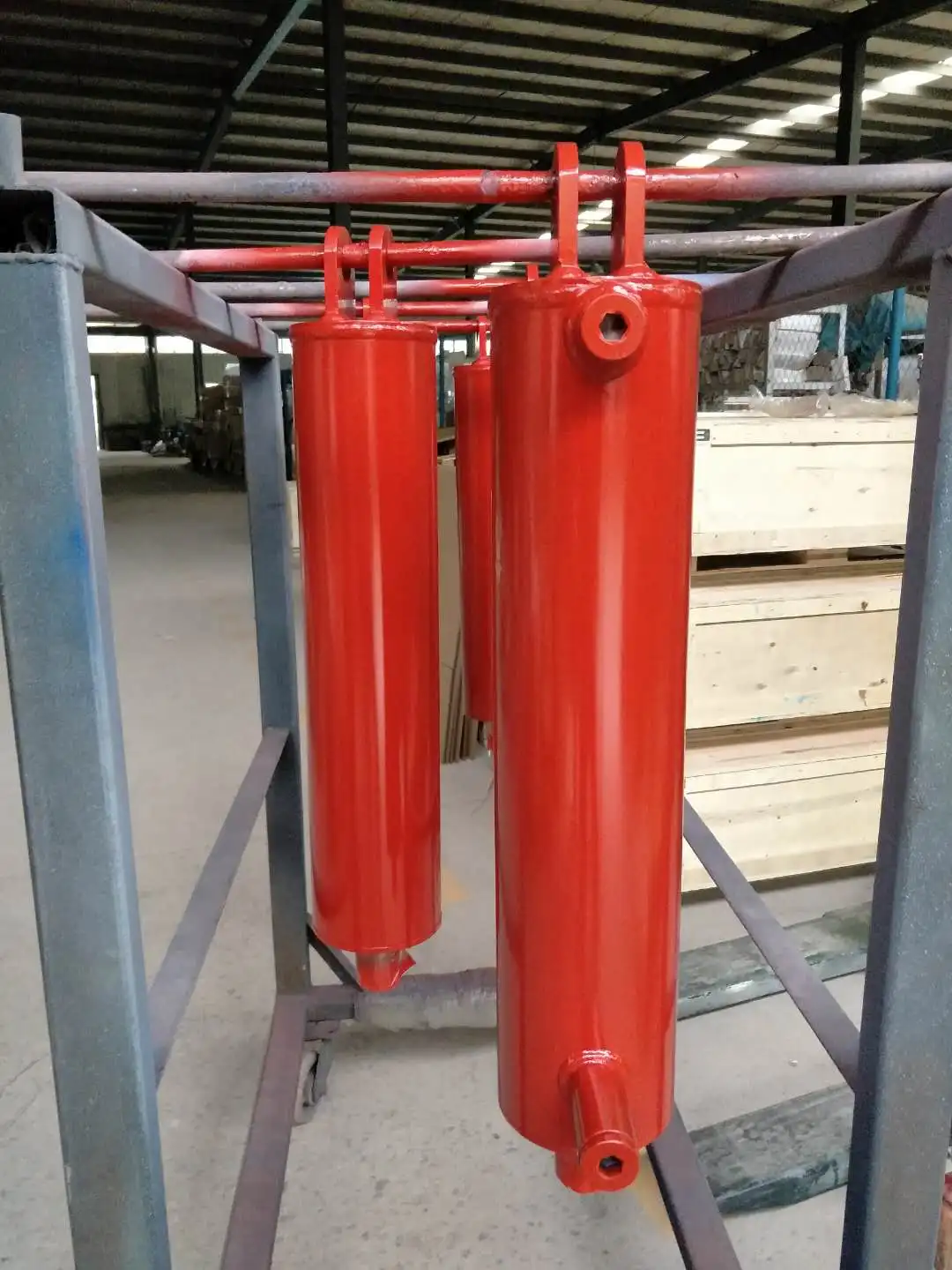

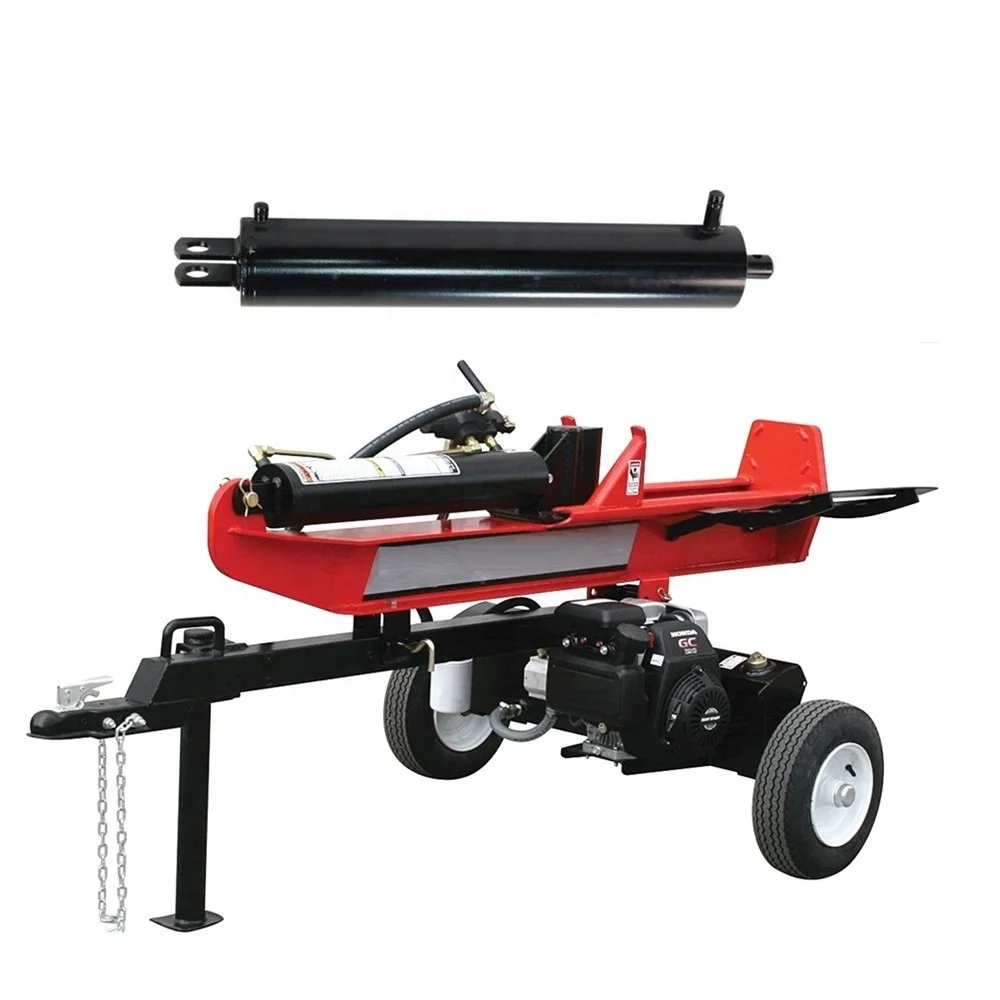

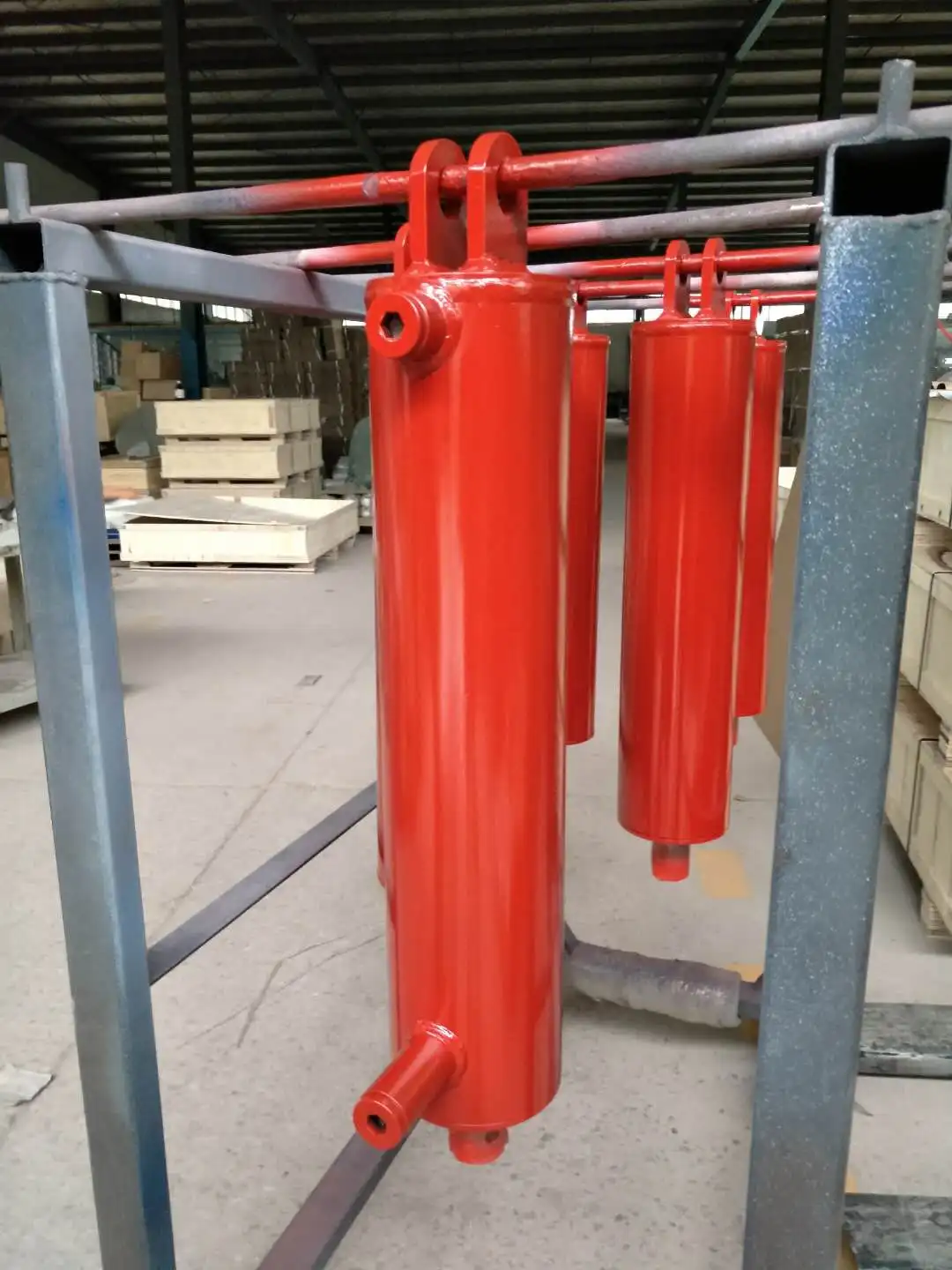

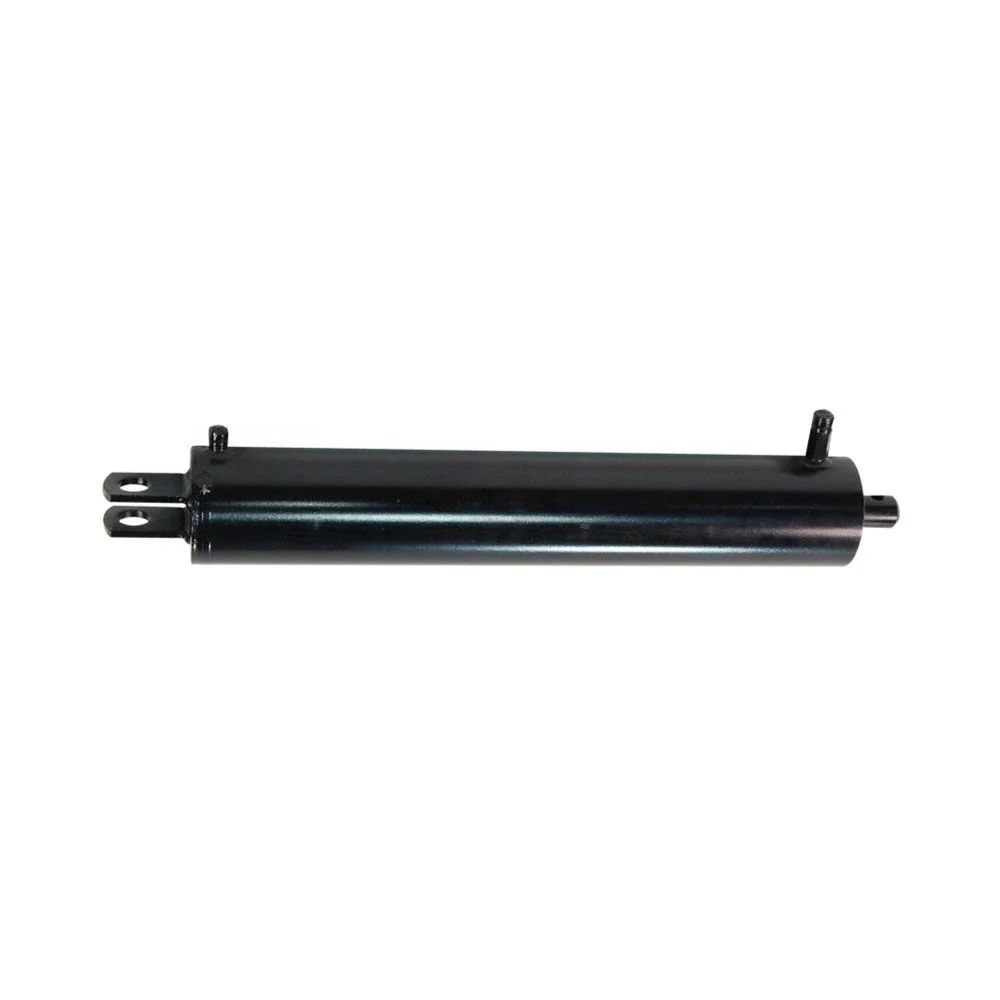

Details Images

Product Paramenters

Hydraulic cylinder manufacturing scope
Bore size	38mm-2032mm (1.5"-80")
Rod size	25mm-1780mm(1"-70")
Stroke	Maximum 15000mm(600")
Working pressure	Maximum 700bar(10000PSI)
Mounting style	Earrings, flange, foot mounting, trunnion, cross tube, etc
Painting	Follow customers' requirement

Materials and technology
Barrel/Tube	1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. 2. Technology: cold drawn ,hot rolled,forged 3. Surface Roughness: R0.16-0.32μm 4. Choose by different working condition and requirements.
Piston rod	1. Material: SAE1045(45#),35CrMo,42CrMo4,etc. 2. Technology: Quenched and tempered 3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing
Seal kits	1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made 2. Choose by different working condition and requirements.

Company Profile

Jinan Huachen Industrial Co.,Ltd found in 1998, have 21 years hydraulic cylinder manufacturing experience.

Our main product include Engineering Machinery Cylinders, Vehicle Cylinders, Custom Cylinder and Power Pack with annual sales $23 million US dollar in year 2018.

Our products are exported to the America, Asia,Europe, Africa and Australia for many years.
