Гарантированное качество машина для окрашивания пряжи DONGBAO
- Категория: Apparel & Textile Machinery >>>
- Поставщик: Dongbao,International,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 172550.79 $* | 181178.51 $* |
| Aug-15-2025 | 171100.90 $* | 179655.40 $* |
| Jul-15-2025 | 143550.38 $* | 150728.9 $* |
| Jun-15-2025 | 168200.14 $* | 176610.77 $* |
| May-15-2025 | 146450.54 $* | 153773.31 $* |
| Apr-15-2025 | 165300.0 $* | 173565.31 $* |
| Mar-15-2025 | 163850.28 $* | 172043.9 $* |
| Feb-15-2025 | 162400.37 $* | 170520.87 $* |
| Jan-15-2025 | 160950.77 $* | 168998.37 $* |
Характеристики
Specification
Product Name: | HTHP Package Yarn Dyeing Machine |
Machine capacity: | 6kg-3000kg |
Liquor ratio starts at: | 1:4 |
Max temperature: | 140℃ |
Material: | Stainless Steel |
Heating mode | Steam |
Product Description

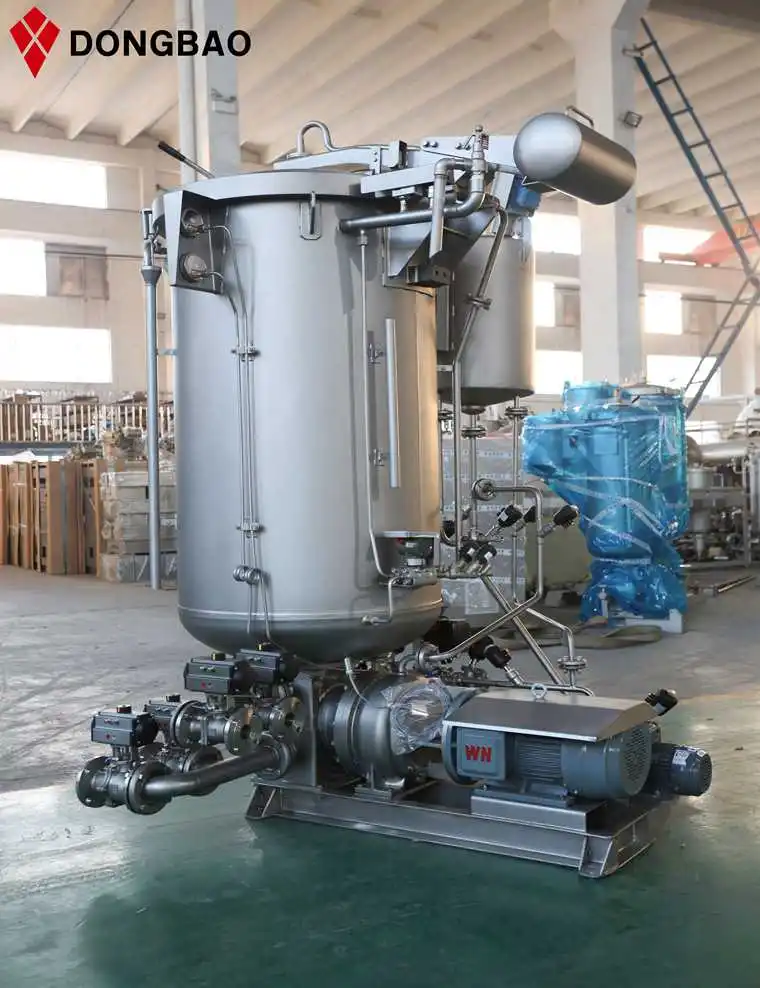

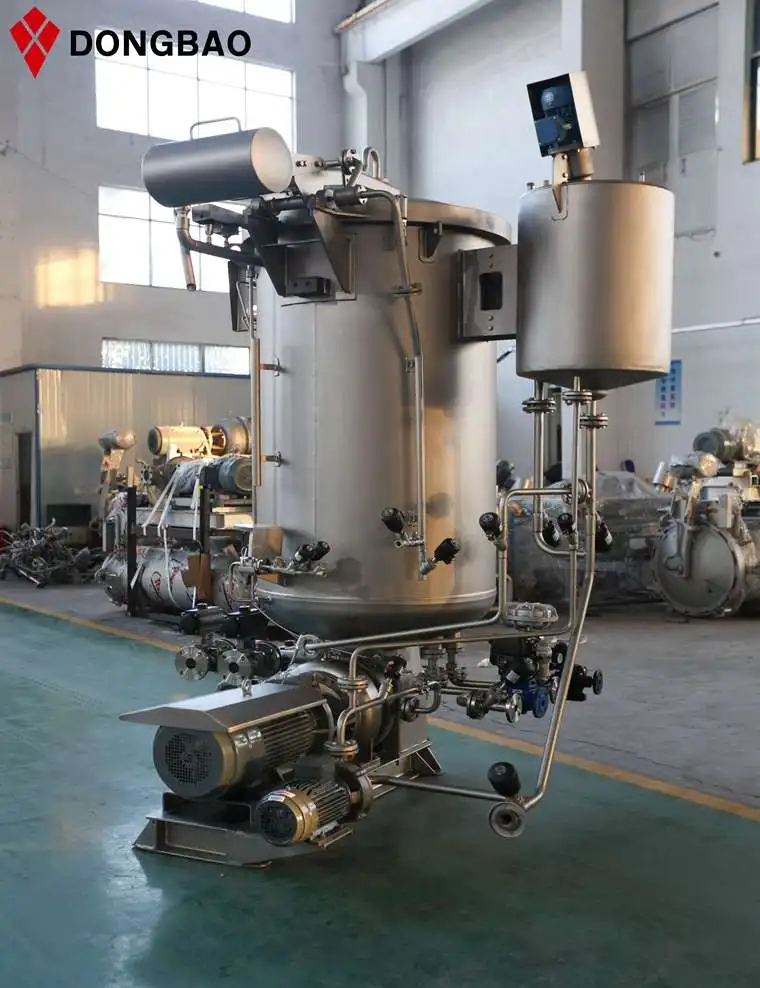

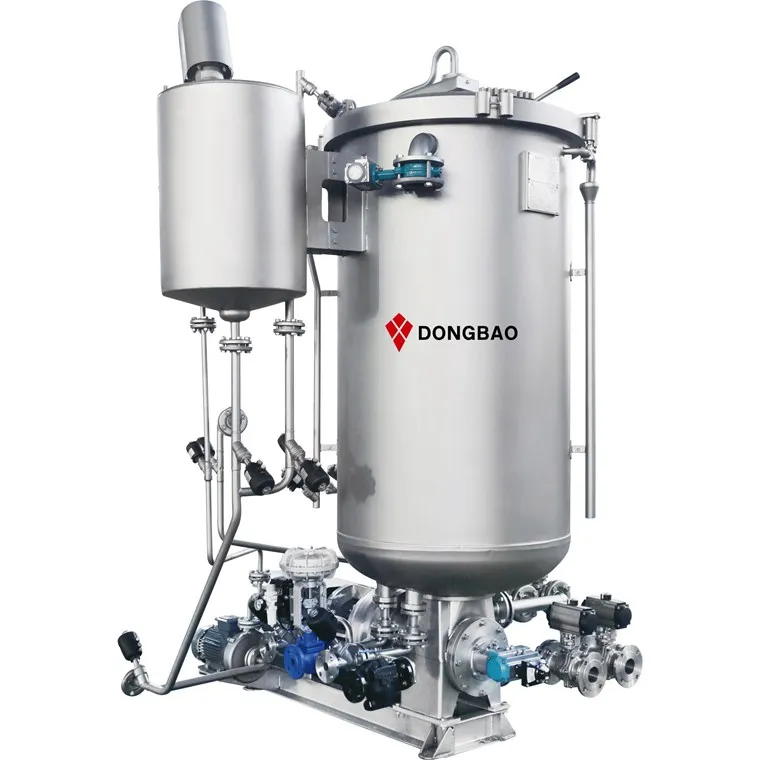

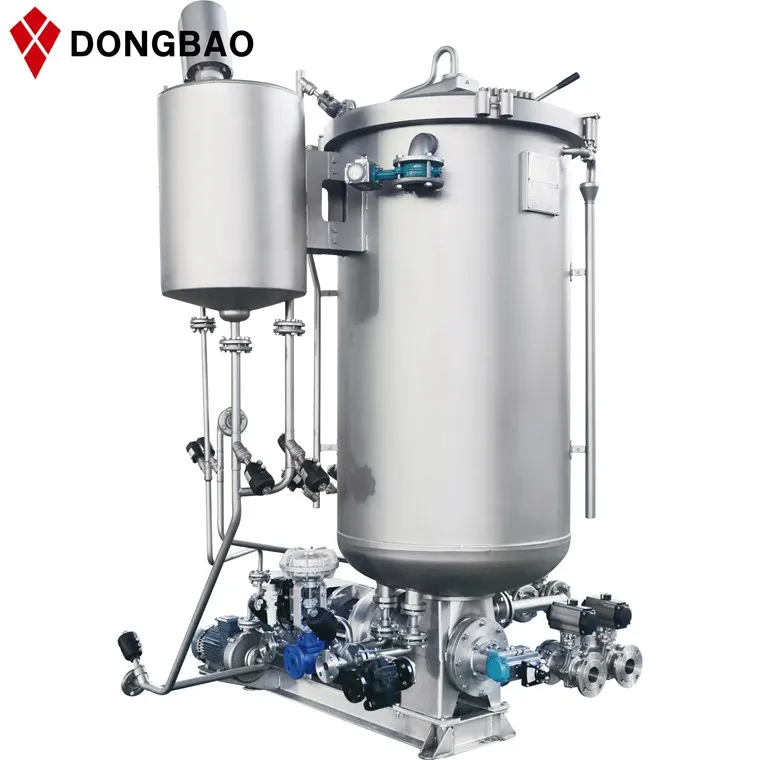

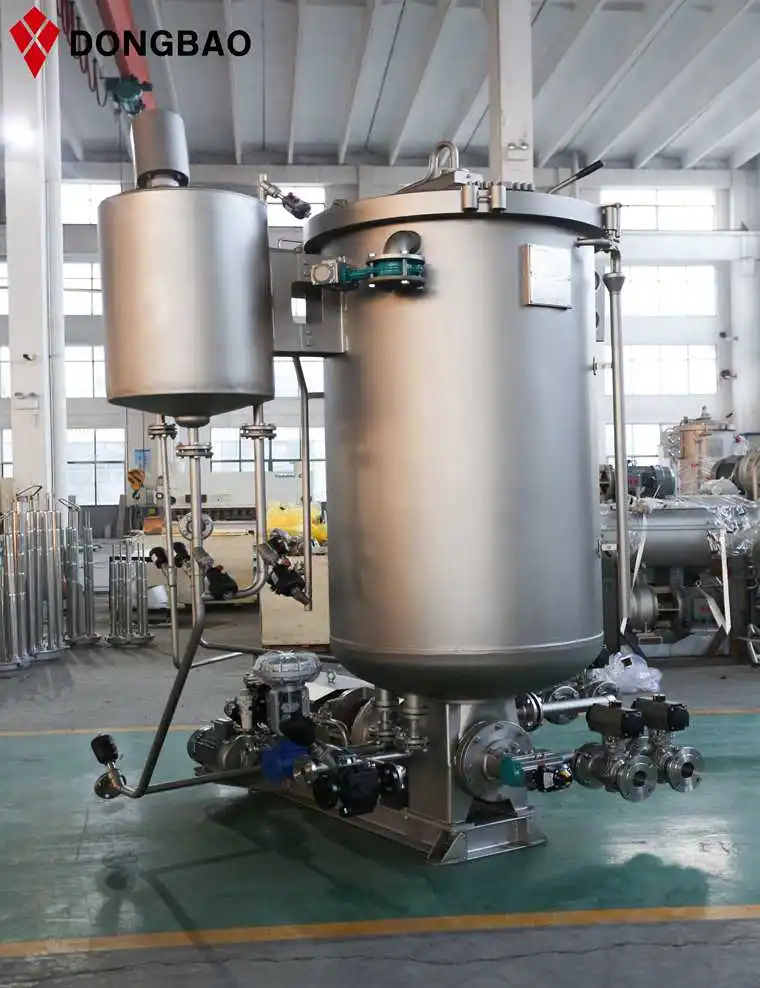

HTHP Package Yarn Dyeing Machine
Product Description
The third-generation HTHP Package Yarn Dyeing Machine is one of Dongbao's highly successful dyeing machine series. It has witnessed Dongbao's continuous development in technology and innovation. The innovative design of the built-in heat exchange coil makes the machine more compact and reduces a lot. Unnecessary piping effectively reduces bath ratio and energy consumption. The chemical tank containing the dosing pump is responsible for uniformly mixing the chemical dyes and injecting the dye solution into the dyeing process in a timely and appropriate amount. This dyeing machine contains two different dyeing processes. The new energy-saving mode uses ultra-low bath ratio dyeing from the inside to the outside of the dye cycle; in the conventional full-cylinder dyeing process, the constant conversion through the commutator is the same It can realize double-cycle dyeing with internal and external alternating to achieve leveling effect. Both of these different staining processes support a minimum of 50% half-load multi-level staining. The latest pressure water press function closes the master cylinder and pressurizes at the end of the dyeing process, then instantly opens the valve and removes the remaining dye liquor by air pressure to reduce the residual dye liquor.
Special Features
- Newly developed heating core inside the machine to lower the liquor ratio
- PREDRY function to shorten the process time
- Smart rinsing process to save water
- Flexible loading
- Ultra-low liquor ratio, starts at 1:4
Technical Details
- All liquor-carrying parts are made of stainless steels 316L
- Liquor ratio 1:4-1:6
- Max. working pressure: 0.44Mpa
- Max. working temperature: 140℃
- High efficiency & energy saving mixed flow pump
- Heating rate: 20-130℃ about 30 minutes （saturated steam pressure 0.7Mpa）
- Cooling rate: 130-80℃ about 20 minutes （cooling water pressure 0.3Mpa）
- Standard spindle dia. is φ48mm
- Standard package size is φ165mm, height 160mm, weight is calculated as 1kg per cone
- Intelligence control system, step-less flow control: adjust the pressure between the inner and outer layer automatically.
Optional
- Various kinds of carriers（fiber, package, beam）
- Hot temperature drain
- Progressive dosing system
- Accessories（cone, intermediate gasket and self-falling locker）
- Unloading device
- 100% Hot water stock tank, preparation of the complete process bath
- Second preparation tank
Product Description
The third-generation HTHP Package Yarn Dyeing Machine is one of Dongbao's highly successful dyeing machine series. It has witnessed Dongbao's continuous development in technology and innovation. The innovative design of the built-in heat exchange coil makes the machine more compact and reduces a lot. Unnecessary piping effectively reduces bath ratio and energy consumption. The chemical tank containing the dosing pump is responsible for uniformly mixing the chemical dyes and injecting the dye solution into the dyeing process in a timely and appropriate amount. This dyeing machine contains two different dyeing processes. The new energy-saving mode uses ultra-low bath ratio dyeing from the inside to the outside of the dye cycle; in the conventional full-cylinder dyeing process, the constant conversion through the commutator is the same It can realize double-cycle dyeing with internal and external alternating to achieve leveling effect. Both of these different staining processes support a minimum of 50% half-load multi-level staining. The latest pressure water press function closes the master cylinder and pressurizes at the end of the dyeing process, then instantly opens the valve and removes the remaining dye liquor by air pressure to reduce the residual dye liquor.
Special Features
- Newly developed heating core inside the machine to lower the liquor ratio
- PREDRY function to shorten the process time
- Smart rinsing process to save water
- Flexible loading
- Ultra-low liquor ratio, starts at 1:4
Technical Details
- All liquor-carrying parts are made of stainless steels 316L
- Liquor ratio 1:4-1:6
- Max. working pressure: 0.44Mpa
- Max. working temperature: 140℃
- High efficiency & energy saving mixed flow pump
- Heating rate: 20-130℃ about 30 minutes （saturated steam pressure 0.7Mpa）
- Cooling rate: 130-80℃ about 20 minutes （cooling water pressure 0.3Mpa）
- Standard spindle dia. is φ48mm
- Standard package size is φ165mm, height 160mm, weight is calculated as 1kg per cone
- Intelligence control system, step-less flow control: adjust the pressure between the inner and outer layer automatically.
Optional
- Various kinds of carriers（fiber, package, beam）
- Hot temperature drain
- Progressive dosing system
- Accessories（cone, intermediate gasket and self-falling locker）
- Unloading device
- 100% Hot water stock tank, preparation of the complete process bath
- Second preparation tank
Note:
- Standard spindle dia. isФ48mm, theФ29mm triangle spindle is only for 6 layers package or below.
- Standard package size is Ф165mm × H160mm, 1kg per package.
- Specifications of above machines are only for reference. The company reserves the right of alteration.
- Standard spindle dia. isФ48mm, theФ29mm triangle spindle is only for 6 layers package or below.
- Standard package size is Ф165mm × H160mm, 1kg per package.
- Specifications of above machines are only for reference. The company reserves the right of alteration.
Company Profile
DONGBAO INTERNATIONAL LIMITED was established in 2019. It is a company integrating industry and foreign trade. We have rich experience in foreign trade, and dedicated to provide customers with high-quality dyeing and finishing machinery and supporting facilities with professional services.
We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
Why Choose Us
1.Professional team and professional production line
2.High quality products & Factory price
3.Advanced technology
4.Professional after-sales service team
EXHIBITION
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
