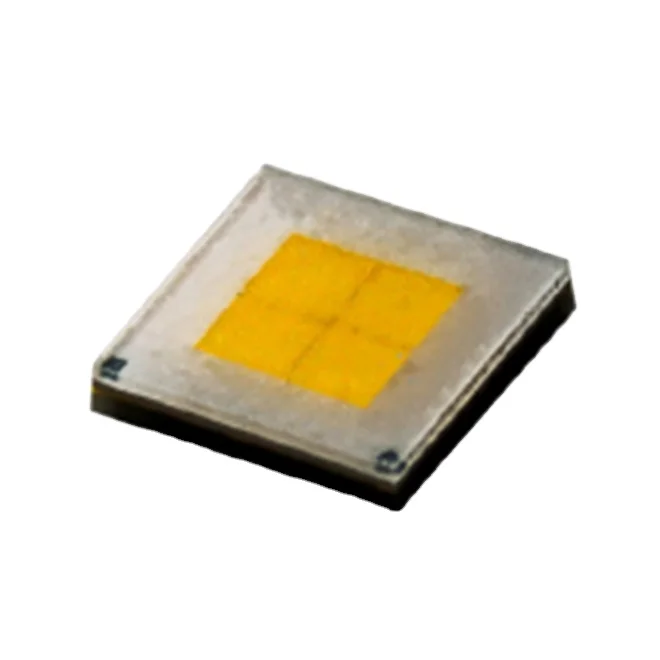

Оригинальный источник освещения SMD 5050 3V 6V 12V C ree xhp50 3 высокой интенсивности 18W холодный белый 5700K светодиодный Диод для портативного

Оригинальный источник освещения SMD 5050 3V 6V 12V C ree xhp50 3 высокой интенсивности 18W холодный белый 5700K светодиодный Диод для портативного

Категория: Active Components >>>
Поставщик: Shenzhen,TongRui,Photoelectric,Co.,Ltd.

Цена:4,12 $ - 4,39 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	5.49 $*	5.94 $*
Aug-19-2025	5.87 $*	5.87 $*
Jul-19-2025	4.3 $*	4.79 $*
Jun-19-2025	5.12 $*	5.28 $*
May-19-2025	4.4 $*	4.93 $*
Apr-19-2025	5.77 $*	5.90 $*
Mar-19-2025	5.62 $*	5.62 $*
Feb-19-2025	4.0 $*	4.82 $*
Jan-19-2025	4.62 $*	4.23 $*

Характеристики

Products Description

Brand	Cree
Model	XLamp XHP50.3 LEDs High Intensity
Chip Material	InGaN etc.
Beam Angle	120˚

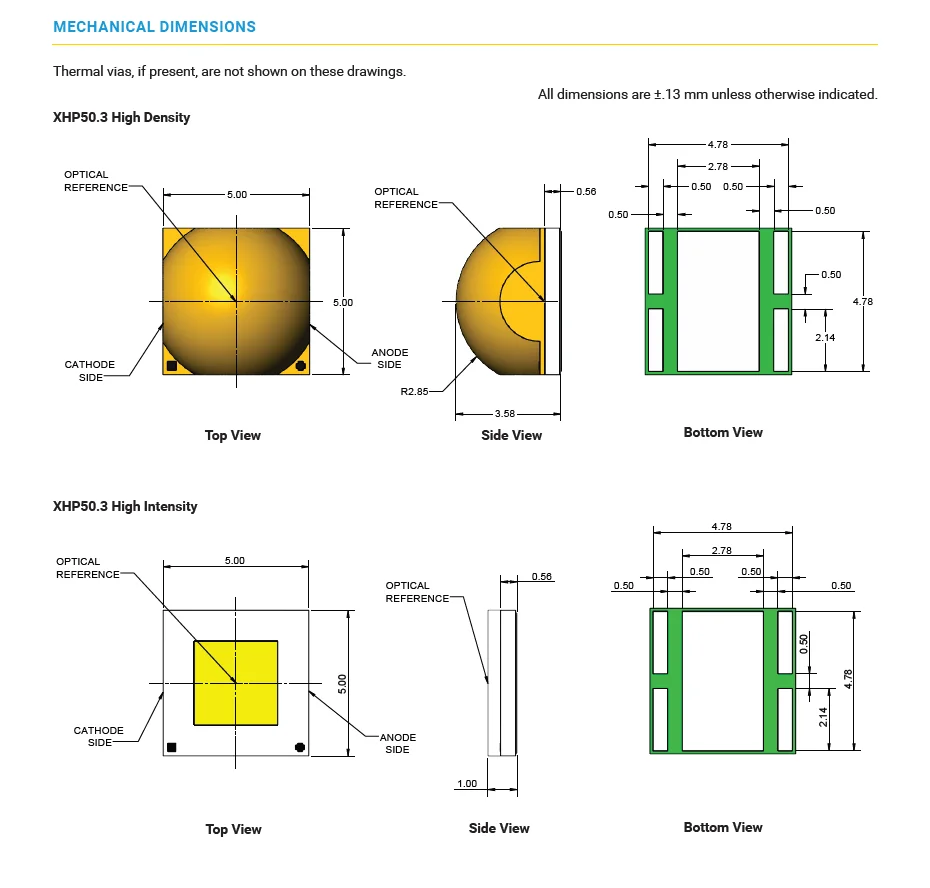

Lead Frame Type LED Package	5.00 x 5.00 x 3.58 (L x W x H) [Unit : mm]
Lighting Color	White 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K
Minimum Packing Quantity	500 pcs
Forward Voltage	2.80-12.40V
Forward Current	100-6000mA
Power	18W
Certifications	RoHS REACh
Applications	Outdoor and premium indoor lightings

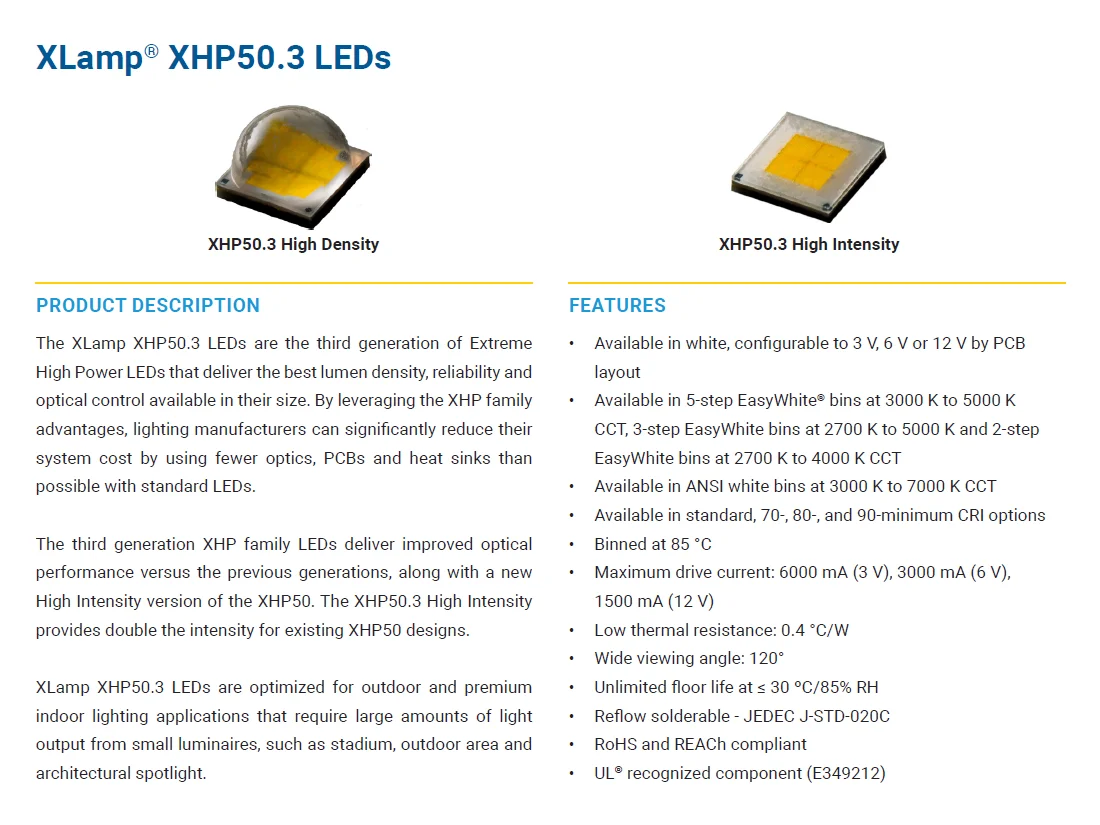

XLamp® XHP50.3 LEDs

Features :

• Available in white, configurable to 3 V, 6 V or 12 V by PCB
layout
• Available in 5-step EasyWhite® bins at 3000 K to 5000 K
CCT, 3-step EasyWhite bins at 2700 K to 5000 K and 2-step
EasyWhite bins at 2700 K to 4000 K CCT
• Available in ANSI white bins at 3000 K to 7000 K CCT
• Available in standard, 70-, 80-, and 90‑minimum CRI options
• Binned at 85 °C
• Maximum drive current: 6000 mA (3 V), 3000 mA (6 V),
1500 mA (12 V)
• Low thermal resistance: 0.4 °C/W
• Wide viewing angle: 120°
• Unlimited floor life at ≤ 30 ºC/85% RH
• Reflow solderable - JEDEC J‑STD‑020C
• RoHS and REACh compliant
• UL® recognized component (E349212)

Typical Applicatlons :

Small luminaires, such as stadium, outdoor area and

architectural spotlight.

Part Number Options:

1. XHP50D-H0-0000-0D0BJ40E1, XHP50D-H0-0000-0D0BJ20E1

2. XHP50D-H0-0000-0D0BJ450E, XHP50D-H0-0000-0D0BJ250E

3. XHP50D-H0-0000-0D0BJ440E, XHP50D-H0-0000-0D0BJ240E

Notes: Please check the datasheet for more details about the part numbers
