Промышленный Электрический патронный нагревательный элемент 12 В 110 220 в
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Honleader,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.41 $* | 0.46 $* |
| Aug-17-2025 | 0.24 $* | 0.39 $* |
| Jul-17-2025 | 0.57 $* | 0.75 $* |
| Jun-17-2025 | 0.28 $* | 0.33 $* |
| May-17-2025 | 0.86 $* | 0.29 $* |
| Apr-17-2025 | 0.14 $* | 0.16 $* |
| Mar-17-2025 | 0.56 $* | 0.76 $* |
| Feb-17-2025 | 0.13 $* | 0.41 $* |
| Jan-17-2025 | 0.8 $* | 0.74 $* |
Характеристики
Product Description
◆ Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840)
◆ Usually in tube form,that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
◆ Cartridge heaters are manufactured in two basic forms - High powerdensity and Low and medium power density.
◆ High power density (heating surface power 10~25w/cm²), are widely used to heat Plastic injection moulds, Moulds, Platens and so on
◆ Low and medium power density (heating surface power5~11w/cm²), are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
◆ The high-quality stainless steel sheath provides long-lasting protection, even in the harshest industrial environments. Its max power density can reach up to 40w/cm², and its maximum operating temperature can over 800℃
333
Application
● Injection moulding - Internal heating of nozzles
● Hot runner systems - Heating of manifolds
● Packaging industry - Heating of cutting bars,Heating of hot stamps,etc.
● Laboratories - Heating of analytical equipment,etc.
● Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer,etc.
● Telecommunications: Deicing, Enclosure Heater,etc.
● Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,etc.
● Food Service: Steamers, Dish Washers,etc.
● Industrial: Packaging Equipment, Hole Punches, Hot Stamp,etc.
● Extrusion molds
● Rubber molds
● Melt blown molds
● Hot press molding machiner
● Paper Industry
● Semi conductor industry
● Seal Bars
......
● Hot runner systems - Heating of manifolds
● Packaging industry - Heating of cutting bars,Heating of hot stamps,etc.
● Laboratories - Heating of analytical equipment,etc.
● Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer,etc.
● Telecommunications: Deicing, Enclosure Heater,etc.
● Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,etc.
● Food Service: Steamers, Dish Washers,etc.
● Industrial: Packaging Equipment, Hole Punches, Hot Stamp,etc.
● Extrusion molds
● Rubber molds
● Melt blown molds
● Hot press molding machiner
● Paper Industry
● Semi conductor industry
● Seal Bars
......
Product Paramenters
Resistance heating wire | NiCr 80/20 wire |
Sheath Material | Seamless SS304/316/321/ Incoloy800/840 alloy, etc. |
Voltages available | 12V/24V/36V/110V/220V/240V/380V/418V |
Wattage Tolerance | ±3% |
Resistance tolerance | ±3% |
Length tolerance | ± 2% or 3.2mm (1/8”) |
Diameter | From 2.0mm to 30mm |
Diameter tolerance | +0.05mm -0.1mm (+.002" -.004") |
Max operating temp | 870ºC(1600F) |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | Disc End, Sheath, Center of Heater |
Thermocouple | Type J / K |

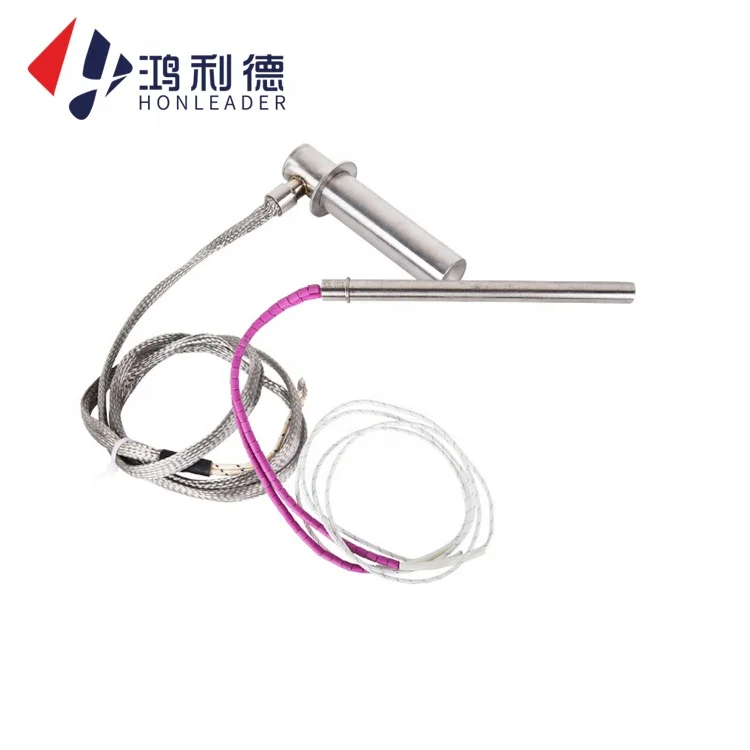

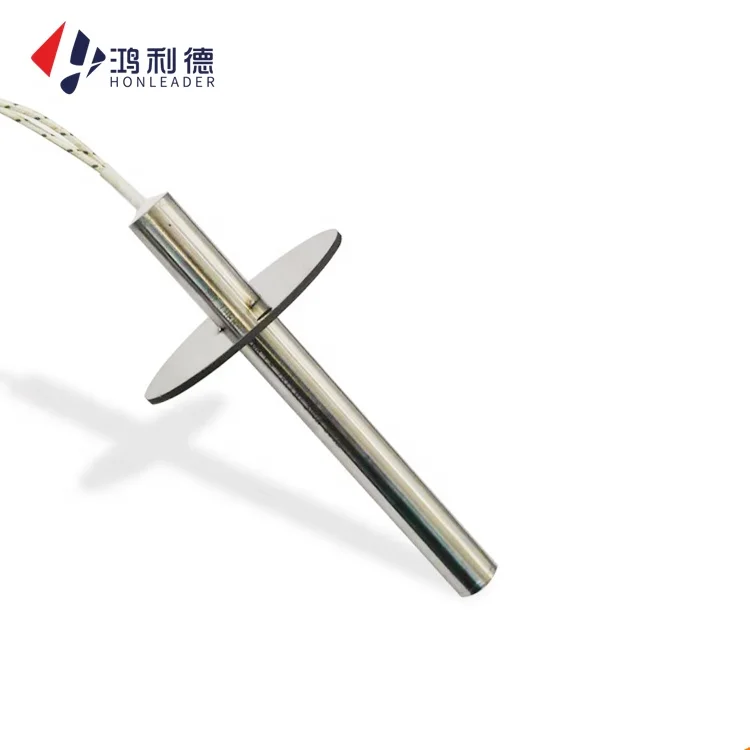

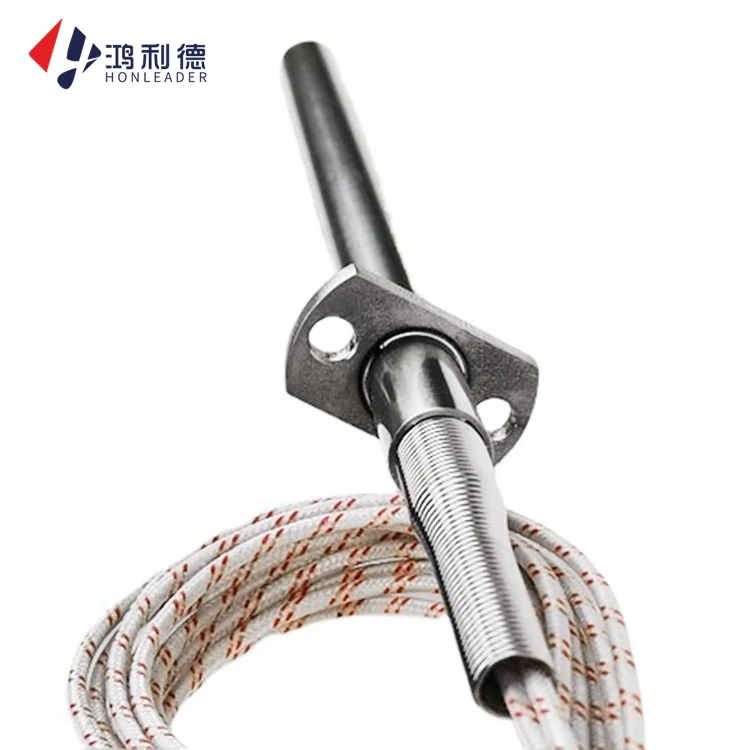

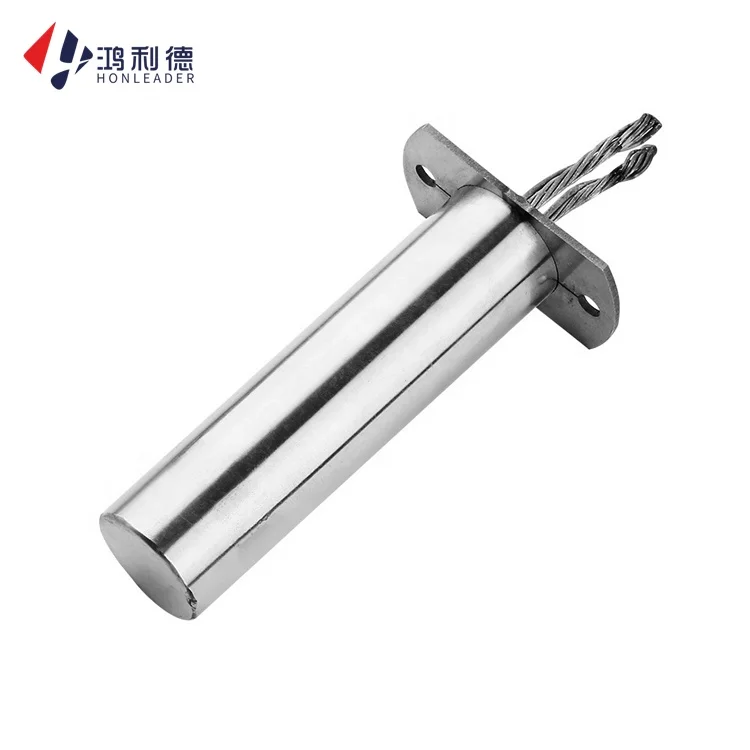

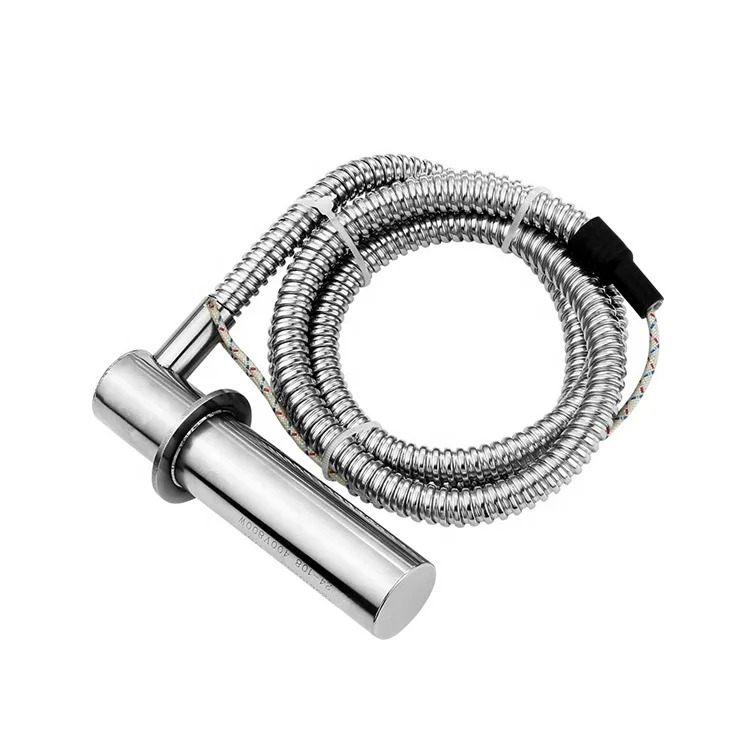

Details Images
How to Order ?
A. Tube diameter
B. Overall sheath length of Cartridge Heaters.
C. Lead length(Default 500mm).
D. Fixing way and position, if asked.
E. Working voltage
F. Power(watt)
G. Shape of Cartridge Heater and Thread size and diameter
H. Heating temperature and medium
I. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead material - standard silicone fiberglass lead
- Sleeve material - Standard fiberglass sleeving
- lead connection method- internal or external
B. Overall sheath length of Cartridge Heaters.
C. Lead length(Default 500mm).
D. Fixing way and position, if asked.
E. Working voltage
F. Power(watt)
G. Shape of Cartridge Heater and Thread size and diameter
H. Heating temperature and medium
I. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead material - standard silicone fiberglass lead
- Sleeve material - Standard fiberglass sleeving
- lead connection method- internal or external
Here 5 Different Cartridge Heater Structures Available
1. Cartridge Heater With Built-in Thermocouple
The thermocouple ("J" or "K" type) can be built into the end or middle of the cartridge heater, and it can be grounded or ungrounded. It is used to detect the temperature in the heating tube. It is very good by connecting with the controller. The temperature control effect.
2. Soaking Type Cartridge Heater
For the heating wire of the soaking type cartridge heater, the winding density at both ends is different from the middle. The higher winding density at both ends generates more heat than the middle, but the heat dissipation at both ends is faster than the middle, thus balancing Then, a heating section with uniform temperature is obtained.
3. Multi-heating Zone
Cartridge Heater
Heating wires with different winding densities are distributed in each area of the same heating tube, so that a heating tube can have multiple heating sections with different temperatures.
4. Designated Heating Zone Type Cartridge Heater
For some special scenes, there may be some areas and requirements that do not generate heat in the heating tube. This kind of scenario application can be realized by customizing the non-heating section
5. Auto-Power Adjustment Cartridge Heater
2 groups of independently controlled cartridge heaters or common electrode type multiple groups of controlled cartridge heaters. The heating system of the metal platform can use this type of heating tube in large quantities, and the corresponding heating section can be individually controlled according to the temperature of the heating plate to ensure the temperature uniformity of the heating platform.
Electric Cartridge Heater Customization Options
Honleader provide customization cartridge heater services to meet different applications.
Options including below details:
1. Built-in thermocouple - J or K type thermocouple sensor
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
Honleader provide customization cartridge heater services to meet different applications.
Options including below details:
1. Built-in thermocouple - J or K type thermocouple sensor
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
Our Advantages
1. Low MOQ: 1-10 pcs MOQ available
2. OEM Accepted: Strong capacity in develop and production under customer drawings
3. Good Service: Instant response, great patience and full consideration
4. Good Quality: With 6S quality control system
5. Uniform temperature, Accurate dimensions, High heating transfer efficiency
6. CE & RoHS approved
7. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Shipping costs reduced)
2. OEM Accepted: Strong capacity in develop and production under customer drawings
3. Good Service: Instant response, great patience and full consideration
4. Good Quality: With 6S quality control system
5. Uniform temperature, Accurate dimensions, High heating transfer efficiency
6. CE & RoHS approved
7. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Shipping costs reduced)
