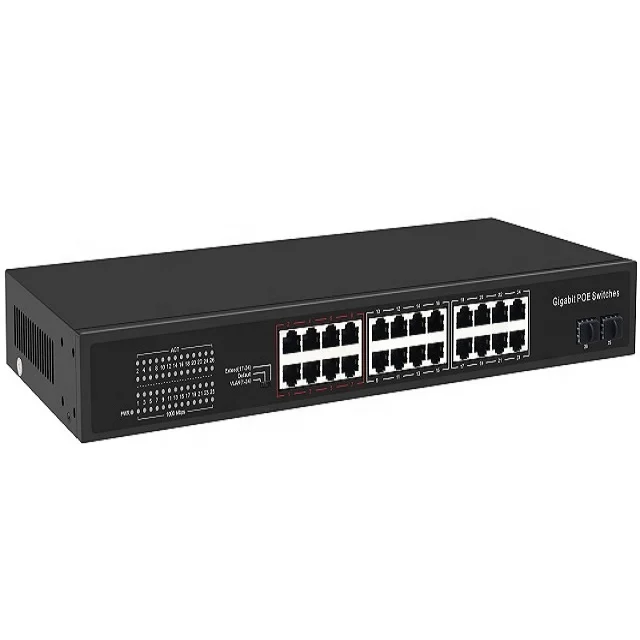

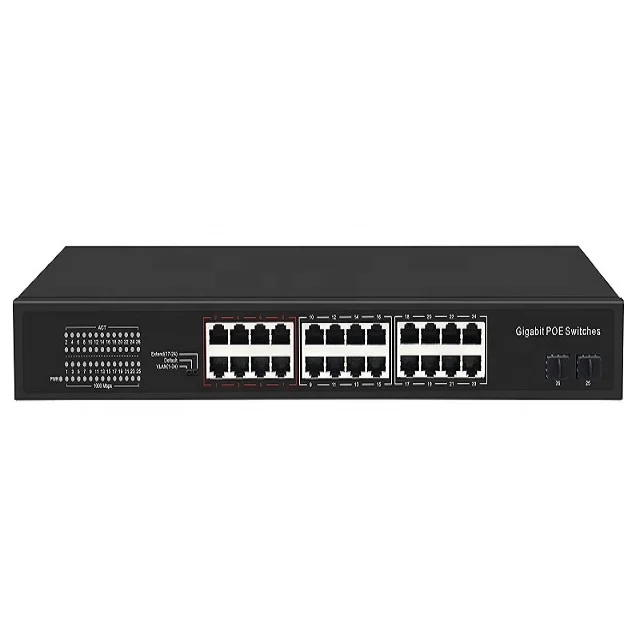

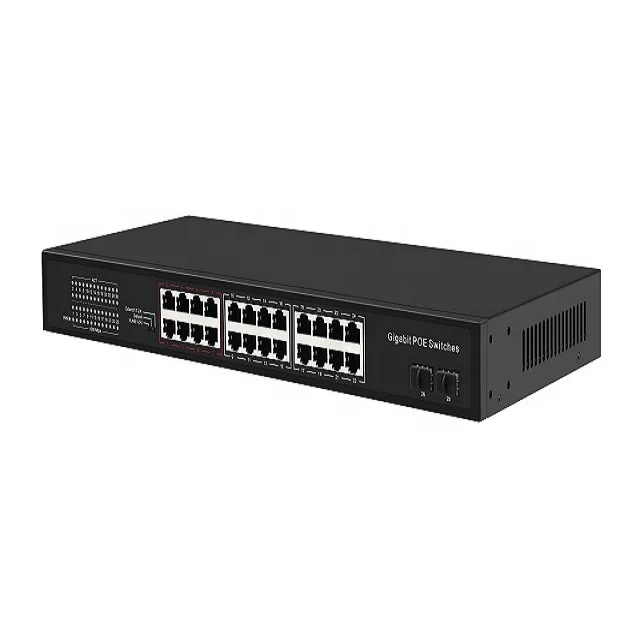

Переключатель PoE на 26 портов переключатели poe 24 порта для камеры

Описание и отзывы

Трекер стоимости

Характеристики



Model	HD24H2G-300
Title	PoE Switch--26 ports Switch with 24*100M PoE ports & 2 Gigabit uplink ports
Ports
Network Ports:	26
PoE Port:	24, 100Mbps;  RJ45 ports; Max. 30W Output of Single PoE Port                                             Transmission distance:0~250m
Uplink Port:	2, 1000Mbps; Transmission Distance: Default: 0-100m
Power Indicator	Light on: Powering
	Light off: No Power
Extend Indicator	Light on: VLAN mode & Extend mode
	Light off: normal mode
Port 1-26 Indicator	Green light flash slowly:  Searching for device
	Red light on: Powering but data disconnected
	Green light flash quickly: Data Transmitting
Standard
Network Protocol:	IEEE802.3i/802.3u/802.3x/802.3ab
Performance
Switching Capacity:	8.8 Gbps Full duplex
Packet Forwarding Rate:	Down-link: 0.1488Mpps/port; Up-link: 1.488Mpps/port
Forwarding Mode:	Store-and-forward
MAC Address Table:	8K
Vlan	Support
Watchdog	Support
Power Over Ethernet
PoE Standard:	IEEE802.3af, IEEE802.3at
PoE Power Supply	1/2(+),3/6(-)
Transmission Distance:	0-100m/100Mbps; Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE Feature	All ports support MDI/MDIX
General
Power Source:	Built-in Power Supply
	Input: 110-264V AC, 50/60Hz
PoE Power Budget:	300W
Power Consumption:	<5W
ESD	Air discharge: 1.5KV
	Contact discharge: 1.5KV
Anti-Thunder Level	Common mode: 2KV
	Differential mode: 1.5KV
Working Temperature:	-10℃-50℃
Humidity:	10%-95% , non-condensing
Storage Temperature:	-40℃-70℃
Color	Black
Weight:	1.9kg(not include input cable & packaging)
Dimension(L×W×H):	312*185*46MM

PoE Switch applications:



* CCTV Camera

* DVR/NVR

* Wireless AP

* IP phone

* Notebook

* Other POE product





Our Advantage:



v ODM: Design & Manufacturing based on your request

v OEM: can use your customized sticker, manual, inner box/color box, master carton

v After-Sales Service: Simple procedure for warranty; Flexible warranty machanism

v 22 years experience, provide stable quality and reasonable price

v Professional sales team, greatly enhance communication efficiency





FAQ:



v Q:Is sample free?

    A: Yes, sample is free, but you should bear shipping freight by yourself



v Q:How many days does it take for sample?

    A: Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.



v Q:What kind of certificate do you have for your product?

    A: TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver; CE & RoHS for power supply.



v Q:What's the lead time for order?

    A: 20-25 days



v Q:What's your payment term?

    A: Normally, T/T: 30% advance before production, 70% balance before delivery;

        For small amount, Western Union/Paypal/Moneygram are acceptable;

        For order with large amount, Irrevocable L/C is acceptable.



v Q:What's MOQ?

    A: Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please              contact with our sales for inventory status.
