IEC 62196-2 Type2 Wallbox 16A зарядное устройство для электромобиля Смарт EV домашние зарядные

IEC 62196-2 Type2 Wallbox 16A зарядное устройство для электромобиля Смарт EV домашние зарядные

Категория: Wall-mounted Charging Stations >>>
Поставщик: Sichuan,Weiyu,Electric,Co.,Ltd.

Цена:260,00 $ - 280,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	309.59 $*	324.67 $*
Aug-18-2025	307.20 $*	322.87 $*
Jul-18-2025	257.25 $*	270.53 $*
Jun-18-2025	302.50 $*	317.90 $*
May-18-2025	263.63 $*	276.38 $*
Apr-18-2025	296.49 $*	311.56 $*
Mar-18-2025	294.88 $*	309.6 $*
Feb-18-2025	291.69 $*	306.28 $*
Jan-18-2025	289.94 $*	303.79 $*

Характеристики

PRODUCT INTRODUCTION

AC Power Input Rating	SAE standard	IEC standard
		AC Level 2	1-phase	3-phase
		240V	220V±15%	380V±15%
AC Power Output Rating	3.5KW/16A	3.5KW/16A	11KW/16A
		7KW/32A	7KW/32A	22KW/32A
		10KW/40A	N/A	N/A
Rated Frequency	50/60Hz	50/60Hz	50/60Hz

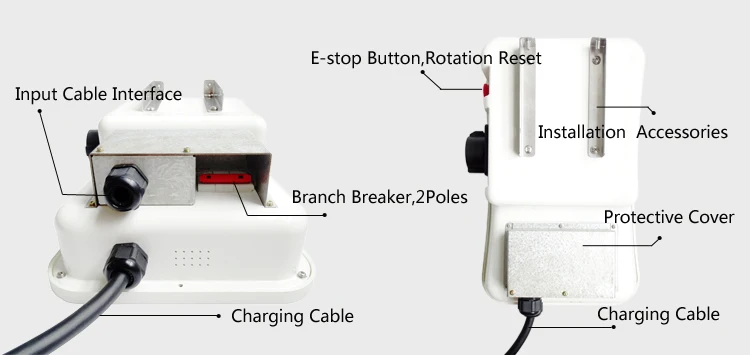

Required Service Panel Breaker (Build-in Branch Breaker)	Dedicated Dual Pole	Dedicated Dual Pole	Dedicated 3-Pole
		20A(16A station)	20A(16A station)	20A(16A station)
		40A(32A station)	40A(32A station)	40A(32A station)
		50A(40A station)	N/A	N/A
Power Wiring	3 wire-L1,L2 plus ground	3wire-live ,neutral plus PE

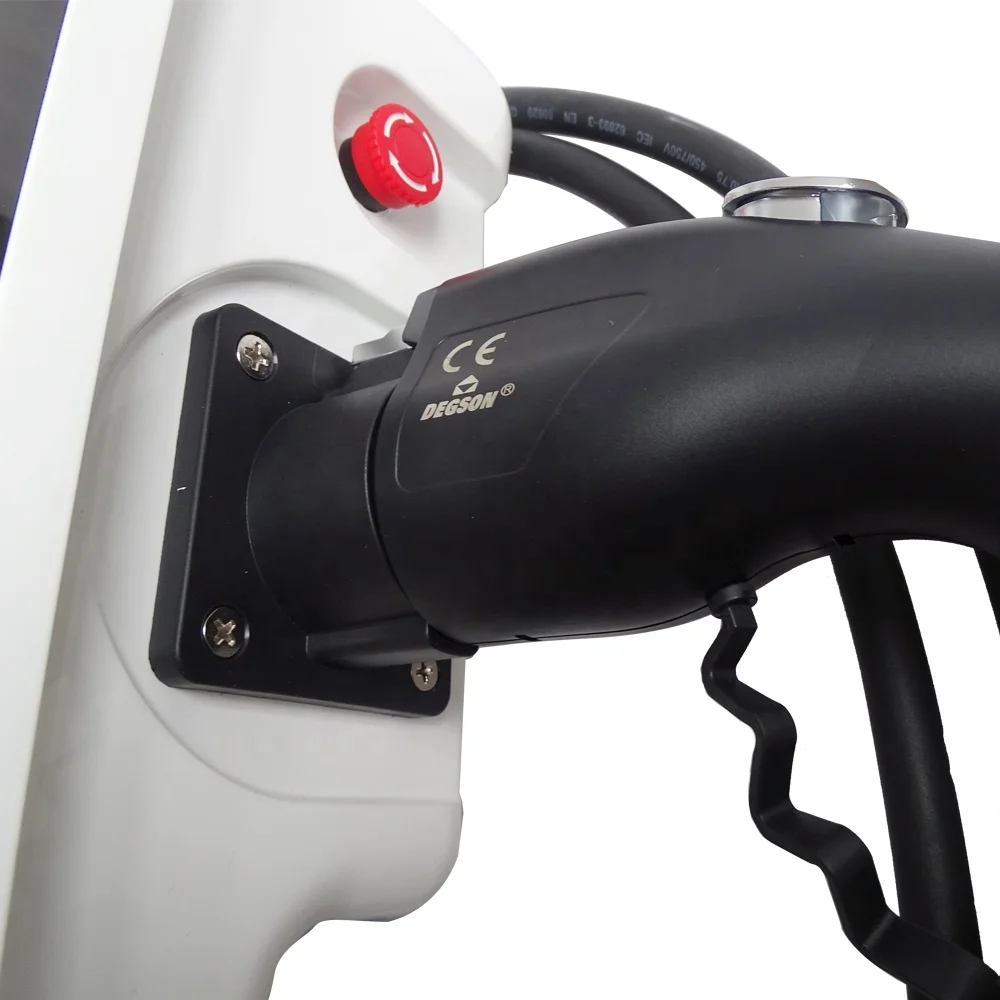

Connector type	SAE J1772(TYPE-1)	IEC 62196-2(TYPE-2)
Connector mechanical operating life	≥10000times

Charigng Control	Plug and Play or RFID card,APP
Display Screen	4.3inch LCD Screen
Voice Prompt (Optional)	Voice guide of the charging process in English
Indicators	4LED indicators-Power/Connect/Charging/Fault
External Communication	LAN(RJ-45) and WIFI
OCPP Protocol (Optional)	1.6J or 2.0.1
4G modem (Optional)	varies from countries

Mounting Pole (optional)
Dimension (HWD,mm)	1400200100
Weight	＜8KG
Enclosure	Metal

Load Management (optional)	Yes

FEEDBACKS

RECOMMOND PRODUCTS

COMPANY PROFILE

Today everyone’s talking about energy preserving, environmental protection, global warming and deteriorating habitation issues. EV emerged for this need along with more and more people driving EV. While as important as the development of EV itself, the infrastructure and accessories of powering those EV are equally critical to speed up this motion. So we decided to take part in,and to devote our efforts in the EVSE industry.

Though founded in 2016, weeyu is not new to electric industry, as our parent company Injet Electric(a public company, stock code:300820) has been manufacturing electric products for over 26 years. Most of our engineers and management team are from Injet, those are the key asset of Weeyu, who independently designed our own charging station, which is different from other existing models in the market, and are relentlessly persuiting better, faster and more convenient new models.

The products we do mostly include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw,10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home (residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe,reliable, affordable and easy to use for everyone so we take quality, safty, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporations are all welcomed at Weeyu. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial orders etc to boost your business and brand growth.
Whatever you requires, we have the people, the technology and determination to make it happen for you!
