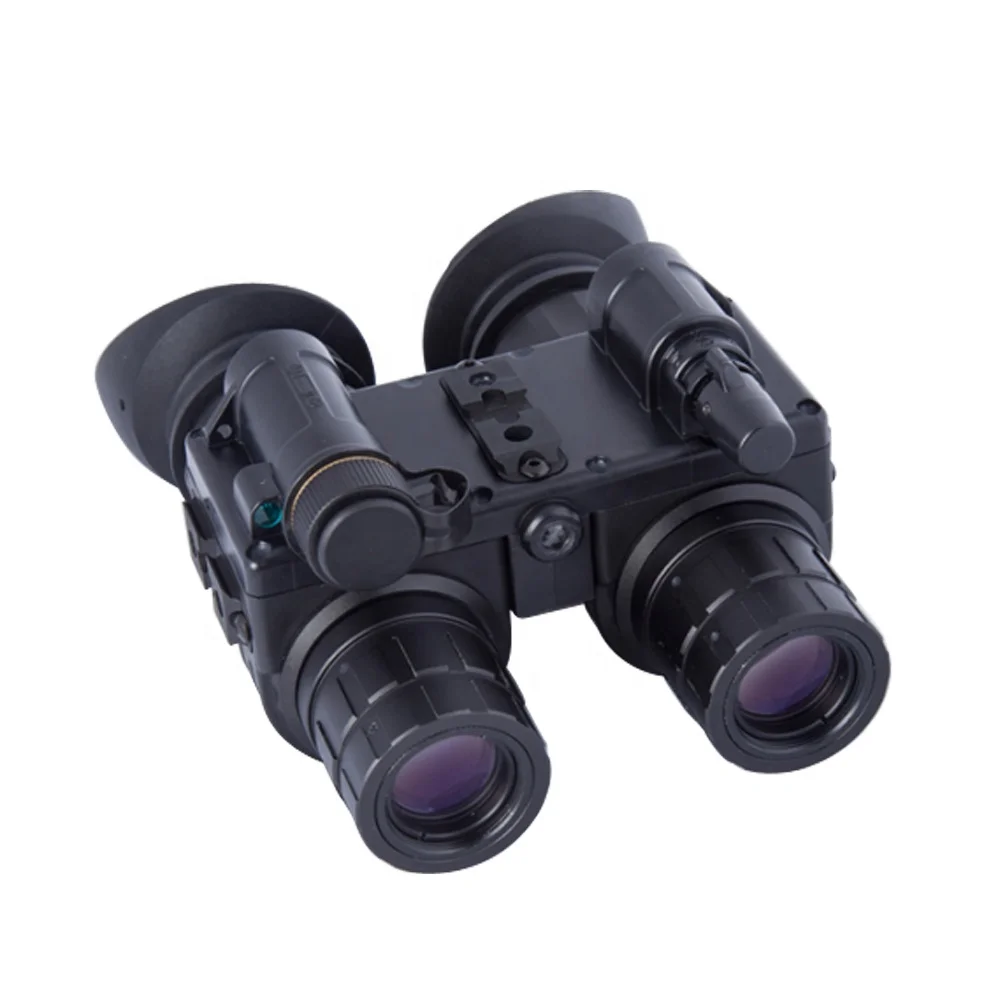

IP67 220 м обнаруживающий телескоп gen2 + ручной двойной трубчатый тепловизор бинокль для
- Категория: Telescope & Binoculars >>>
- Поставщик: Hangzhou,Chenquan,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.96 $* | 0.23 $* |
| Aug-20-2025 | 0.11 $* | 0.56 $* |
| Jul-20-2025 | 0.44 $* | 0.86 $* |
| Jun-20-2025 | 0.84 $* | 0.8 $* |
| May-20-2025 | 0.4 $* | 0.10 $* |
| Apr-20-2025 | 0.1 $* | 0.92 $* |
| Mar-20-2025 | 0.7 $* | 0.93 $* |
| Feb-20-2025 | 0.77 $* | 0.1 $* |
| Jan-20-2025 | 0.48 $* | 0.68 $* |
Характеристики
Product Description
Specification
Features
1)Versatile: it can be used hand-held, and can also be used for headwear and helmet installation.
2)Multilayer coating standard: ultra-wideband multi-layer antireflection film can inhibit the wide band reflection on the glass surface of the lens, reduce the light loss, so that more light through the lens to obtain good observation effect.
3)It can be equipped with a single infrared enhancer to enhance the night time effect and extend the scope of application.
4)The battery cover spring is embedded: it can better contact with the battery, and the spring is not easy to damage, and is also more convenient to twist the battery cover.
5)The built-in infrared indicator and low power indicator (displayed in the eyepiece) enhance the user's concealment.
1)Versatile: it can be used hand-held, and can also be used for headwear and helmet installation.
2)Multilayer coating standard: ultra-wideband multi-layer antireflection film can inhibit the wide band reflection on the glass surface of the lens, reduce the light loss, so that more light through the lens to obtain good observation effect.
3)It can be equipped with a single infrared enhancer to enhance the night time effect and extend the scope of application.
4)The battery cover spring is embedded: it can better contact with the battery, and the spring is not easy to damage, and is also more convenient to twist the battery cover.
5)The built-in infrared indicator and low power indicator (displayed in the eyepiece) enhance the user's concealment.
Technical specification | ||
Model | CQ-NB20C21WZ | |
IIT | GEN2+ | |
Resolution(Ip/mm) | 48-60 | |
Photocathode type | S25 | |
S/N db | 17-21 | |
Luminous sensitivity | 550-650 | |
MTTF hours | 10000 | |
Magnification | 1X | |
FOV deg | 40 | |
Detection distance | 220-240m | |
Light Wavelength | 808nm & 850nm | |
Diopter | +5o / -5o | |
Lens system | F1.2, 25.8mm | |
Range of foucus(m) | 0.25-∞ | |
Demensions(mm) | 142 x 110 x 55 | |
Weight(g) | ≤750g | |
Power supply(v) | 2.0-4.2V | |
Battery type(v) | CR123A lithium battery | |
Battery life(hrs) | 80(w/o IR) | |
40(w IR) | ||
Operating temperature(°C) | -50 / +60 | |
Storage temperature(°C) | -50 / +70 | |
Environmental rating | IP67 | |
