Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
6028 RGB SMD светодиоды 4 контакта для механических
- Категория: SMD LED >>>
- Поставщик: Shenzhen,Yongerjia,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.57 $* | 0.52 $* |
| Aug-15-2025 | 0.40 $* | 0.45 $* |
| Jul-15-2025 | 0.42 $* | 0.84 $* |
| Jun-15-2025 | 0.53 $* | 0.40 $* |
| May-15-2025 | 0.40 $* | 0.30 $* |
| Apr-15-2025 | 0.28 $* | 0.53 $* |
| Mar-15-2025 | 0.14 $* | 0.16 $* |
| Feb-15-2025 | 0.97 $* | 0.85 $* |
| Jan-15-2025 | 0.62 $* | 0.19 $* |
Характеристики
mechanical keyboards

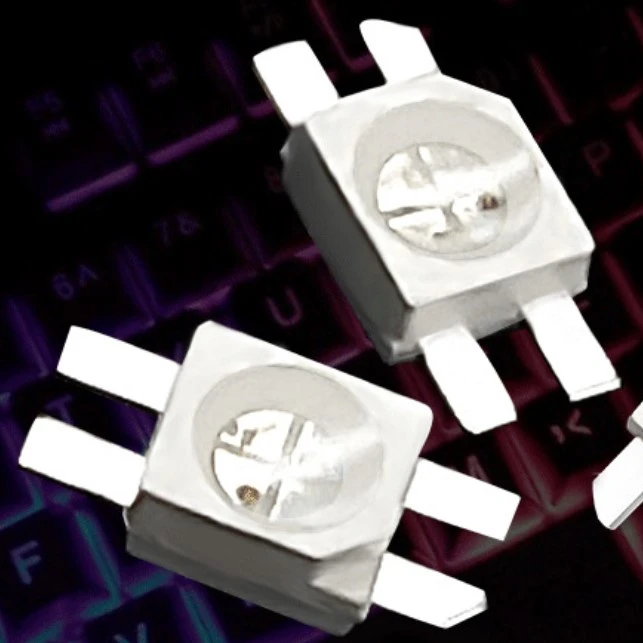

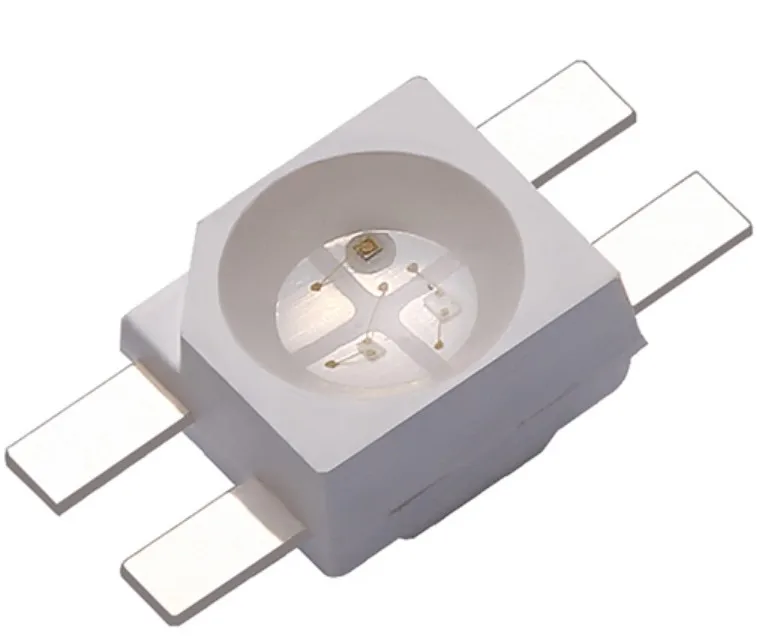

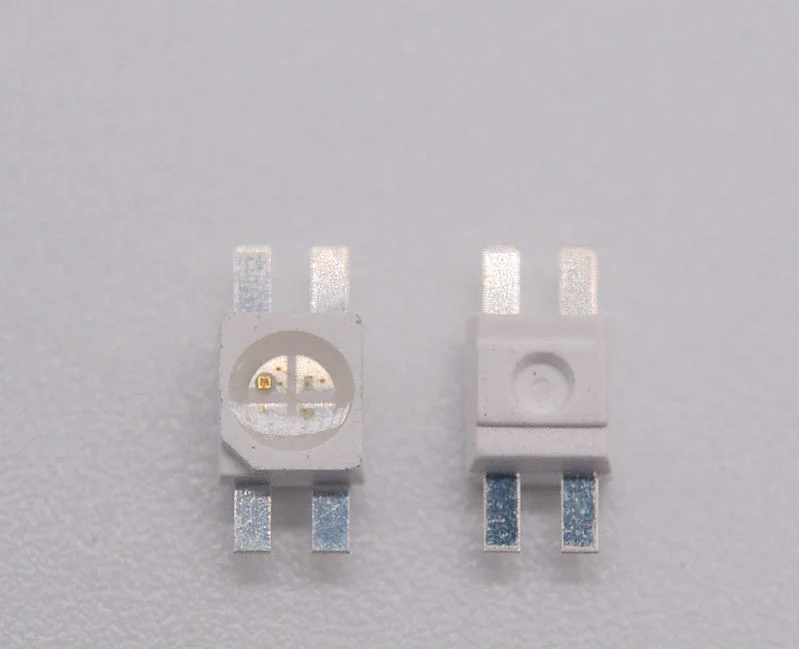

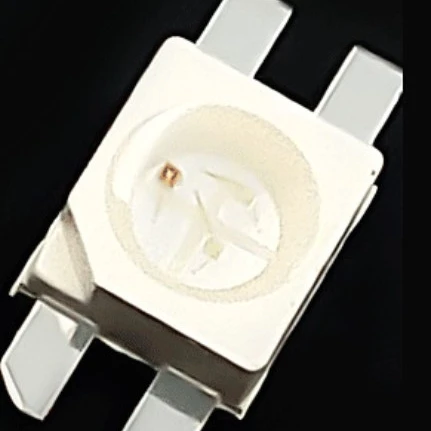

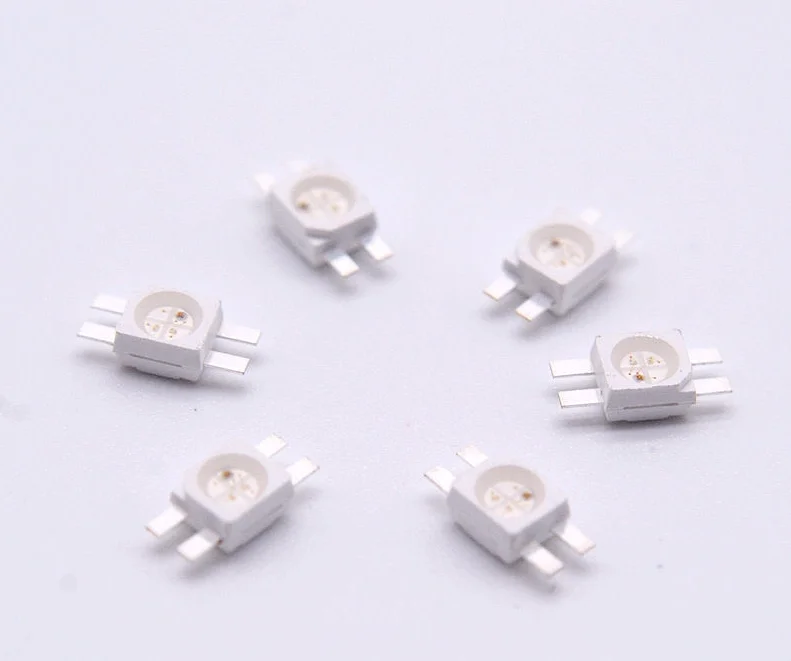

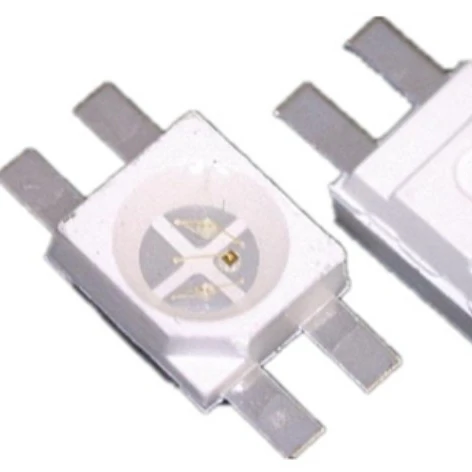

6028 RGB SMD LED diodes 4 pins for mechanical keyboards
Product Information
| Lamp Type | 6028 RGB LED | Chip Material | AlGaInP |
| Model Number | WEJT28FRGB0-BFABEKP01 | Emitted Color | RGB |
| Wave Length | R:620-630 nm G:520-530nm B:460-475nm | Resin Color | Clear |
| Forward Voltage | R:1.8-2.4 V G: 3.2-3.6V B:3.2-3.6V | Forward Current | 30mA |
| Reverse Voltage | 5V | Power Dissipation | 120mW |
| Peak Forward Current | 90mA | Viewing Angle | 120º |
| Reverse Current | 5μA | Working Temperature | -25℃~+85℃ |
| Diameter | 5.8mm * 2.8mm*1.85mm | Storage temperature | -40℃~+100℃ |
| Features | High brightness;Low power consumption;High reliability and stability. | ||
| Flexibility in optical design and mechanical design. | |||
| Applications | led decorative lighting,mechanical keyboards | ||
Features:
*5.8mmx2.8mm SMT Led, 1.85mm Thickness
*Low power consumption
*Long life-solid state reliability
*Available on tape and reel
*ROHS compliant
*Wide Viewing Angle
Application:
1.Channel letter
2.Portable lighting
3.Decorative lighting
4.Commercial Lighting
5.Backlighting of full color LCD
6.Bulbs and fluorescent lamps
Package Outline
Mechanical Dimensions: Unit(mm)
Package information
3000pcs/reel
150kpcs/carton
