220v 380v 2.2KW CNC Water cooled spindle motor 4pcs ceramic ball bearings 2pole 4pole working for Metal Iron Stainless
- Категория: Machine Tool Spindle >>>
- Поставщик: Suzhou,Penny,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.96 $* | 0.49 $* |
| Aug-18-2025 | 0.77 $* | 0.28 $* |
| Jul-18-2025 | 0.27 $* | 0.61 $* |
| Jun-18-2025 | 0.58 $* | 0.30 $* |
| May-18-2025 | 0.75 $* | 0.21 $* |
| Apr-18-2025 | 0.70 $* | 0.62 $* |
| Mar-18-2025 | 0.17 $* | 0.48 $* |
| Feb-18-2025 | 0.47 $* | 0.88 $* |
| Jan-18-2025 | 0.55 $* | 0.20 $* |
Характеристики
Product Description

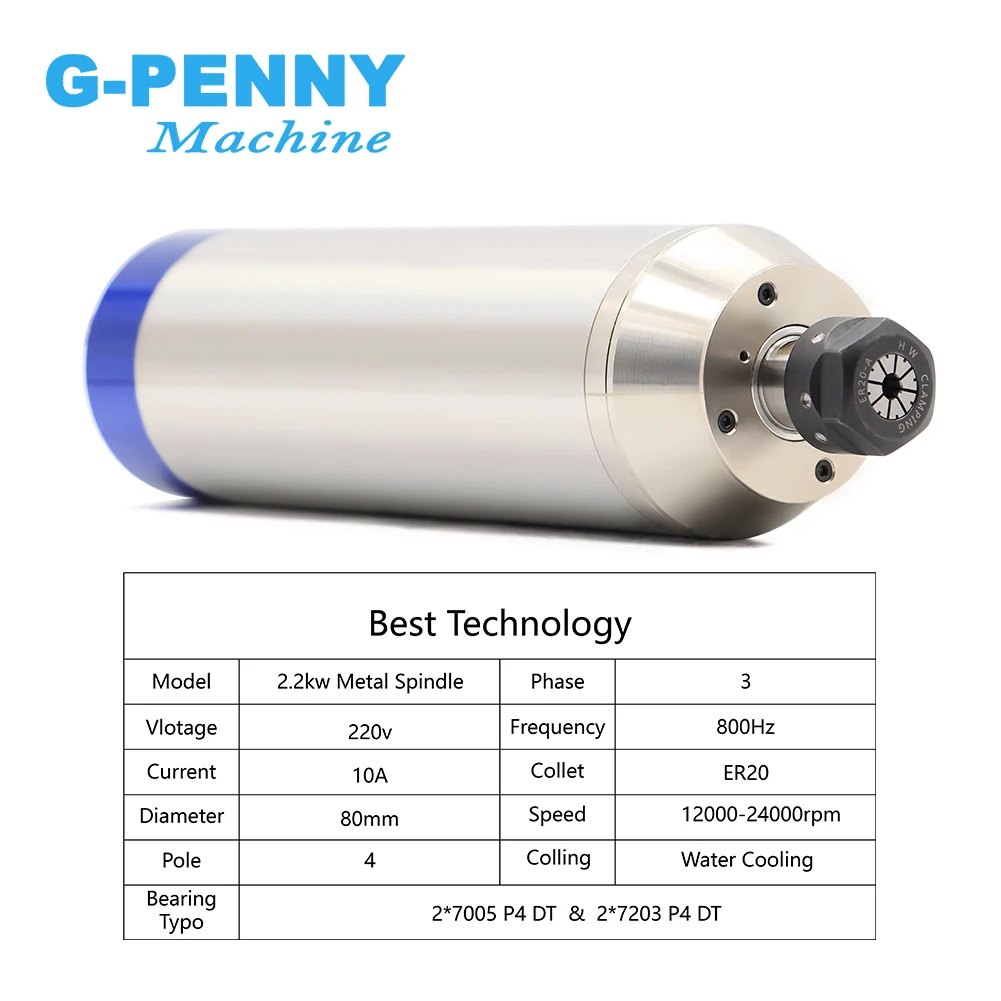

1 & 220v / 380v 2.2kw ER20 2pole 4pole Metal Working Spindle Motor Water Cooling Diameter=80mm 4pcs Ceramic ball bearings
There are 4 labyrinth seal in the front section of the spindle,prevents lubricant leakage from bearings and intrusion of harmful
impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.
impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.

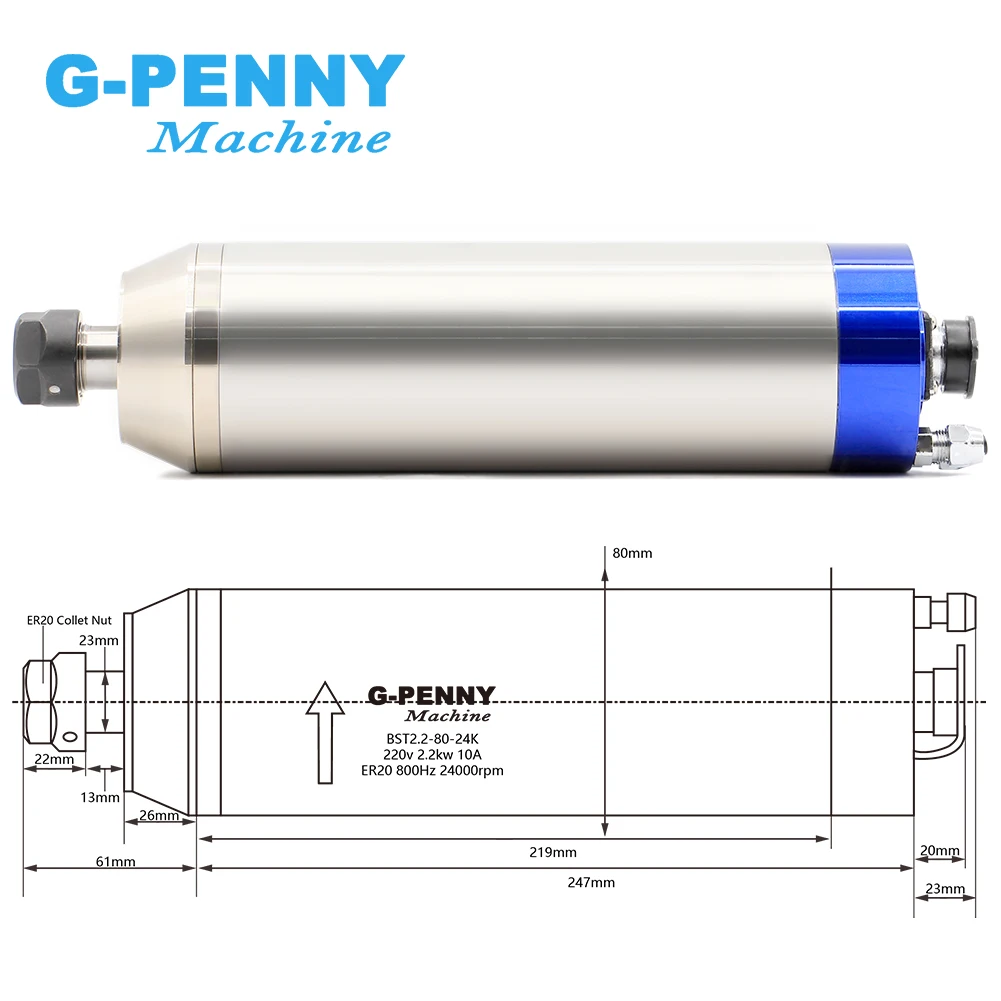

Size:80x318mm(Middle body diameter:80mmxLength:272mm)
Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Water cooling

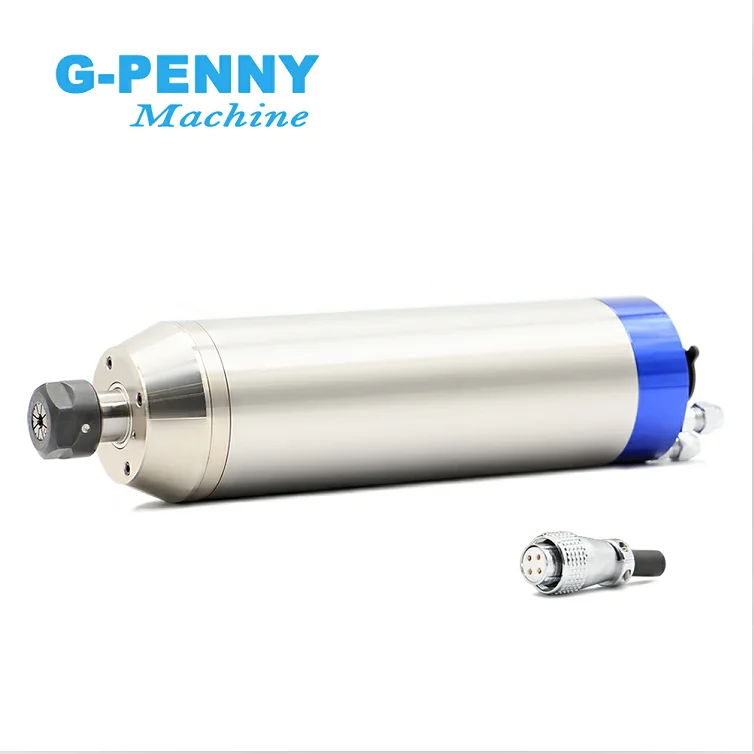

Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to
inverter (U, V, W), 4 connected inverter ground.
Power:2.2kw
Voltage:220v/380v
Current:10A / 5.5A
Frequency:400Hz / 800Hz
Speed:24000rpm
Pole: 2 / 4
Runout Off:Less than 0.01mm
Diameter(mm):80
Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs Ceramic Ball Bearings (fully sealed angular contact bearings)
Collet:ER20
Clip Knife diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
Water Cooling ER16 collet chunk
Grease Lubrication
Main Application:Engrave for iron,steel,stainless steel, aluminum,hard wood etc.(This is professional metal spindle, high
accuracy,big torque)
Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Water cooling
Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to
inverter (U, V, W), 4 connected inverter ground.
Power:2.2kw
Voltage:220v/380v
Current:10A / 5.5A
Frequency:400Hz / 800Hz
Speed:24000rpm
Pole: 2 / 4
Runout Off:Less than 0.01mm
Diameter(mm):80
Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs Ceramic Ball Bearings (fully sealed angular contact bearings)
Collet:ER20
Clip Knife diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
Water Cooling ER16 collet chunk
Grease Lubrication
Main Application:Engrave for iron,steel,stainless steel, aluminum,hard wood etc.(This is professional metal spindle, high
accuracy,big torque)
* Ceramic ball bearings,full sealed angular contact ball bearings ,2×7005C P4 DT&2×7002C P4 DT,increase spindle life.
* Carefully assembly make the spindle more precisional.
* High accuracy,used for metal engraving,cutting.Precision 0.01mm.
* We are the spindle manufacturer,we offer only best quality and best price to you.
* Carefully assembly make the spindle more precisional.
* High accuracy,used for metal engraving,cutting.Precision 0.01mm.
* We are the spindle manufacturer,we offer only best quality and best price to you.
1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
1. Why the inverter manual with the inverter is Chinese?
A: Sometimes we put the Chinese manual with the inverter, but we have the manual in English of PDF files, please contact us for
English manual. Also we offer the basic setting video, please contact us.
2.What is the difference between the wood working spindle and metal working spindle ?
A: Metal spindle use the iron shell, so the rigidity is better and the torque is bigger. If you use wood working spindle for hard
metal, the inside bearings will broken in 1-2 month,But if you use metal spindle,it can works well and for a long time.
A: Sometimes we put the Chinese manual with the inverter, but we have the manual in English of PDF files, please contact us for
English manual. Also we offer the basic setting video, please contact us.
2.What is the difference between the wood working spindle and metal working spindle ?
A: Metal spindle use the iron shell, so the rigidity is better and the torque is bigger. If you use wood working spindle for hard
metal, the inside bearings will broken in 1-2 month,But if you use metal spindle,it can works well and for a long time.
* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* 1.Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
* 2.AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before
using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* 3.When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle
bearings.
* If you don't know how to set up the inverter or connect the spindle to inverter,please contact us.We will help you to set up
it.
* 2.AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before
using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* 3.When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle
bearings.
* If you don't know how to set up the inverter or connect the spindle to inverter,please contact us.We will help you to set up
it.
* We will 100% guarantee security to the hands of the guests.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* Spindle from the production - assembly - test, and finally the perfect packaging .
Shipping Cost:
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
