Сварочный пистолет с газовым охлаждением 3 м 4
- Категория: Welding & Abrasives >>>
- Поставщик: Changzhou,China,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2994.50 $* | 3144.76 $* |
| Aug-19-2025 | 2969.8 $* | 3117.89 $* |
| Jul-19-2025 | 2491.41 $* | 2616.68 $* |
| Jun-19-2025 | 2919.18 $* | 3065.68 $* |
| May-19-2025 | 2541.94 $* | 2668.37 $* |
| Apr-19-2025 | 2868.82 $* | 3011.55 $* |
| Mar-19-2025 | 2843.15 $* | 2985.89 $* |
| Feb-19-2025 | 2818.59 $* | 2959.1 $* |
| Jan-19-2025 | 2793.3 $* | 2933.65 $* |
Характеристики
Easy to operate | Higher precision | Easy to use | Stable quality |
The welding torch diagram
Good reliable product
Accessories image resolution
Wear-resisting durable quality better
Exquisite details
wear-resisting works
copper material
Gas nozzle
High temperature resistance,
corrosion resistance,Product appearance
elegant, long service life
corrosion resistance,Product appearance
elegant, long service life
Solid core tongbang, borehole directlyA integrated,
no blocking by the silk,Good electrical conductivity,
wear-resisting and durable.
no blocking by the silk,Good electrical conductivity,
wear-resisting and durable.
Hoider
High quality copper, professional equipment· Better
ductility, thermal conductivity and corrosion
resistance
ductility, thermal conductivity and corrosion
resistance
Product Information

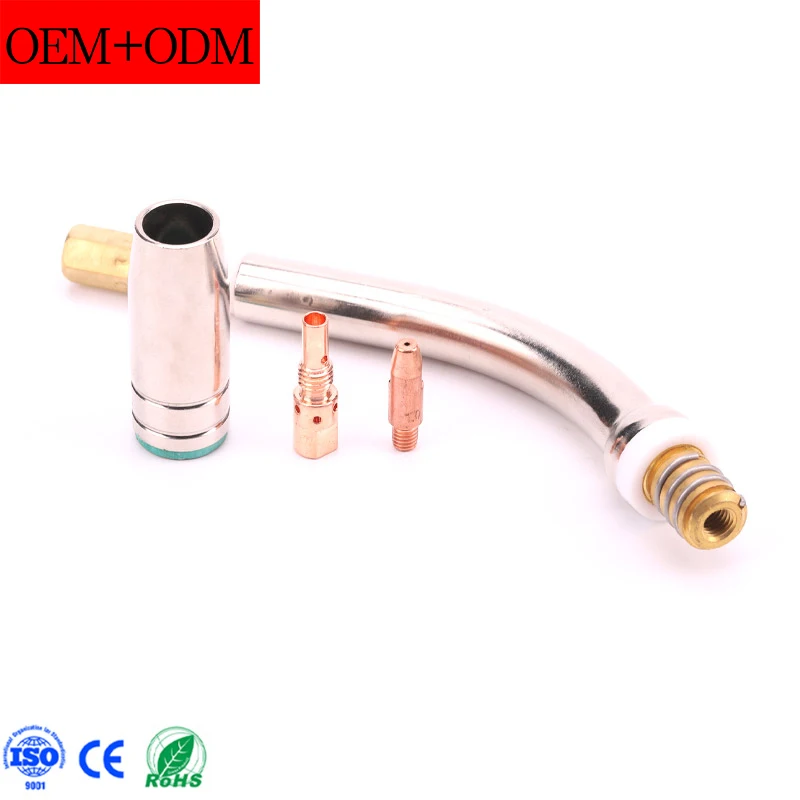

Gas Nozzle
Swan Neck
Switch

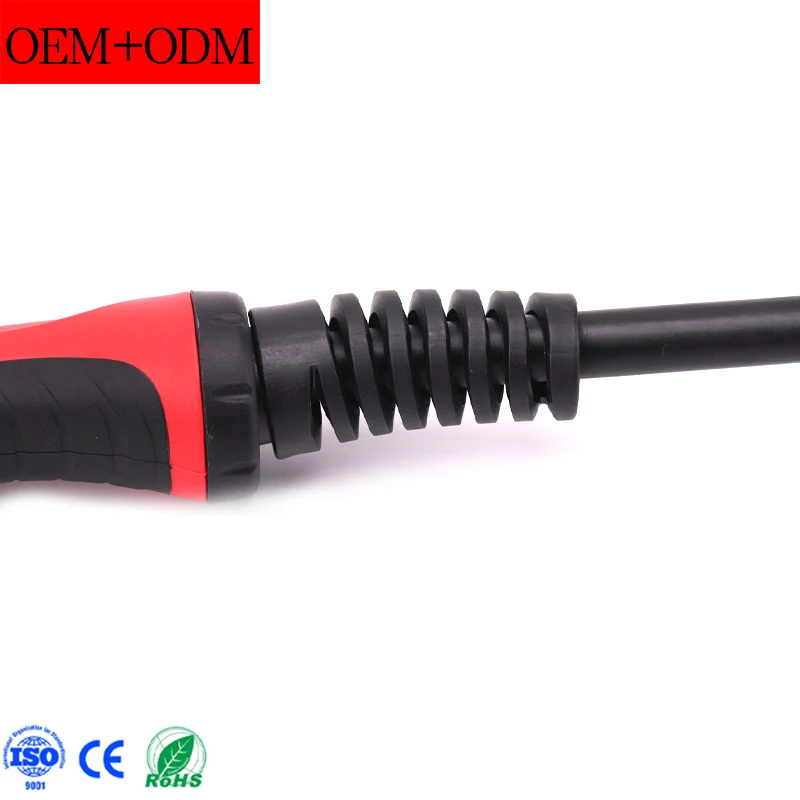

Welding Torch Handle
Support
Power Cable

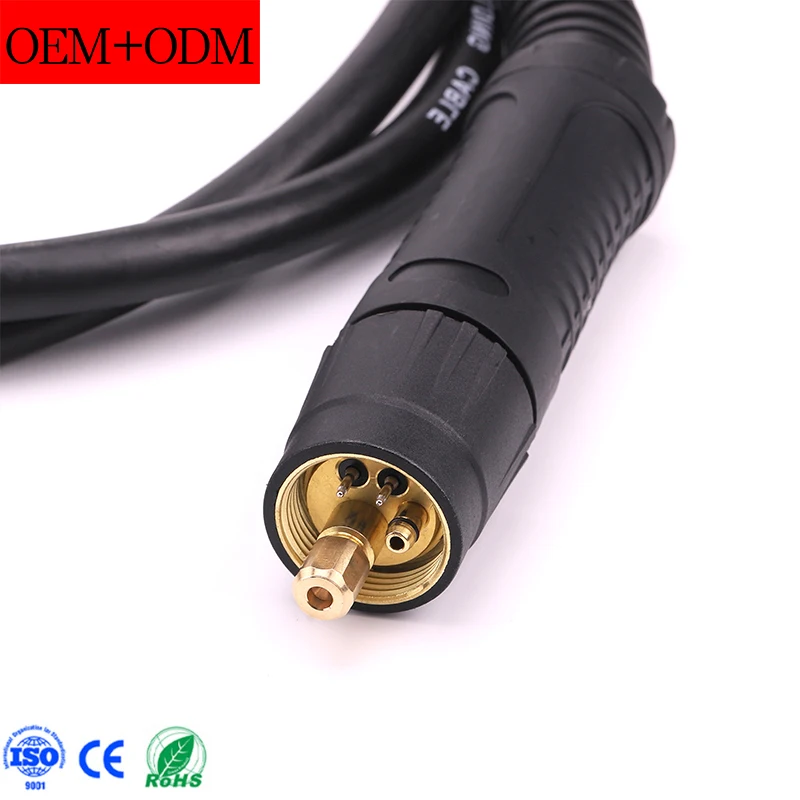

Welding Torch Rear Connector
Product preview
Truly show the product

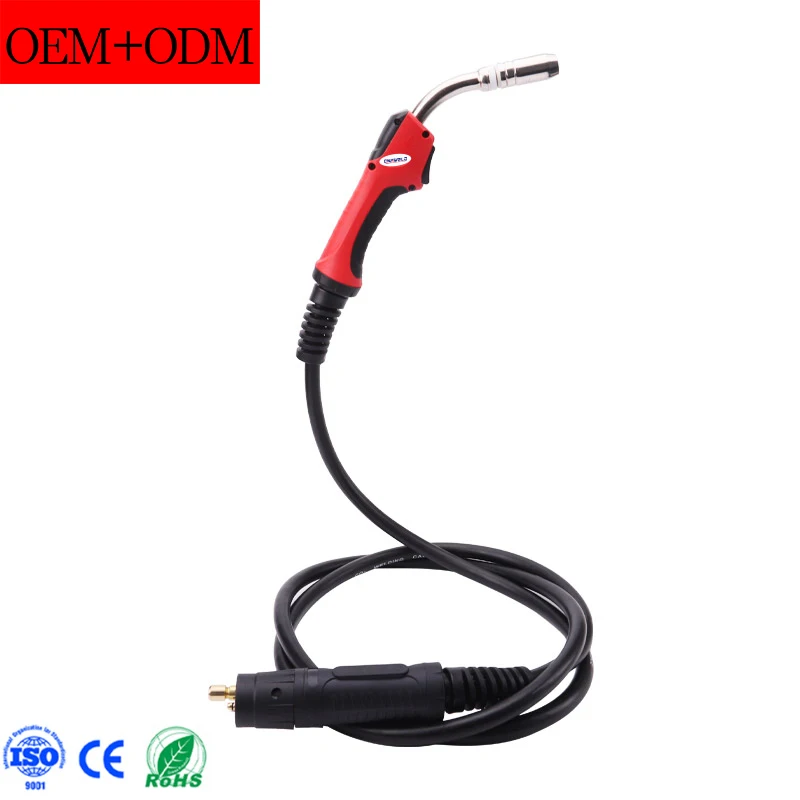

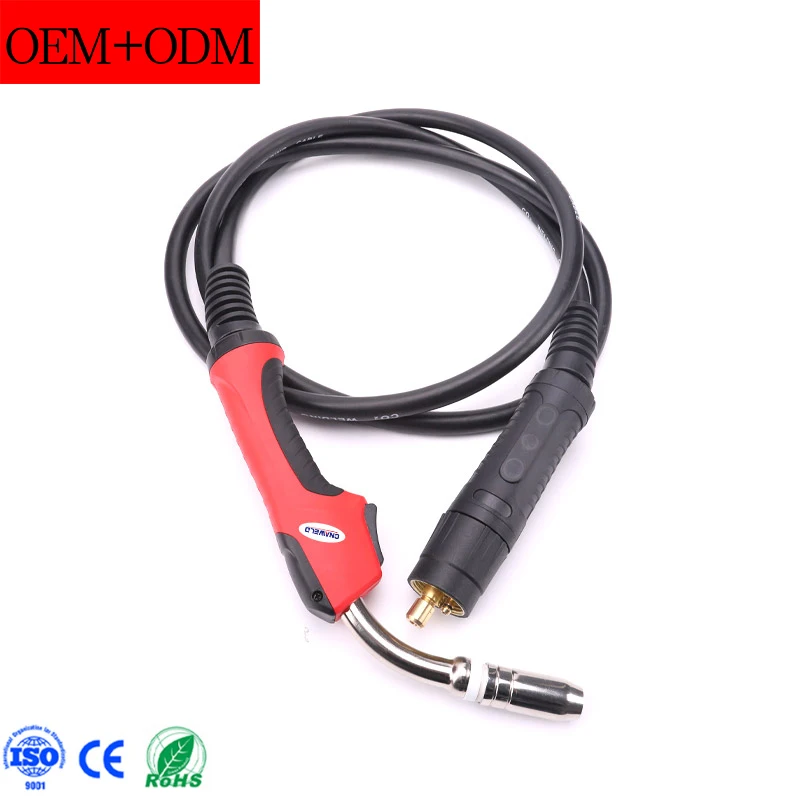

Binzel type MB 25AK MIG Gas Cooling Welding Torch | ||
Duty Cycle 60% | 230Amp CO2 , 200 Amp Mixed Gases | |
Cooling | Air Cooled | |
Wire Diameter | 0.8-1.2mm | |
Length fo choose | 3m / 4m / 5m | |
Technical Data | ||
Description | Reference N0. | |
25AK Torch 3m | CN004.0312 | |
25AK Torch 4m | CN004.0313 | |
25AK Torch 5m | CN004.0314 | |
Tapered Nozzle 11mm | CN145.0124 | |
Conical Nozzle 15mm | CN145.0076 | |
Cylindrical Nozzle 18mm | CN145.0042 | |
Contact Tip,ECu，M6 28 0.8 | CN140.0051 | |
Contact Tip,ECu，M6 28 0.9 | CN140.0169 | |
Contact Tip,ECu，M6 28 1.0 | CN140.0242 | |
Contact Tip,ECu，M6 28 1.2 | CN140.0379 | |
Contact Tip,CuCrZr M6 28 0.8 | CN140.0054 | |
Contact Tip,CuCrZr M6 28 1.0 | CN140.0245 | |
Contact Tip,CuCrZr M6 28 1.2 | CN140.0382 | |
Contact Tip Holder | CN140.0001 | |
Nozzle Spring | CN003.0013 | |
Swan Neck | CN004.0012 | |
Nut M10 | CN501.0082 | |
Plastic Nut | CN400.0044 | |
Switch Connector Coller | CN175.A022 | |
Central Connector KZ2 | CN501.0003 | |
We mainly produce:
1) MIG/MAG/CO2: Binzel 15AK/24KD/25AK/26KD/36KD/40KD/401D/501D, Pana 200A/350A/500A, OTC 200A/350A/500A, Bernard 300A/400A, CN-Tweco 2#/3#/4#/5#, CN-Fronius AW4000 /AW5000 / AL2300/ AL3000/ AL4000, Robot automatic welding. Welding torches, nozzle, contact tip, tip holder, swan neck, diffuser, liner, etc.
2) TIG: WP9, WP17, WP26, WP18, WP12, WP20, WP27, SR-208/308, etc. Welding torch,torch head (F/V/FV/P), collet, collet body, gas lens, ceramic nozzle, long/medium/short cap, etc.
3) Air plasma cutting: P80, P160, PT31, SG51, SG55, JG60, JG100,CB50-CB150, A81, A101, A141, S45, S75, PT60, PT80, PT100 etc, compatiable parts for trafimet, HPR,kjellberg, OTC, TD, etc. Plasma cutting torch, torch head, nozzle, electrode, shield cap,ceramic nozzle, swirl ring, etc.
4)Stud welding torch, etc.
5) Cable joint, earth clamp, electrode holder,quick plug,scoket,water quick connector, etc.
3) Air plasma cutting: P80, P160, PT31, SG51, SG55, JG60, JG100,CB50-CB150, A81, A101, A141, S45, S75, PT60, PT80, PT100 etc, compatiable parts for trafimet, HPR,kjellberg, OTC, TD, etc. Plasma cutting torch, torch head, nozzle, electrode, shield cap,ceramic nozzle, swirl ring, etc.
4)Stud welding torch, etc.
5) Cable joint, earth clamp, electrode holder,quick plug,scoket,water quick connector, etc.
Company Profile
About ChiNa - CNAWELD
Changzhou ChiNa Welding Equipment Co.,Ltd is a development, production and sales of the modern enterprise. Founded in 2011. Has strong technical force, strong production capacity and complete testing equipment Specializing in MIG welding gun, plasma cutting guns, TIG welding gun and a variety of welding accessories. Advanced technology, excellent performance，the products have obtained ISO9001,CE,ROHS,SGS certifications. Companies in perfect quality system and excellent after-sales service and constantly open up the domestic market.
Production Workshop Display
Exhibition & Team
Certlficatlons
Packaging & Shipping
FAQ
Q1: Can I test that sample?
A: Yes, we can support sample at a reasonable charge.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, we have a capability and professional efficient team, provide OEM and ODM .
A: Yes, we can support sample at a reasonable charge.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, we have a capability and professional efficient team, provide OEM and ODM .
Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.
Q4: How to control the quality of products?
A: Yes, we have our own factory and engineers at any time to help customers solve technical support problems, quotation or any
problems that may arise during installation, including after-sales support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
A: Special discount Marketing protection.
Q4: How to control the quality of products?
A: Yes, we have our own factory and engineers at any time to help customers solve technical support problems, quotation or any
problems that may arise during installation, including after-sales support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
