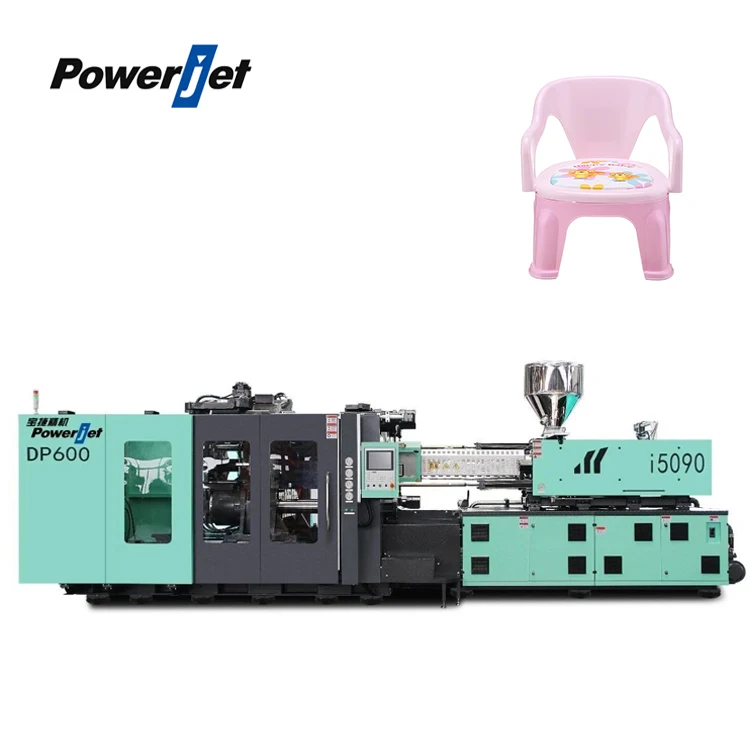

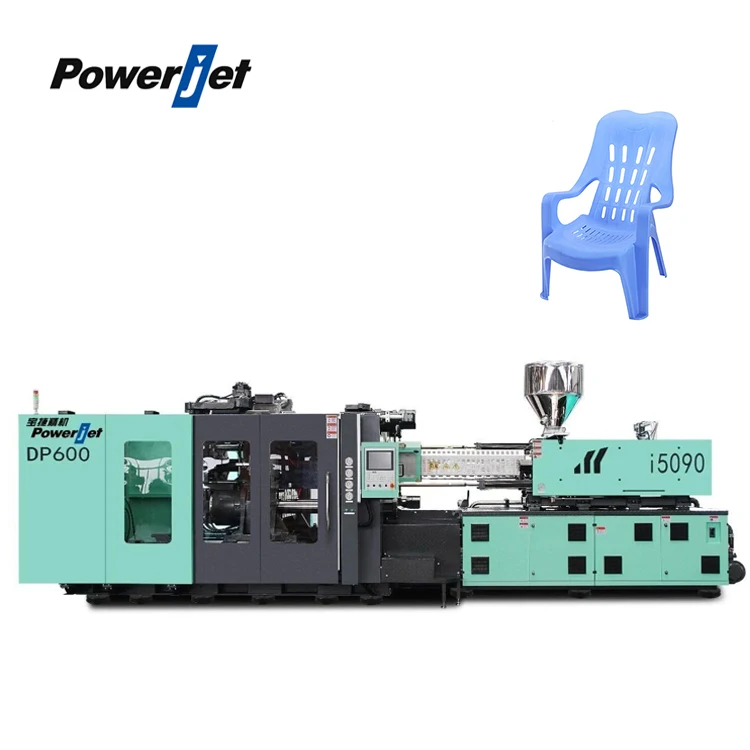

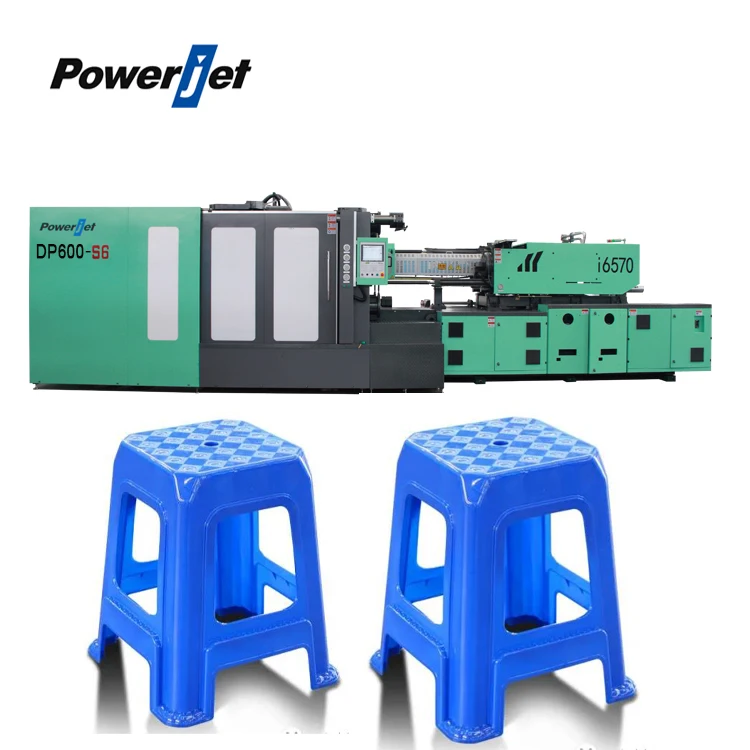

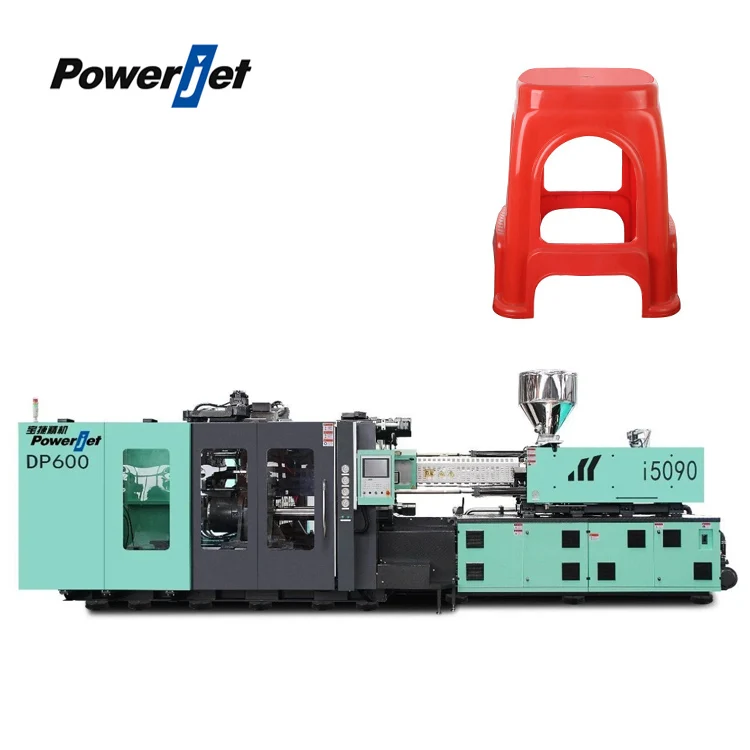

Автоматическая машина для литья под давлением Powerjet гидравлическая
- Категория: Plastic Injection Machines >>>
- Поставщик: Powerjet,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.77 $* |
| Aug-19-2025 | 0.72 $* | 0.1 $* |
| Jul-19-2025 | 0.94 $* | 0.80 $* |
| Jun-19-2025 | 0.89 $* | 0.79 $* |
| May-19-2025 | 0.22 $* | 0.94 $* |
| Apr-19-2025 | 0.42 $* | 0.97 $* |
| Mar-19-2025 | 0.84 $* | 0.33 $* |
| Feb-19-2025 | 0.96 $* | 0.41 $* |
| Jan-19-2025 | 0.77 $* | 0.83 $* |
Характеристики
Details Images
High Efficiency
Low Energy Consumption
More Dedicated
The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.
The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.
Four independent high-pressure oil cylinders innovative structure for quick and stable pressure rising and releasing, easy maintenance.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.
Ultra-wide space of the mold clamping area, large core pulling space and easy operation.
The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
The movable platen adopts linear guider with low resistance, low energy consumption, stable moving and accurate positioning.
Equipped with servo electric charging, high speed rotate, low noise, low energy consumption, compared with traditional hydraulic motor charging, saving power cost more than 30%.
Product Paramenters
DESCRIPTION | UNIT | DP600-S6 |
Intemational size rating | 5090-600 | |
Clmping force | KN | 6000 |
Opening Stroke | mm | 1450/850 |
Space btw.Tie Bars | mm | 960×860 |
Daylight Max. | mm | 1800 |
Mold Thickness(min-max) | mm | 350-950 |
Ejection Stroke | mm | 250 |
Ejector Force | KN | 166 |
Screw Diameter | mm | 100 |
Short Volume | cm3 | 3691 |
Shot Weight(PS) | g | 3359 |
Injection rate | g/s | 849 |
Injection Pressure | MPa | 138 |
Screw L/D Ratio | L/d | 20 |
Injection Stroke | mm | 470 |
Screw Rotary Speed max. | rpm | 145 |
Nozzle Contact Force | KN | 200 |
Nozzle Stroke | mm | 600 |
System Pressure | MPa | 17.5 |
Pump Motor | KW | 52+42 |
Heating Capacity | KW | 47 |
Oil Tank Capacity | L | 1000 |
Machine Dimensions | m | 7.9*3*2.7 |
Machine Weight | T | 25 |
Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services.
Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases
