Характеристики

Products Description

Product name	Current Transformer Volt Ampere Characteristic Tester Power Frequency CT PT Analyzer
Power	Electronic
Function	CT/PT test

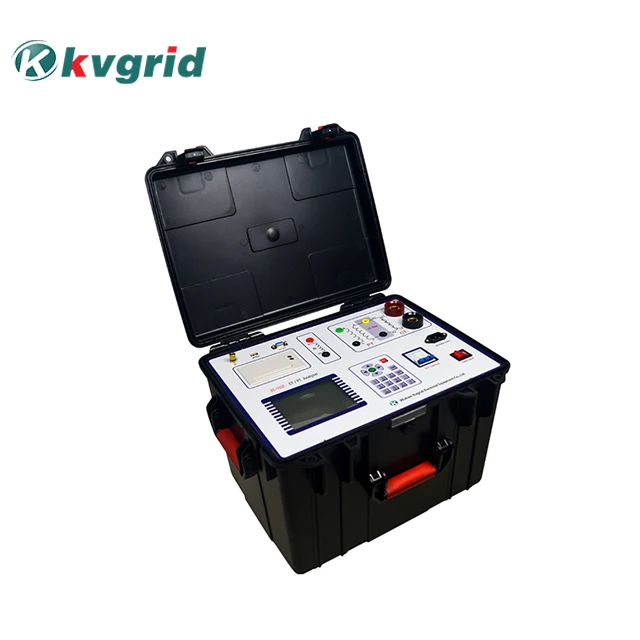

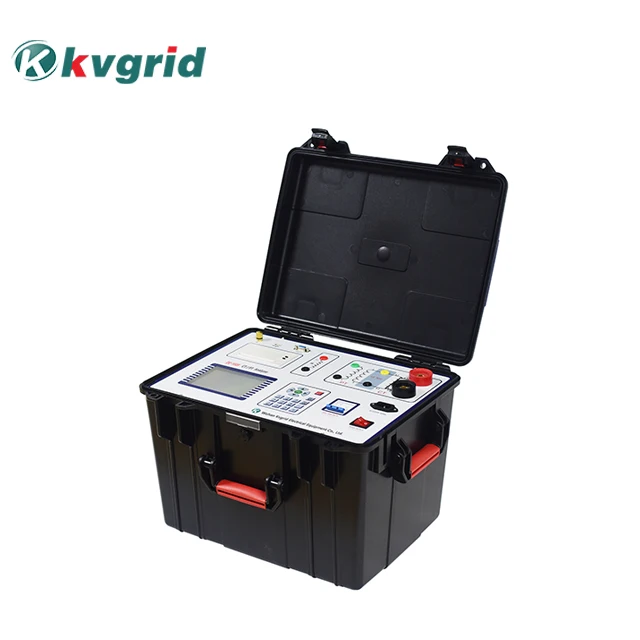

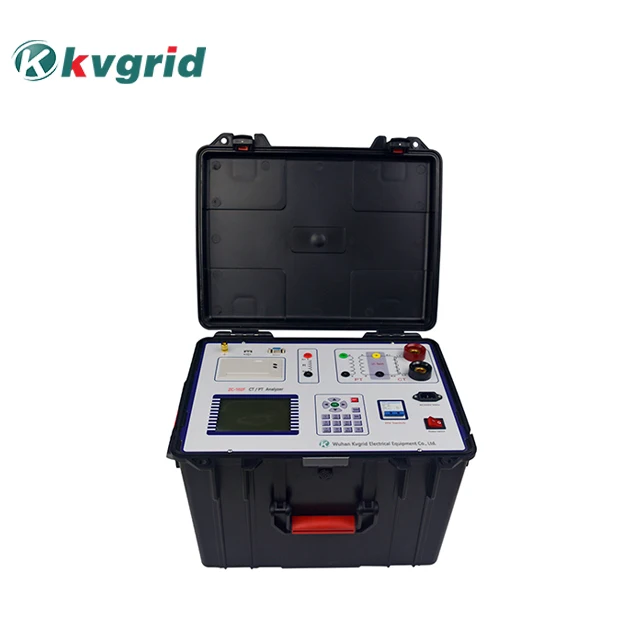

ZC-102F CT/PT Tester is a fully automatic CT/PT characteristic test instrument using primary injection. This CT/PT tester can perform: CT/PT excitation characteristic test, CT/PT ratio and polarity test, AC withstand test and CT/PT load test. This tester is easy to operate by scientific design, and one person can complete all the testing work. The software has powerful functions, automatically calculates and gives the test results. The self-contained U disk storage function, combined with PC software, generates complete testing. Reporting, data management is simple and efficient, reducing the workload of testers. The instrument has its own micro printer, which can print test data and curves I real time. This instrument is a professional testing instrument with complete functions, suitable for laboratory and field testing, and widely praised by users.

Product Feature

[01] Only need to set the test voltage, current and step, the device will boost and trace voltage current characteristic test
curve automatically, save the cumbersome labor of manual pressure regulation, artificial record, tracing curves, and so. Quick, simple and convenient.

[02] It can not only test CT/PT DC resistance, volt-ampere characteristics, ratio and polarity, 10% error curve, angle difference and ratio difference, but also test secondary load of transformer, CT current test and PT AC withstand voltage test.

[03] CT ratio not only supports traditional current method but also voltage method, so it can meet the test of CT in
casing CT and GIS.

[04] Volt-ampere characteristic test single machine output voltage 0-2500V, current 0-20A, can meet most of the
transformer volt-ampere characteristic test.

[05] 220V single power input and avoids the risk of using 380V.

[06] Large screen liquid crystal display, the test directly shows the volt ampere curve, intuitive and convenient. It with micro printers and can be convenient to print test data.

[07] It has digital keyboard, convenient digital input.

[08] With a large capacity memory, can store 3000 sets of test data which
will not lost when power off.

[09] USB interface, supporting U disk export data and U disk upgrade system.

[10] RS232 communication interface can be connected to the computer for testing, test data can be uploaded to the computer to edit and save.

Technical Parameter

Booster output current & voltage			1A/2500V 2A/1500V 5A/600V 10A/220V 20A/30V
Current generator output current			600A
Output power			3000VA
Voltage and current measurement accuracy			±0.2%
CT ratio tests Voltage method / current method	Range	1~40000
CT ratio tests Voltage method / current method		Accuracy	±0.2%
PT ratio tests	Range	1~40000
PT ratio tests		Accuracy	±0.2%
Phase measurement	Range	±5min
Phase measurement		Resolving power	0.5min
Secondary winding resistance tests	Range	0~1kΩ
Secondary winding resistance tests		Accuracy	0.5%±2mΩ
AC load tests	Range	0~1000VA
AC load tests		Accuracy	0.5%±0.05VA
Power supply			AC220V±10% ，50Hz
Work environment			Temperature: -10℃~50℃,Humidity: ≤90%
Size & Weight			Size: 425 mm×290 mm×310mm Weight: 30kg
