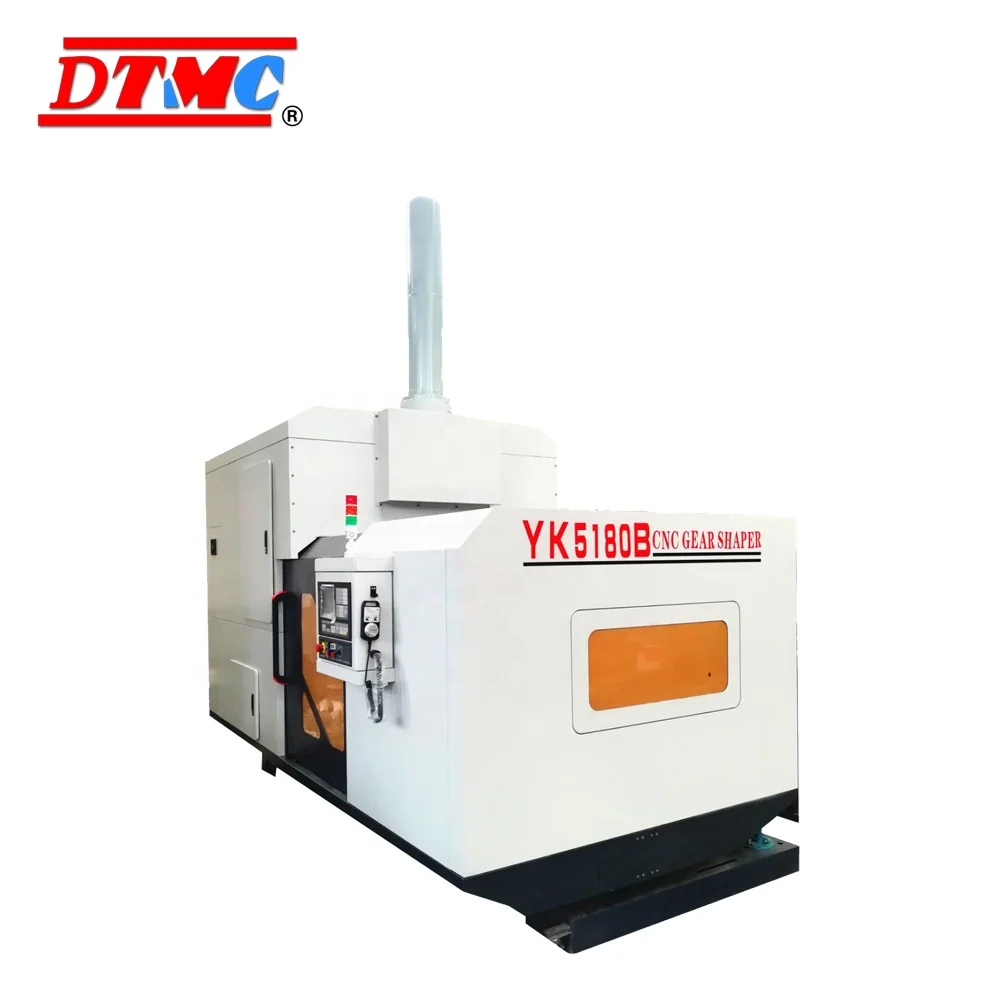

YK5180B ЧПУ шестеренчатая формовочная машина горячая


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.96 $* 0.87 $*
Aug-16-2025 0.45 $* 0.64 $*
Jul-16-2025 0.58 $* 0.76 $*
Jun-16-2025 0.81 $* 0.15 $*
May-16-2025 0.87 $* 0.83 $*
Apr-16-2025 0.69 $* 0.52 $*
Mar-16-2025 0.77 $* 0.95 $*
Feb-16-2025 0.44 $* 0.67 $*
Jan-16-2025 0.65 $* 0.59 $*

Характеристики



DTMC


1





Product Description









































































Max machining diameter



External tooth 800mm



Internal tooth 1000mm



Max machining modulus



12m



Max machined tooth width



180mm



Max stroke length of a gear shaper



200mm



Circumferential feed / reciprocating stroke



Stepless speed regulation



Table diameter of a worktable



800mm



Workbench aperture



130mm



The distance between the axis line of the gear cutter and the axis of the worktable



0-700mm



The distance between the support surface of the cutter and the table of the worktable



150-350mm(standard )


150-350mm(Marking type)


450-650mm(higher 300)


450-650mm(Type 300 type)



Number of reciprocating strokes per minute (times / minutes)



Stepless speed regulation



The volume of the cutter is not less than that of the gear cutter.



0.65mm



Shaft neck diameter of a gear shaper



31.743mm,88.9mm,101.6mm



Main motor power



7KW



Shape size (long x wide x high)



4100×1900×3792mm



Machine tool weight



12000kg






Product show


 12





Company Information


2





  Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.

Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.

We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
